ASUS ROG STRIX B860-I DDR5 GAMING WIFI Motherboard - Black

ASUS ROG STRIX B860-I DDR5 GAMING WIFI Motherboard - Black

90MB1JB0-M0EAY0

QR Code : 1326097

In stock

KWD 78.250
KWD 78.250
Sale Sold out
Manufacturer

Description

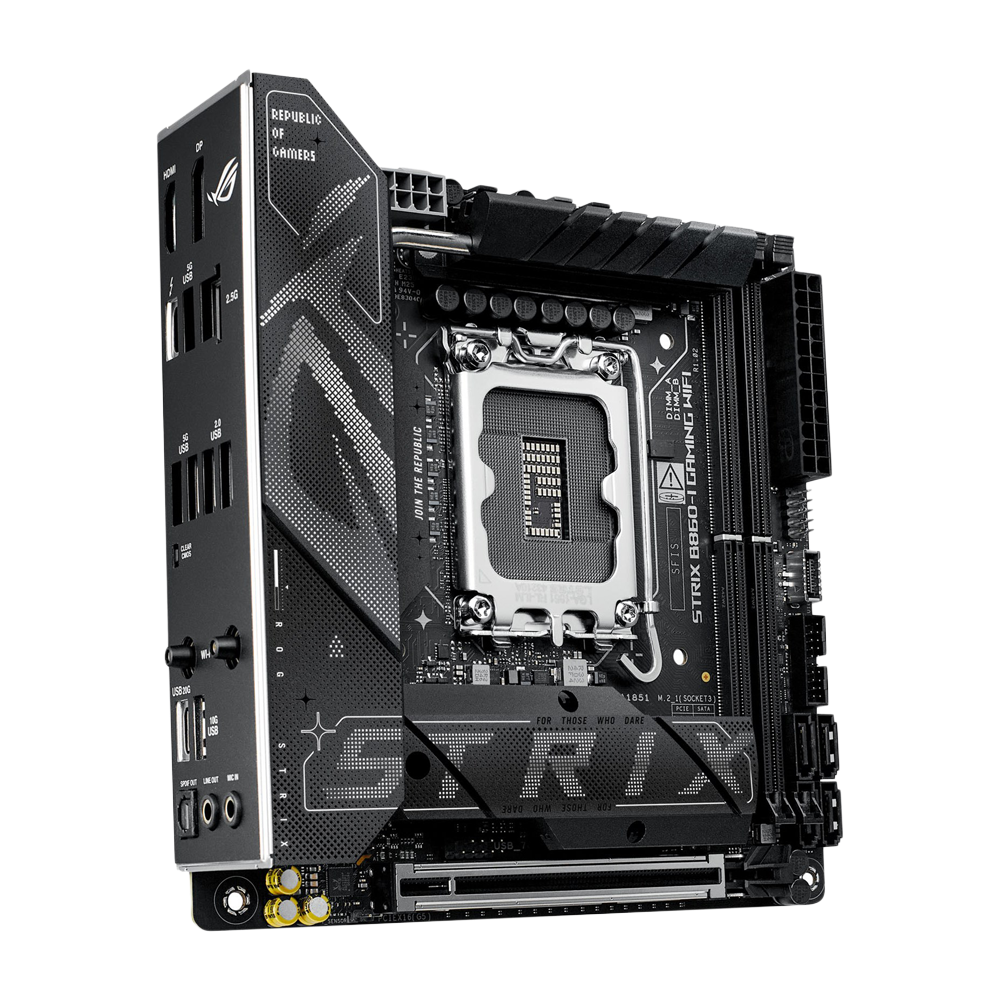

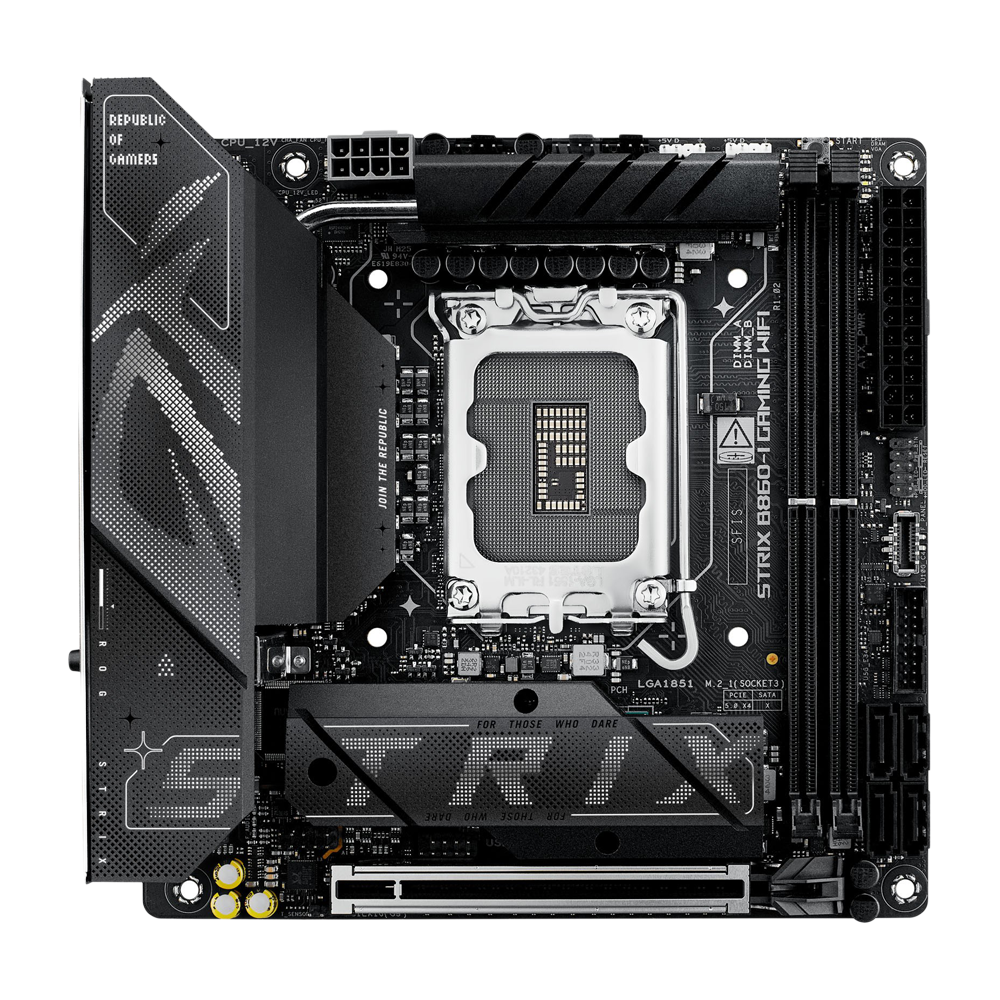

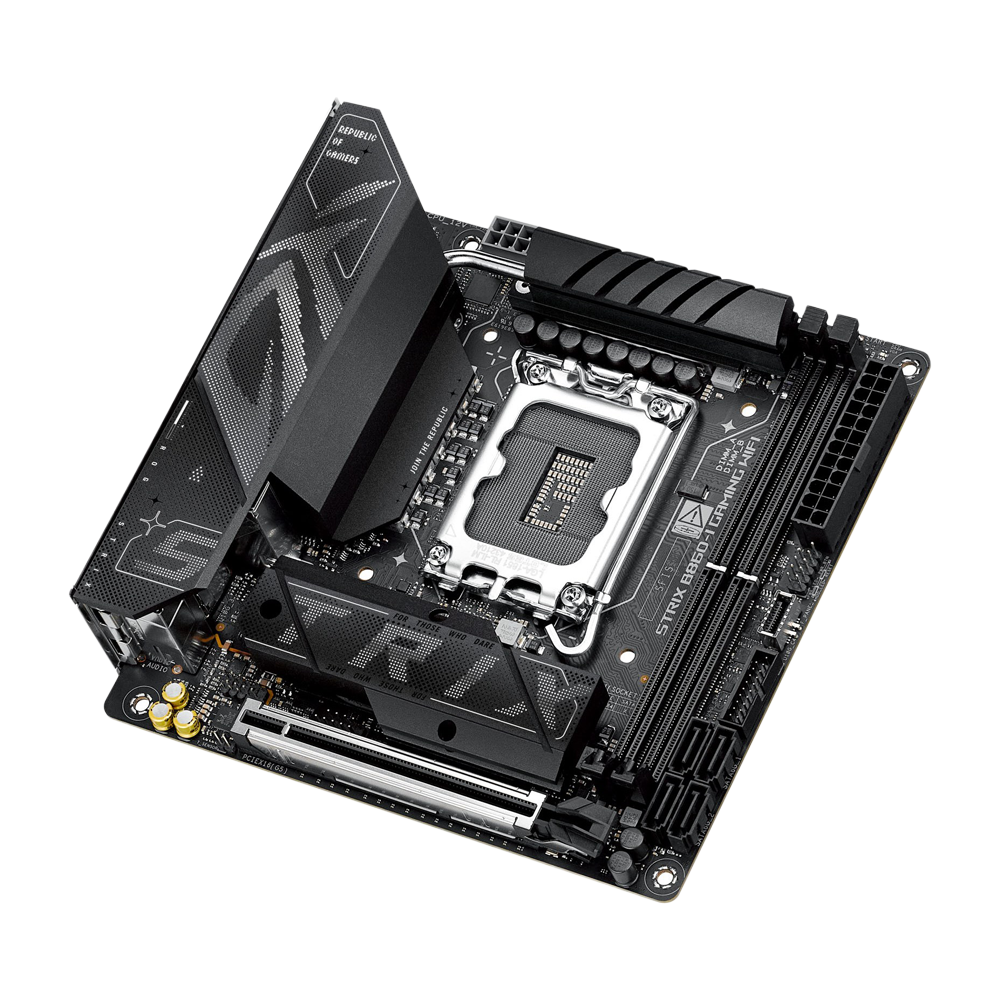

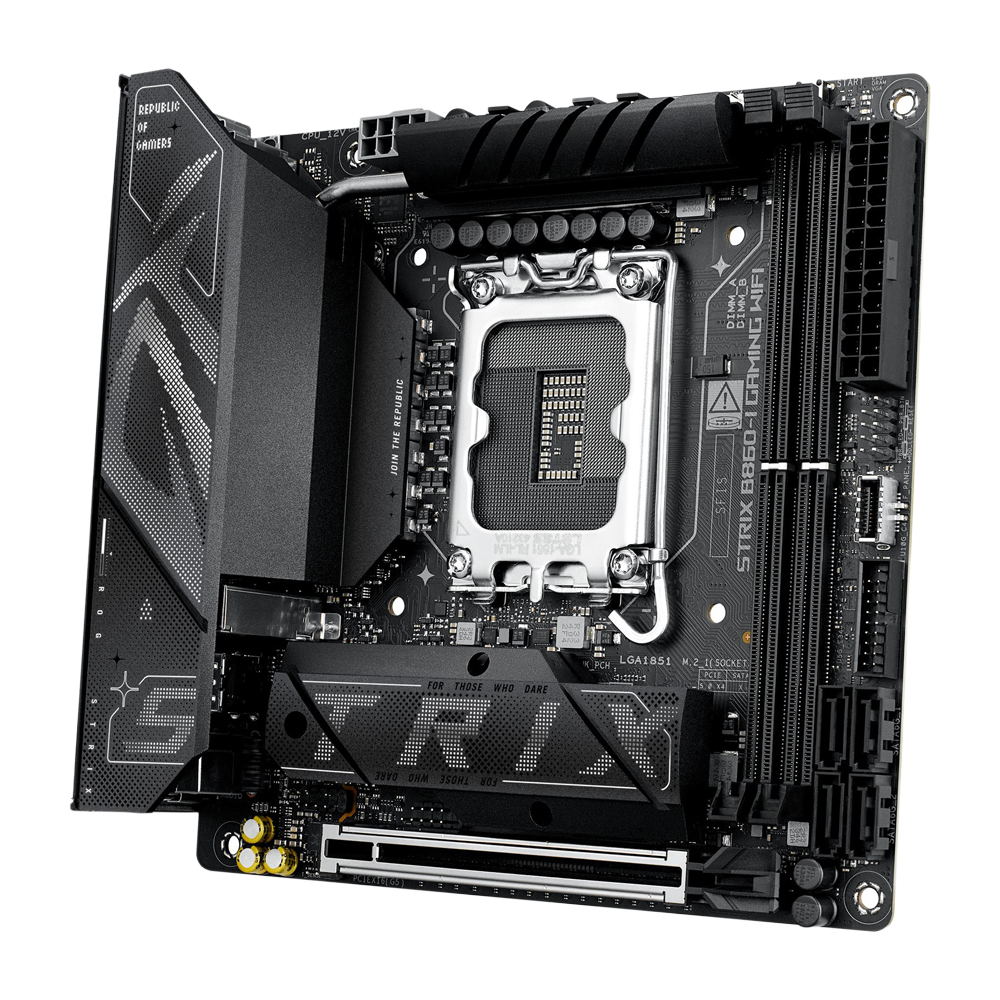

ASUS ROG STRIX B860-I GAMING WIFI DDR5 Mini-ITX Motherboard - Black

ROG STRIX B860-I Gaming wifi

The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

ASUS AI INTELLIGENCE

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance

OVERCLOCKING

NPU BOOST

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Asynchronous Clock

For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.

Separate CPU BCLK from other domains for unfettered overclocking.

Performance

MEMORY

DDR5 DOMINATION

Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-I.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM FIT

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

ROG STRIX ULTIMATE

POWER DESIGN

10(80A)+1(80A)+2(80A)+1(80A)

Power Stages

Performance

COOLING

M.2

M.2 HEATSINKS

Leading Connectivity

pcie 5.0

Fully embracing the new standard, the Strix B860-I offers end-to-end PCIe 5.0 support.

UNDENIABLY ROG STRIX

The ROG Strix B860-I features a sleek, minimalist design that blends effortlessly with various system components. Its deep black PCB and metallic heatsinks give it a bold, intense look, while the L-shaped backplate adds both style and practical protection against sharp edges.

Specifications

Model

  • ROG STRIX B860-I GAMING WIFI

CPU

  • Support Intel® Core™ Ultra Processors (Series 2)*

  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

  • Intel® B860 Chipset

Memory

  • 2 x DIMM slots, max. 128GB, DDR5

  • Supports up to 9066+MT/s (OC), Non-ECC

  • Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

  • Dual channel memory architecture

  • DIMM Fit

  • Supports Intel® Extreme Memory Profile

  • (XMP) memory module

  • ASUS Enhanced Memory Profile III (AEMP III)

  • *Adjustments will be made based on the specifications of mass-produced memory products available on the market.

  • * Supported memory types, data rate

  • (speed), and number of DRAM modules vary depending on the CPU and memory

  • configuration, for more information please refer to CPU/Memory

  • * *Non-ECC, un-buffered DDR5 memory

  • supports On-Die ECC function.

Graphics

  • 1 x DisplayPort**

  • 1 x HDMI™ port***

  • 1 x Intel® Thunderbolt™ 4 supports

  • DisplayPort and Thunderbolt™ video outputs****

  • * Graphics specifications may vary between CPU types.

  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

  • *** Supports 4K@60Hz as specified in HDMI 2.1.

  • ****Supports up to 8K@60Hz x1 with DSC,maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.

  • ***** VGA resolution support depends onprocessors' or graphic cards' resolution.

Expansion Slots

  • Intel® Core™ Ultra Processors (Series 2)

  • 1 x PCIe 5.0 x16 slot

  • - To ensure compatibility of the device

Storage

  • Total supports 2 x M.2 slots and 4 x SATA

  • 6Gb/s ports*

  • Intel® Core™ Ultra Processors (Series 2)

  • M.2_1 slot (Key M), type 2260/2280

  • (supports PCIe 5.0 x4 mode)

  • Intel® B860 Chipset**

  • M.2_2 slot (Key M), type 2242/2260/2280

  • (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

  • * Intel® Rapid Storage Technology supports

  • SATA RAID 0/1/5/10.

Ethernet

  • 1 x Intel® 2.5Gb Ethernet

  • ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 7*

  • 2x2 Wi-Fi 7 (802.11be)

  • Supports 2.4/5/6GHz frequency band**

  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

  • Bluetooth® v5.4***

  • *Wi-Fi features may vary depending on the operating system

  • For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

  • For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.

  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

  • Rear USB (Total 8 ports)

  • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)

  • 1 x USB 20Gbps port (1 x USB Type-C®)

  • 1 x USB 10Gbps ports (1 x Type-A)

  • 3 x USB 5Gbps ports (3 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • Front USB (Total 5 ports)

  • 1 x USB 10Gbps connector (supports USB

  • Type-C®)

  • 1 x USB 5Gbps header supports 2 additional

  • USB 5Gbps ports

  • 1 x USB 2.0 header supports 2 additional

  • USB 2.0 ports

  • * USB Type-C® power delivery output: max.

  • 5V/3A

Audio

  • Realtek ALC1220P 7.1 Surround Sound High

  • Definition Audio CODEC*

  • - Impedance sense for front and rear

  • headphone outputs

  • - Internal audio Amplifier to enhance the

  • highest quality sound for headphone and speakers

  • - Supports: Jack-detection,

  • Multi-streaming, Front Panel Jack-retasking

  • - High quality 120 dB SNR stereo playback

  • output and 113 dB SNR recording input (Line-in)

  • - Supports up to 32-Bit/192 kHz

  • playback*"

  • Audio Features

  • - SupremeFX Shielding Technology

  • - Savitech SV3H712 AMP

  • - Rear optical S/PDIF out port

  • - Premium audio capacitors

  • - Dedicated audio PCB layers

  • * Due to limitations in HDA bandwidth,

  • 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

  • ** A chassis with an HD audio module in the

  • front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

  • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)

  • 1 x USB 20Gbps port (1 x USB Type-C®)

  • 1 x USB 10Gbps ports (1 x Type-A)

  • 3 x USB 5Gbps ports (3 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • 1 x DisplayPort

  • 1 x HDMI™ port

  • 1 x Wi-Fi module

  • 1 x Intel® 2.5Gb Ethernet port

  • 2 x Audio jacks

  • 1 x Optical S/PDIF out port

  • 1 x Clear CMOS button

Internal I/O Connectors

  • Fan and Cooling Related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin AIO Pump header

  • 1 x 4-pin Chassis Fan headers

  • Power Related

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V CPU Power connector

  • Storage Related

  • 2 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

  • USB

  • 1 x USB 10Gbps connector (supports USB

  • Type-C®)

  • 1 x USB 5Gbps header supports 2 additional

  • USB 5Gbps ports

  • 1 x USB 2.0 header supports 2 additional

  • USB 2.0 ports

  • Miscellaneous

  • 2 x Addressable Gen2 headers

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x 10-1 pin Front System Panel header

  • 1 x Thermal Sensor header

Special Features

  • Extreme Engine Digi+

  • - 5K Black metallic capacitors

  • ASUS Q-Design

  • - PCIe Slot Q-Release Slim (with PCIe

  • SafeSlot)

  • - M.2 Q-Latch

  • - Q-Antenna

  • - Q-Dashboard

  • - Q-DIMM

  • - Q-LED (CPU [red], DRAM [yellow], VGA

  • [white], Boot Device [yellow green])

  • - Q-Slot

  • ASUS Thermal Solution

  • - M.2 heatsink backplate

  • - M.2 heatsink

  • - VRM heatsink design

  • ASUS EZ DIY

  • - Clear CMOS button

  • - CPU Socket lever protector

  • - ProCool

  • - Pre-mounted I/O shield

  • - SafeSlot

  • - SafeDIMM

  • Aura Sync

  • - Addressable Gen2 headers

Software Features

  • ROG Exclusive Software

  • - ROG CPU-Z

  • - Dolby Atmos

  • ASUS Exclusive Software

  • Armoury Crate

  • - Aura Creator

  • - Aura Sync

  • - Fan Xpert 4

  • - GameFirst

  • - Power Saving

  • AIDA64 Extreme (60 days free trial)

  • HWi
