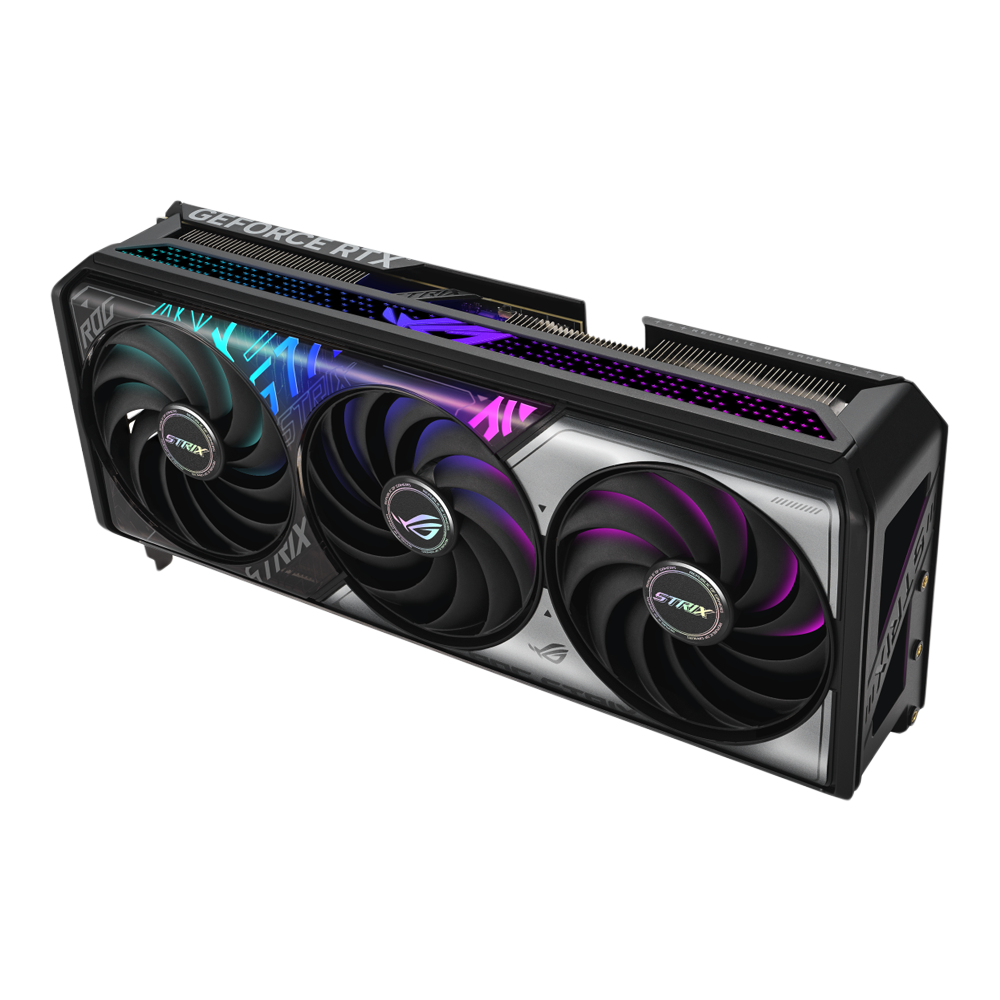

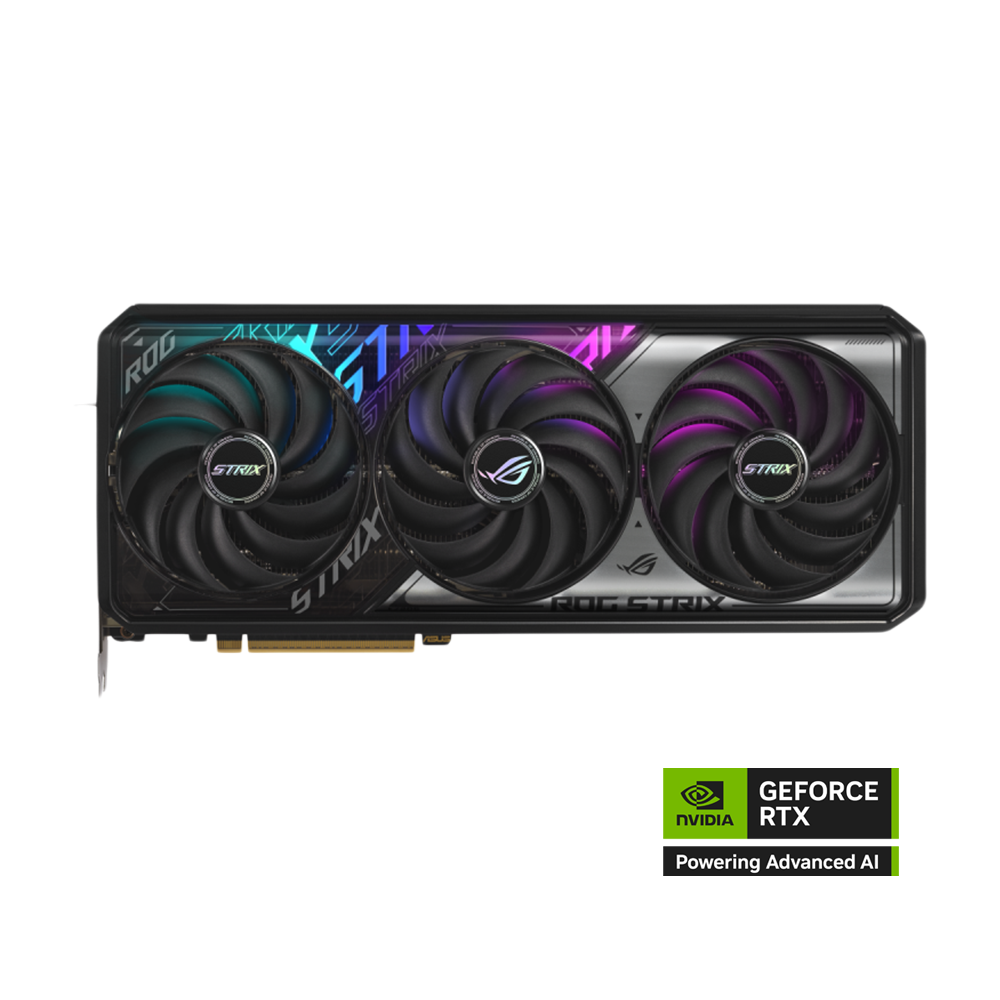

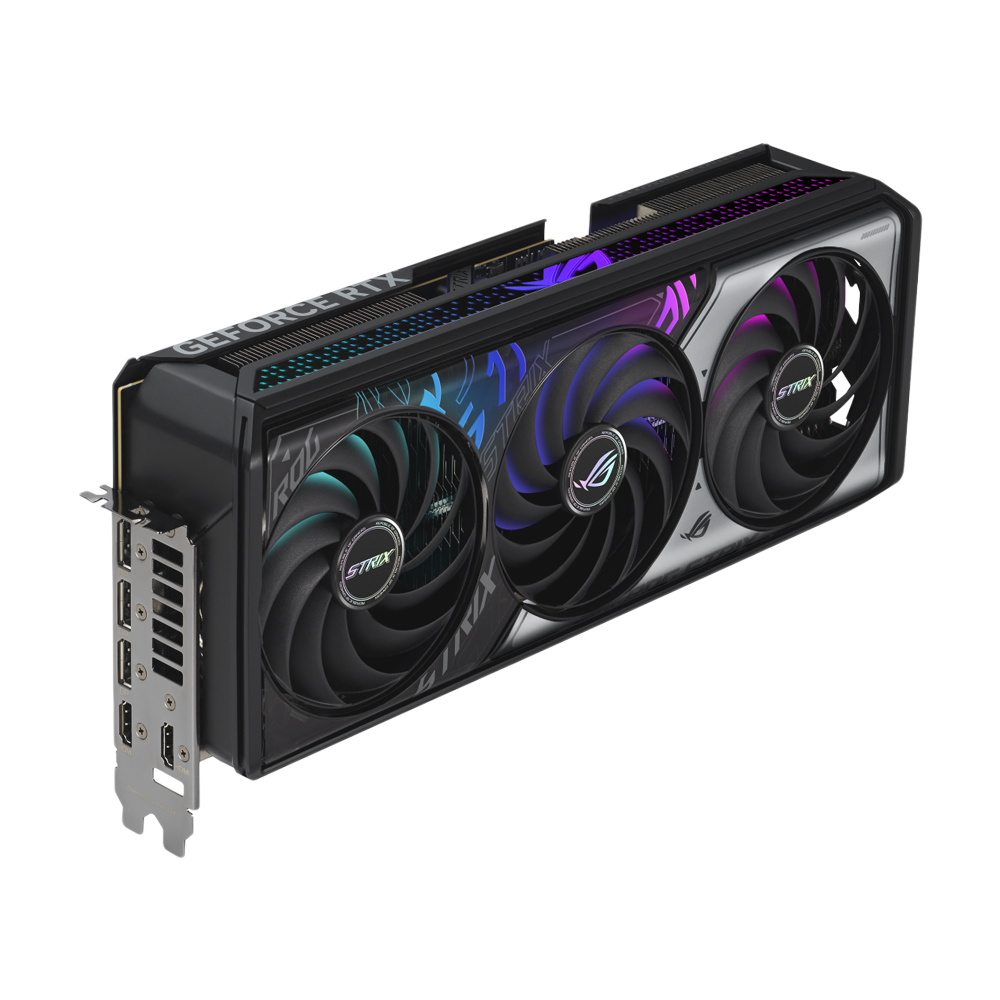

ASUS ROG STRIX GeForce RTX 5070 OC 12GB Graphic Card - Black

ASUS ROG STRIX NVIDIA GEFORCE RTX 5070 OC 12GB GDDR7 DLSS 4 Graphics Card - Black

The ROG Strix GeForce RTX™ 5070 OC Edition 12GB GDDR7 with advanced cooling system provides you premium power delivery.

FIND YOUR EDGE

The premium performance ROG Strix GeForce RTX 5070, featuring advanced cooling system with axial-tech fan, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.

Cooling Expertise

Axial-tech Upgrades

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology

The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.

Vented Backplate

Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.

MaxContact Design

MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Unmatched Reliability

Premium Power Delivery

Digital power control, high-current power stages, and 15K capacitors provide ample reserves to reliably enhance performance.

ASUS GPU Guard & Bracket

To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating

A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto−Extreme Technology

An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

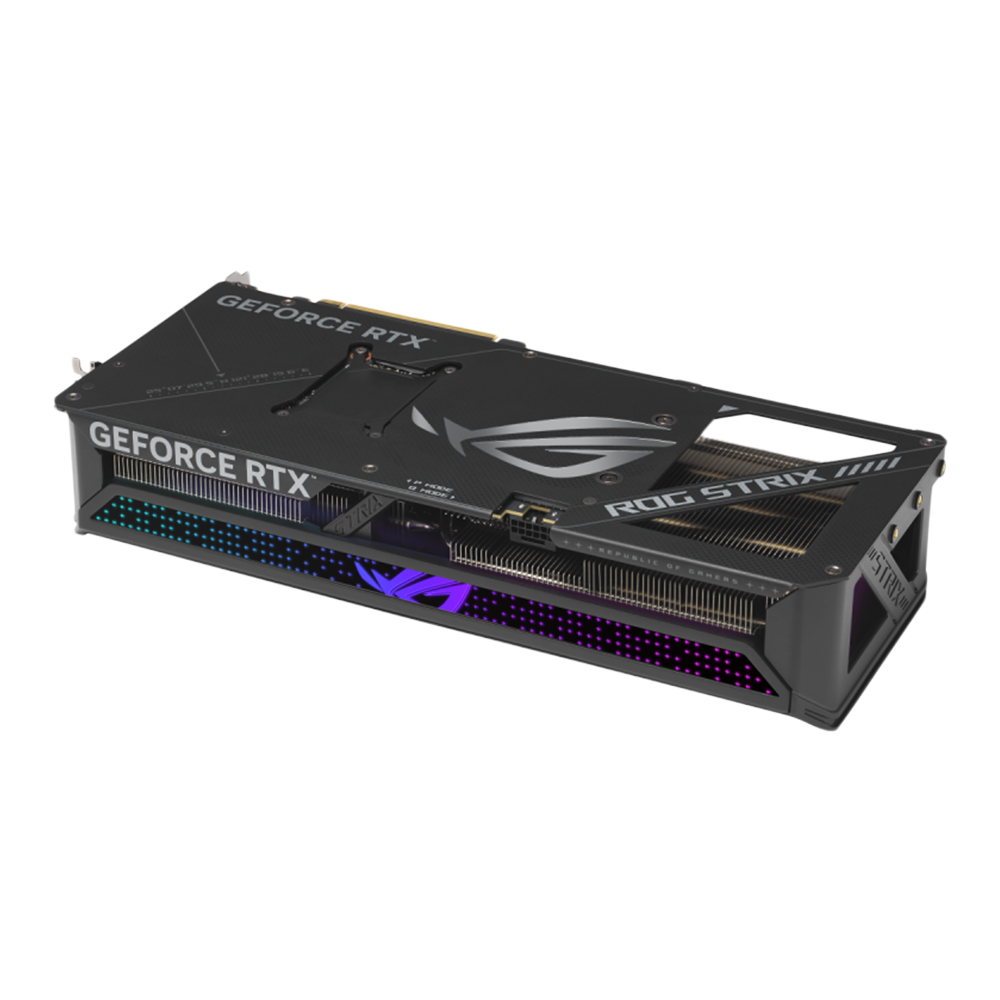

Protective Backplate

The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket

The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.

Customization

Aura Sync

The ARGB lighting components compatible with Aura on the card's shroud and right edge offer limitless options for customizing colors and effects. Combine these with a variety of compatible system parts to synchronize the illumination and create a truly unique build.

Specifications

• Model : ROG Strix GeForce RTX™ 5070 12GB GDDR7 OC Edition

• Graphic Engine : NVIDIA® GeForce RTX™ 5070

• AI Performance : 1044 TOPs

• Bus Standard : PCI Express 5.0

• OpenGL : OpenGL®4.6

• Video Memory : 12GB GDDR7

• Engine Clock : OC mode: 2685MHz

                            Default mode: 2655MHz (Boost Clock)

• CUDA Core : 6144

• Memory Speed : 28 Gbps

• Memory Interface : 192-bit

• Resolution : Digital Max Resolution 7680 x 4320

• Interface : Yes x 2 (Native HDMI 2.1b)

                                Yes x 3 (Native DisplayPort 2.1b)

                                HDCP Support Yes (2.3)

• Maximum Display Support   : 4

• NVlink/ Crossfire Support : No

• Accessories

                                    1 x Speedsetup Manual

                                    1 x ROG Graphics Card Holder

                                    1 x ROG Velcro Hook & Loop

                                    1 x ROG Magnet

                                    1 x ROG PCB Ruler

                                    1 x Thank You Card

                                    1 x Adapter Cable (1 to 2)

• Software : ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

• Dimensions : 332 x 147.3 x 64 mm

                                       13.07 x 5.79 x 2.519 inch

• Recommended PSU : 750W

• Power Connectors : 1 x 16-pin

• Slot : 3.2 Slot

• AURA SYNC : ARGB
