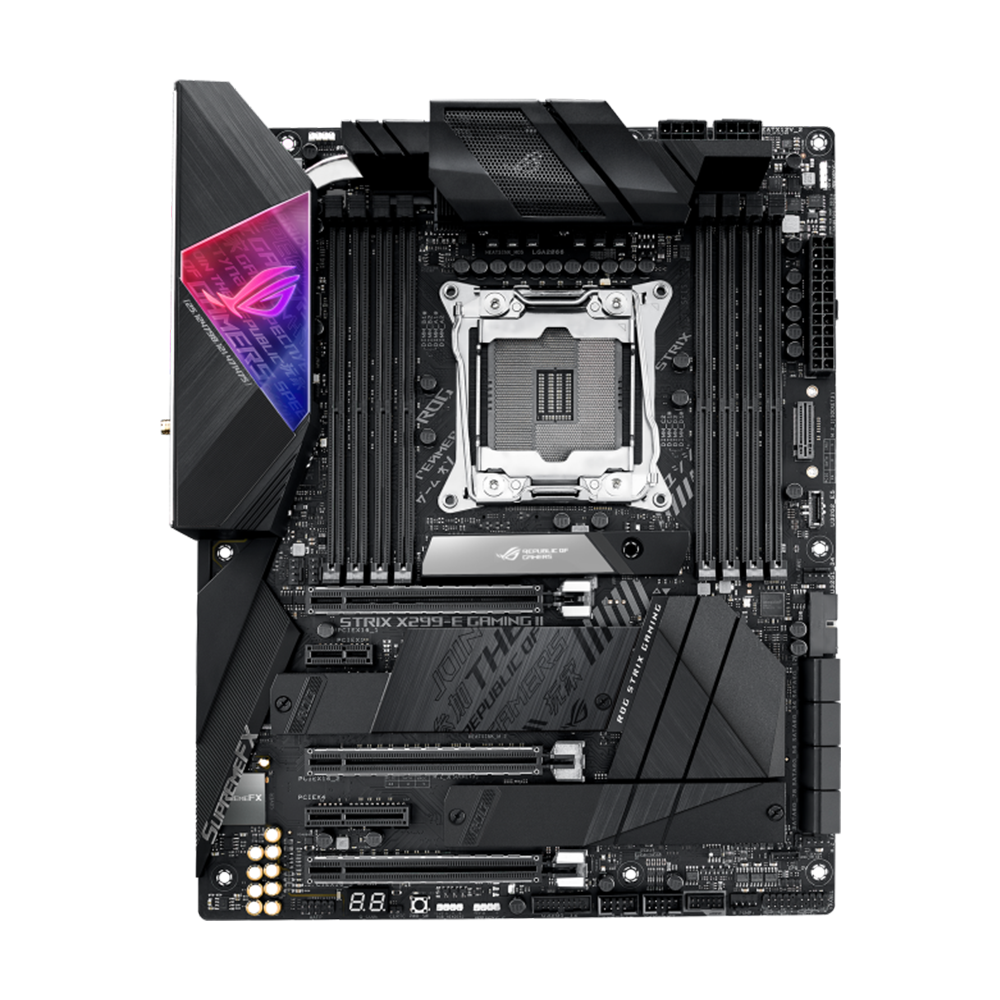

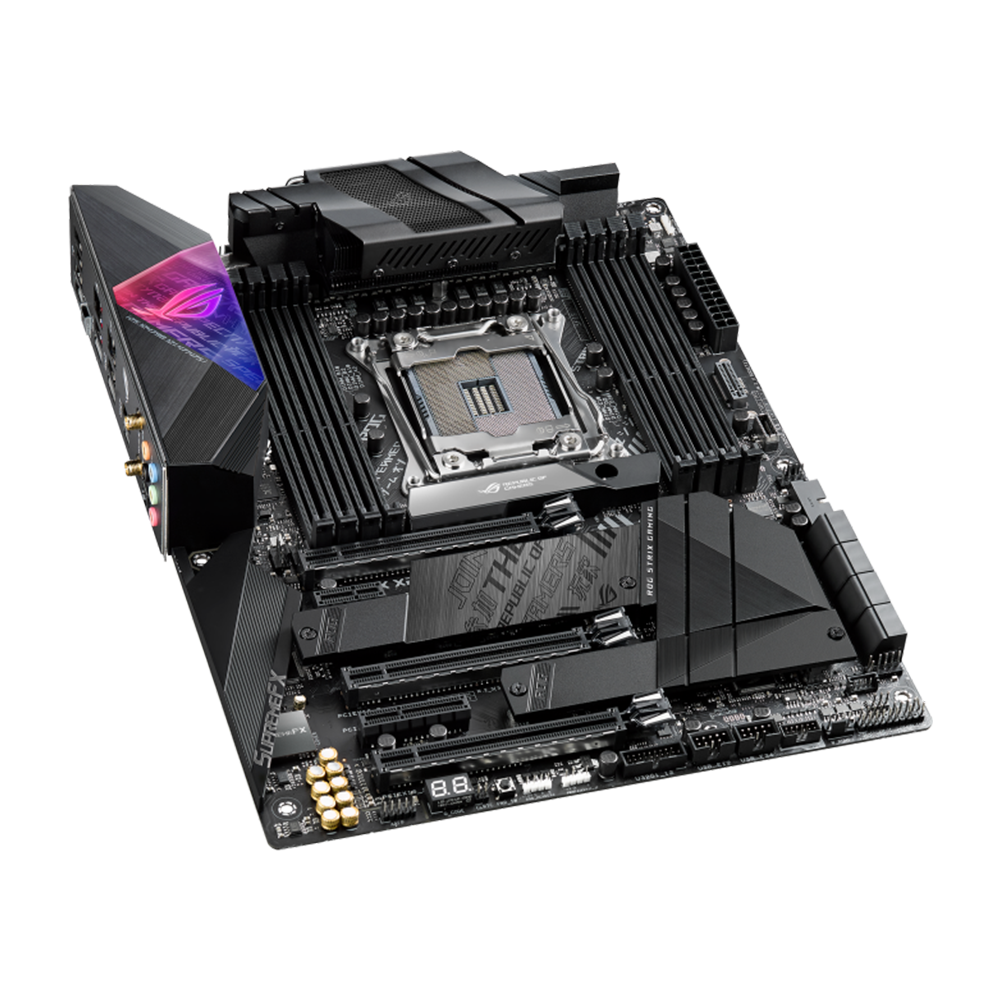

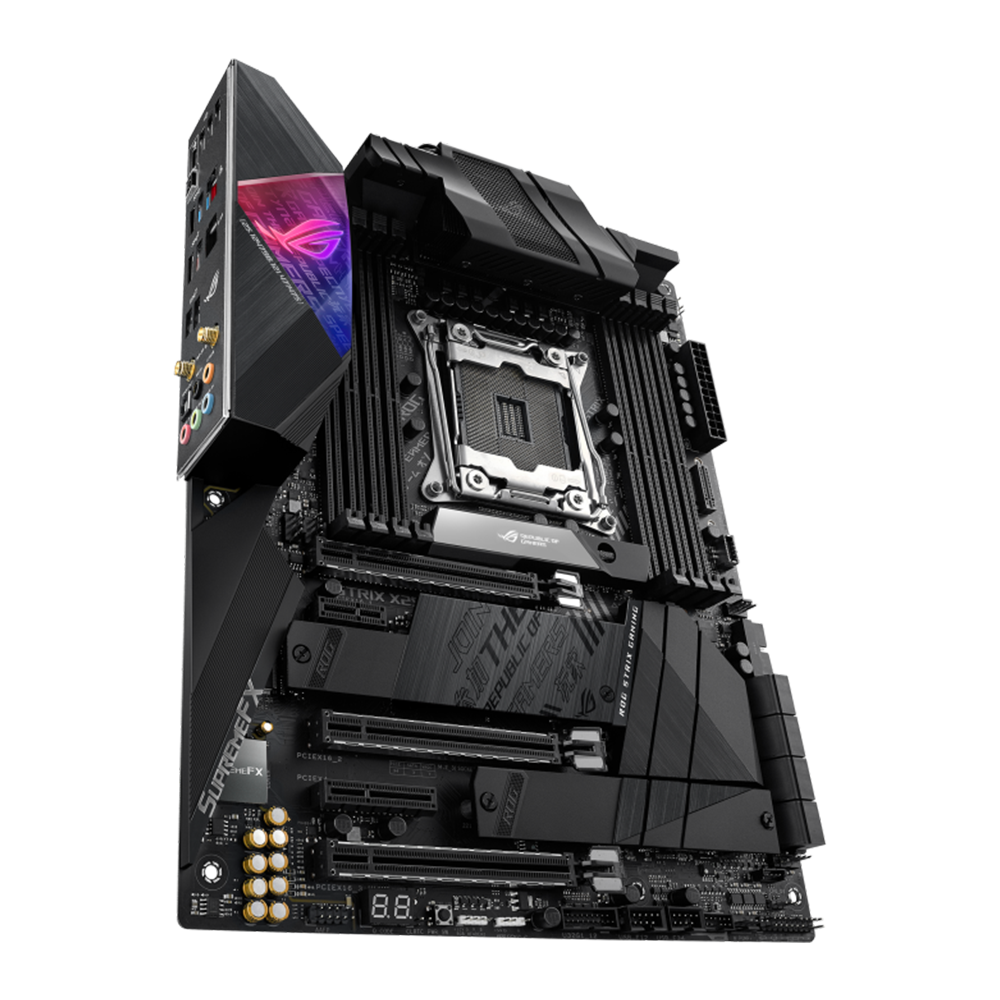

ASUS ROG STRIX X299-E DDR4 Gaming II Motherboard - Black

• Ready for the latest Intel® Core™ X-series processors to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2, Intel® VROC and Intel® Optane™ memory compatibility
• Unmatched personalization : OLED and ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
• Optimal Power Solution : 12 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors
• Comprehensive cooling : Active cooling VRM heatsink, stacked-fin heatsink, with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
• Gaming connectivity : Three M.2, USB 3.2 Type-C port and Type-C front panel connector
• Gaming networking : 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
• AI Overclocking : Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
• Gaming audio : High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
• Easy DIY : ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience.

Asus ROG Strix X299-E Gaming II ATX Motherboard

Intel X299 ATX motherboard LGA 2066 for Intel Core X-series processors, with 12 power stages, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2 Gen 2, SATA, three M.2, OLED and Aura Sync RGB lighting

POWER DESIGN

Digital power control and an array of power stages ensures ROG Strix X299-E Gaming II has the muscle to control the latest Intel CPUs.

ProCool II Power Connectors

ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector’s lower impedance helps prevent hotspots and improves reliability.

GAMING ENHANCEMENT

ROG Strix X299-E Gaming II is engineered with the latest connectivity for the best gaming experience. Transfer files faster and banish lag as you secure more victories.

DDR4 OC 4266MHz+

The X299 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With optimized trace layout, the ROG Strix X299-E Gaming II can hit memory speeds up to DDR4 4266 MHz or beyond.

Three PCIe 3.0 M.2

ROG Strix X299-E Gaming II features three M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slots support PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

VROC

Take advantage of the Intel® Virtual RAID on CPU (VROC) feature* by connecting two M.2 drives in RAID configurations. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated, so your storage won’t be held back by other traffic.

DESIGN & CUSTOMIZATION

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix X299-E Gaming II wonderfully easy.

TUNE YOUR RIG YOU WANT

The ROG Strix X299-E Gaming II motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

OUTSHINE THE COMPETITION

ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

ADDRESSABLE GEN 2 RGB HEADER

ROG Strix X299-E Gaming II's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

LIVEDASH OLED

ROG Strix X299-E Gaming II is equipped with LiveDash, a built-in 1.3" OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats in simple language and via traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water Cooling Zone. You're even able to customize the default LiveDash GIF, so that it'll display your own image or animation.

5-WAY OPTIMIZATION

Take care of complex tuning with just one click. ASUS 5-Way Optimization makes your PC smart by dynamically optimizing essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.

GAMEFIRST V NETWORK CONTROL

GameFirst V is an ROG-exclusive tool that lets you build an ROG networking ecosystem with an ROG router. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways, and keep tabs on bandwidth-hogging apps — all from an intuitive interface that enables easy, on-the-fly adjustments.

ROG FIRST

ROG First searches for ROG routers on the network and lets you automatically optimize their adaptive QoS settings for the best gaming performance, so you don’t have to log in and configure the router manually.

Specifications

CPU

• Intel® Socket 2066 Core™ X-Series Processors

Chipset

• Intel® X299

Memory

• (Intel® Core™ i9 10000 X-Series CPU)
• 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
• 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Quad Channel Memory Architecture
• * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Multi-GPU Support

• Supports NVIDIA® 3-Way SLI® Technology
• Supports NVIDIA® 2-Way SLI® Technology
• Supports AMD 3-Way CrossFireX™ Technology
• Supports AMD 2-Way CrossFireX Technology

Expansion Slots

• 48-Lane CPU-
• (Intel® Core™ i9 10000 X-Series CPU)
• 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8)
• 44-Lane CPU-
• (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
• 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4)
• 28-Lane CPU-
• (Intel® Core™ i7 7000 X-Series CPU)
• 3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4)
• Intel® X299 Chipset
• 1 x PCIe 3.0 x4
• 1 x PCIe 3.0 x1 *1

Storage

• Intel® Core™ X-Series Processors Family :
• 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
• Intel® Virtual RAID on CPU(VROC)
• Intel® X299 Chipset :
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode),
• 8 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 5, 10
• Intel® Rapid Storage Technology supports
• Intel® Optane™ Memory Ready *3

LAN

• Intel® I219V
• Realtek® RTL8125-CG 2.5G LAN
• Anti-surge LANGuard
• ROG GameFirst Technology

Wireless Data Network

• Intel® Wi-Fi 6 AX200

Bluetooth

• Bluetooth® 5.0

Audio

• SupremeFX 8-Channel High Definition Audio CODEC S1220A
• – Dual Headphone Amplifiers
• – Impedance sense for front and rear headphone outputs
• – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input
• – SupremeFX Shielding Technology
• – Supports up to 32-Bit/192kHz playback *4

Audio Feature :

• – SupremeFX Shielding™ Technology
• – DTS® Sound Unbound
• – Optical S/PDIF out port(s) at back panel
• – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• – Sonic Radar III
• – Sonic Studio III + Sonic Studio Virtual Mixer

USB Ports

• ASMedia® USB 3.2 Gen 2 controller :
• 1 x USB 3.2 Gen 2 front panel connector port(s)
• ASMedia® USB 3.2 Gen 2 controller :
• 4 x USB 3.2 Gen 2 (up to 10Gbps) port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
• Intel® X299 Chipset :
• 6 x USB 3.2 Gen 1 (up to 5Gbps) port(s) (2 at back panel, , 4 at mid-board)
• Intel® X299 Chipset :
• 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

ROG Exclusive Features

• ROG CPU-Z
• Overwolf
• USB BIOS FlashBack™
• ROG Exclusive Software
• – GameFirst V
• – Overwolf
• – Sonic Studio III + Sonic Studio Virtual Mixer

Special Features

• OC Design – ASUS PRO Clock II Technology
• ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
• – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
• AI Overclocking
• LiveDash OLED
• AURA :
• – Aura Lighting Control
• – Aura RGB Strip Headers
• – Addressable Gen 2 Header
• ASUS Exclusive Features :
• – USB BIOS FlashBack™
• – AI Suite 3
• – Ai Charger
• – Onboard Button : Power
• – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• – Armoury Crate
• – ASUS NODE: hardware control interface
• ASUS EZ DIY :
• – ASUS EZ Flash 3
• – ASUS USB BIOS FlashBack™
• – ASUS UEFI BIOS EZ Mode
• – Multi-language BIOS
• ASUS Q-Design :
• – ASUS Q-Code
• – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• – ASUS Q-Slot
• – ASUS Q-DIMM
• – ASUS Q-Connector

Back I/O Ports

• 1 x LAN (RJ45) port(s)
• 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x Anti-surge 2.5G LAN (RJ45) port
• 1 x Wi-Fi antenna port(s)
• 1 x USB BIOS FlashBack™ Button(s)
• 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
• 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)

Internal I/O Ports

• 1 x AAFP connector
• 2 x Aura RGB Strip Headers
• 2 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s connector(s)
• 1 x VROC_HW_Key
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x 24-pin EATX Power connector(s)
• 2 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x Node Connector(s)
• 1 x CPU_OV jumper
• 1 x M.2 Fan Header
• 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports

Accessories

• User’s manual
• 1 x Vertical M.2 bracket set
• 4 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x ROG Strix stickers
• 1 x Q-Connector
• 1 x M.2 screw kit (long screw and mount)
• 1 x Cable ties pack(s)
• 1 x Wi-Fi Antenna(s)
• 1 x ROG Door Hanger(s)
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Extension cable for Addressable LED
• 1 x Thermistor cable(s)
• 1 x ROG Thank you card

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability

• WOL, PXE

Support Disc

• Drivers
• ASUS Utilities
• EZ Update
• Anti-virus software (OEM version)

Operating System

• Windows® 10 64-bit

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
