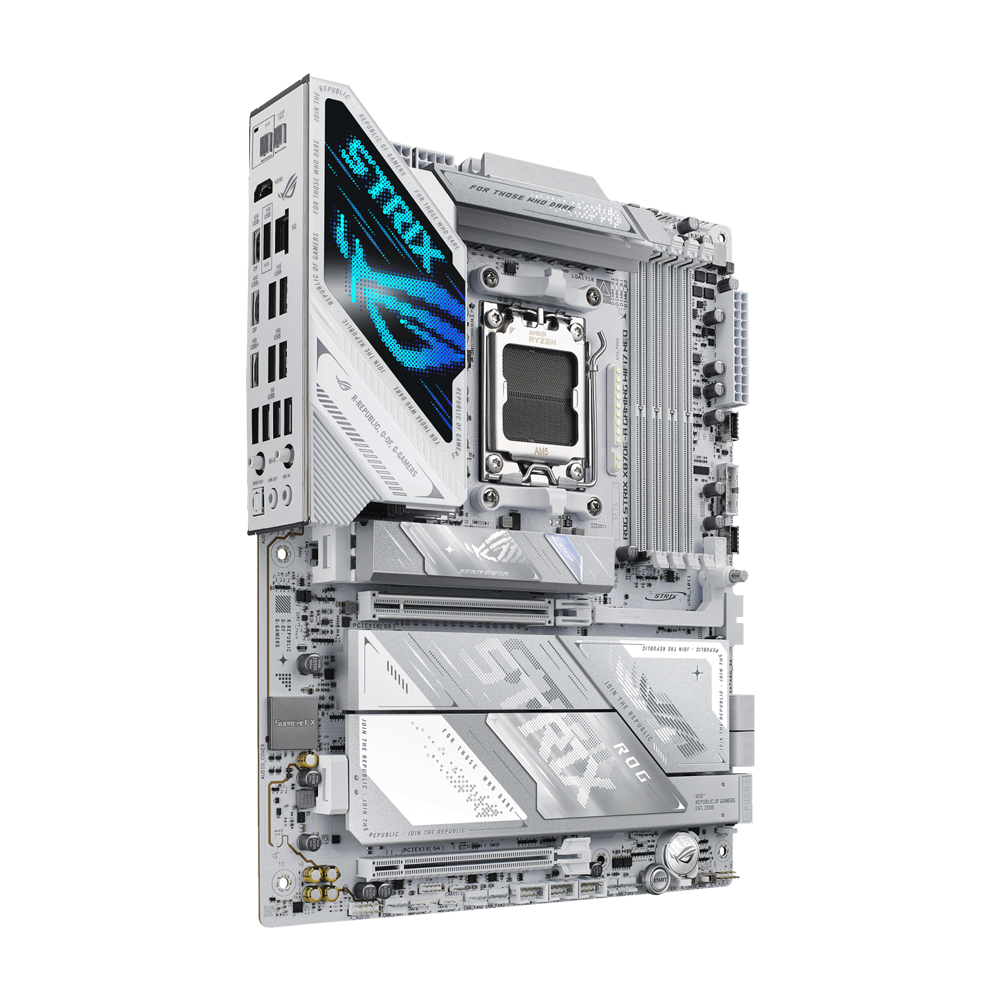

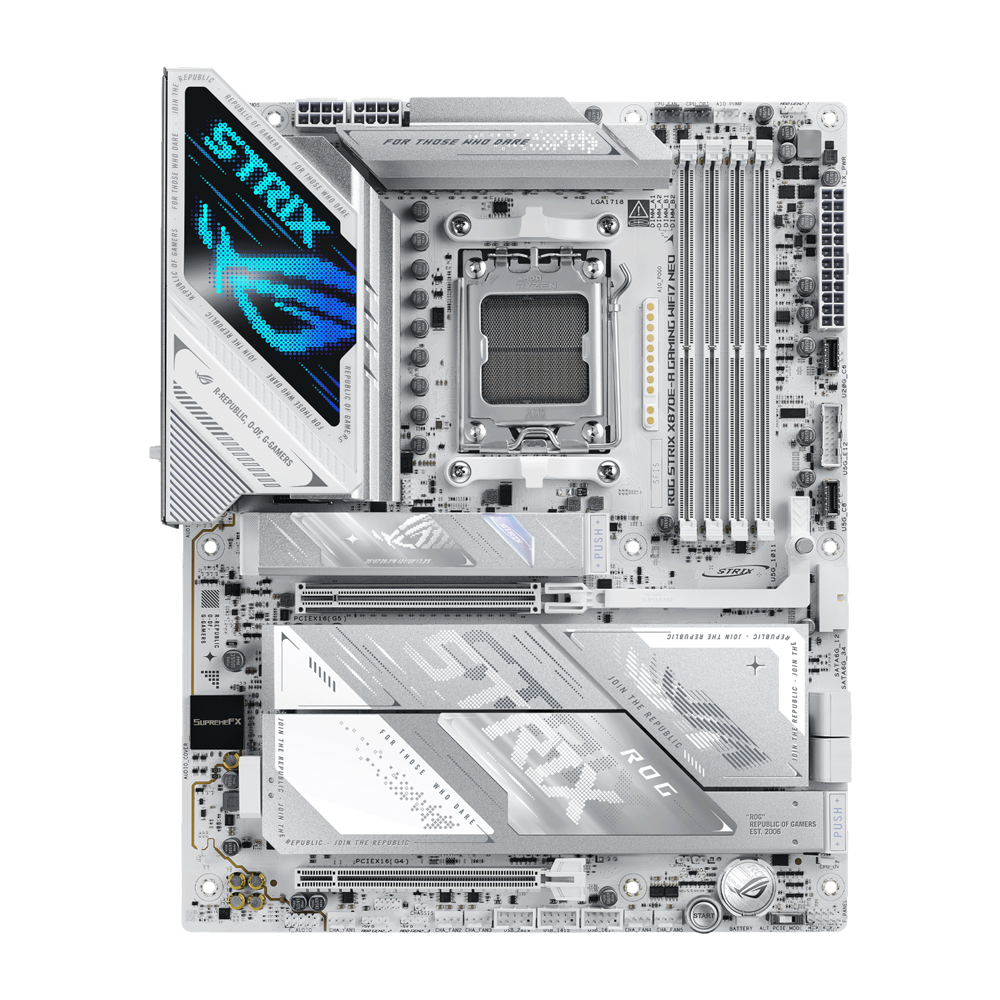

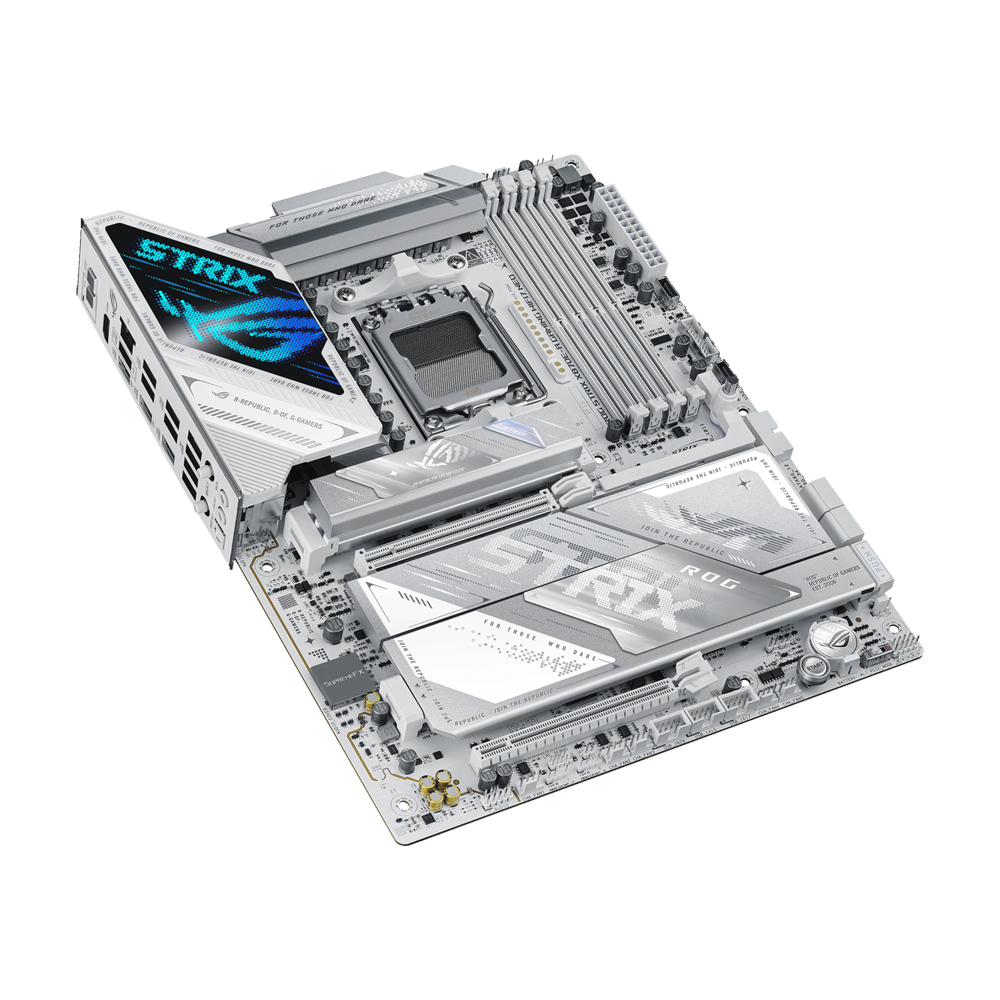

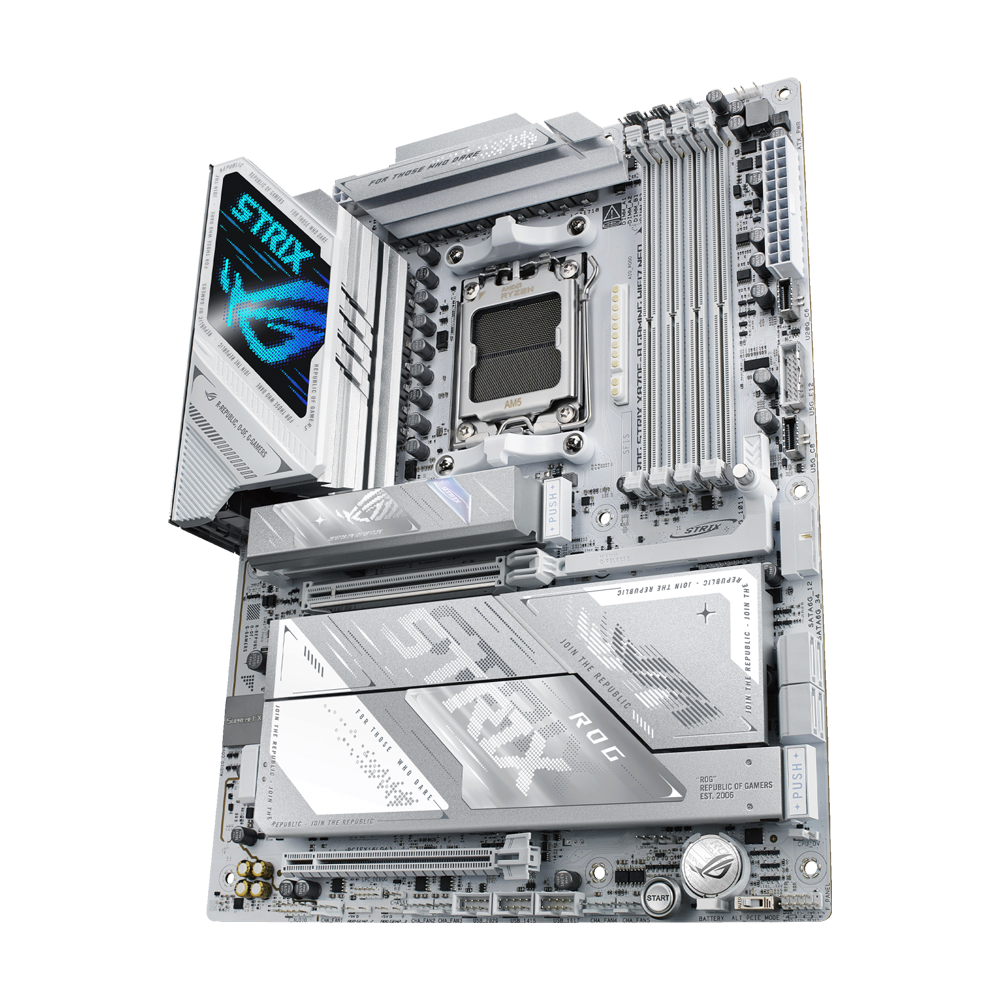

ASUS ROG STRIX X870E-A GAMING NEO DDR5 Motherboard - White

Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe^® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4^® Type-C ports, WiFi 7, and Realtek^® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.

ASUS AI INTELLIGENCE

AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

ai cOOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Asynchronous Clock
For next-level frequency flexibility, the ROG Strix X870E-A Gaming WiFi7 Neo features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains. Separate CPU BCLK from other domains for unfettered overclocking.

Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Performance
MEMORY
Server-Grade DRAM Enhancement
Thanks to an upgraded memory slot layout and PCB design, now enthusiast-grade kits can achieve 9 GT/s on the ROG Strix X870E-A Gaming WiFi7 Neo*.
*Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues;
Whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

NitroPath DRAM Technology
Frequency up to 400 MT/s higher

Slot retention force enhanced by 57%

AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

ROG STRIX ULTIMATE
POWER DESIGN
16(90A)+2(90A)+2(80A) Power Stages

Performance
COOLING

M.2
M.2 HEATSINKS, M.2 BACKPLATE

VRM
VRM HEATSINK ARRAY

CPU
CPU FAN HEADERS, AIO PUMP FAN HEADER

CHASSIS
4-PIN FAN HEADERS

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

64MB BIOS
A larger BIOS chip enables a more powerful interface and extended CPU compatibility with the latest and future AM5 processors, ensuring a smooth, seamless user experience.

SOFTWARE UTILITIES

TURBOV CORE
Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.

ASUS GlidEx
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.

UNDENIABLY ROG STRIX
The ROG Strix X870E-A Gaming WiFi7 Neo features a clean and refined design that pairs effortlessly with a wide range of build themes. Its white PCB and brushed-metal heatsinks give the board a strong, modern look, while Polymo Lighting on the I/O shroud offers customizable RGB accents—perfect whether you prefer a subtle glow or a more expressive style.

OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Specifications

• Model : ROG STRIX X870E-A GAMING WIFI7 NEO

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 &

• 8000 & 7000 Series Desktop Processors*


Chipset

• AMD X870E

Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Supports up to

• 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors,

• 9600+MT/s(OC)**/9000+MT/s(OC)*** with Ryzen™ 8000 Series Processors,

• 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors,

• ECC and Non-ECC, Un-buffered DIMM*

• Dual channel memory architecture

• Supports AMD Extended Profiles for Overclocking (EXPO™)

• Supports DIMM Fit and DIMM Fit Pro

• NitroPath DRAM Technology

• ASUS Enhanced Memory Profile (AEMP)


• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• ** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.


Graphics

• 1 x HDMI™ port**

• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a

• **** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slots (supports x8 mode)

• AMD Ryzen™ 8500 & 8300 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slots (supports x4 mode)

• AMD X870E Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)


• * Specifications vary by CPU types.


Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)**

• AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)**

• AMD Ryzen™ 8500 & 8300 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• M.2_2 slot (Key M), type 2280/22110 (Not supports)

• AMD X870E Chipset

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * Specifications vary by CPU types.

• ** The USB4® 40Gbps ports and the M.2 Socket 3 slot (M.2_2) share the available bandwidth. When a device is installed in the M.2_2 slot, both the USB4® controller and the M.2_2 slot operate at up to x2 mode. By configuring the M.2_2 slot in the BIOS, the M.2_2 slot can operate at up to x4 mode. However, enabling this setting will disable the USB4® 40Gbps ports.

• RAID Support

• AMD RAIDXpert2 Technology

• Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Ethernet

• 1 x Realtek® 5Gb Ethernet

• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7 (MediaTek MT7925)

• 2x2 Wi-Fi 7* (802.11be)

• Supports 2.4/5/6GHz frequency band**

• Supports Wi-Fi 7 160MHz bandwidth

• Bluetooth® v5.4 (support LE Audio)***

• *Wi-Fi features may vary depending on the operating system.

• For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.

• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

• *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 12 ports)

• 2 x USB4® (40Gbps) ports  (2 x USB Type-C®with DP Alt mode)

• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD**)

• 4 x USB 5Gbps ports (4 x Type-A)

• Front USB (Total 12 ports)

• 1 x USB 20Gbps connector (1 x USB Type-C®)

• 1 x USB 5Gbps connector (1 x USB Type-C®)

• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

• 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• * USB Type-C® output (USB Type-C Current): max. 5V/3A.

• ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

• - Impedance sense for front and rear headphone outputs

• - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

• - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

• - Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

• - SupremeFX Shielding Technology

• - Savitech SV3H712 AMP

• - Rear optical S/PDIF out port

• - Premium audio capacitors

• - Audio cover

• * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports  (2 x USB Type-C®with DP Alt mode)

• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD**)

• 4 x USB 5Gbps ports (4 x Type-A)

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Realtek® 5Gb Ethernet port

• 2 x Audio jacks

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 5 x 4-pin Chassis Fan headers

• 1 x AIO Q-Connector

• Power Related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connector

• Storage Related

• 4 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps connector (supports USB Type-C® )

• 1 x USB 5Gbps port (1 x USB Type-C®)

• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

• 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable RGB Gen 2 headers

• 1 x Alteration PCIe mode switch

• 1 x Chassis Intrusion header

• 1 x CPU Over voltage jumper

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x Start button

• 1 x 10-1 pin Front Panel System header

• 1 x Thermal Sensor header

Special Features

• Asynchronous Clock

• Extreme Engine Digi+

• - 5K Black metallic capacitors

• ASUS Q-Design

• - M.2 Q-Latch

• - M.2 Q-Release

• - M.2 Q-Slide

• - PCIe Slot Q-Release

• - Q-Antenna

• - Q-Dashboard

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• ASUS Thermal Solution

• - M.2 heatsink backplate

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - Clear CMOS button

• - Dual DIMM clips

• - ProCool II

• - Pre-mounted I/O shield

• - SafeSlot

• Aura Sync

• -  Addressable RGB Gen 2 headers

Software Features

• ROG Exclusive Software

• - ROG CPU-Z

• - Dolby Atmos

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 (with AI Cooling II)

• - GameFirst

• - WiFi Q-Antenna

• - MLO Wizard

• ASUS DriverHub

• - ASUS MB Manager

• - ASUS AI Advisor

• - AIDA64 Extreme (60 days free trial)

• - HWiNFO

• - ASUS GlideX

• - USB Wattage Watcher

• - TurboV Core

• - Adobe Creative Cloud (Free Trial)**

• - Norton 360 for Gamers (60 Days Free Trial)

• - WinRAR (40 Days Free Trial)

• UEFI BIOS

• Integrated WiFi Driver Support

• AI Overclocking Guide

• AI Cache Boost

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

• FlexKey

BIOS

• 64 MB (512Mb) Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Additional Cooling Kit

• 1 x DDR5 fan holder

• 1 x Screw package for cooling kit

• 1 x ROG assistant fan (60mm)

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 1 x M.2 Q-Latch package

• 1 x M.2 Q-Slide package

• 1 x ROG key chain

• 1 x ROG Strix stickers

• 4 x M.2 rubbers

Documentation

• 1 x Quick start guide

Operating System

• Windows 11  (22H2 & later)

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
