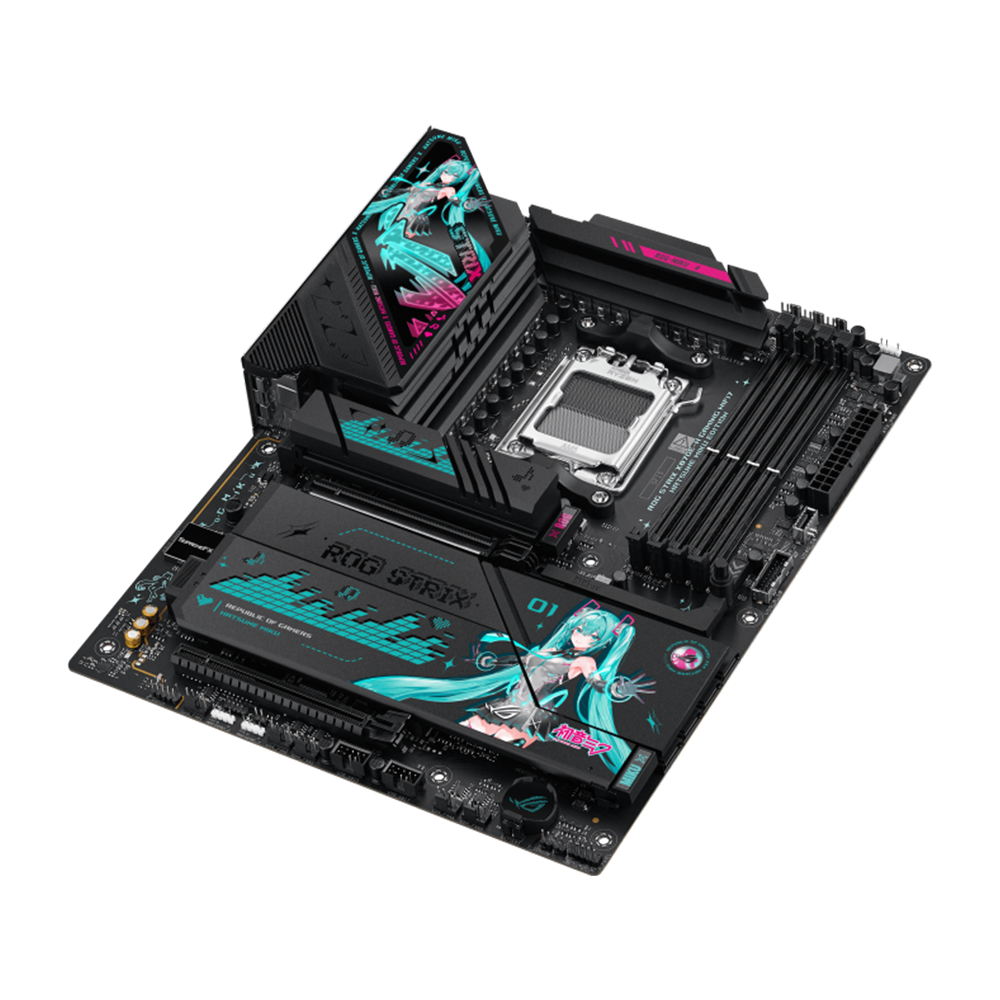

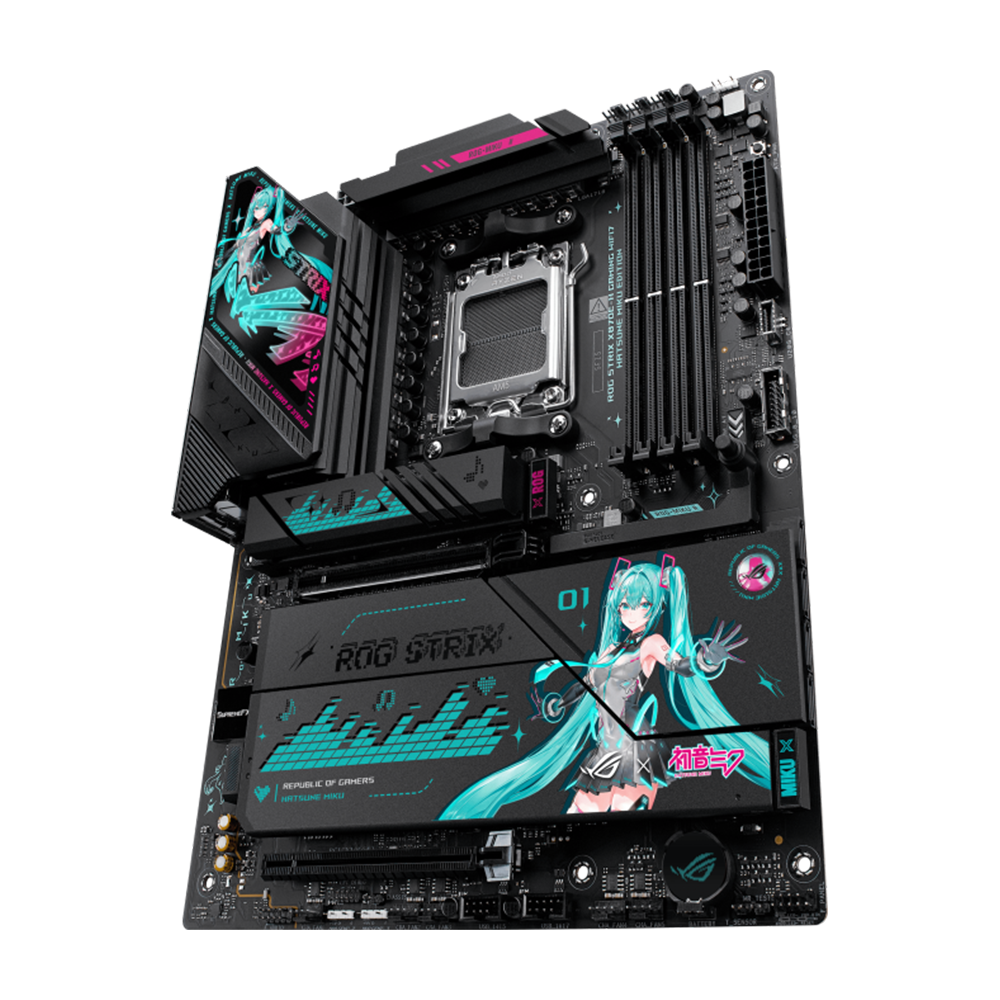

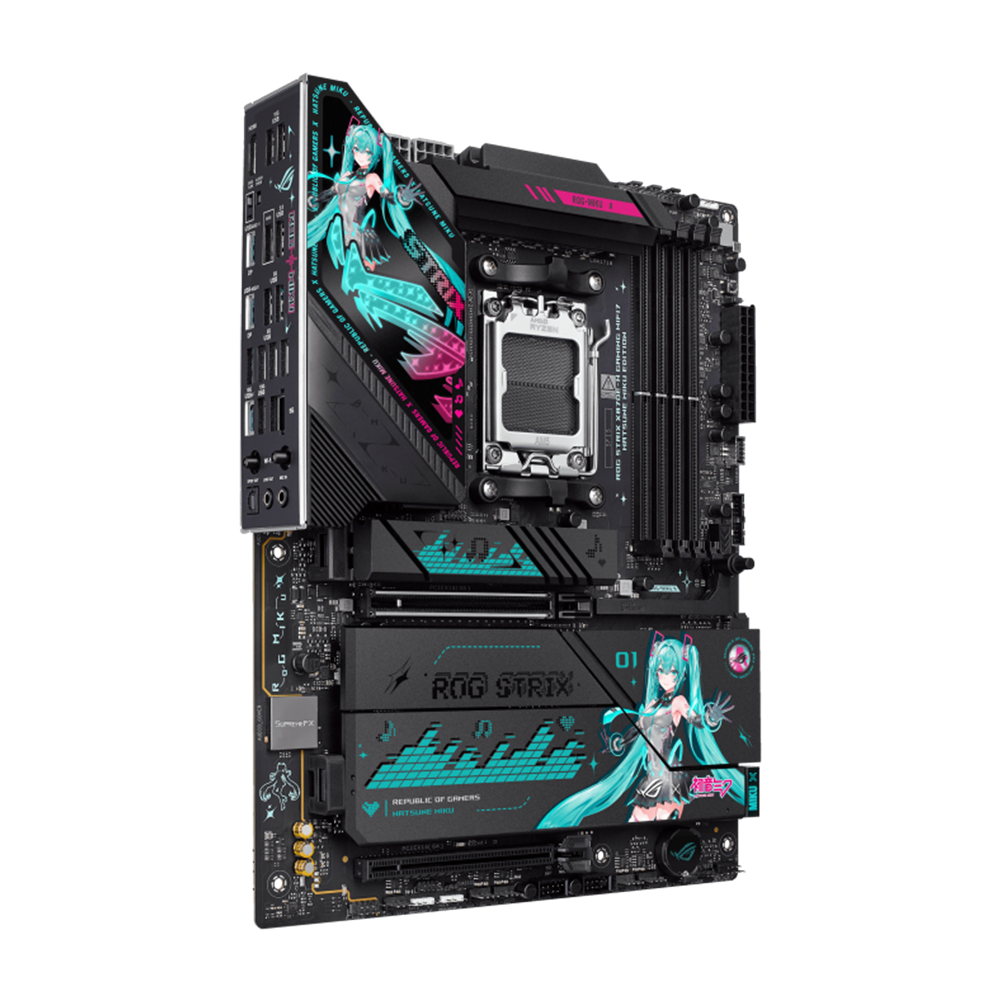

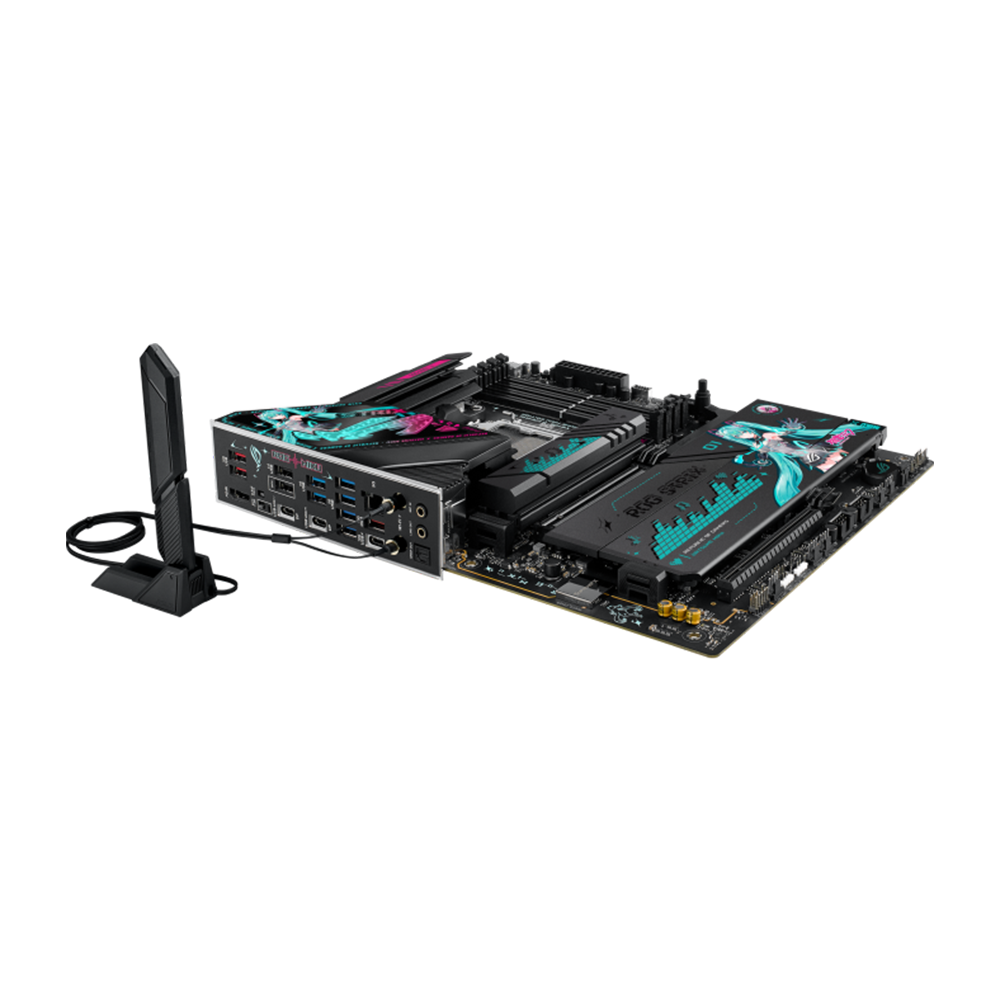

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE Miku Edition DDR5 Motherboard

Key Features:

• Chipset: AMD X870E
• Socket: AM5
• Form Factor: ATX
• Memory: DDR5
• Storage: 4x M.2 slots, 4x SATA 6Gb/s ports
• Networking: Wi-Fi 7, Bluetooth 5.4, and 5 Gbps Ethernet
• USB: USB4, USB-C 3.2 Gen 2x2, and other USB ports
• Special Edition: Hatsune Miku Edition

Feel the Beat, In-Game Feats
ROG continues its collaboration with virtual pop star Hatsune Miku with a complete gaming system centered around ROG's sci-fi aesthetics and Miku's signature blue-green, pink-color scheme. The collection combines Hatsune Miku’s signature style with superior ROG performance, premium quality, and versatile functionality for competitive gameplay or daily tasks. Products include a motherboard, graphics card, PC case, all-in-one cooler, SSD enclosure, power supply, monitor, and apparels, enabling gamers to create an entire gaming setup that exudes the vibrant Miku aesthetic.

ROG STRIX X870E-H GAMING WIFI7

HATSUNE MIKU EDITION
Transform your gaming experience with the ROG Strix X870E-H Gaming WiFi7 Hatsune Miku Edition. Powered by AMD Ryzen™ 9000 Series processors, this ATX motherboard combines cutting-edge power design, AI-enhanced features and next-gen connectivity—including a PCIe® 5.0 x16 slot, dual USB4® Type-C ports and WiFi 7. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make upgrades easy. Plus, Miku’s iconic colors and graphics are fully integrated into the board’s design—bringing signature energy and personality to your build.

Effortless AI Optimization
The latest ASUS AI-powered enhancements make PC optimization effortless. AI Overclocking, AI Cooling II, and AI Networking II fine-tune performance, thermals and connectivity with a click. ASUS AI Advisor offers real-time, natural language support while AI Cache Boost accelerates LLM performance. Whether you're gaming, creating or exploring possibilities with AI, smart control is always within reach.

Comprehensive Cooling

VRM and aluminum I/O heatsink
Two large VRM heatsinks with high-quality thermal pads efficiently manage heat from AMD Ryzen™ 9000 Series CPUs, helping ensure stable power delivery and lower temperatures.

CPU fan headers & AIO pump fan header
A dedicated pair of PWM/DC fan headers streamlines CPU cooler installation, while a separate PWM/DC header is dedicated to the pumps used for water cooling setups.

M.2 heatsinks
Heatsinks cover every slot to help keep onboard NVMe® SSDs at optimal temperatures for consistent performance and reliability.

Five 4-pin case fan headers
The ROG Strix X870E-H Gaming WiFi7 Hatsune Miku Edition features five case fan headers, each supporting auto-detection of PWM or DC fans.

Play in Style

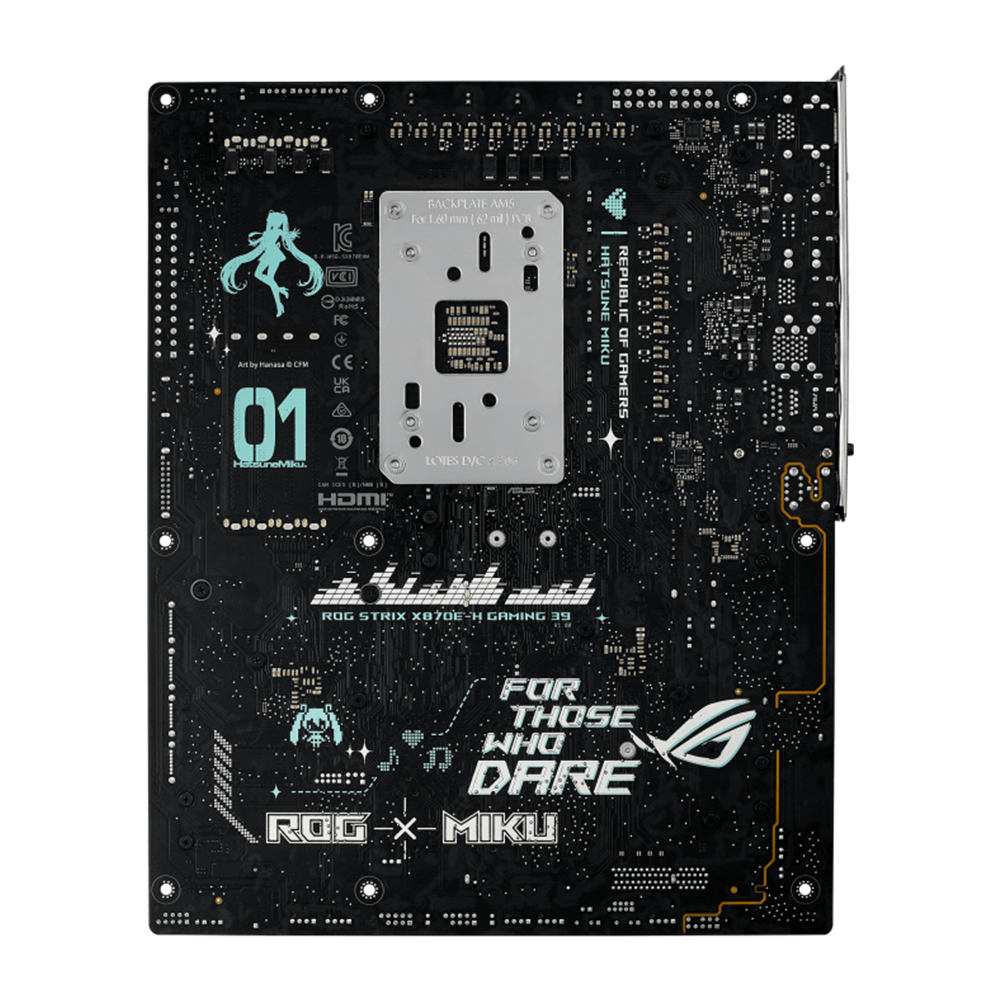

ROG Strix X870E-H Gaming WiFi7 Hatsune Miku Edition blends ROG gaming DNA with Miku’s iconic blue-green and pink palette. The entire motherboard is infused with Miku-themed visuals, including accents across various heatsinks and the back. Even the BIOS interface and Armoury Crate software carry Miku-inspired visuals. Through Armoury Crate, users can customize RGB lighting and effects via Aura Sync and synchronize them across compatible devices for a cohesive, Miku-themed build.

Specifications

• Model : ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

• AMD X870E

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen™
• 9000 & 8000 & 7000 Series Processors
• Dual channel memory architecture
• Supports AMD Extended Profiles for
• Overclocking (EXPO™)
• Supports DIMM Fit / DIMM Fit Pro
• ASUS Enhanced Memory Profile (AEMP)
• products available on the market.
• ** Non-ECC, un-buffered DDR5 memory
• supports On-Die ECC function.

Graphics

• 1 x HDMI™ port**
• 2 x USB4® (40Gbps) ports support USB
• Type-C® display outputs***
• * Graphics specifications may vary between
• CPU types. Please refer to AMD CPU specifications.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
• **** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD X870E Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 7000 Series Desktop

Processors

• M.2_1 slot (Key M), type 2242/2260/2280
• (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280/22110
• (supports PCIe 5.0 x4 mode)*
• AMD Ryzen™ 8000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2242/2260/2280
• (supports PCIe 4.0 x4/x2 mode)
• M.2_2 slot (Key M), type 2280/22110 (Not supports)**
• AMD X870E Chipset
• M.2_3 slot (Key M), type 2280 (supports
• PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports
• PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * M.2_2 shares bandwidth with PCIEX16(G5).
• When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
• ** M.2_2 will be disabled when using AMD
• Ryzen™ 8000 Series Desktop Processors.
• RAID Support : AMD RAIDXpert2 Technology*
• Ryzen™ 9000 Series Processors: RAID 0/1/5/10
• Ryzen™ 8000 Series Processors: RAID 0/1
• Ryzen™ 7000 Series Processors: RAID 0/1/10
• * Specifications vary by CPU types.
• Ethernet : 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7 (MediaTek MT7925)
• 2x2 Wi-Fi 7* (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth
• Bluetooth® v5.4***
• *Wi-Fi features may vary depending on the operating system For
• Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
• Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth
• regulatory may vary between countries.
• *** The Bluetooth® version may vary, please
• refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB : Rear USB (Total 14 ports)
• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 4 x USB 10Gbps ports (3 x Type-A + 1 x USB
• Type-C® with up to 30W PD/PPS Fast-charge)**
• 6 x USB 5Gbps ports (6 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 20Gbps connector (supports USB
• Type-C®)
• 1 x USB 5Gbps header supports 2 additional
• USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional
• USB 2.0 ports
• * USB Type-C® power delivery output: max.
• 5V/3A
• ** USB Type-C® power delivery output: 5V/9V
• max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

• Realtek ALC1220P 7.1 Surround Sound
• High Definition Audio CODEC*
• - Impedance sense for front and rear
• headphone outputs
• - Internal audio Amplifier to enhance the
• highest quality sound for headphone and speakers
• - Supports: Jack-detection,
• Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback
• output and 113 dB SNR recording input (Line-in)
• - Supports up to 32-Bit/192 kHz
• playback*

Audio Features

• - SupremeFX Shielding Technology
• - Savitech SV3H712 AMP
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Audio cover
• * The LINE OUT port on the rear panel does
• not support spatial audio. If you wish to use spatial audio, make sure to
• connect your audio output device to the audio jack on the front panel of your
• chassis or use a USB interface audio device.

Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports(2 x USB Type-C®)
• 4 x USB 10Gbps ports (3 x Type-A + 1 x USB
• Type-C® with up to 30W PD/PPS Fast-charge)**
• 6 x USB 5Gbps ports (6 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps connector (supports USB
• Type-C®)
• 1 x USB 5Gbps header supports 2 additional
• USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional
• USB 2.0 ports
• Miscellaneous
• 3 x Addressable RGB Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin Front Panel System header
• 1 x Thermal Sensor header

Special Features

• Extreme Engine Digi+
• - 5K Black metallic capacitors
• ASUS Q-Design
• - M.2 Q-Latch
• - M.2 Q-Release
• - PCIe Slot Q-Release
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA
• [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - Clear CMOS button
• - ProCool II
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• Aura Sync
• -Addressable RGB Gen 2 headers

Software Features

• ROG Exclusive Software
• - ROG CPU-Z
• - Dolby Atmos
• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4 (with AI Cooling II)
• - GameFirst
• ASUS AI Advisor
• ASUS DriverHub
• - AIDA64 Extreme (60 days free trial)
• - HWiNFO
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• Adobe Creative Cloud (Free Trial)**
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• AI Cache Boost
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• FlexKey
• BIOS : 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability : WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x ASUS PCIe to Front USB Card (supports 2 x USB 5Gbps Type-A + 1 x USB 10Gbps Type-C ports)
• 1 x PHONE STAND HATSUNE MIKU EDITION
• 1 x THANK YOU CARD HATSUNE MIKU EDITION
• 1 x STICKER HATSUNE MIKU EDITION
• 4 x M.2 rubbers

Documentation

• 1 x Quick start guide

Operating System

• Windows 11

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
