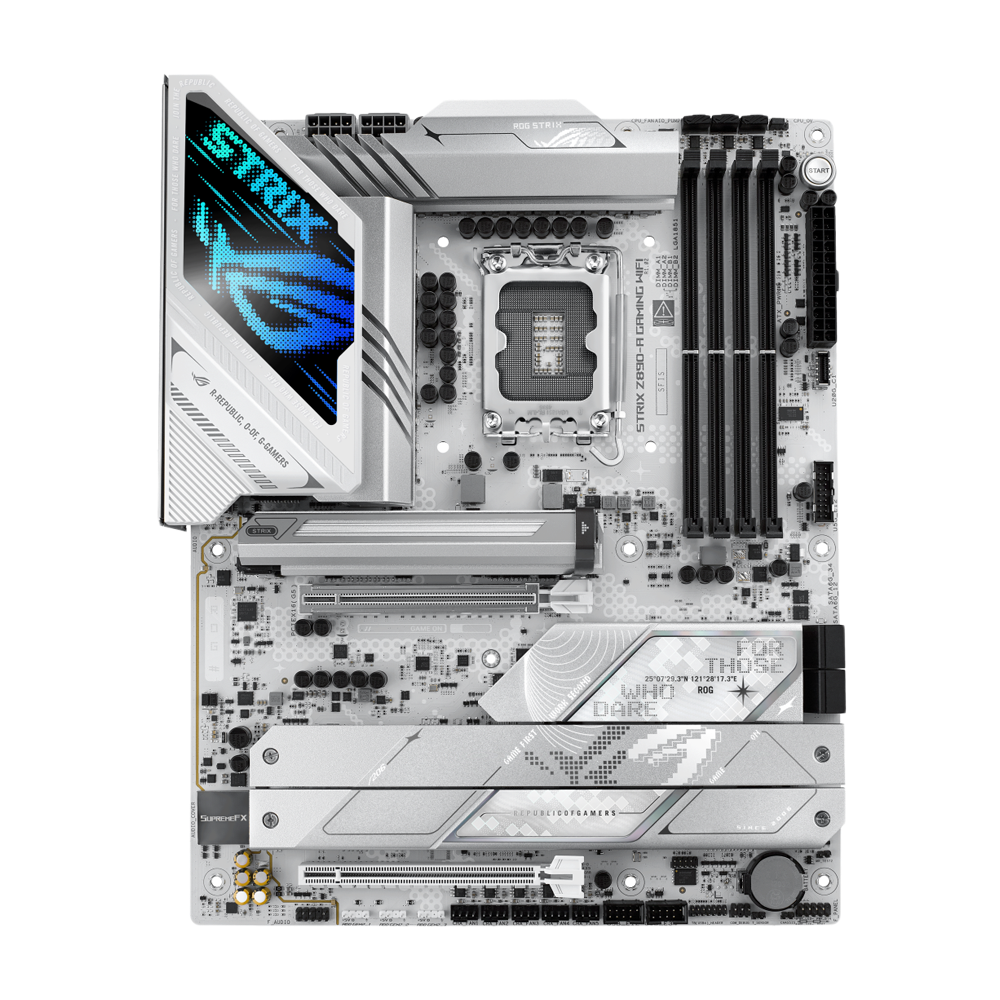

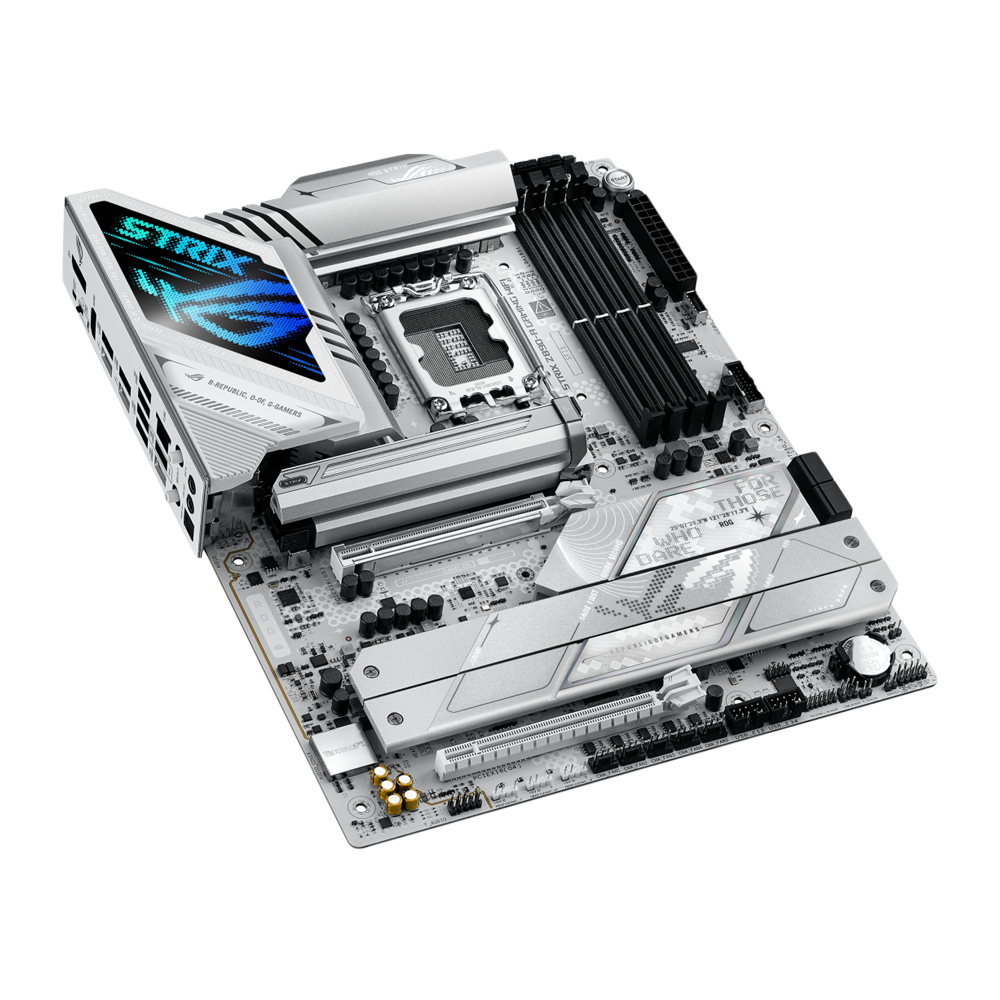

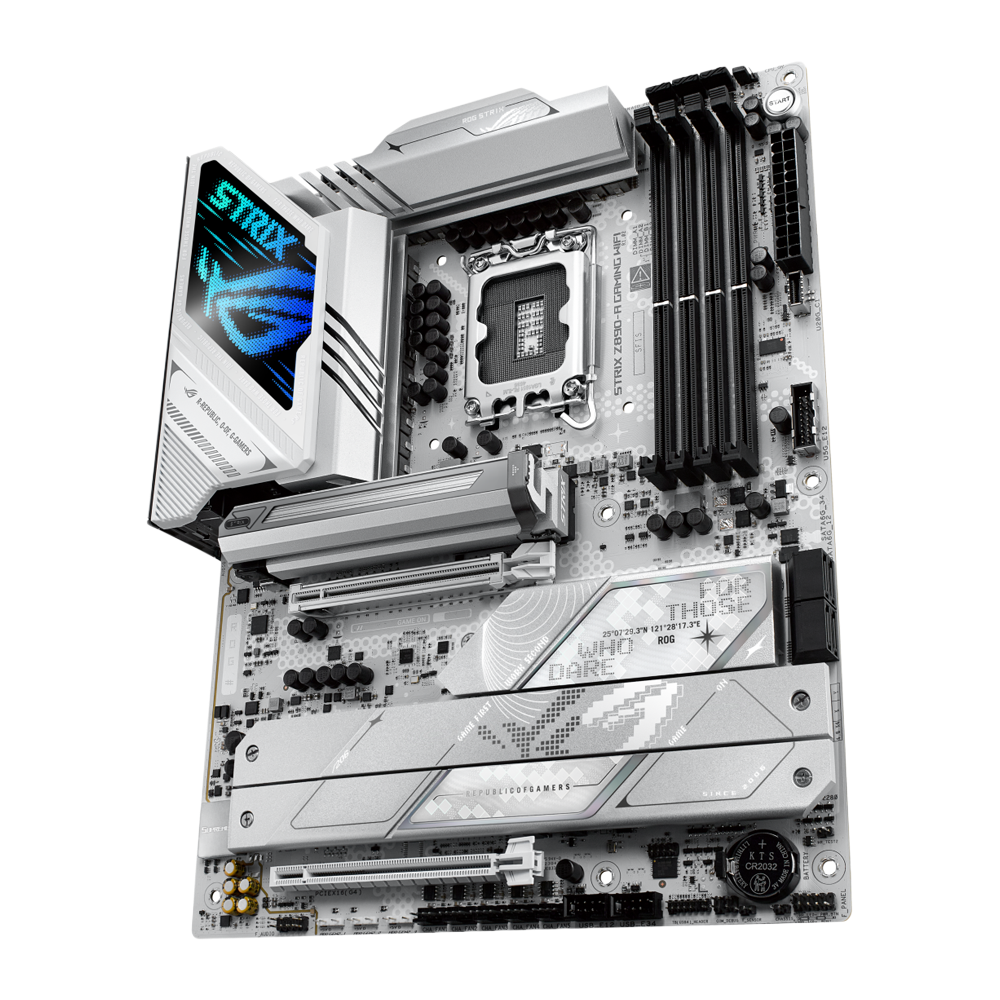

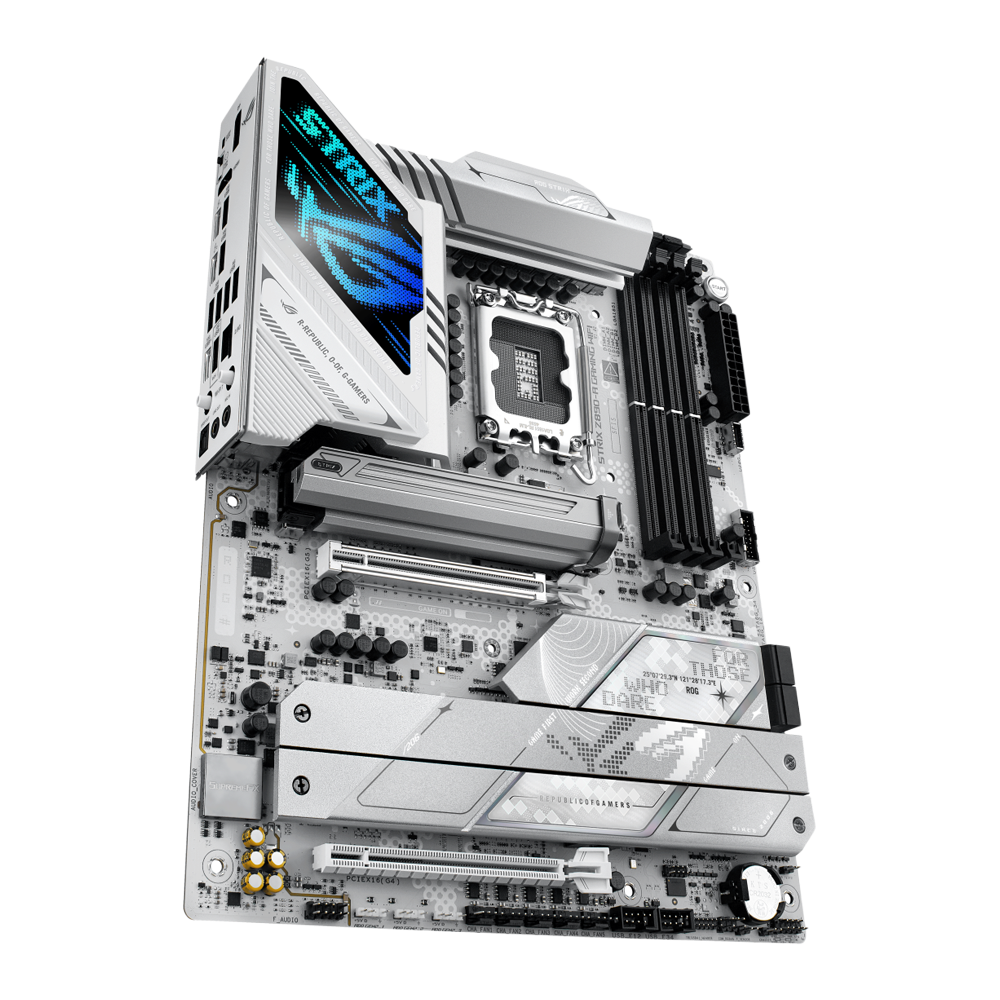

ASUS ROG STRIX Z890-A Gaming WiFi-7 DDR5 Motherboard - White

ASUS ROG STRIX Z890-A Gaming WiFi DDR5 ATX Motherboard - White

Intel® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+1+2+2 power stages, DDR5 slots, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe® 5.0 NVMe® SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt™ 4 ports, USB 10Gbps Type-C®rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting.

ASUS AI INTELLIGENCE

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI cOOLING II

Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance

OVERCLOCKING

NPU BOOST

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

MEMORY

DDR5 DOMINATION

Enhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-A.

DIMM FIT

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM FLEX

DIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules.

ROG STRIX ULTIMATE POWER DESIGN

16(90A)+1(90A)+2(90A)+2(80A) Power Stages

COOLING

M.2 BACKPLATE

An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.

M.2 HEATSINKS

    Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

VRM HEATSINK ARRAY

    Two thick heatsinks covering the power delivery section provide strategic airflow channels for increased heat dissipation while empowering high-performance Intel® Core™ Ultra Processors (Series 2)

CPU FAN HEADERS

A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.

AIO PUMP FAN HEADER

A dedicated PWM/DC header connects self-contained water-cooling setups.

4-PIN FAN HEADERS

The Strix Z890-A features five chassis fan headers, each supporting auto-detection of PWM or DC fans.​

Leading Connectivity

WIFI 7

The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

Intel 2.5Gb Ethernet

Onboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

PCIe 5.0

Fully embracing the new standard, the Strix Z890-A offers end-to-end PCIe 5.0 support.

TWO THUNDERBOLT 4 TYPE-C® PORTS

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.

USB WATTAGE WATCHER

USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 10Gbps Type-C® rear I/O port. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device’s Fast-Charging status.

DOLBY ATMOS

ROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.

SupremeFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z890-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

UNDENIABLY ROG STRIX

The ROG Strix Z890-A features a sleek white surface for a contemporary and stylish appearance that fits effortlessly into most system builds. Metallic heatsinks complement the clean design, while subtle Polymo lighting on the I/O shroud lets you choose between a refined, minimalist look or a vibrant, eye-catching display.

Specifications

• Model : ROG STRIX Z890-A GAMING WIFI

CPU

• Support Intel® Core™ Ultra Processors (Series 2)*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5

• Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

• Dual channel memory architecture

• Supports Intel® Extreme Memory Profile (XMP) memory module

• Supports DIMM Flex

• Supports DIMM FIT

• ASUS Enhanced Memory Profile III (AEMPIII)

• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information


• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort*

• 1 x HDMI™ port**

• 2 x Intel® Thunderbolt™ 4 support

• DisplayPort and Thunderbolt™ video outputs***

• - Graphics specifications may vary between

• * Supports max. 8K@60Hz as specified in

• DisplayPort 1.4.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** In Thunderbolt™ 4 mode, supports up to

• 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or

• 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP

• alt mode, supports up to UHBR20.

• **** VGA resolution support depends on

• processors' or graphic cards' resolution.

• ***** While installing the operating

• system, please ensure that your monitor is connected to the HDMI port on the

• back I/O panel or to a discrete graphics card.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)

• 1 x PCIe 5.0 x16 slot

• Intel® Z890 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• - To ensure compatibility of the device installed.

Storage

• Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel® Core™ Ultra Processors (Series 2)*

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• Intel® Z890 Chipset

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

• M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

• 4 x SATA 6Gb/s ports

• * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

• 1 x Intel® 2.5Gb Ethernet

• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*

•  2x2 Wi-Fi 7 (802.11be)

•  Supports 2.4/5/6GHz frequency band**

•  Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

•  Bluetooth® v5.4***

•  *Wi-Fi features may vary depending on the operating system

•   For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

•   For Windows 10, only Wi-Fi 6 is supported.

•  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

•  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 10 ports)

• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*

• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)**

• 2 x USB 5Gbps ports (2 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 20Gbps connector (supports USB Type-C® )*

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• * USB Type-C® power delivery output: max. 5V/3A

• ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

•  - Impedance sense for front and rear headphone outputs

•  - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

•  - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

•  - Supports up to 32-Bit/384 kHz playback on front panel

• Audio Features

• - SupremeFX Shielding Technology

• - Savitech SV3H712 AMP

• - Rear optical S/PDIF out port

• - Premium audio capacitors

• - Audio cover

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*

• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)

• 2 x USB 5Gbps ports (2 x Type-A)

• 1 x DisplayPort

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Intel® 2.5Gb Ethernet port

• 2 x Audio jacks

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 5 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connectors

• Storage Related

• 5 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps connector (supports USB Type-C® )

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Chassis Intrusion header

• 1 x CPU Over voltage jumper

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x Start button

• 1 x 10-1 pin Front System Panel header

• 1 x Thermal Sensor header

• 1 x Thunderbolt™ (USB4®) header

Special Features

• Extreme Engine Digi+

• - 5K Black metallic capacitors

• ASUS Q-Design

• - M.2 Q-Latch

• - M.2 Q-Release

• - M.2 Q-Slide

• - PCIe Slot Q-Release Slim (with PCIe SafeSlot)

• - Q-Antenna

• - Q-Dashboard

• - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-SlotASUS

• Thermal Solution

• - M.2 heatsink backplate

• - M.2 heatsink

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - Clear CMOS button

• - CPU Socket lever protector

• - ProCool II

• - Pre-mounted I/O shield

• - SafeSlot

• - SafeDIMM

• Aura Sync

• - Addressable Gen 2 headers

Software Features

• ROG Exclusive Software

• - ROG CPU-Z

• - Dolby Atmos

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Xpert 4 (with AI Cooling II)

• - GameFirst

• - Power Saving

• AIDA64 Extreme (60 days free trial)

• HWiNFO

• ASUS AI Advisor

• ASUS DriverHub

• ASUS GlideX

• MyAsus

• USB Wattage Watcher

• TurboV Core

• Adobe Creative Cloud (30 Days Free Trial)

• Norton 360 for Gamers (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• AI Overclocking Guide

• NPU Boost

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

• FlexKey

BIOS

• 256 Mb UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Additional Cooling Kit

• 1 x Thermal pad for M.2 22110

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 1 x Cable ties package

• 1 x M.2 Q-Latch package

• 1 x ROG key chain

• 1 x ROG Strix stickers

• 5 x M.2 rubbers

• Documentation

• 1 x Quick start guide

Operating System

• Windows 11 (22H2 later)

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
