ASUS ROG THOR 1200W Platinum III 80 Plus Platinum ATX 3.1 PCIe GEN 5 Power Supply Unit- Black

Key Features:

• GEN 5
• 1200W Max Power
• 80Plus Platinum Efficiency
• ARGB Aura Sync
• Fully Modular
• ATX 3.1
• Thor OLED display

ROG THOR 1200W PLATINUM III
ULTIMATE POWER. UNMATCHED STABILITY.
The ROG Thor 1200W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1200W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

ENGINEERING

GaN MOSFET
The ROG Thor 1200W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

COOLING

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Dual-Ball-Fan Bearings
2X longer lifespan
Dual-ball bearings boast a remarkable lifespan of up to 80,000 hours, twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This helps to ensure long-lasting and reliable cooling with minimal noise for the ROG Thor 1200W Platinum III.

0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is at 30% or below.

EXPERIENCE

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

Turbo Mode
Turbo Mode unlocks support for extended power excursions, courtesy of a fine-tuned fan curve and premium components. Enjoy unwavering performance when you need it most, and switch between peak performance and ultimate silence with just a press of the Turbo Mode button on the rear of the PSU.

DIY-friendly CPU Power Connector

Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

Aura Sync

The ROG Thor 1200W Platinum III has addressable Aura RGB LEDs built in, ready to accent an Aura-compatible rig with an array of colors and lighting effects*. Users of Aura-sync compatible ASUS and ROG graphics cards can also enjoy Smart Mode, a lighting effect that changes color according to GPU temperature.

Specifications

• Model : ROG Thor 1200W Platinum III
• PFC Type : Active PFC
• ATX Standard : ATX 3.1
• Dimensions : 190 x 150 x 86 mm
• Efficiency : 80Plus Platinum
• MTBF : >120,000 hrs @ 25°C
• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials : ROHS
• AC Input Range : 100-240Vac
• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
• Maximum Load : 30A 25A 100A 0.3A 3A
• Combined Load : 125W 125W 1200W 3.6W 15W
• Total Output : 1200W

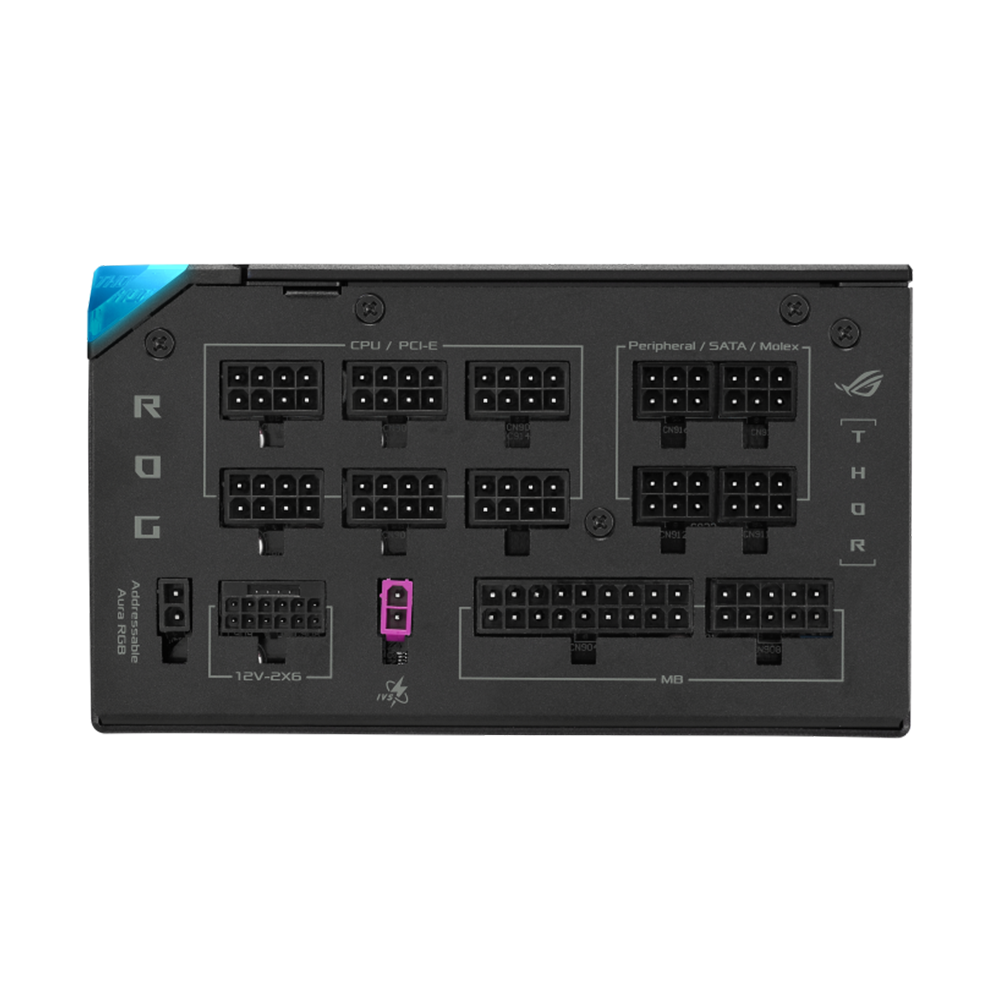

• Cable Connectors
• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1
• PCI-E 6+2-pin x 4
• SATA x 7
• PERIPHERAL x 6
• Package Contents : Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (1000mm)
• PCI-E Gen 5.1 16-pin Cable x 1 (750mm)
• PCI-E Cable 1-to-1 x 4 (750mm)
• SATA Cable 1-to-4 x 1 (400+120+120+120mm)
• SATA Cable 1-to-3 x 1 (400+120+120mm)
• Peripheral 1-to-3 x 2 (400+150+150mm)
• Addressable RGB Cable x 1 (800mm)
• ROG sticker x 1
• ROG cable tie x 6
• Chassis Screws Package x 1
• Cable Tie x 12
• User Manual x 1
• Weight : 2.37 KG (single PSU)
• AURA SYNC : ARGB
• Cybenetics Noise Level Certification : A++
• 0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load
• 0dB Fan Button : Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
