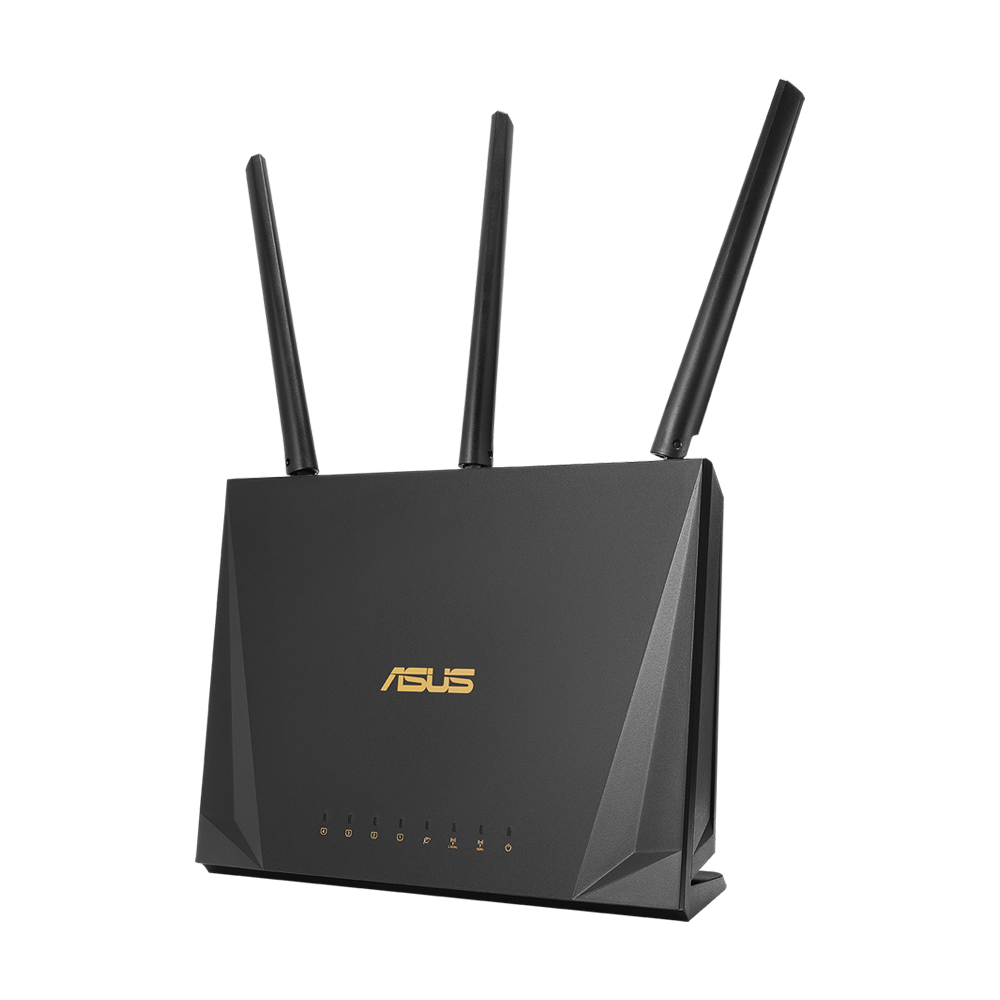

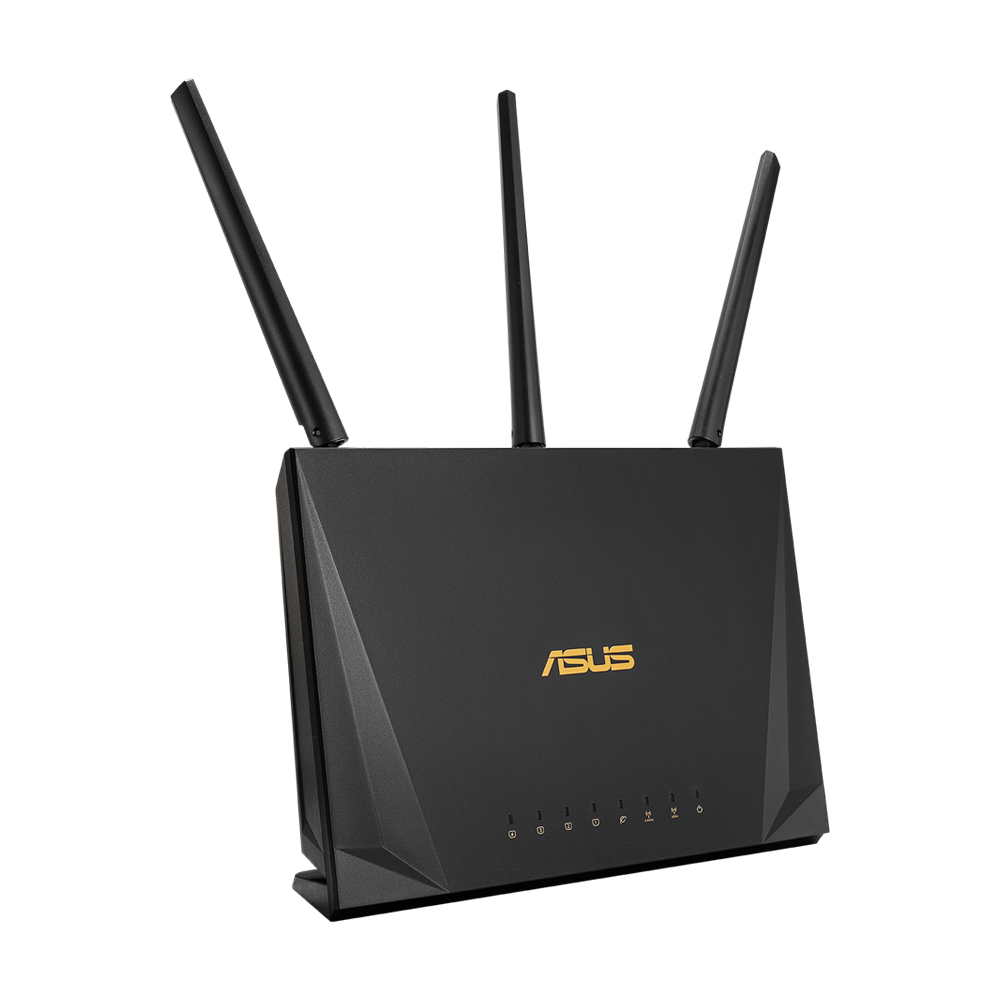

ASUS ROUTER AC2400 Dual-Band Gigabit WiFi Router

Key Features:

• High-speed WiFi performance up to 2400Mbps
  2.4G 3T3R + 5G 4T4R concurrent speed up to a combined 2400 Mbps data rate.
• Dual core CPU enhanced performance
  Ultimate data transfer and router download/upload speed.
• Traffic Manager - ASUS QoS
  Optimized for HD streaming and online gaming.
• MU-MIMO technology for multi-user playing
  MU-MIMO enables multiple users download at the same time, optimized for multi-player with no lags.
• AiRadar 2.0 - Directional signal amplification
  Beamforming technology intelligently strengthens wireless signal.
• Ultimate Speed Gigabit LAN
  Provide you stable wired speed to 1000Mbps, Ideal for lag-free 4K video streaming and online gaming
• Parental Controls
  Monitor and restrict internet activity for any user
• 3-Step Easy Setup
  In less than 30 seconds and in only 3 easy steps, effortlessly set up your ASUS router through the simple user interface

Wireless AC2400 Dual-Band Gaming Router with Parental Control, support MU-MIMO.

Experience Super-Fast
Wireless Speeds
Powered by 5th generation Wi-Fi (5G Wi-Fi) and 256QAM technology, the 802.11ac chipset gives the RT-AC2400 faster wireless speeds than N technology. At 2.4 GHz, it reaches 600 Mbps, while on the 5GHz band it blazes to 1733 Mbps. The upgraded bandwidth has the higher capacity you need to increase Wi-Fi enjoyment at home. You can enjoy ultra-smooth online gaming, snappier web surfing and other bandwidth-demanding tasks without a wired connection.

ASUS QoS
ASUS QoS ensure inbound and outbound bandwidth on both wired and wireless connections, you could control each client devices with different download and upload max speed, also could define your online gaming and HD streaming as highest priority, stop all your lagging issues.

Multiple Capacity Wi-Fi with Revolutionary MU-MIMO Technology
MU-MIMO gives every compatible device3 its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network. In fact, RT-AC2400 is able to connect to multiple MU-MIMO-compatible clients at each device's maximum speed simultaneously, unlike standard single-user MIMO where individual devices have to wait for sequential transmissions.

Parental Controls
Keep your kids safe when they explore the internet. You can monitor the internet activities and restrict the times that each device can access the internet by applying scheduled time limits.

Ultimate USB speed and versatility
USB 3.1 (Gen1) features data transfers up ten times faster than USB 2.0. RT-AC2400 is perfect for file, multimedia, while ASUS AiDisk offers remote access and quick content streaming.

Robust control and optimization with ASUSWRT
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. With 30-second setup, multi-device detection, and flexible settings, ASUSWRT makes the most of your network performance.

Specifications

• Model : RT-AC2400

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)

Antenna

• External antenna x 3
• Internal antenna x 1

Transmit / Receive

• 2.4GHz 3x3
• 5GHz 4x4

Operating Frequency

• 2.4G Hz / 5 GHz

Operating Mode

• Accesspoint, Router

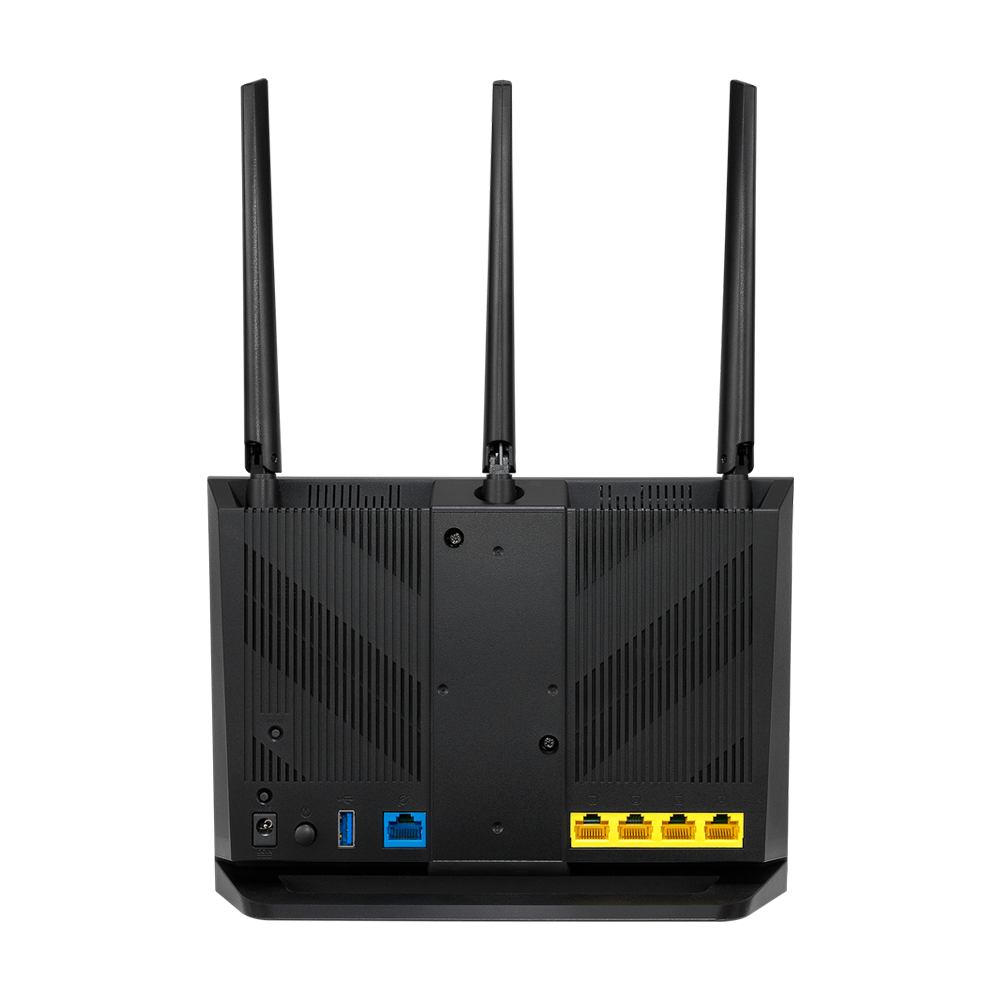

I/O Ports

• RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4

USB 3.1 Gen 1 x 1

Buttons

• WPS Button, Reset Button, Power Button

LED Indicator

• Power x 1
• LAN x 4
• WAN x 1
• Wi-Fi x 2

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 2.5 A current

Package Content

• 1 x RT-AC2400 Dual Band Wireless-AC2400 Gigabit Router
• 1 x RJ-45 cable
• 1 x Power adapter
• 1 x QSG
• 1 x Warranty card

Product Weight (g)

• 533 g

Product Dimensions

• 220 x 87 x 158 ~ mm (WxDxH)

Parental Control

• "Allow you to block access to unwanted websites and apps."

Customized Internet Schedule

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection Time Limit
• Guest Network Encryption : Open system, WPA/WPA2-Personal

Security

• Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
• WPS
• SSH
• Firewall
• • Maximum Firewall Keyword Filter : 64
• • Maximum Firewall Network Service Filter : 32
• • Maximum Firewall URL Filter : 64

VPN

• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Server Open VPN
• VPN Server PPTP

Traffic Control

• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32
• Traffic Monitor
• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• • Traffic Analysis Period : Daily, Weekly, Monthly

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Port forwarding
• • Maximum Port Forwarding Rule : 64
• Port triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address
• • Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• RADIUS Client
• Explicit Beamforming

USB application

• File System : FAT16, FAT32, NT3G, ext2, ext3
• HDD Hibernation
• Safely Remove Disk
• AiDisk
• Media Server
• Samba Server
• FTP Server
• Shared Folder Privileges

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
