ASUS RT-BE58U 4K-QAM, MLO, AI Detection 2.5G WAN/LAN port - Black

Key Features:

• Ultrafast WiFi 7 -- WiFi 7 (802.11be) dual-band extendable router boosts speeds up to 3600 Mbps, with 4096-QAM increasing a single frequency band's transmission speed by 1.2 times
• High Performance CPU -- Equipped with the latest 2.0GHz Quad-Core CPU from Broadcom, supporting up to 20K DMIPS computing power, effortlessly handling various software and hardware features.
• Unleashing Multi-link operation (MLO) for Ultra-Smooth Connectivity -- Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
• Al Detection on WAN Input -- flexible WAN inputs with a 2.5 Gb WAN/LAN port and a 1 Gb WAN/LAN port. It can automatically detect the WAN input and configure itself for an easier setup process.
• Hassle-free AiMesh Extendable Network -- AiMesh extendable routers enable whole home seamless roaming with rich, advanced features.
• Commercial-Grade Network Security-- Network security with commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing.

WiFi 7 AiMesh Extendable Router, 4K-QAM, MLO, AI Detection 2.5G WAN/LAN port , Four 1G ports, Commercial-Grade Network Security, Parental Control, IoT network, Kid’s network, VPN network.

Worry-Free Smart Home WiFi

Elevate your smart home with blazing-fast dual-band Wi-Fi 7 speeds of up to 3600 Mbps and boosted coverage with AI-boosted Smart AiMesh technology. With next-gen ASUS Network Security and a suite of advanced network technologies such as IoT Network, the RT-BE58U safeguard your network end-to-end, 24/7.

IEEE 802.11be

Faster, Smarter Home WiFi 7

The ASUS RT-BE58U boasts cutting-edge WiFi 7 technology. Enjoy next-generation speeds and connected experiences for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation, and AI network.

Blazing-Fast WiFi Speeds

The RT-BE58U unleashes blazing-fast dual-band WiFi 7 speeds of up to 3600 Mbps, ensuring seamless streaming, gaming, and compatibility with legacy IoT devices.

Comprehensive MLO Support

Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz and 5 GHz bands. ASUS RT-BE58U is built for the future of all WiFi 7 devices, regardless of the MLO mode they use*.

Advanced 160 MHz Channels

The RT-BE58U supports ultrawide 160 MHz channels, delivering ultrafast data transfer rates, reduced latency, and enhanced performance for a smoother network experience.

Efficient 4K-QAM Transmission

Compared to 1024-QAM with WiFi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission*.

MESH WiFi

AI-Boosted Smart AiMesh

ASUS RT-BE58U harnesses the power of WiFi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network, and a feature-rich network experience – all under one WiFi network name

Smart MLO Connect

Smart AiMesh intelligently leverages WiFi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.

Values Beyond Extension

AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security, and smart home features across your entire network.

Performance

Engineered for Always-On Connection

The robust design of the ASUS RT-BE58U delivers next-level WiFi and network performance and superior reliability. With four external antennas and four high-power front-end modules, it eliminates WiFi dead zones, delivering reliable signals in all directions.

Next-gen Powerhouse

Fueled by a quad-core 2.0 GHz CPU and 1 GB of RAM, the RT-BE58U delivers exceptional processing power. This unleashes advanced features, optimizing your network for smoother 8K streaming, HDR gaming, and enhanced AI networking.

Connectivity

Enjoy versatile and ultrafast multi-gigabit smart home networking with the RT-BE58U.

Environment

Sustaining an Incredible Future

ASUS is committed to sustainability via durable product design and eco-friendly packaging.

Network Security

Safeguard Everyone and Every Connected Device

In a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats, and ensure seamless protection for all your connected devices and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection, and secure connections.

User Friendly

Router Protection Made Easy

ASUS Network Security includes convenient network tools such as a one-tap Security Scan for diagnosing network health, fine-tuned settings options, and on-the-go notifications.

Network Segmentation

Feature-Packed Smart Home Master SSIDs

ASUS Smart Home Master subnetwork management streamlines the process of creating or connecting to dedicated subnet via SSIDs with advanced features like parental controls and VPNs.

Parental Controls

Safer, Smarter Family Protection

Advanced family protection and parental controls empower you to cultivate a balanced digital life for you and your kids, all without subscriptions.

Specifications

• Model : RT-BE58U

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 7 (802.11be)
• IPv4
• IPv6

Product Segment

• BE3600 ultimate BE performance : 688+2882 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
• WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

Antenna

• External antenna x 4

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• 2.0 GHz quad-core processor

Memory

• 256 MB Flash
• 1 GB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4GHz / 5GHz
• 2.4 GHz
• 5 GHz

Operating Mode

• Wireless router mode
• Access point mode
• Media bridge mode

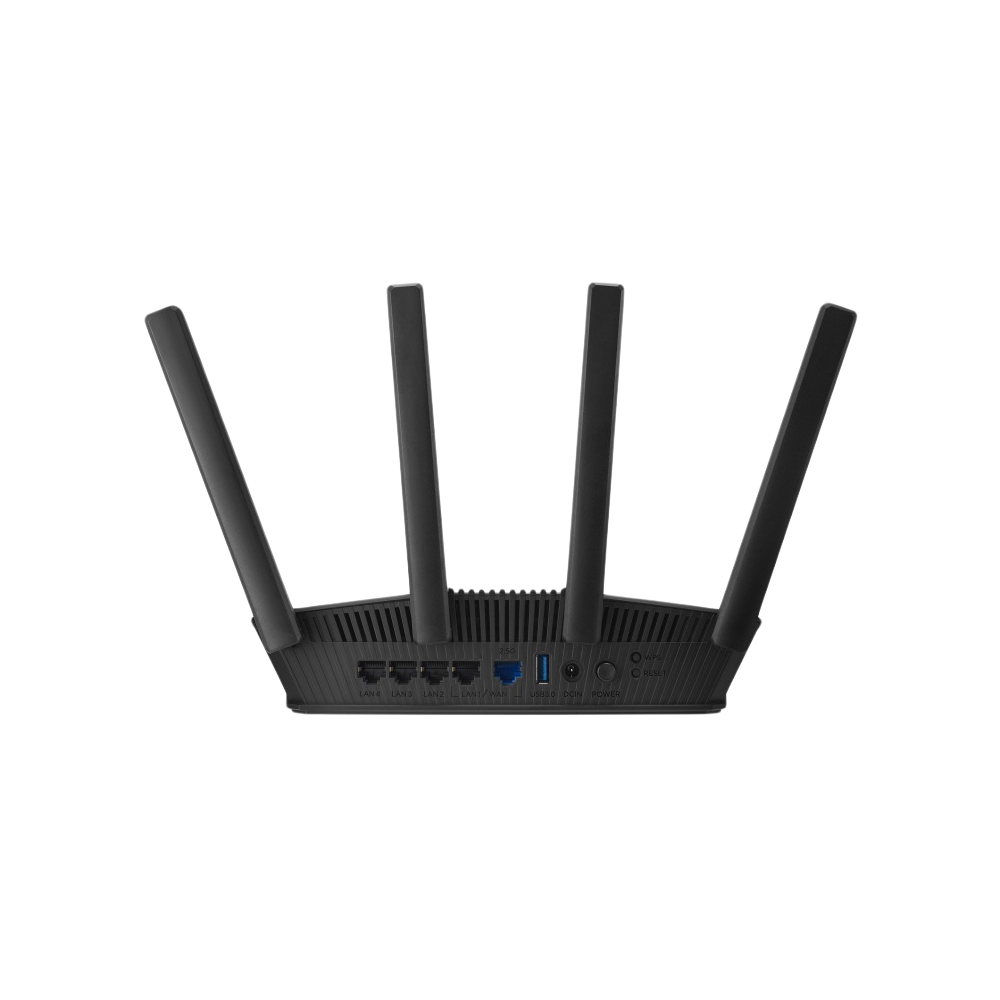

I/O Ports

• RJ45 for 2.5 Gigabits BaseT for WAN x 1,
• RJ45 for Gigabits BaseT for LAN x 4,
• USB 3.2 Gen 1 x 1,

Buttons

• WPS Button, Reset Button, Power Button
• LED Indicator
• Power x 1
• WAN x 1
• LAN x 1
• 2.4GHz WiFi x 1
• 5GHz WiFi x 1

Power Supply

• AC Input : 100V~240V (50~60Hz)
• DC Output : 12 V with max. 2 A current

Package Content

• RT-BE58U
• RJ-45 cable
• Power adapter
• Quick Start Guide

Product Weight (g)

• 461g

Product Dimensions

• 238 x 193 x 59 mm

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Support Guest Network
• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection Time Limit

Security

• AiProtection
• VPN
• WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• • Maximum Firewall Keyword Filter : 64
• • Maximum Firewall Network Service Filter : 32
• • Maximum Firewall URL Filter : 64

AiProtection

• AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• Traffic Control
• Adaptive QoS
• • Bandwidth Monitor
• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32

Traffic Monitor

• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• Traffic Analyzer
• • Traffic Analysis Period : Daily, Weekly, Monthly
• • Website History

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• 3G / 4G LTE dongle
• 4G / 5G Auto Mobile Tethering
• Port forwarding
• • Maximum Port Forwarding Rule : 64
• Port triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• • Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB application

• 4G / 5G Auto Mobile Tethering
• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface

• WEB: ASUSWRT
• APP: ASUS Router APP

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
