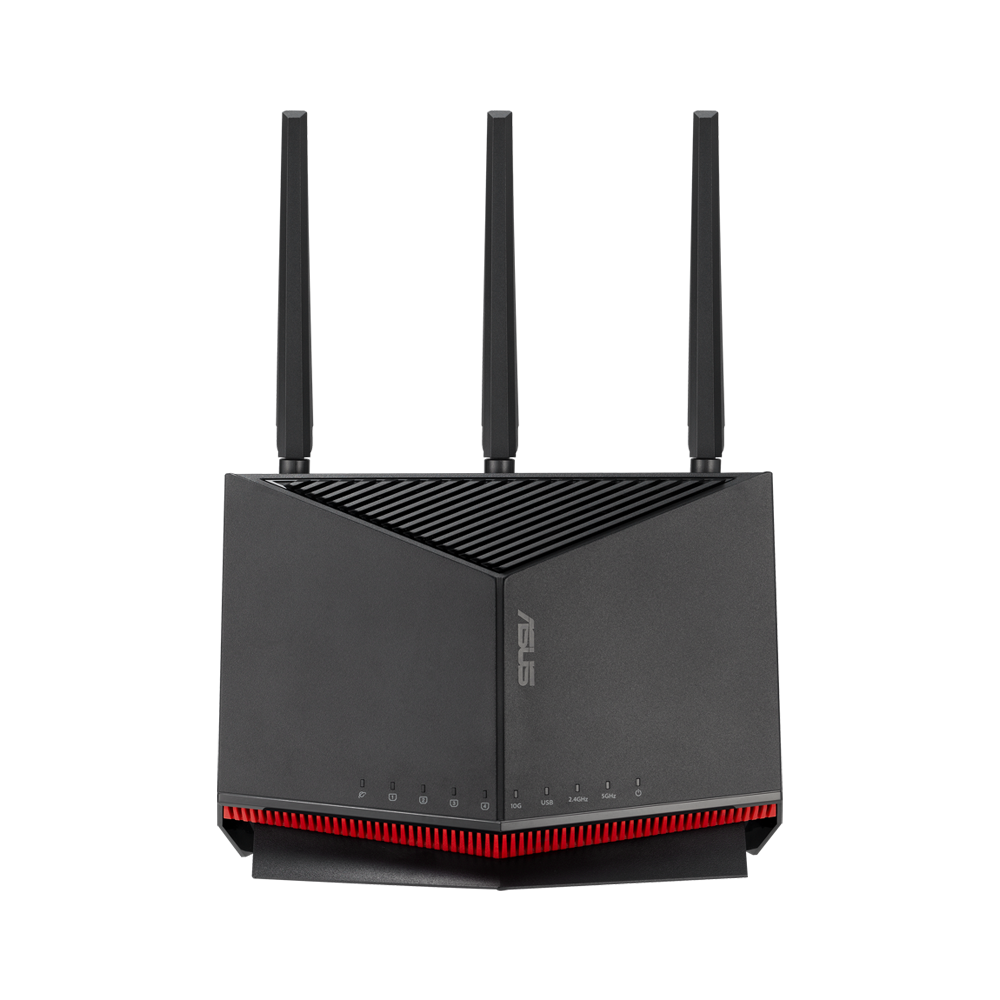

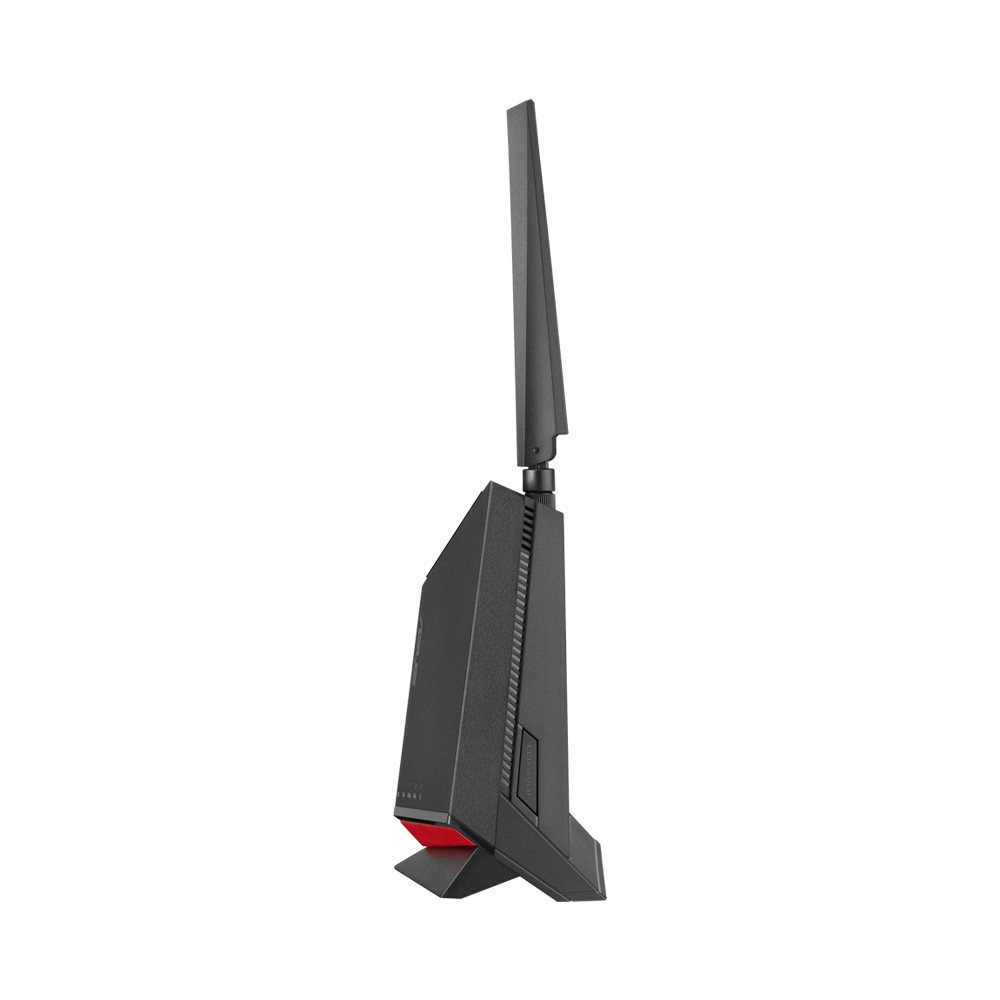

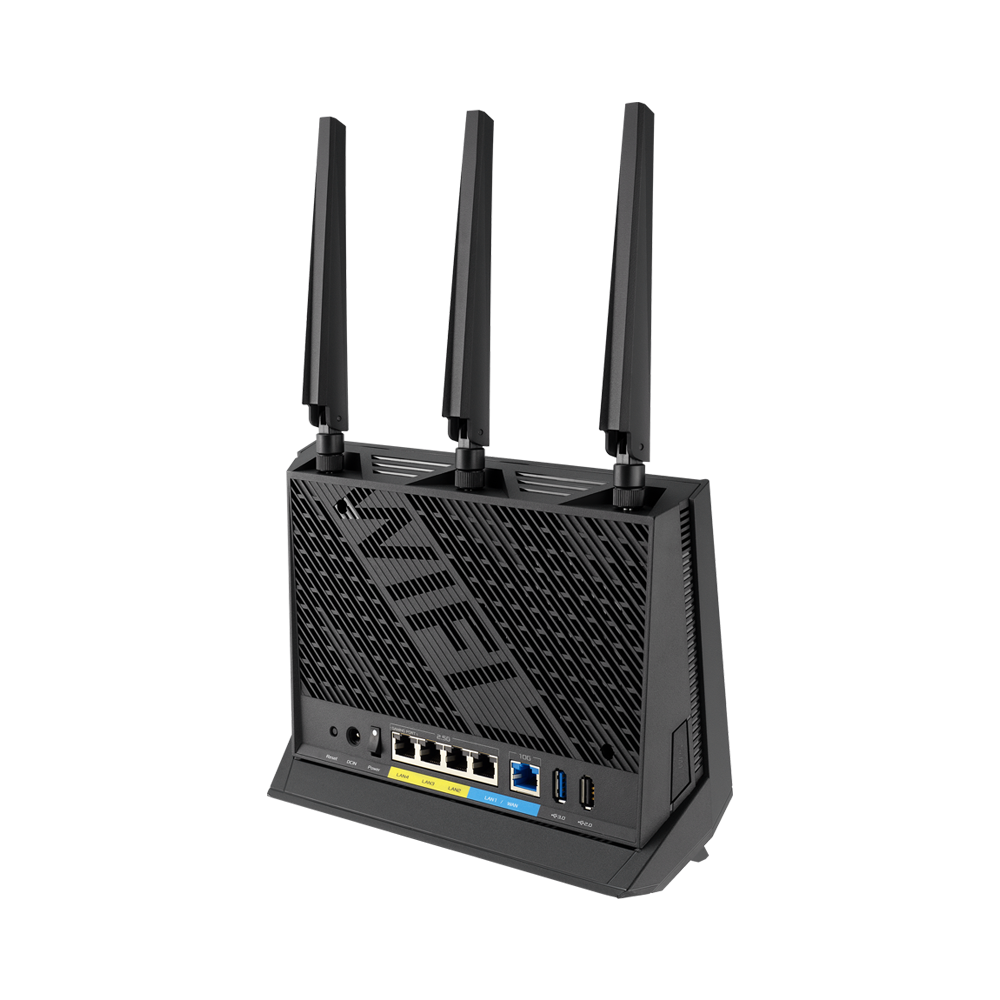

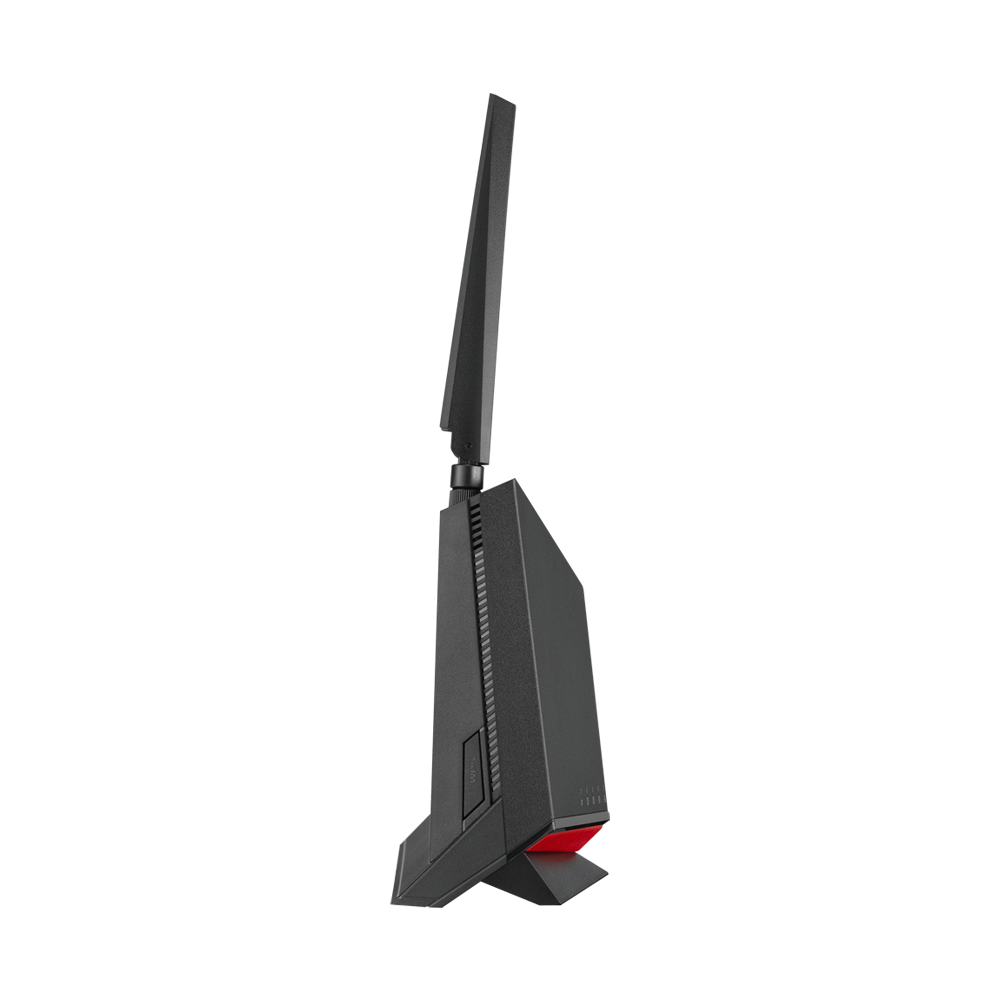

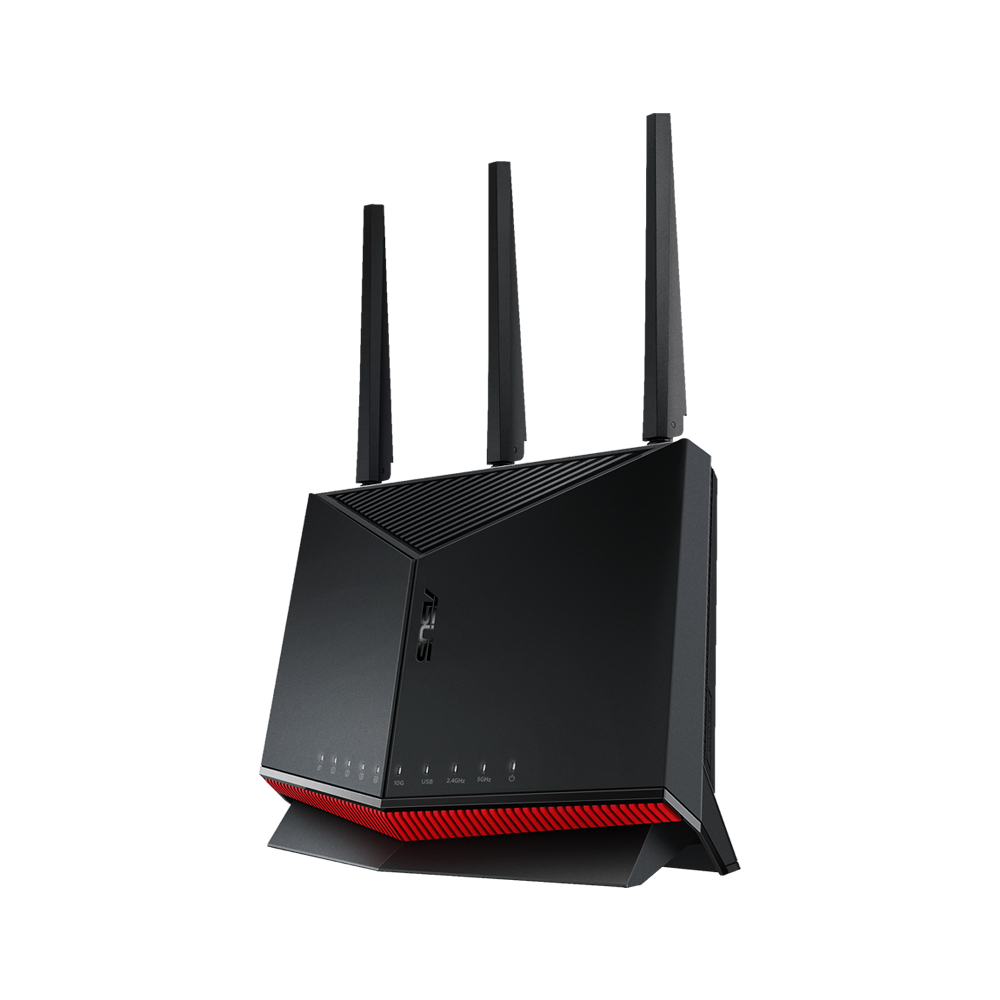

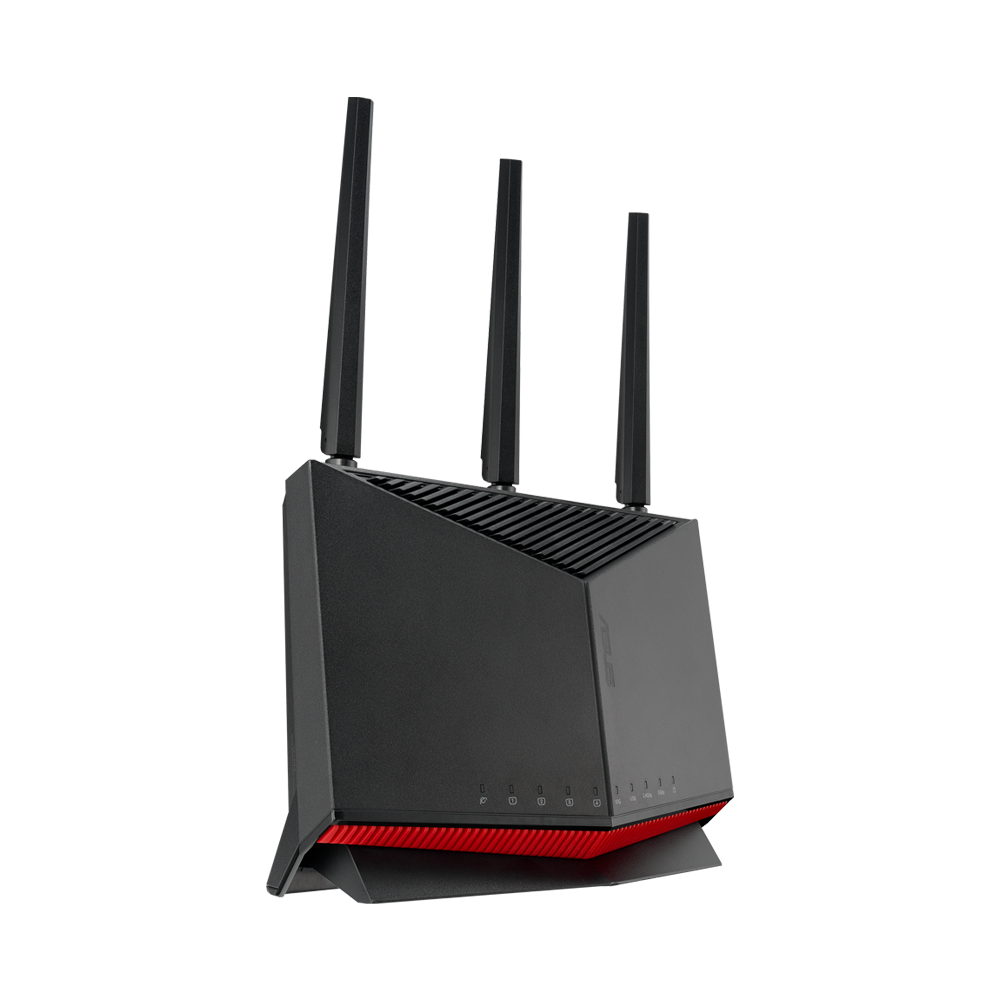

ASUS RT-BE86U Dual-band WiFi 7 Router - Black

Key Features:

• Beyond-fast WiFi 7 (802.11be) router enables WiFi 7 performance (Multi-link Operation (2.4 GHz and 5 GHz) and 4096-QAM), boosting dual band throughput up to 6800 Mbps
• Ultrahigh-speed 10 Gigabit Ethernet with one standard 10G WAN/LAN port empowers supreme wired network capacity up to 20G
• Always-on internet with Versatile WAN options, hassle-free AI WAN detection on 2.5G or 10G WAN/LAN ports and convenient 4G LTE & 5G Mobile Tethering via USB
• A powerhouse quad-core 2.6 GHz 64-bit CPU unleashes full performance for demanding WiFi 7 and 10 Gigabit network applications
• Guest Network Pro offers effortless network segmentation with up to five SSIDs for easy IoT device setup and management, instant VPN connections and convenient parental controls
• Mobile Game Mode minimizes lag and latency for mobile gaming with just a tap on the ASUS Router app
• Subscription-free network security includes commercial-grade AiProtection Pro powered by Trend Micro™, one-tap security scan and comprehensive support of various VPN protocols and site-to-site VPN
• Ultimate AiMesh powered by AI delivers robust backhaul connections, seamless connectivity for all your devices, and a feature-rich whole-home network that scales effortlessly with any ASUS extendable router

ASUS RT-BE86U Dual-Band WiFi 7 Router - Black

BE6800 Dual-band WiFi 7 Router, support 4096-QAM, Multi-link operation (MLO), 10G port, subscription-free network security and comprehensive VPN features.

Specifications

• Model : RT-BE86U

Network Standard

• IEEE 802.11a

• IEEE 802.11b

• IEEE 802.11g

• WiFi 4 (802.11n)

• WiFi 5 (802.11ac)

• WiFi 6 (802.11ax)

• WiFi 7 (802.11be)

• IPv4

• IPv6

Product Segment

• BE6800 ultimate BE performance : 1032+5764 Mbps

WiFi Data Rate

• WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps

• WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

Antenna

• External antenna x 3； Internal antenna x 1

Transmit / Receive

• 2.4GHz 3x3

• 5GHz 4x4

Processor

• 2.6GHz quad-core processor

Memory

• 256 MB Flash and 1 GB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)

• Beamforming: standard-based and universal

• 4096-QAM high data rate

• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4 GHz

• 5 GHz

Operating Mode

• Wireless Router Mode

• AiMesh Node Mode

• Access Point Mode

• Media Bridge Mode

• Repeater Mode

I/O Ports

• 1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

Buttons

• WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicator

• WAN x1

• 10G Port x1

• LAN x4

• USB x1

• 2.4GHz x1

• 5GHz x1

• Power x1

Power Supply

• AC Input : 110V~240V(50~60Hz)

• DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current

Package Content

• RT-BE86U WiFi router

• RJ-45 cable

• Power adapter

• Quick Start Guide

• Warranty card

Product Weight (g)

• 854 g

Product Dimensions

• 235*90*316 mm

AiMesh

• AiMesh

1. Primary AiMesh Router

2.  AiMesh Node

Game

• Mobile Game Mode

• Gear Accelerator

• OpenNAT (Game Profile)

• Gaming Port

Parental Control

• "Allow you to block access to unwanted websites and apps."

• Web & Apps Filters

• Time Scheduling

Safe Browsing

• Customized Internet Schedule

• • Maximum Parental Control Profile : 64

• • Maximum Parental Control Content Cilter Rule : 64

Guest Network

• "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

• Support Guest Network Pro

• • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

• Guest Network Connection Time Limit

• Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

Security

• AiProtection

• VPN

• WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE

• WPS

• Let's Encrypt

• DNS-over-TLS

• SSH

• Security Scan

• Firewall

• • Maximum Firewall Keyword Filter : 64

• • Maximum Firewall Network Service Filter : 32

• • Maximum Firewall URL Filter : 64

AiProtection

• AiProtection Pro

• • Router Security Assessment

• • Malicious Site Blocking

• • Two-Way IPS

• • Infected Device Prevention and Blocking

VPN

• Instant Guard

• VPN Client L2TP

• VPN Client Open VPN

• VPN Client PPTP

• VPN Client WireGuard

• VPN Server IPSec

• VPN Server Open VPN

• VPN Server PPTP

• VPN Server WireGuard

• VPN Fusion

• Support Surfshark

Traffic Control

• Adaptive QoS

• • Bandwidth Monitor

• • Bandwidth Limiter

• -- Maximum Bandwidth Limiter Rule : 32

• Traditional QoS

• Traffic Monitor

• • Real-time Traffic Monitor

• • Wired Traffic Monitor

• • Wireless Traffic Monitor

• Traffic Analyzer

• • Traffic Analysis Period : Daily, Weekly, Monthly

• • Website History

WAN

• Internet Connection Type :

• • PPPoE

• • PPTP

• • L2TP

• • Automatic IP

• • Static IP

• • IPSec

• Dual WAN

• WAN Aggregation

• 3G / 4G LTE dongle

• Port forwarding

• • Maximum Port Forwarding Rule : 64

• Port triggering

• • Maximum Port Triggering Rule : 32

• DMZ

• DDNS

• NAT Passthrough :

• • PPTP Pass-Through

• • L2TP Pass-Through

• • IPSec Pass-Through

• • RTSP Pass-Through

• • H.323 Pass-Through

• • SIP Pass-Through

• • PPPoE Relay

LAN

• DHCP Server

• IGMP Snooping

• IPTV

• LAN Link Aggregation

• Manually Assign IP Address

• • Maximum Manually Assign IP Address Rule : 128

• Wake on LAN (WOL)

Wireless

• MU-MIMO

• UTF-8 SSID

• WiFi MAC Address Filter

• • Maximum MAC Filters : 64

• Wireless Scheduler

• Airtime Fairness

• RADIUS Client

• Universal Beamforming

• Explicit Beamforming

USB application

• File System :

• • HFS+

• • NTFS

• • vFAT

• • ext2

• • ext3

• • ext4

• Safely Remove Disk

• AiCloud

• Download Master

• AiDisk

• Media Server

• Time Machine

• Samba Server

• FTP Server

• Shared Folder Privileges

User Interface

• WEB: ASUSWRT

• APP: ASUS Router APP

Administration

• Configuration Backup and Restore

• Diagnosis tools

• Feedback System

• System Log

• New Device Connect Notification

• Login Captcha

• Connection Diagnosis

• Auto Firmware Update
