ASUS TUF Gaming AX6000 Dual Band WiFi 6 Gaming Router With Dedicated Gaming Port - Black

ASUS TUF Gaming AX6000 Dual Band WiFi 6 Gaming Router With Gaming Port - Black

TUF Gaming AX6000

TUF Gaming AX6000 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.

4X Capacity. 2X Faster.*

WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.

*The data compares speed of 4X4 WiFi 6 solution on 5GHz band 160MHz channel to speed of 4X4 WiFi 5 solution on 5GHz band 80MHz channel

True Multi-Gigabit Wired Speeds

For true multi-gigabit performance, you need both WAN and LAN connections that support these speeds. TUF Gaming AX6000 features both WAN and LAN aggregation, so you can enjoy 5 Gbps wired speeds from your modem all the way to your PC and NAS.

Flexible and Scalable Wireless Mesh Networking

If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

Stable and Durable

TUF Gaming AX6000 is engineered to deliver maximum WiFi performance. The vent location and double heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.

Simultaneous Gaming and VPN

VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.

Commercial-Grade

Security for Your Home

Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX6000 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX6000, and you can keep an eye on everything that's happening on your network via the handy mobile app.

More Privacy, Anywhere

Instant Guard gives you one-click secure internet access via TUF Gaming AX6000 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX6000, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

Specifications:-

Network Standard

• IPv6

• IPv4

• WiFi 6 (802.11ax)

• WiFi 5 (802.11ac)

• WiFi 4 (802.11n)

• IEEE 802.11g

• IEEE 802.11b
• IEEE 802.11a

Product Segment

• AX6000 ultimate AX performance : 1148+4804 Mbps

WiFi Data Rate

• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

• WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps

• 802.11g : up to 54 Mbps

• 802.11b : up to 11 Mbps
• 802.11a : up to 54 Mbps

Antenna

• External antenna x 6

Transmit / Receive

• 5GHz 4x4
• 2.4GHz 4x4

Processor

• 2.0 GHz quad-core processor

Memory

• 256 MB Flash
• 512 MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)

• Beamforming: standard-based and universal

• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4GHz / 5GHz

Operating Mode

• Wireless router mode

• Access point mode
• Media bridge mode

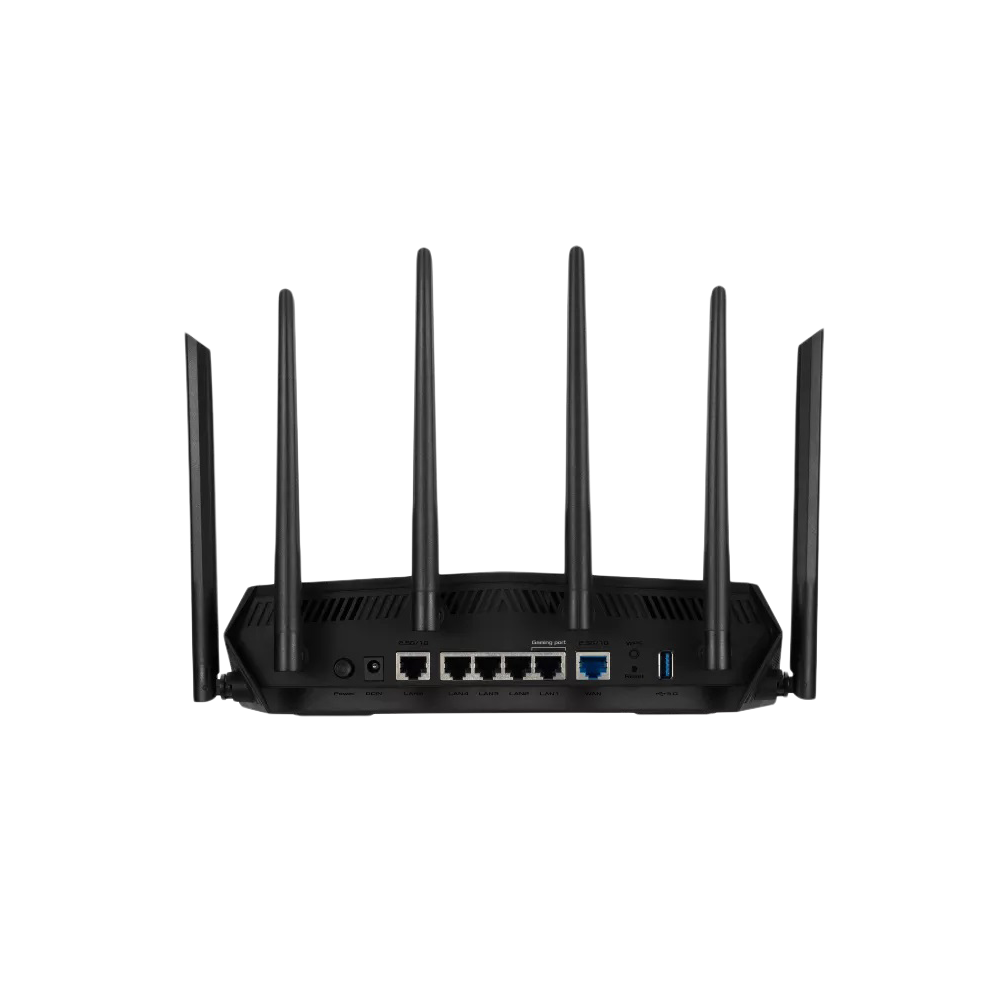

I/O Ports

• RJ45 for 2.5 Gigabits BaseT for WAN x 1,

• RJ45 for 2.5 Gigabits BaseT for LAN x 1,

• RJ45 for Gigabits BaseT for LAN x 4,
• USB 3.2 Gen 1 x 1,

Buttons

• WPS Button, Reset Button, Power Button

LED Indicator

• Power x 1

• WiFi x 1

• 1G LAN x 4

• 2.5G WAN x 1

• 2.5G LAN x 1

Power Supply

• AC Input : 100V~240V (50~60Hz)

• DC Output : 12 V with max. 2.5 A current

Package Content

• TUF Gaming AX6000 Dual Band WiFi 6 router

• RJ-45 cable

• Power adapter

• Quick Start Guide

Product Weight (g)

• 696g

Product Dimensions

• 301.02 x 174 x 216 mm

AiMesh

• • AiMesh Node

• • Primary AiMesh Router

• AiMesh

Game

• Mobile Game Mode

• Game Boost / Acceleration

Parental Control

• Safe Browsing

• Customized Internet Schedule

• "Allow you to block access to unwanted websites and apps."

Guest Network

• Guest Network Connection Time Limit

• "The Guest Network provides Internet connection for guests but restricts access to your local network."

• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3

Security

• DNS-over-TLS

• Security Scan

• SSH

• Firewall

• Let's Encrypt

• WPS

AiProtection

WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

• Infected Device Prevention and Blocking

• Two-Way IPS

• Malicious Site Blocking

• Router Security Assessment

VPN

• VPN Client WireGuard

• VPN Server WireGuard

• VPN Fusion

• VPN Server PPTP

• VPN Server Open VPN

• VPN Server IPSec

• VPN Client PPTP

• VPN Client Open VPN

• VPN Client L2TP

Traffic Control

• • Website History

• Traffic Analyzer

• • Wireless Traffic Monitor

• • Wired Traffic Monitor

• • Real-time Traffic Monitor

• Traffic Monitor

• Traditional QoS

• • Bandwidth Limiter

• • Bandwidth Monitor

• Adaptive QoS

• -- Maximum Bandwidth Limiter Rule : 32

• -- Maximum Traditional QoS Rule : 32

• • Traffic Analysis Period : Daily, Weekly, Monthly

WAN

• DDNS

• DMZ

• Port triggering

• Port forwarding

• 3G / 4G LTE dongle

• WAN Aggregation

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

• • Maximum Port Forwarding Rule : 64

• • Maximum Port Triggering Rule : 32

• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

• Manually Assign IP Address

• Wake on LAN (WOL)

• LAN Link Aggregation

• IPTV

• IGMP Snooping

• DHCP Server

• • Maximum Manually Assign IP Address Rule : 64

Wireless

• RADIUS Client

• Explicit Beamforming

• Universal Beamforming

• Airtime Fairness

• Wireless Scheduler

• WiFi MAC Address Filter

• UTF-8 SSID

• • Maximum MAC Filters : 64

USB application

• Samba Server

• Shared Folder Privileges

• FTP Server

• Time Machine

• Media Server

• AiDisk

• Download Master

• AiCloud

• Safely Remove Disk

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Administration

• New Device Connect Notification

• Login Captcha

• Connection Diagnosis

• Auto Firmware Update

• Configuration Backup and Restore

• Diagnosis tools

• Feedback System

• System Log
