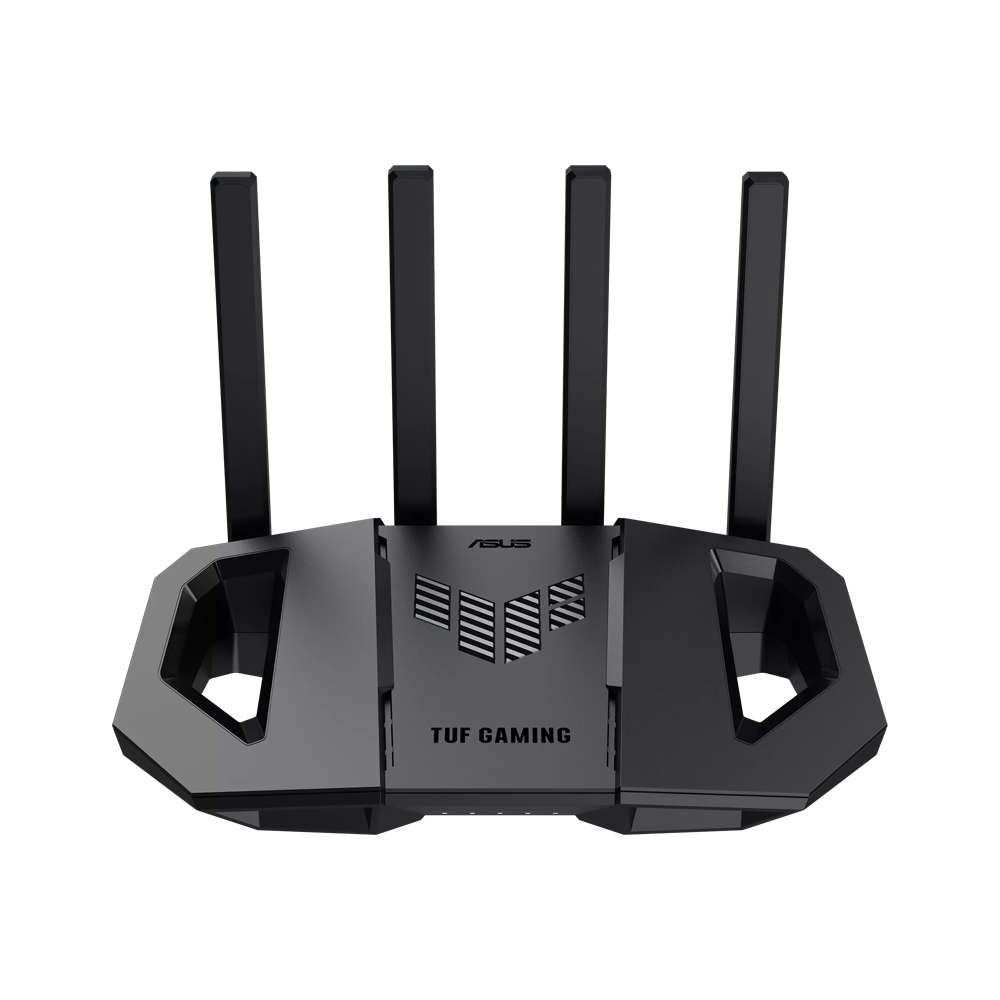

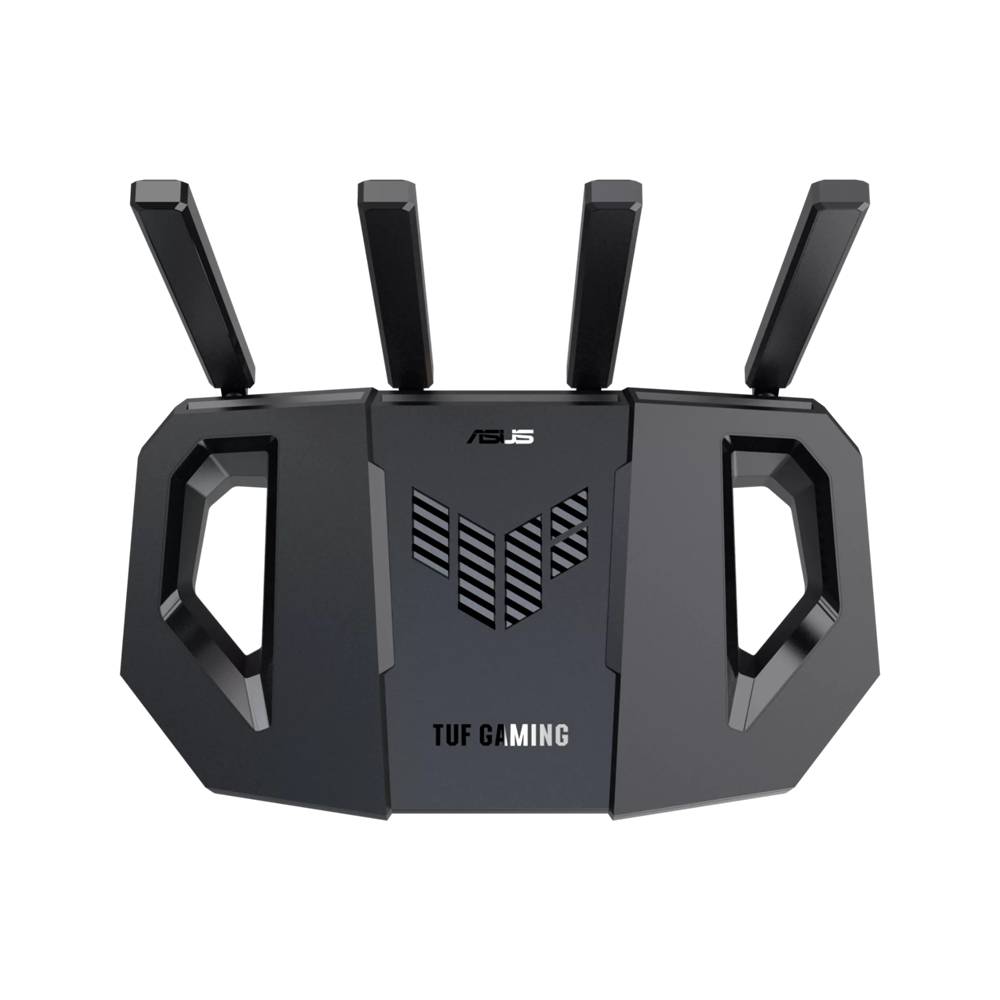

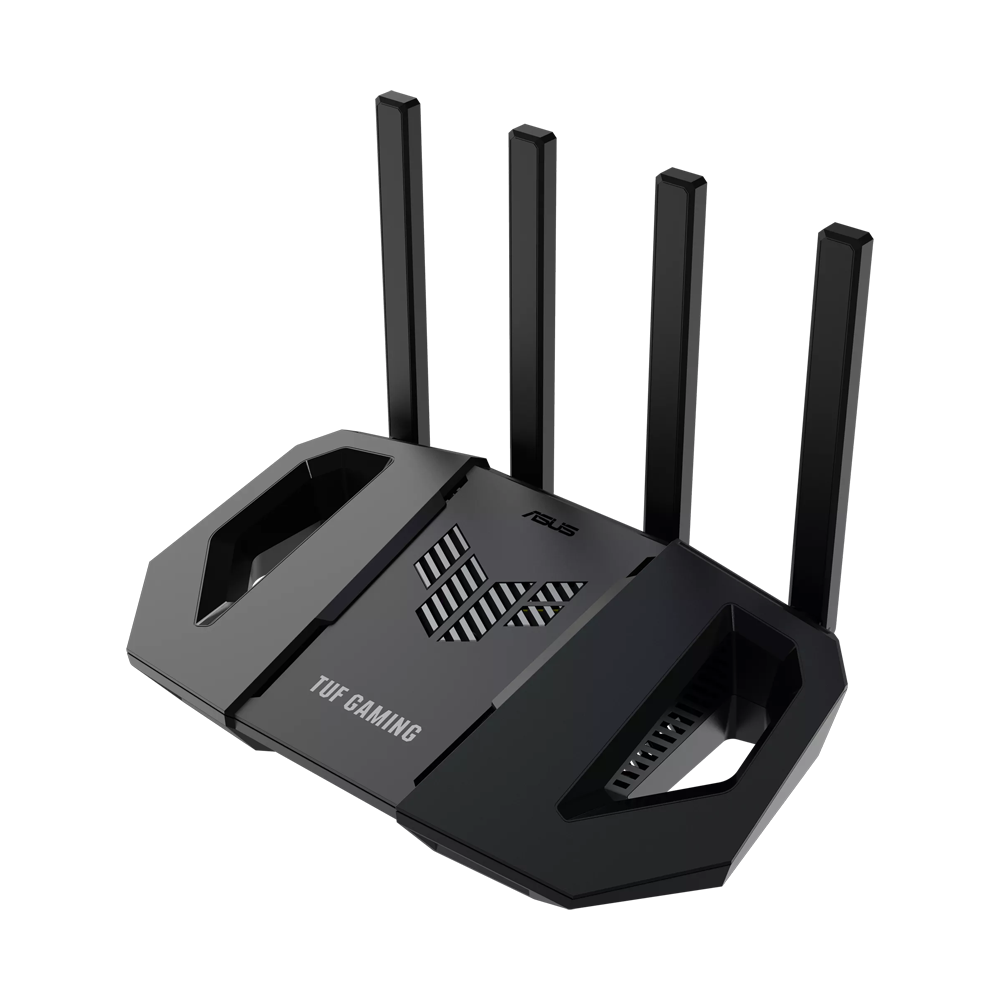

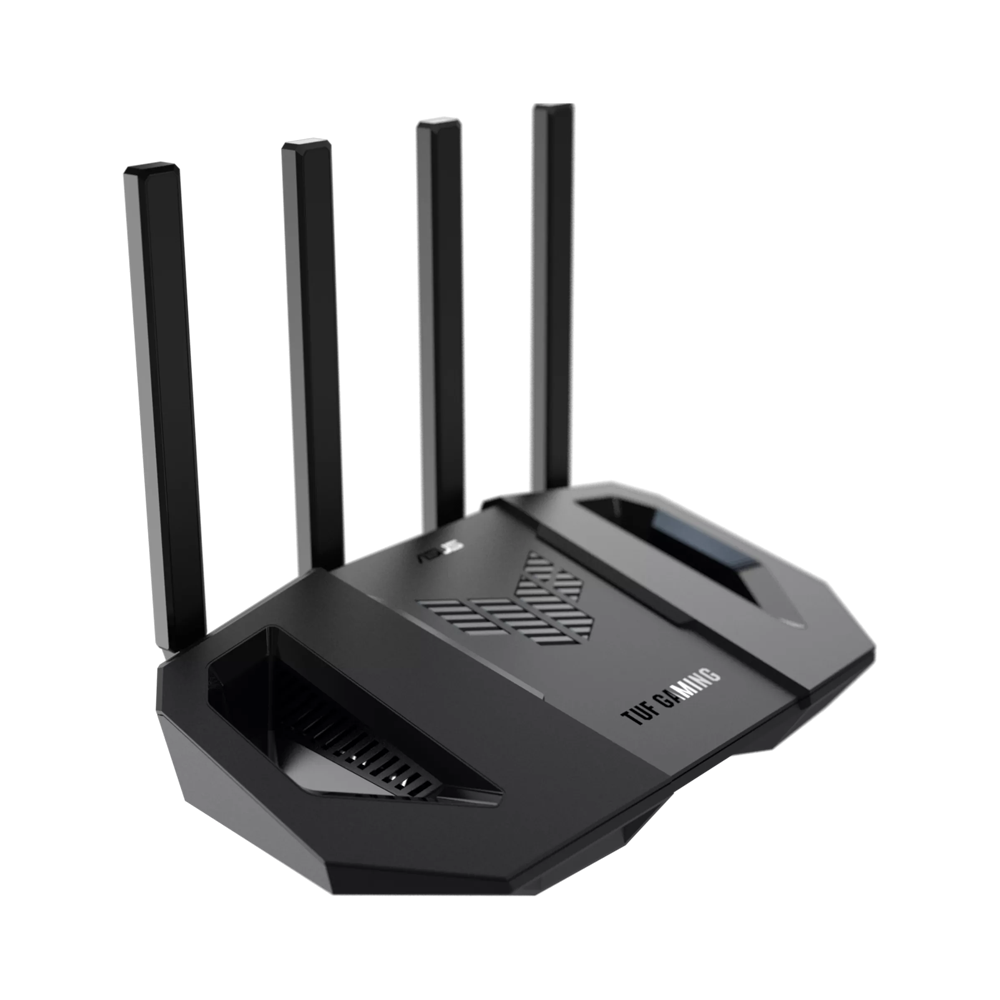

ASUS TUF Gaming BE3600 Dual Band WiFi 7 Gaming Router - Black

• Ultrafast WiFi 7 – Next-generation WiFi 7 router boosts speeds up to 3600 Mbps.
• 4K-QAM Modulation – All-new 4096-QAM offers a 1.2 times increase in transmission speed compared to the previous generation.
• High Computational Power CPU – Equipped with the all-new Broadcom quad-core powerhouse CPU, boasting a DMIPS computational capability of 20K, effortlessly handling both software and hardware-related tasks.
• ASUS AiMesh Support – Support AiMesh to create a whole-home mesh network .
• Tested Durability and Stable Operation – TUF Gaming BE3600 is built to be durable and undergoes verified testing to ensure reliable, stable operation.

ASUS TUF Gaming BE3600 Dual Band WiFi 7 Gaming Router - Black

TUF Gaming BE3600 Dual Band WiFi 7 Gaming Router, Equipped with Powerful Broadcom SoC, Boasting Ultra-high Computational Speed, 3-step Port Forwarding, AiMesh for Mesh WiFi, and AiProtection Pro for Network Security.

Specifications

Model : TUF Gaming BE3600 (TUF-BE3600)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 7 (802.11be)
• IPv4
• IPv6

Product Segment

• BE3600 ultimate BE performance : 688+2882 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
• WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

Antenna

• External antenna x 4

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• 2.0 GHz quad-core processor

Memory

• 256 MB Flash
• 1 GB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4GHz / 5GHz
• 2.4 GHz
• 5 GHz

Operating Mode

• Wireless router mode
• Access point mode
• Media bridge mode

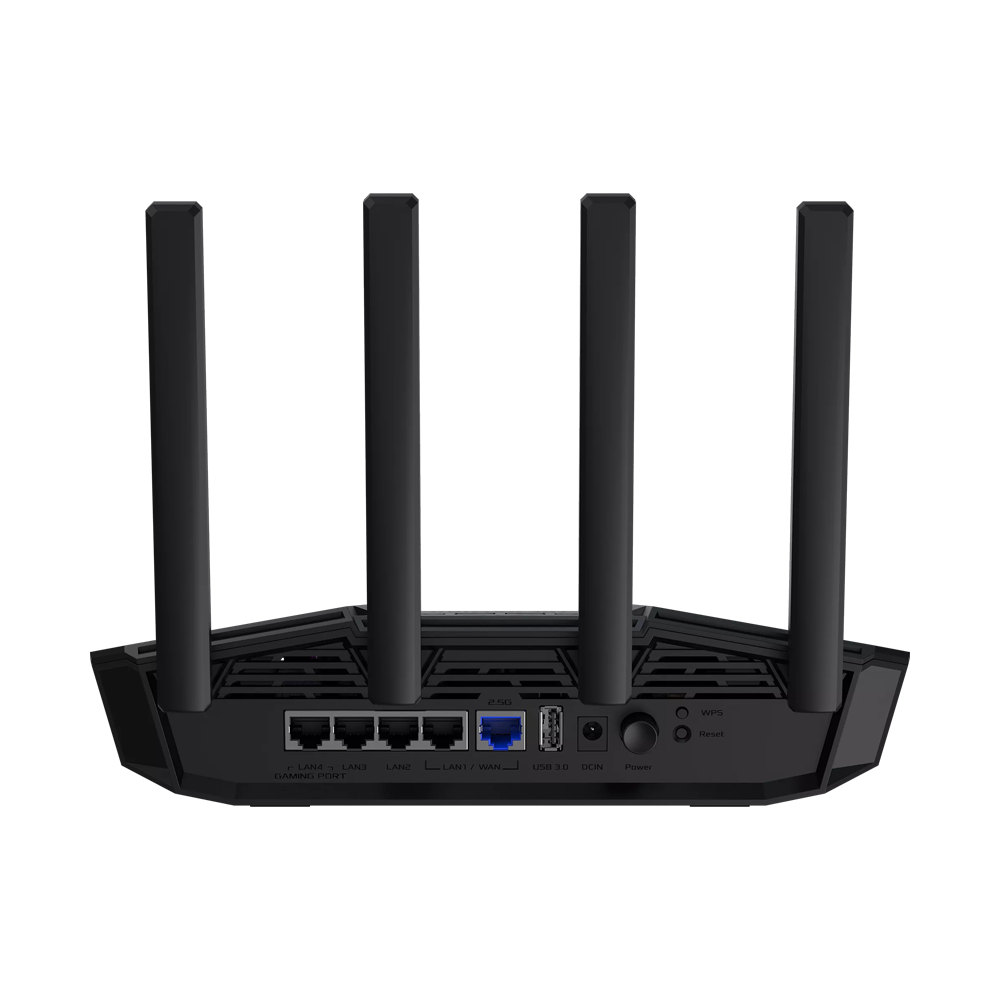

I/O Ports

• RJ45 for 2.5 Gigabits BaseT for WAN x 1,
• RJ45 for Gigabits BaseT for LAN x 4,
• USB 3.2 Gen 1 x 1,

Buttons

• WPS Button, Reset Button, Power Button

LED Indicator

• Power x 1
• WAN x 1
• LAN x 1
• 2.4GHz WiFi x 1
• 5GHz WiFi x 1

Power Supply

• AC Input : 100V~240V (50~60Hz)
• DC Output : 12 V with max. 2 A current

Package Content

• TUF Gaming BE3600 Dual Band WiFi 7 router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

Product Weight (g)

• 561g

Product Dimensions

• 274 x 168 x 205 mm

AiMesh

• AiMesh
• Primary AiMesh Router
• AiMesh Node

Game

• Game Boost / Acceleration
• Mobile Game Mode

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Safe Browsing
• Customized Internet Schedule

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection Time Limit

Security

• AiProtection
• WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
•  Infected Device Prevention and Blocking

VPN

• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS
• • Bandwidth Monitor
• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32

Traffic Monitor

• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• Traffic Analyzer
• • Traffic Analysis Period : Daily, Weekly, Monthly
• • Website History

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• WAN Aggregation
• 3G / 4G LTE dongle
• Port forwarding
• • Maximum Port Forwarding Rule : 64
• Port triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• • Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
