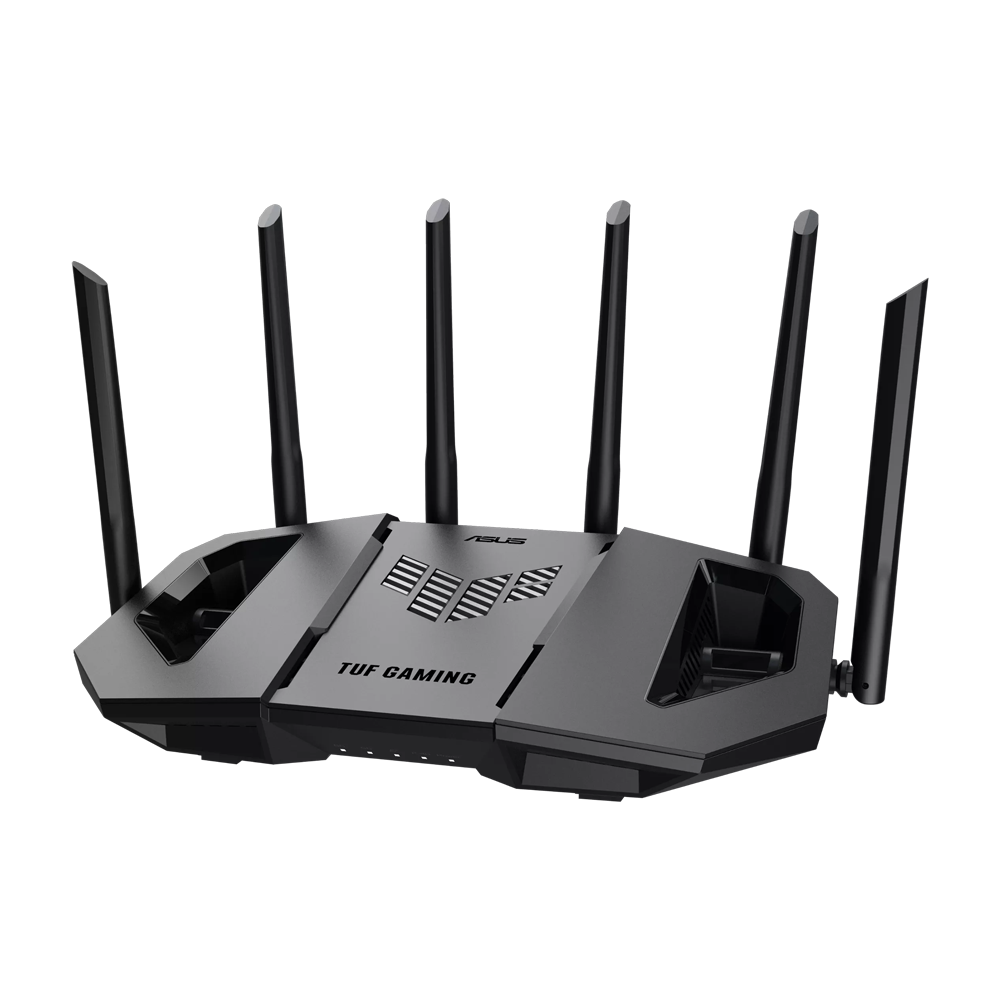

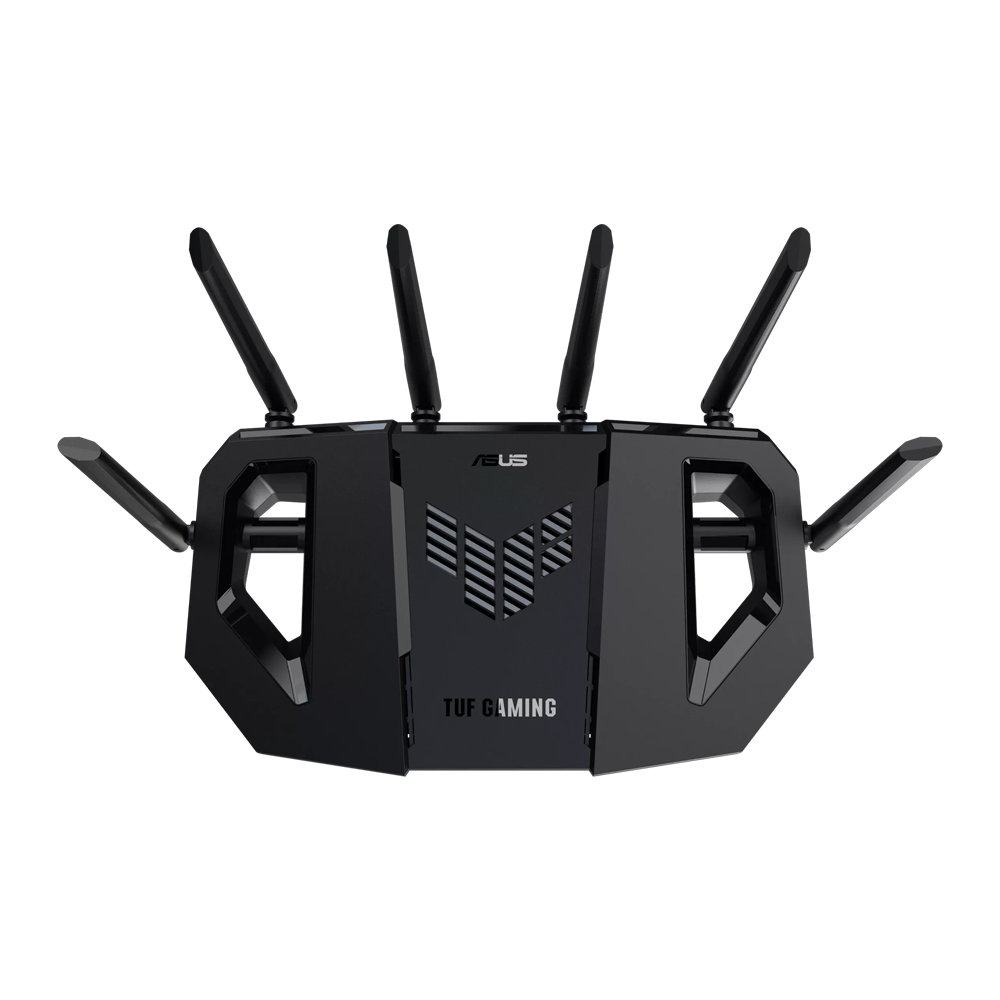

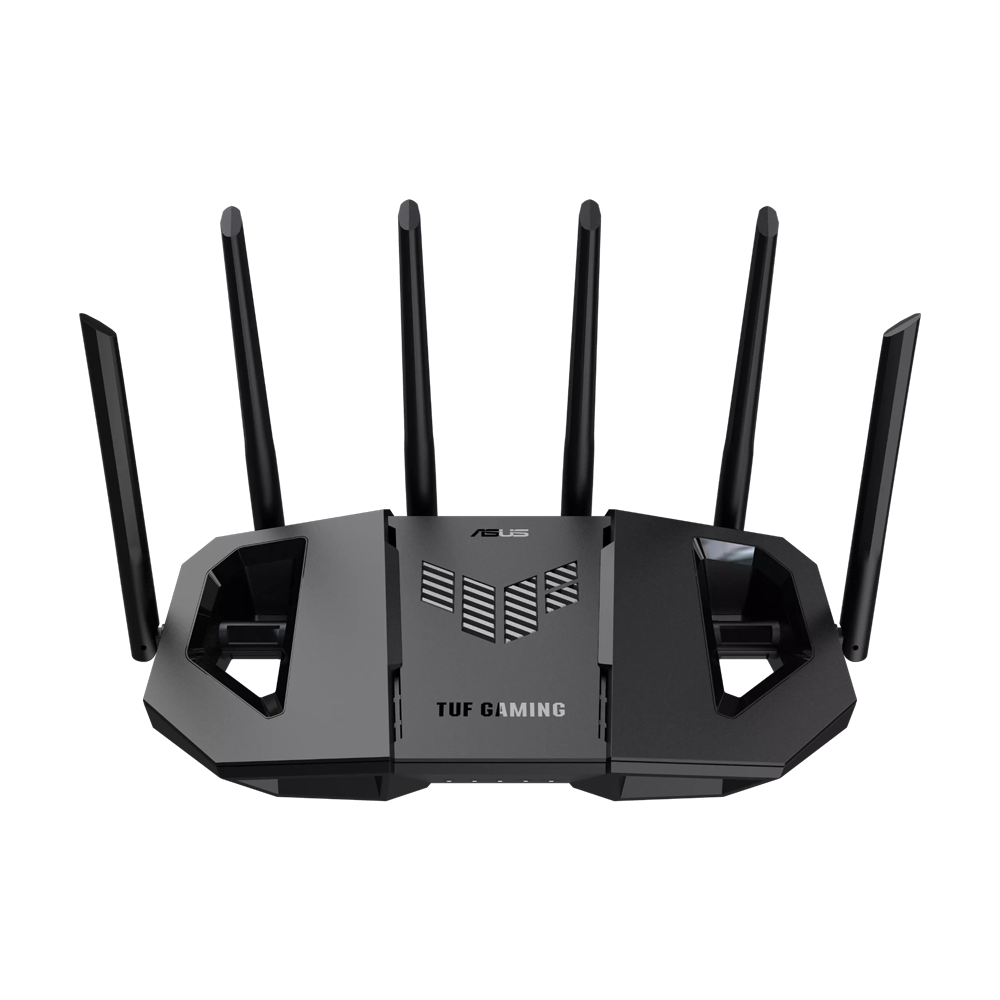

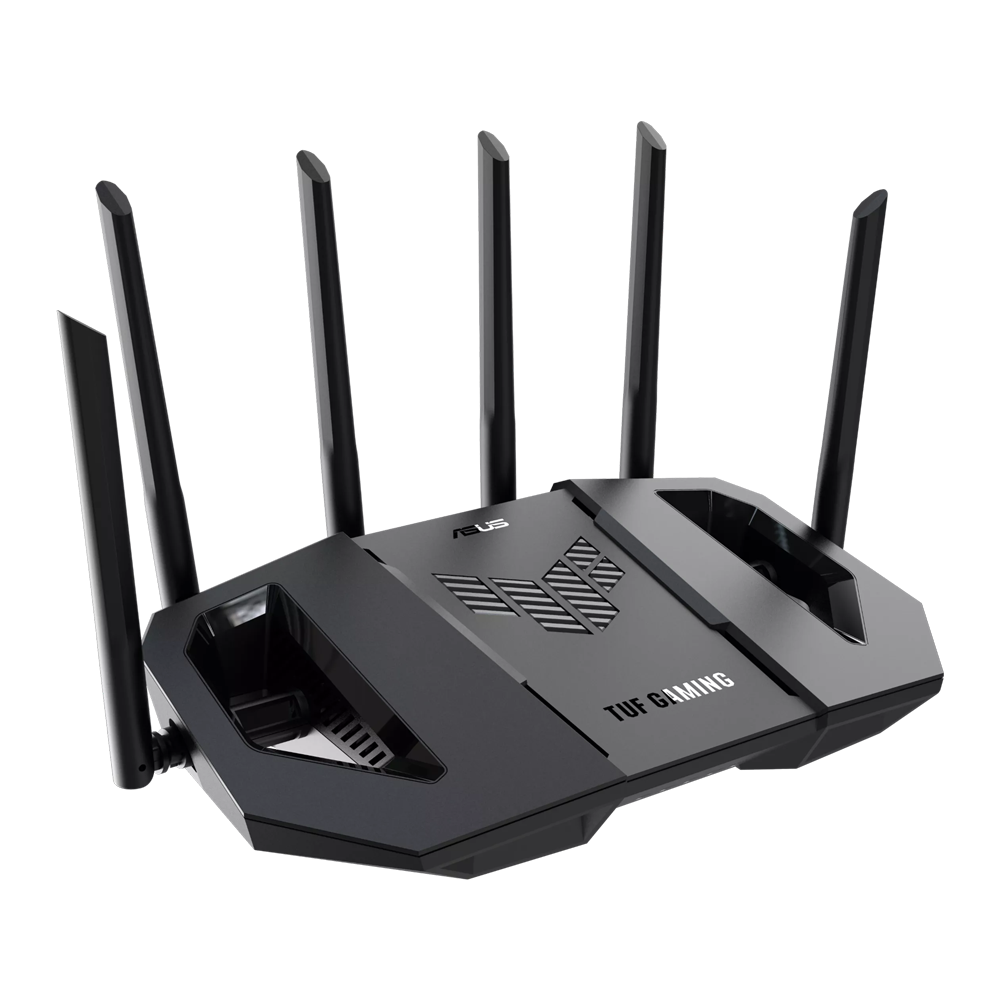

ASUS TUF Gaming BE9400 Tri Band WiFi 7 (802.11be) Extendable Gaming Router - Black

• Tri-band WiFi 7 throughput of up to 9400Mbps with 320MHz, MLO and 4K-QAM, enabling range of up to 2500 square feet

• Four 2.5G ports with three 2.5G LAN ports and one 2.5G WAN port

• Dedicated gaming port, one-tap game prioritization and OpenNAT for accelerating gameplay

• Advanced triple-level network security with AiProtection and pre-installed VPNs

• Easy IoT device and VPN subnetwork setup, instant connections with Smart Home Master

• Built to endure rigorous testing, ensuring reliability, stability, and long-lasting durability

• WiFi 7-enhanced AiMesh enables a secure and extendable network with compatible ASUS router

ASUS TUF Gaming BE9400 Tri Band WiFi 7 (802.11be) Extendable Gaming Router, Quad 2.5G ports, 3-step Port Forwarding, Smart Home Master, AiMesh support, and AiProtection for Network Security.

TUF Gaming BE9400
Always Strong.
Always On.
The TUF Gaming BE9400 is a durable, high-performance WiFi 7 router designed for stable, low-latency gaming. With speeds of up to 9,400Mbps, support for 320MHz channels, and Multi-Link Operation, it delivers fast and reliable connections across all your devices. It features four 2.5G LAN ports including a dedicated gaming port, to provide speedy and consistent wired connections for low-lag gameplay. Built to power through every battle, this router is ready when you are.

IEEE 802.11be
Next-Level WiFi 7
Next-generation WiFi 7 (802.11be) performance with ultrawide 320MHz channels in the 6GHz band and advanced 4096-QAM significantly increase network capacity and throughput with speeds of up to 9,400Mbps. Multi-Link Operation enables simultaneous connections across multiple bands for stable, low-latency internet and efficient data transfers. Built with the durability and reliability TUF Gaming is known for, the BE9400 helps ensure smooth, low-lag gaming for every battle.

Ultrawide 320MHz Channels
WiFi 7 introduces ultrawide 320MHz channels in the 6GHz band, doubling data transmission capacity*. This allows for significantly more simultaneous transmissions at the fastest-possible speeds.

Ultimate Tri-Band MLO
Multi-Link Operation (MLO) enables buffering-free connections by intelligently combining and switching between the 2.4GHz, 5GHz and 6GHz bands. And the TUF Gaming BE9400 is built for the future of all WiFi 7 devices, regardless of the MLO mode they use*.

Enhanced 4K-QAM Transfers
Compared to 1024-QAM with WiFi 6/6E, 4096-QAM technology allows each signal to densely incorporate larger amounts of data, improving transmission efficiency by up to 20%.

CPU
Built to Handle More
TUF Gaming BE9400 is powered by a robust quad-core 1.5GHz CPU and comes with 1GB of DDR4 memory to effortlessly handle various tasks.

Multi-gig Network
Power Up with Multi-gig Ports
Enjoy versatile and ultrafast multi-gigabit gaming networking with the TUF Gaming BE9400. It features four 2.5G ports, including one dedicated gaming port, for high-speed gaming, entertainment and ultrafast ethernet backhaul.
For added flexibility, the TUF Gaming BE9400 also supports USB 4G LTE and 5G mobile tethering, providing seamless internet access during service interruptions or when you're on the move.

Quad 2.5G Ports
TUF Gaming BE9400, with its quad 2.5GbE ports, provides lightning-fast connectivity, enabling you to fully enjoy the gigabit broadband network experience.

Dedicated Gaming Port
One LAN port dedicated to networked gaming can prioritize traffic for connected devices without the need for any configuration.

Game Boost
One Router, Any Battle
The TUF Gaming BE9400 combines easy Open NAT setup for quick team play with a one-tap Mobile Game mode in the ASUS Router mobile app that prioritizes mobile gaming traffic, delivering lower latency and a better online gaming experience.

Open NAT
Enable Open NAT on the TUF Gaming BE9400 in just three steps.

Mobile Game Mode
Prioritize the network traffic of your favorite mobile game, minimizing lag and latency with just a tap on the ASUS Router mobile app.

Smart Home Master
Feature-Packed Smart Home Master SSIDs
ASUS Smart Home Master subnetwork management streamlines the process of creating or connecting to a dedicated subnet via SSIDs with advanced features like IoT Network, Kid's Network, VPN Network and MLO Network.

Mesh WiFi
AI-Boosted AiMesh
The TUF Gaming BE9400 harnesses the power of WiFi 7 and next-gen AiMesh technology to deliver ultrawide coverage, a more stable and secure network, and a feature-rich experience – all under one network name for your entire smart home.

Durability
Tough on Heat, Strong on Stability
TUF Gaming BE9400 is engineered to deliver maximum WiFi performance. The vent location and double-heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical strength of the device.

Specifications

• Model

  TUF Gaming BE9400 (TUF-BE9400)

  Network Standard

  IPv6

  IPv4

  WiFi 7 (802.11be)

  WiFi 6 (802.11ax)

  WiFi 5 (802.11ac)

  WiFi 4 (802.11n)

  IEEE 802.11g

  IEEE 802.11b

  IEEE 802.11a

• Product Segment

  BE9400 ultimate BE performance : 688+2882+5764 Mbps

• WiFi Data Rate

  WiFi 7 (802.11be) (6GHz): up to 5764 Mbps

  WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

  WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

• Antenna

  External fixed antenna x 6

• Transmit / Receive

  6GHz 2x2

  5GHz 2x2

  2.4GHz 2x2

• Processor

  1.5GHz Quad-core Processor

• Memory

  256 MB Flash and 1 GB RAM

• Boosts Speed

  OFDMA (Orthogonal Frequency Division Multiple Access)

  Beamforming: standard-based and universal

  4096-QAM high data rate

  20/40/80/160/320 MHz bandwidth

• Operating Frequency

  6 GHz

  5 GHz

  2.4 GHz

• Operating Mode

  Repeater Mode

  Media Bridge Mode

  Access Point Mode

  AiMesh Node Mode

  Wireless Router Mode

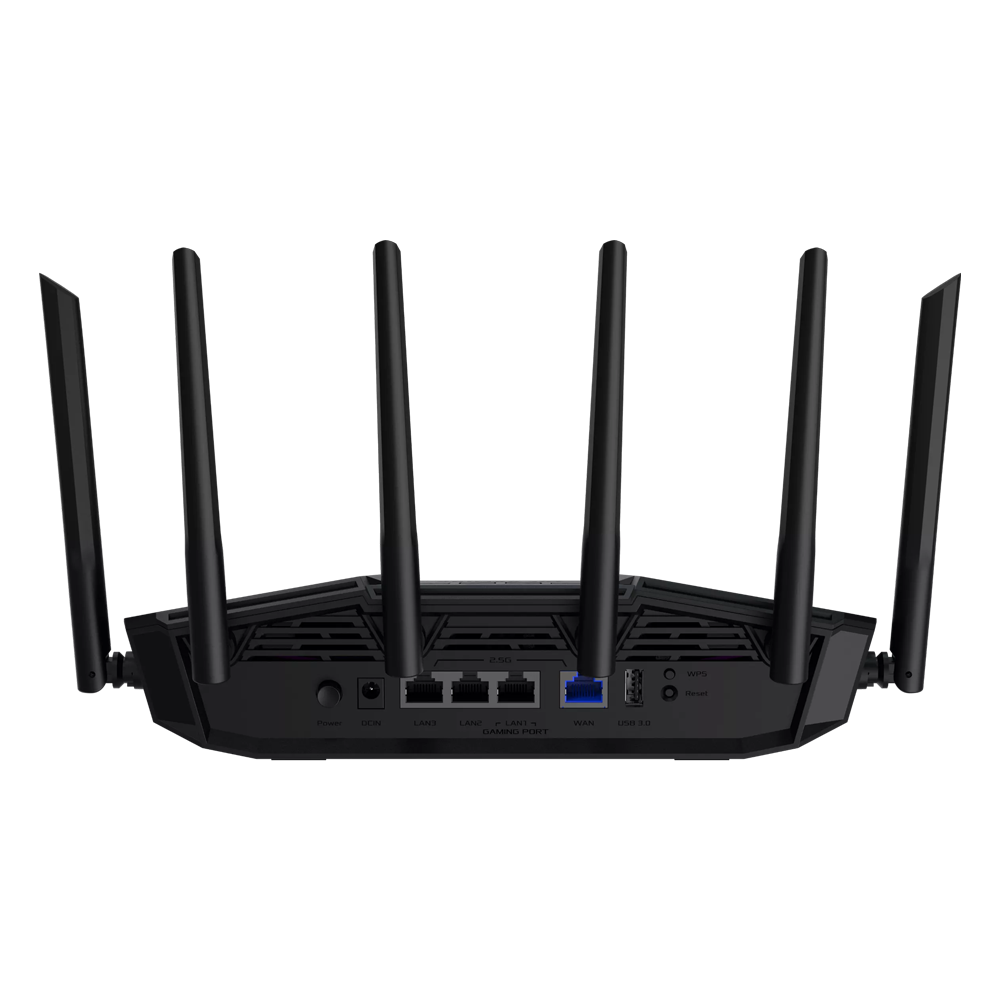

• I/O Ports

  1 x 2.5Gbps for WAN

  3 x 2.5Gbps for LAN

  1 x USB 3.2 Gen1

• Buttons

  WPS Button, Reset Button, Power Button

• LED Indicator

  WAN(Internet) x1

  6GHz x 1

  5GHz x 1

  2.4GHz x1

  Power x1

• Power Supply

  AC Input : 110V~240V(50~60Hz)

  DC Output : 12 V with max. 2.5 A current

• Package Content

  TUF-BE9400 Tri Band Gaming Router

  RJ-45 cable

  Power adapter

  Quick Start Guide

  Warranty card

• Product Weight (g)

  764 g

• Product Dimensions

  320 x 179 x 191 mm

• AiMesh

  AiMesh, • Primary AiMesh Router, • AiMesh Node

• Game

  Game Boost / Acceleration, Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port

• Parental Control

  Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64

• Guest Network

  "The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz: 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

• Security

  AiProtection, VPN, WPA/WPA2/WPA3 Personal

  WPA/WPA2/WPA3 Enterprise

  Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

• AiProtection

  AiProtection, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS

• VPN

  Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN

• Traffic Control

  Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

• WAN

  • IPSec

  • Static IP

  • Automatic IP

  • L2TP

  • PPTP

  • PPPoE

  Internet Connection Type :, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay

  • SIP Pass-Through

  • H.323 Pass-Through

  • RTSP Pass-Through

  • IPSec Pass-Through

  • L2TP Pass-Through

  • PPTP Pass-Through

• LAN

  DHCP Server, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

• Wireless

  MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming

• USB application

  4G / 5G Auto Mobile Tethering, • FAT32

  • ext4

  • ext3

  • ext2

  • vFAT

  • NTFS

  • HFS+, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

• User Interface

  WEB: ASUSWRT, APP: ASUS Router APP

• Administration

  Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
