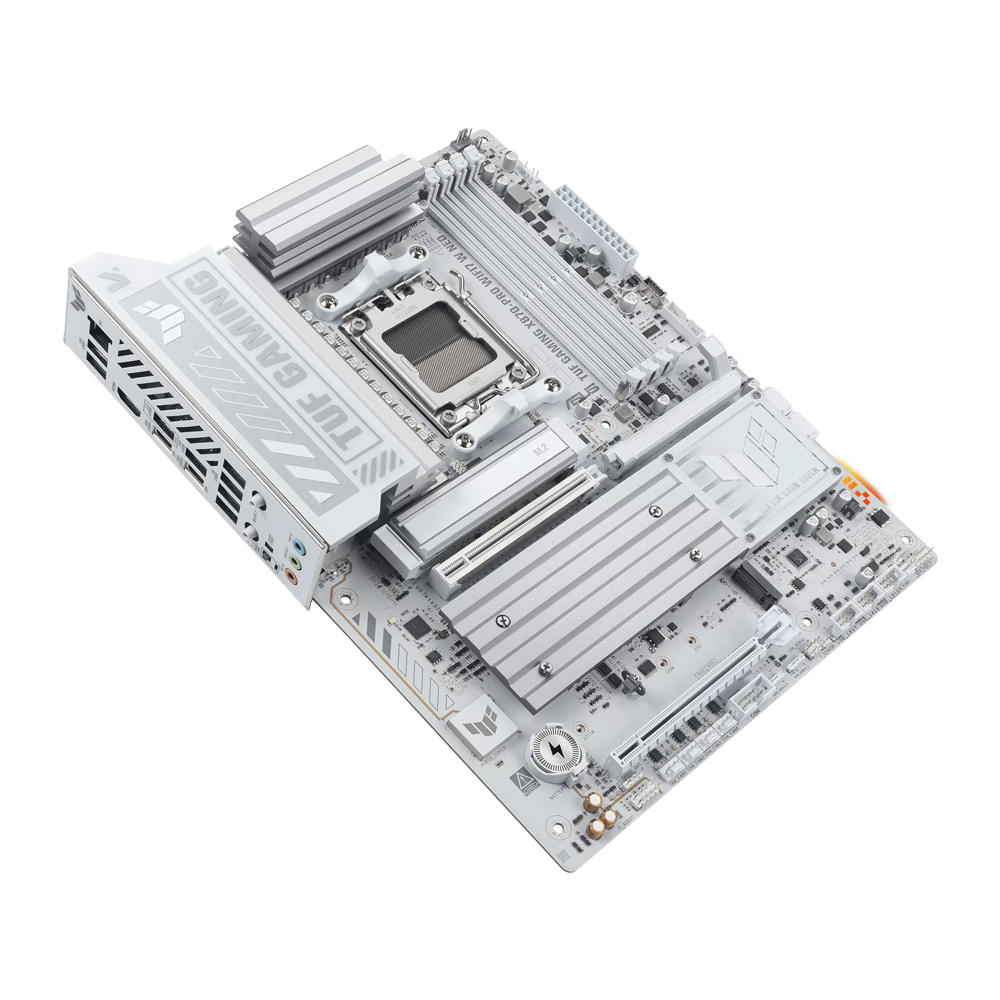

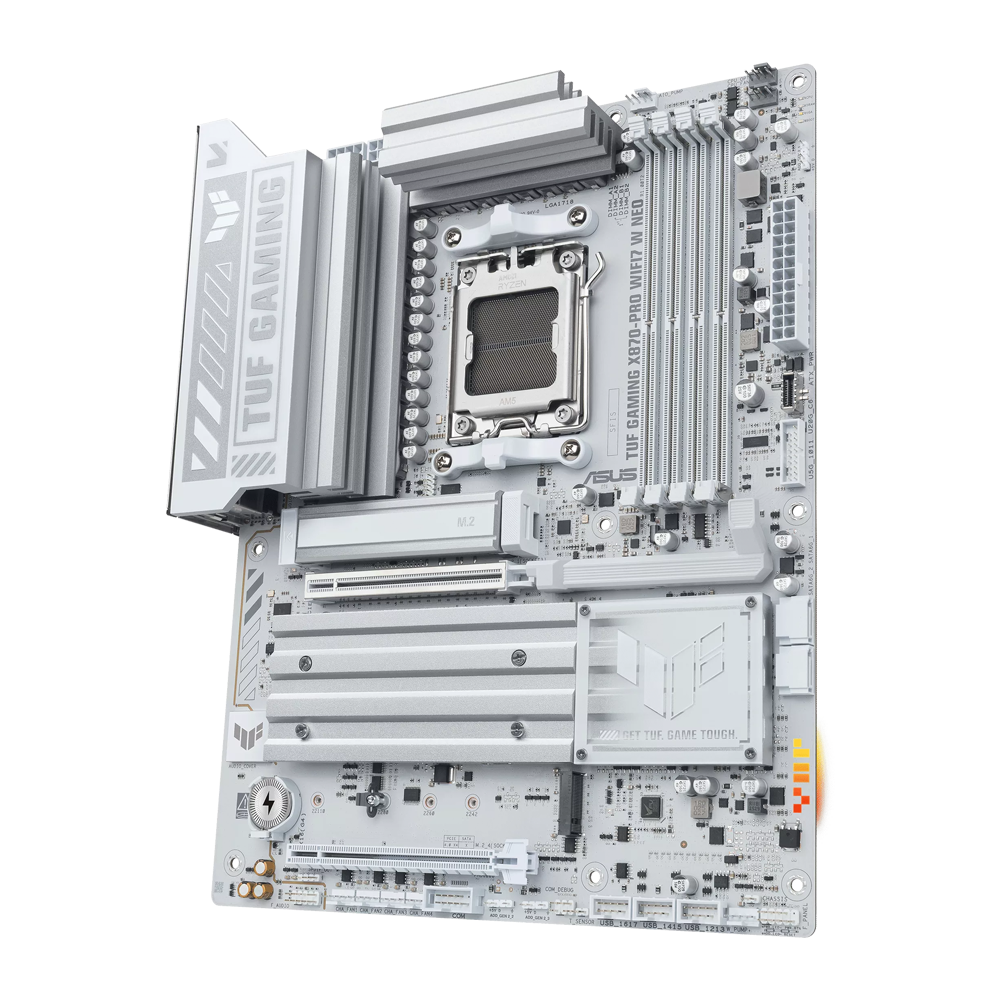

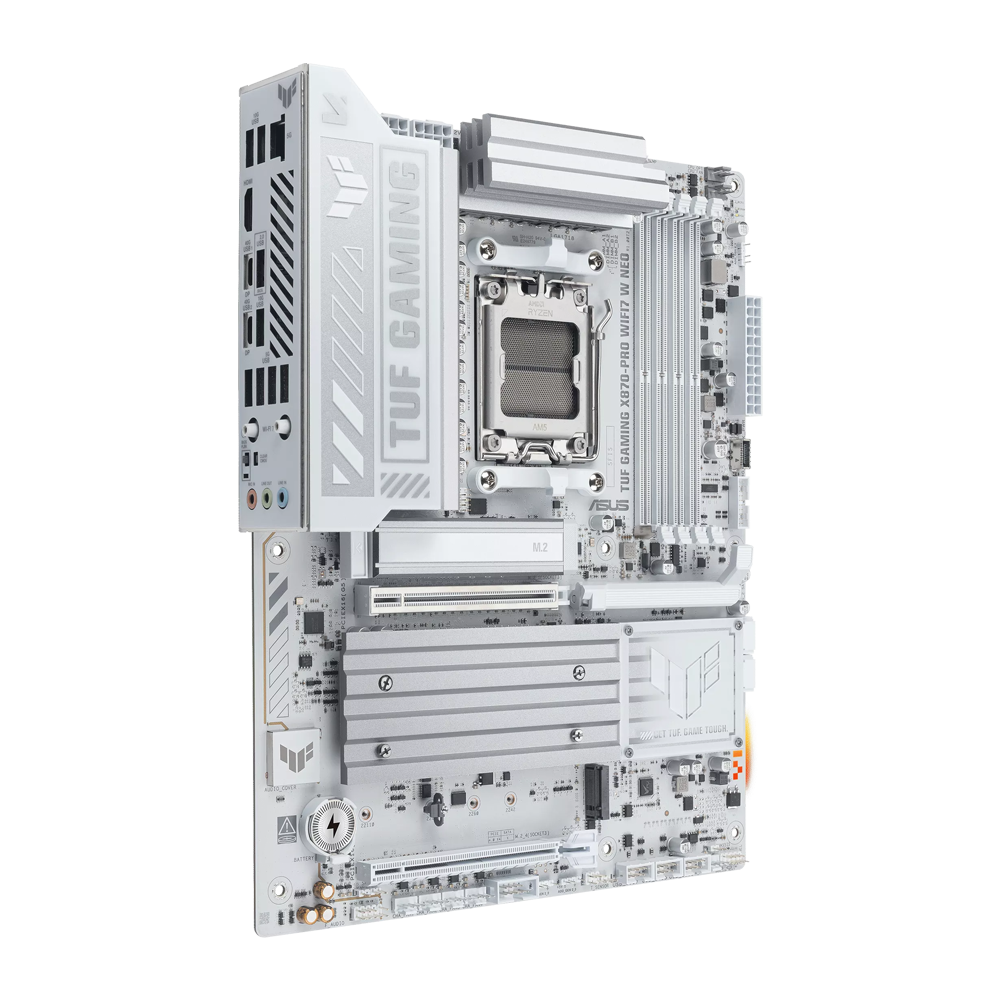

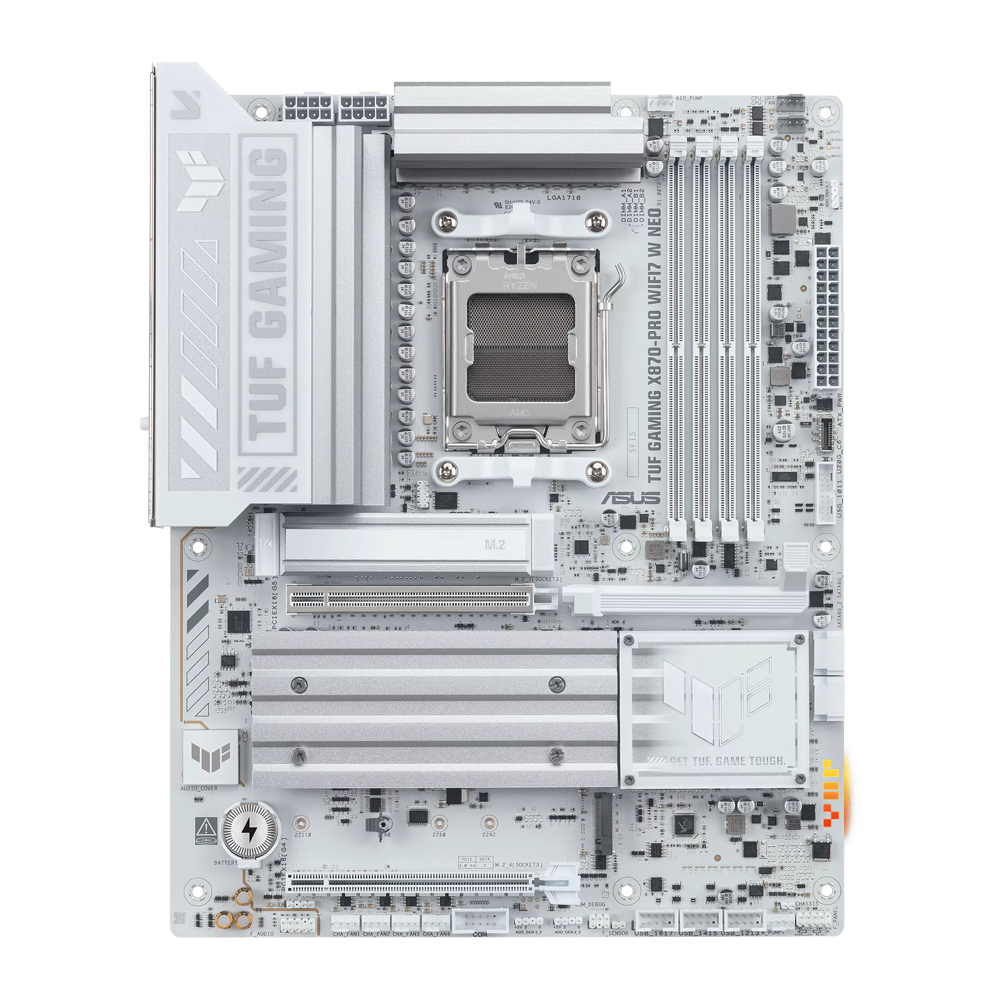

ASUS TUF GAMING X870-PRO WIFI7 W NEO DDR5 Motherboard - White

AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

AI Overclocking
Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II
Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

Intelligent
Overclocking

DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.

Asynchronous Clock
For next-level frequency flexibility, the TUF GAMING X870-PRO WIFI7 W NEO features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains. Separate CPU BCLK from other domains for unfettered overclocking.

Intelligent
Intelligent Control

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS MB Manager

ASUS MB Manager provides fast, intuitive control of key system settings, plus seamless Armoury Crate integration.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Performance
Premium Power Design
Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight-Layer Server-Grade Design
Built on an eight-layer server-grade stack for precise signals and stable performance.

ProCool Power Connectors
Proprietary 8+8 pin connectors improve PSU connection.

Digi+VRM Control
Real-time voltage control.

Performance
Memory

Server-Grade DRAM Enhancement
This motherboard features an enhanced memory slot layout that delivers high clock speeds and compatibility with high-capacity DDR5 kits. The refined design supports overclocking of up to 9,600+ MT/s, helping you unlock the full potential of your DDR5 modules—whether you’re pushing extreme-speed kits or maximizing entry-level sets*.

DDR5 Dominance
For users looking to push well beyond stock DDR5 speeds, this motherboard is engineered for enthusiast-grade performance with broad AMD Extended Profiles for Overclocking (EXPO™) support and an upgraded memory design tuned for stability at ultra-high frequencies. Veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

NitroPath DRAM Technology
Frequency up to 400 MT/s higher
Slot retention force enhanced by 57%

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Cooling
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Connectivity
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, USB4® 40Gbps and front USB 20Gbps Type-C® connectors with Fast Charge support.

PCIe Lane Optimization
Fully utilizes native PCIe 5.0 lanes supported by AMD Ryzen™ 9000 & 7000 CPUs, delivering optimal bifurcation and efficient bandwidth across all scenarios*. Enjoy maximized bandwidth of the first PCIe 5.0 x16 slot and two PCIe 5.0 M.2 slots, when the USB4® 40Gbps ports are not in use.

PCIe 5.0 for Graphics Card
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

USB4® 40Gbps Type-C® Port
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Front USB 20Gbps Type-C®
This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30W of quick charging.

Three USB 2.0 Headers
Three USB 2.0 headers ensure broad compatibility with AIO coolers, chassis fan hubs, front USB modules, and popular third-party components.

DIY
Easy PC DIY

PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

Gaming

Ultrafast Networking

Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

WiFi 7
WiFi 7 ensures stable connections and low latency.

5Gb Ethernet
On-board 5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 5X faster than 1Gb connections.

Pre-installed WiFi driver
A pre-installed WiFi driver enables users to connect to the internet when installing Windows on their PC; no USB flash drive is needed for driver installation, making the setup process faster and more convenient*.

Realtek 7.1 Channel Audio
ALC1220P
This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

Lighting

Outshine The Competition
ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

Addressable RGB Gen 2 Headers
Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.

Specifications

• Model

• TUF GAMING X870-PRO WIFI7 W NEO


• Socket AM5,


CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

• AMD X870 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Supports up to

• 8600+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors,

• 9600+MT/s(OC)*/9000+MT/s(OC)** with Ryzen™ 8000 Series Processors,

• 8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors,

• ECC and Non-ECC Un-buffered DIMM***

• Dual channel memory architecture

• Supports AMD Extended Profiles for Overclocking (EXPO™)

• Supports DIMM Fit and DIMM Fit Pro

• NitroPath DRAM Technology

• ASUS Enhanced Memory Profile (AEMP)

• * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.


• *** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.


Graphics

• 1 x HDMI™ port**

• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen™ 8000 Series Desktop Processors

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

• AMD X870 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)***

• ** Specifications vary by CPU types.

• *** PCIEX16(G4) slot shares bandwidth with the The M.2_4 slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.


Storage

• Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

• AMD Ryzen™  9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

• AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

• AMD X870 Chipset

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)***

• 2 x SATA 6Gb/s ports

• * The 2 x USB4® (40Gbps) ports share bandwidth with the M.2_2 slot. The USB4 Controller runs at PCIe 4.0 x2 mode when a device is installed in the M.2_2 slot. The M.2_2 slot runs at PCIe x2 mode by default. You can switch M.2_2 to M.2_2 X4 mode in the BIOS, but this will disable the USB4® (40Gbps) ports.

• ** Specifications vary by CPU types.

• *** The M.2_4 slot shares bandwidth with the PCIEX16(G4) slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.

• RAID Support

• AMD RAIDXpert2 Technology

• Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Ethernet

• 1 x Realtek® 5Gb Ethernet

• TUF LANGuard

• Wireless & Bluetooth

• Wi-Fi 7 (Realtek® RTL8922AE)

• 2x2 Wi-Fi 7* (802.11be)

• Supports 2.4/5/6GHz frequency band**

• Supports Wi-Fi 7 160MHz bandwidth

• Bluetooth® v5.4  (suppport LE Audio)***

• * Wi-Fi features may vary depending on the operating system.

• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

• For Windows 10, only Wi-Fi 6 is supported.

• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

• *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 10 ports)

• 2 x USB4® (40Gbps) ports  (2 x USB Type-C®)*

• 3 x USB 10Gbps ports (3 x Type-A)

• 4 x USB 5Gbps ports (4 x Type-A)

• 1 x USB 2.0 port (1 x Type-A)

• Front USB (Total 9 ports)

• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )**

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• * USB Type-C® power delivery output: max. 5V/3A.

• * The 2 x USB4® (40Gbps) ports share bandwidth with the M.2_2 slot. The USB4 Controller runs at PCIe 4.0 x2 mode when a device is installed in the M.2_2 slot. The M.2_2 slot runs at PCIe x2 mode by default. You can switch M.2_2 to M.2_2 X4 mode in the BIOS, but this will disable the USB4® (40Gbps) ports.

• ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2.0.

Audio

• Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

• - Impedance sense for front and rear headphone outputs

• - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

• - Supports up to 32-Bit/192 kHz playback**

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• - Audio cover

• - Unique de-pop circuit

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• ** Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)

• 3 x USB 10Gbps ports (3 x Type-A)

• 4 x USB 5Gbps ports (4 x Type-A)

• 1 x USB 2.0 port (1 x Type-A)

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Realtek® 5Gb Ethernet port

• 3 x Audio jacks

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 4 x 4-pin Chassis Fan headers

• 1 x W_PUMP+ header

• Power Related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connectors

• Storage Related

• 4 x M.2 slots (Key M)

• 2 x SATA 6Gb/s ports

• USB

• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable RGB Gen 2 headers

• 1 x Chassis Intrusion header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x 10-1 pin Front Panel System header

• 1 x Thermal Sensor header

Special Features

• Asynchronous Clock

• ASUS TUF PROTECTION

• - DIGI+ VRM (- Digital power design with SPS)

• - ESD Guards

• - TUF LANGuard

• - Overvoltage protection

• - SafeSlot

• - Stainless-steel back I/O

• ASUS Q-Design

• - M.2 Q-Latch

• - M.2 Q-Release

• - PCIe Slot Q-Release

• - Q-Antenna

• - Q-Dashboard

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - Clear CMOS button

• - Dual DIMM clips

• - ProCool

• - Pre-mounted I/O shield

• - SafeDIMM

• Aura Sync

• - Addressable RGB Gen 2 headers

• Front Panel USB 20Gbps with PD Fast Charge Support

• - Support: up to 30W fast charging and USB Wattage Watcher

• - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2.0A

• - Compatible with PD3.0

Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 (with AI Cooling II)

• - WiFi Q-Antenna

• - MLO Wizard

• ASUS DriverHub

• - ASUS MB Manager

• - ASUS AI Advisor

• - TUF GAMING CPU-Z

• - ASUS GlideX

• - USB Wattage Watcher

• - TurboV Core

• - Norton 360 for Gamers (60 Days Free Trial)

• - WinRAR (40 Days Free Trial)

• DTS Audio Processing

• Adobe Creative Cloud (Free Trial)**

• UEFI BIOS

• Integrated WiFi Driver Support

• AI Overclocking Guide

• AI Cache Boost

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

• Remote Management Features

BIOS

• 64MB (512Mb) Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 1 x TUF Gaming sticker

• 2 x M.2 rubber packages

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x Quick start guide

• Operating System

• Windows 11

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
