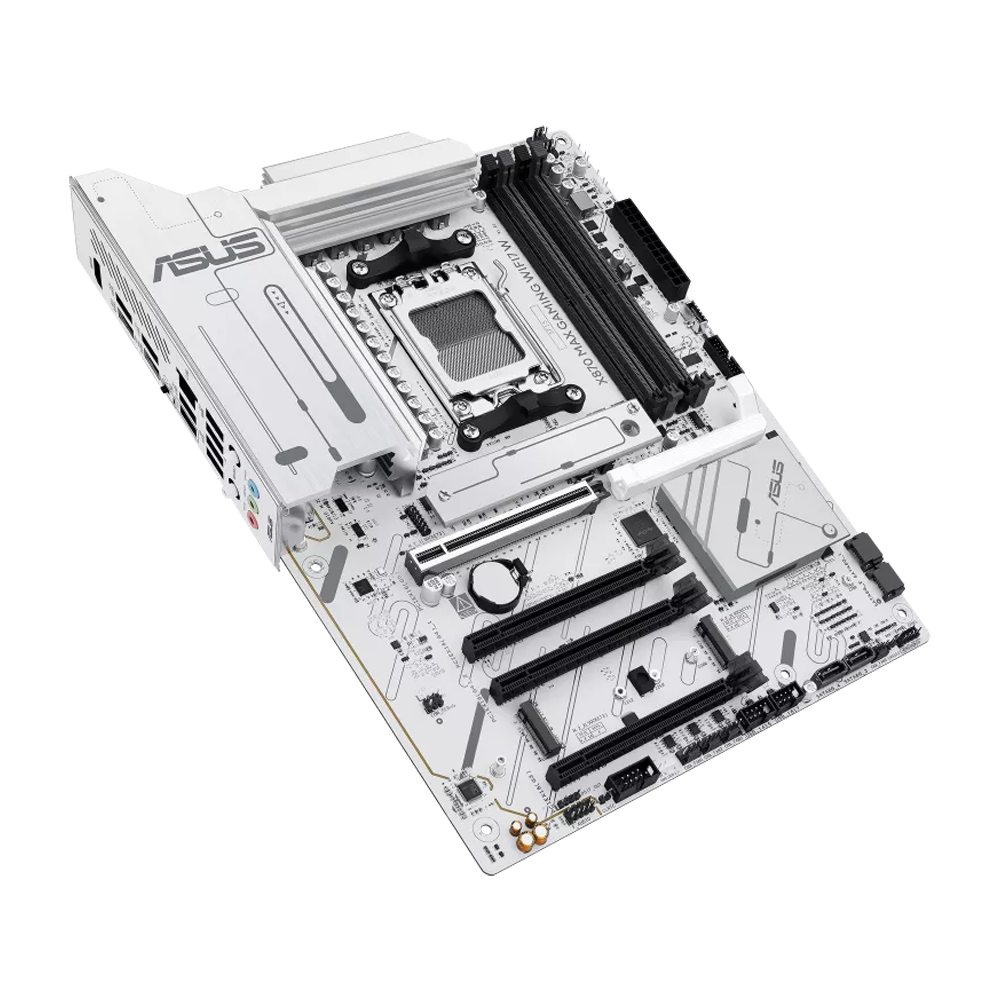

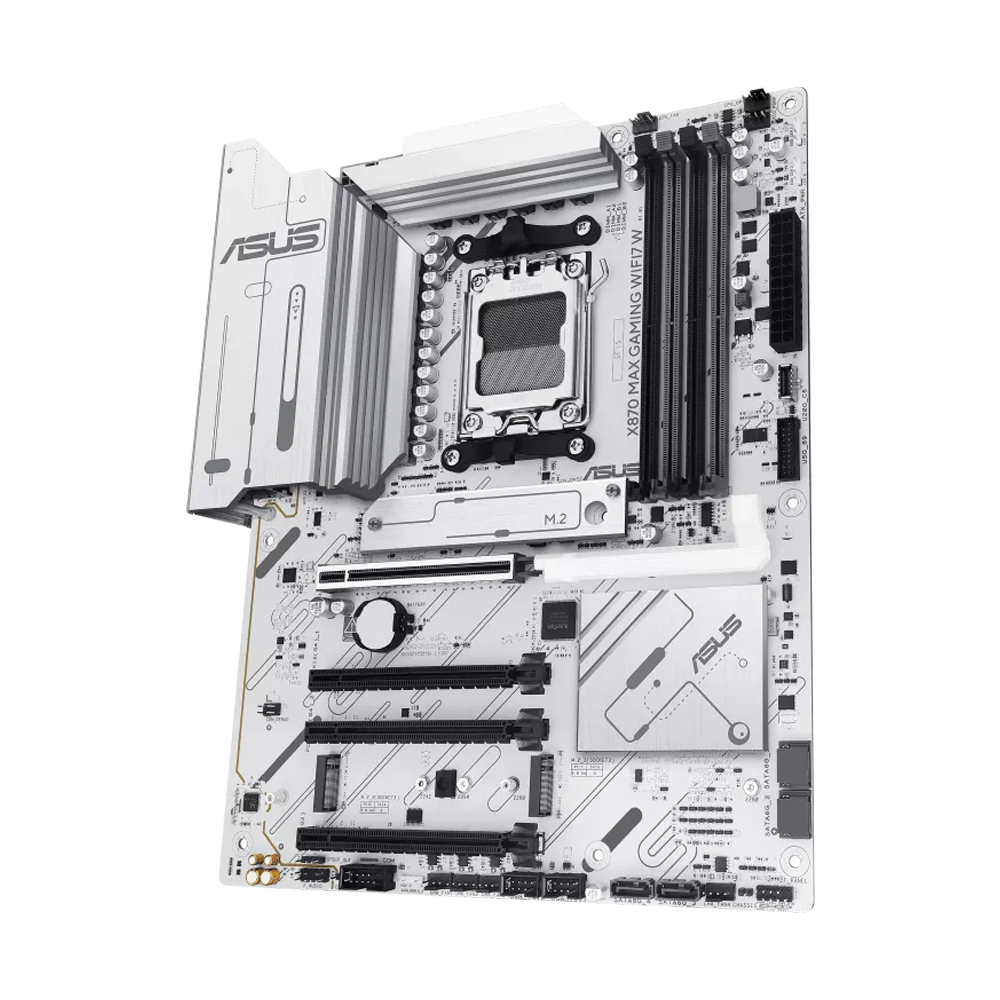

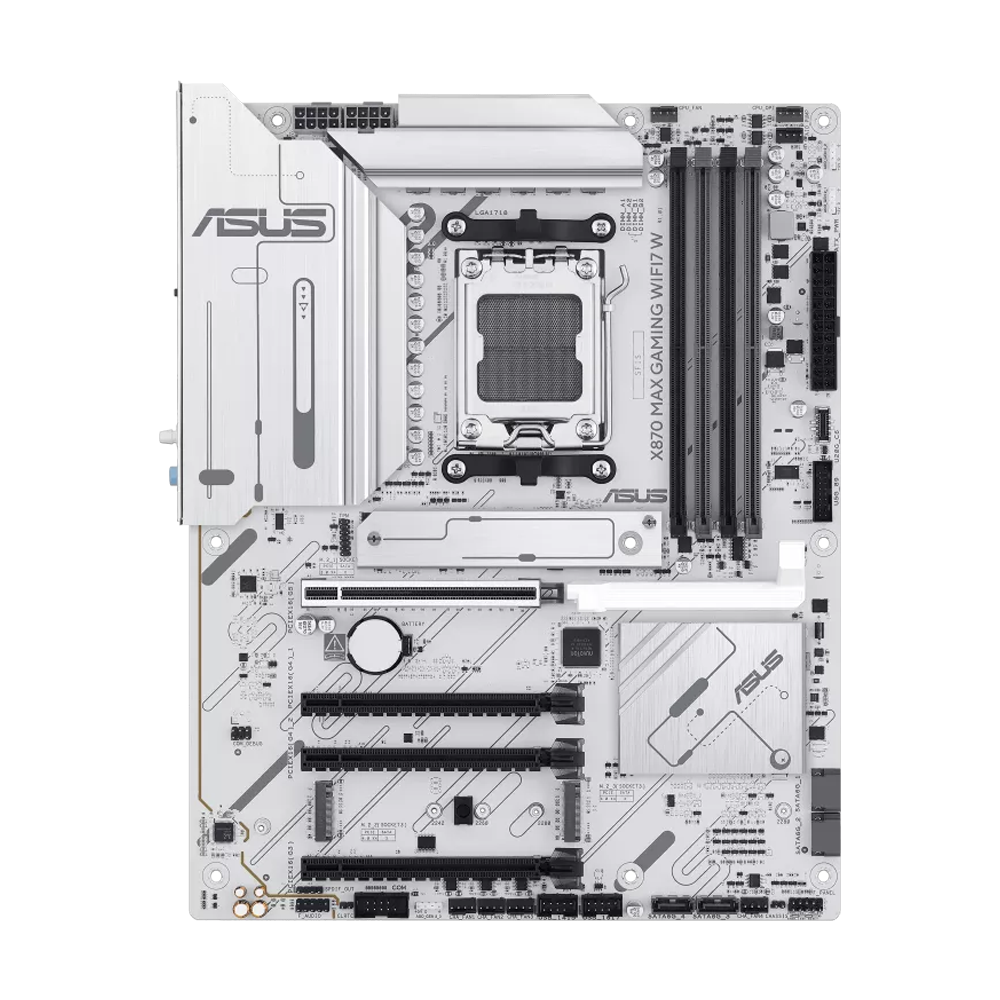

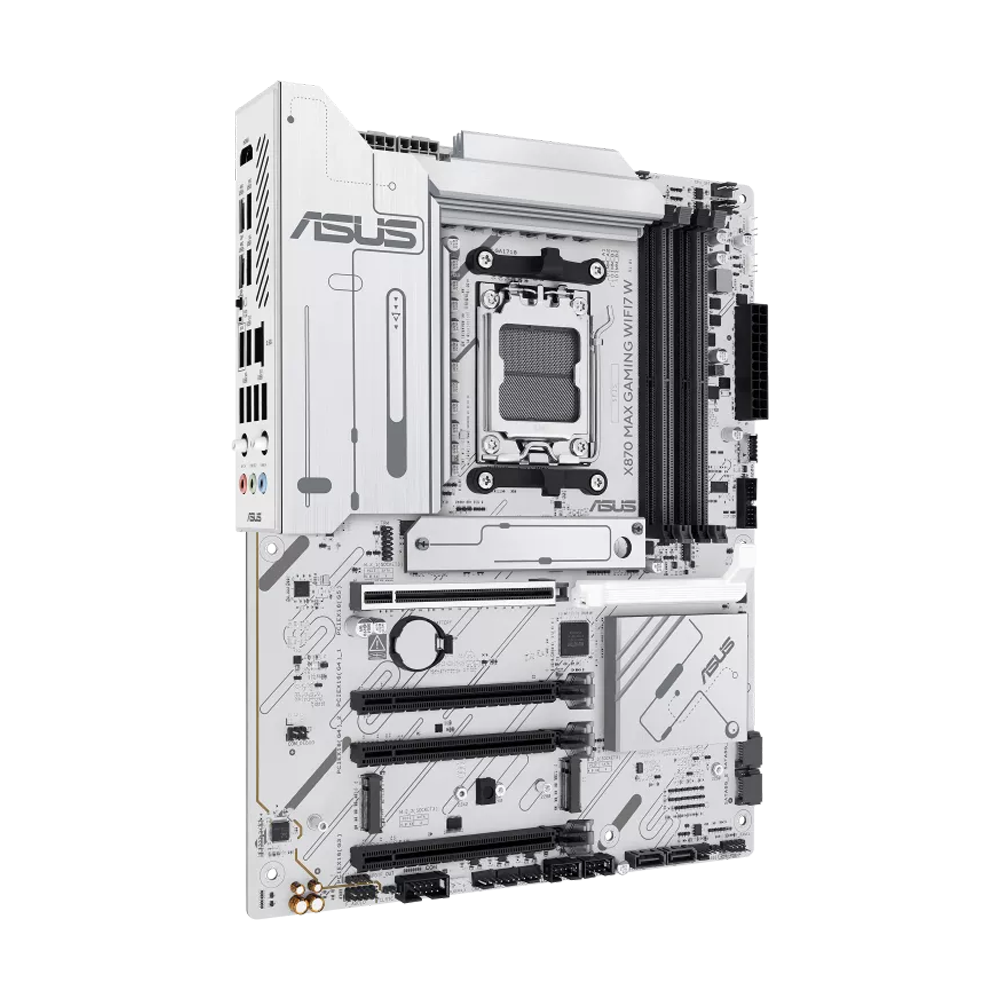

ASUS X870 MAX GAMING WIFI7 DDR5 Motherboard - White

X870
MAX GAMING WIFI7 W
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
AI Solutions
ASUS AI Solutions include AI Cache Boost to supercharge large language model (LLM) workflows, ASUS AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.

AI Cache Boost

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

ASUS AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI Cooling II

Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Performance
Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The X870 series is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Enhanced Memory & Storage Performance
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of X870 series motherboards. The X870 MAX GAMING WIFI7 W maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the X870 MAX GAMING WIFI7 W offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks

Three M.2 slots (up to 128 Gbps)
X870 MAX GAMING WIFI7 W offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooling
Cooler by design
The X870 MAX GAMING WIFI7 W motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart Cooling precision

ASUS Fan Xpert 4
ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Flexibility
Empowering connections
The X870 series motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

WiFi 7
The next-gen WiFi 76 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

USB 40Gbps Type-C® ports
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Customization
Personalization
The X870 series enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Customization
DIY friendly
The X870 series motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.

Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

Pre-Mounted I/O Shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack™

BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.

SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Specifications

• Model : X870 MAX GAMING WIFI7 W


• Socket AM5,


• CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*


• Chipset

• AMD X870 Chipset

• Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors

• ECC and Non-ECC, Un-buffered DIMM*

• Dual channel memory architecture

• Supports AMD Extended Profiles for Overclocking (EXPO™)

• ASUS Enhanced Memory Profile (AEMP)


• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x HDMI™ port**

• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

• *** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen™ 8000 Series Desktop Processors

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

• AMD X870 Chipset

• 2 x PCIe 4.0 x16 slots (support x1 mode)

• 1 x PCIe 3.0 x16 slot (supports x1 mode)***


• ** Specifications vary by CPU types.

• *** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.


• Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**

• AMD X870 Chipset

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * 2 x USB4® (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4® (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.

• * The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.

• ** Specifications vary by CPU types.

• RAID Support

• AMD RAIDXpert2 Technology*

• Ryzen™ 9000 Series Processors: RAID 0/1/5/10

• Ryzen™ 8000 Series Processors: RAID 0/1

• Ryzen™ 7000 Series Processors: RAID 0/1/10

• * Specifications vary by CPU types.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet

• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*

• 2x2 Wi-Fi 7 (802.11be)

• Supports 2.4/5/6GHz frequency band**

• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

• Bluetooth® v5.4***

• * Wi-Fi features may vary depending on the operating system.

• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

• For Windows 10, only Wi-Fi 6 is supported.

• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

• *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 10 ports)

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)

• 1 x USB 10Gbps port (1 x Type-A)

• 3 x USB 5Gbps ports (3 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 20Gbps connector (supports USB Type-C®)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• * USB Type-C® power delivery output: max. 5V/3A

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)

• 1 x USB 10Gbps port (1 x Type-A)

• 3 x USB 5Gbps ports (3 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x BIOS FlashBack™ button

• Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 4 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connectors

• Storage Related

• 3 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 20Gbps connector (supports USB Type-C®)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable RGB Gen 2 headers

• 1 x Clear CMOS header

• 1 x Chassis Intrusion header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1 pin)

• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM (- Digital power design with DrMOS)

• - LANGuard

• - Overvoltage protection

• - SafeSlot

• - Stainless-steel back I/O

• ASUS Q-Design

• - PCIe Slot Q-Release

• - Q-Antenna

• - Q-Dashboard

• - Q-DIMM

• - Q-LED Core

• - Q-Slot

• ASUS Thermal Solution

• - Flexible M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - ProCool

• - Pre-mounted I/O shield

• - SafeSlot

• Aura Sync

• - Addressable RGB Gen 2 headers

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 with AI Cooling II

• ASUS AI Advisor

• ASUS DriverHub

• ASUS GlideX

• TurboV Core

• ASUS CPU-Z

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 1 x M.2 rubber package

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x Quick start guide

• Operating System

• Windows 11

• Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
