ASUS ZenWiFi BD4 Dual-band WiFi 7 (802.11be) AiMesh Extendable Router - 3Pack - White

ASUS ZENWIFI BD4 Dual-Band WiFi 7 (802.11be) AiMesh Extendable Router - 3 Pack - White

Dual-band WiFi 7 (802.11be) AiMesh Extendable Router, 3.6 Gbps, Coverage up to 6500 sq. ft. (3pk), Dual 2.5G Ports, Up to 3 SSIDs for IoT Devices, Parental Controls & VPNs, Advanced Network Security

Specifications

• Model : ASUS ZenWiFi BD4

Model Name

• BD4(W-2-PK)

• BD4(W-3-PK)

• BD4(B-3-PK)

• BD4(B-2-PK)

• BD4(W-1-PK)

• BD4(B-1-PK)

Network Standard

• IEEE 802.11a

• IEEE 802.11b

• IEEE 802.11g

• WiFi 4 (802.11n)

• WiFi 5 (802.11ac)

• WiFi 6 (802.11ax)

• WiFi 7 (802.11be)

• IPv4

• IPv6

WiFi Data Rate

• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

• WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

Antenna

• Internal antennas x 4

Transmit / Receive

• 2.4GHz 2x2

• 5GHz 2x2

Processor

• 1.5GHz quad-core processor

Memory

• RAM 512MB , Flash 128MB

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)

• Beamforming: standard-based and universal

• 4096-QAM high data rate

• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4 GHz

• 5 GHz

Operating Mode

• Wireless Router Mode

• AiMesh Node Mode

• Access Point Mode

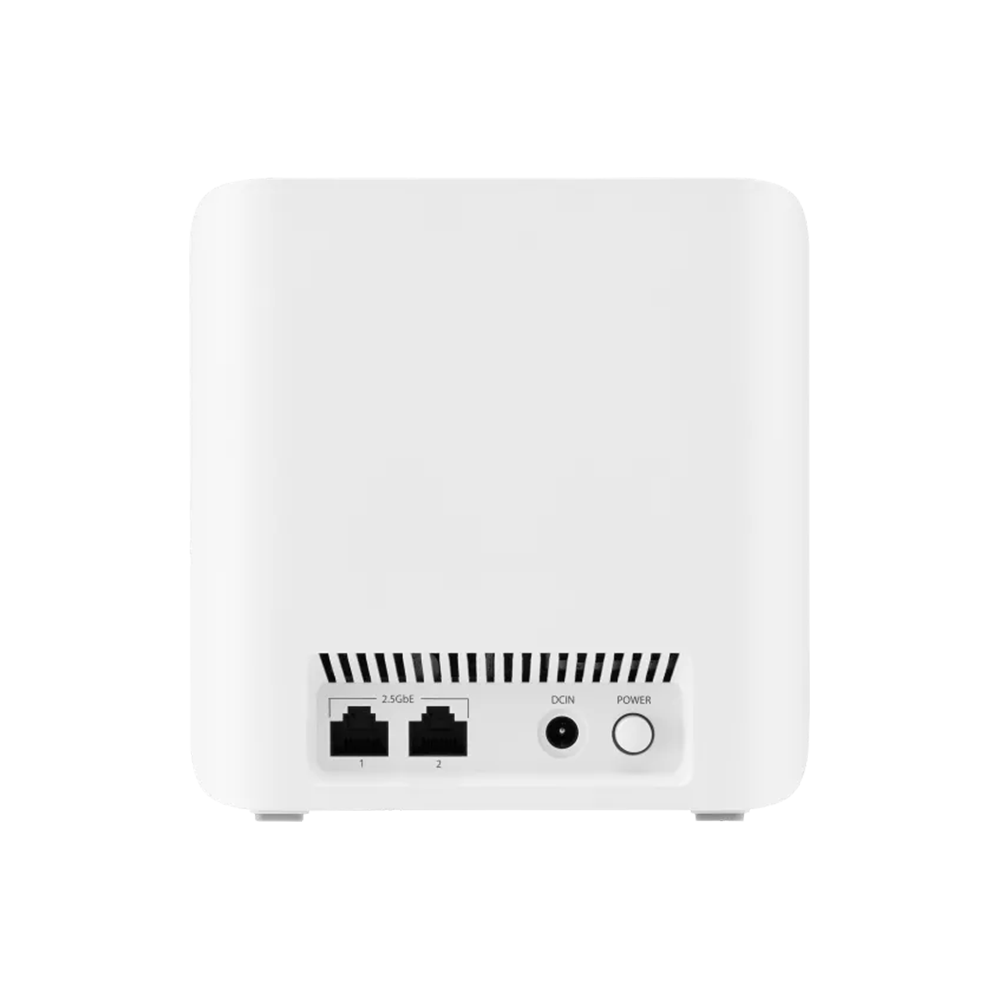

I/O Ports

• 2.5G x 2 (WAN/LAN auto detecting)

Buttons

• WPS button, Reset button, Power switch

LED Indicator

• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)

• DC Output : 12V with max 1.5A current

Package Content

• ZenWiFi BD4

• RJ45 cable

• Power adapter

• Warranty card

• Quick start guide

Product Dimensions

• 140 x 70 x 140 mm

Remark

• Content may vary in different regions and packages.

AiMesh

• AiMesh

• • Primary AiMesh Router

• • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."

• Web & Apps Filters

• Time Scheduling

• Reward

• Parental Control - Safe Browsing

• Customized Internet Schedule

Router APP

• APP: ASUS Router APP

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."

• Support Guest Network

Security

• AiProtection

• VPN

• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

• WPS

• Let's Encrypt

• DNS-over-TLS

• Security Scan

• Firewall

AiProtection

• AiProtection Pro

• • Router Security Assessment

• • Malicious Site Blocking

• • Two-Way IPS

• • Infected Device Prevention and Blocking

VPN

• Instant Guard

• VPN Client L2TP

• VPN Client Open VPN

• VPN Client PPTP

• VPN Client WireGuard

• VPN Server IPSec

• VPN Server Open VPN

• VPN Server PPTP

• VPN Server WireGuard

• VPN Fusion

Traffic Control

• Adaptive QoS

• • Bandwidth Monitor

• • Bandwidth Limiter

• Traditional QoS

• Traffic Monitor

• Traffic Analyzer

• • Website History

WAN

• Port Forwarding

• Port Triggering

• DMZ

• DDN

LAN

• DHCP Server

• IGMP Snooping

• IPTV

• Manually Assign IP Address

• Wake on LAN (WOL)

Wireless

• MU-MIMO

• UTF-8 SSID

• WiFi MAC Address Filter

• Wireless Scheduler

• Airtime Fairness

• RADIUS Client

• Universal Beamforming

• Explicit Beamforming

Administration

• Diagnosis Tools

• Feedback System

• System Log

• New Device Connect Notification

• Login Captcha

• Connection Diagnosis

• Auto Firmware Update

Smart Home

• Support Google Assistant
