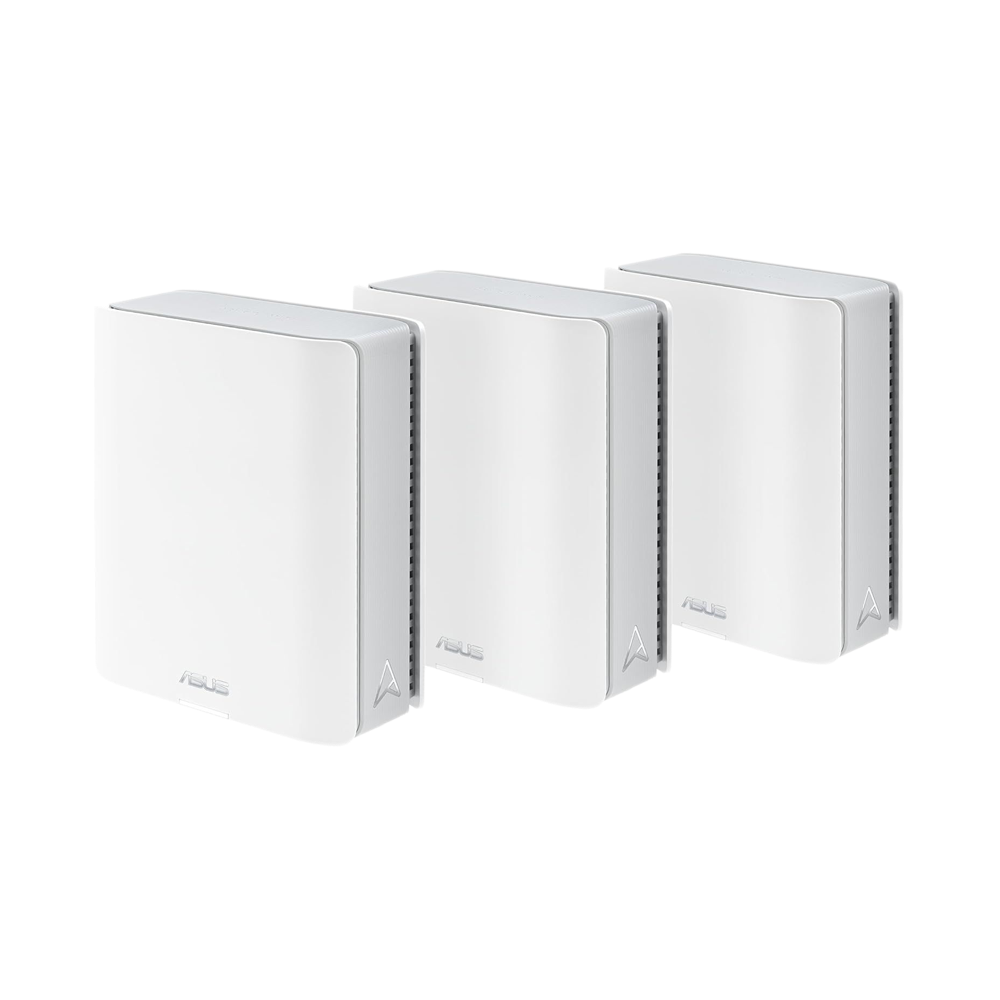

ASUS ZenWiFi BQ16 Quad Band WiFi 7 (802.11be) Mesh Router 3Pack - White

Key Features:

• Powerful WiFi 7 mesh future-proofs your smart home with blazing-fast quad-band connectivity up to 25000 Mbps with Multi-Link Operation and 4096-QAM.
• Ultimate AiMesh powered by AI delivers robust backhaul connections with coverage up to 8,000 sq.ft. (2pk), and a feature-rich whole-home network that scales with any ASUS extendable routers.
• Easily establish up to three SSIDs with Smart Home Master for simple IoT device setup and management, instant VPN connections, and convenient parental controls.
• Twelve internal antennas and sixteen high-power front-end modules eliminate WiFi dead zones in all directions while robust heat dissipation enhances WiFi reliability.
• Establish always-on internet through versatile WAN configuration options and convenient USB port ready for 4G LTE and 5G mobile tethering.
• Stay secure with commercial-grade AiProtection Pro powered by Trend Micro™, one-tap security scan, comprehensive VPN support, and site-to-site VPN.
• Advanced parental controls empower digital wellbeing with instant monitoring, hassle-free presets, customizable scheduling and reward settings.

BE25000 Quad Band WiFi 7 (802.11be) Mesh Router, Coverage up to 8000 sq. ft., Dual 10G ports, Smart Home Master with multi-SSID for IoT, VPN and parental controls, Subscription-free network security, AiMesh, 4G & 5G mobile tethering.

ASUS ZenWiFi BQ16

Worry-free Smart Home Mesh

The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi and a minimalist style. The ASUS ZenWiFi BQ16 raises the bar for whole-home mesh WiFi. Equipped with cutting-edge WiFi 7 mesh networking technology, it delivers unprecedented 16-stream connectivity, blazing-fast quad-band speeds up to 25 Gbps, and optimized AiMesh. Along with ultra-high-speed 10 Gigabit Ethernet ports and a suite of new networking technologies, this quad-band mesh WiFi system is ready to future-proof your smart home network today.

WiFi 7 Meets The Best Mesh

Superior Quad-band Mesh

The ZenWiFi BQ16 boasts blazing fast speeds of up to 25000 Mbps. With dual 5 GHz bands, it powers the dedicated mesh backhaul and unleash optimal performance and high reliability for all compatible devices.

Efficient 4096-QAM Transmission

4K-QAM technology boosts data transmission rates by up to 20% over WiFi 6/6E due to its higher QAM, which packs signals more densely, allowing for more data to be uploaded and downloaded in the same time frame as before.

Blanket Your Whole-home with AiMesh

WiFi 7 Powering Premium Mesh

Powered by AiMesh, the ZenWiFi BQ16 reigns supreme as the most powerful mesh solution for modern smart homes. Built to effortlessly handle even the most demanding devices and network congestion, the ZenWiFi BQ16 delivers unmatched coverage of up to 8,000 sq.ft. with a 2-pack and stable, secure, and feature-packed networking throughout your entire smart home.

The Ultimate AiMesh Backhaul

The AiMesh backhaul intelligently harnesses WiFi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.

Powerful AI algorithms further analyze network conditions and seamlessly adjust the backhaul for a more reliable mesh network, even in crowded WiFi environments.

Crafted for Supreme Performance

The ASUS ZenWiFi BQ16 offers a robust, meticulously-crafted design, built from the ground up to handle increasingly demanding smart home tasks. Boasting high processing power and cutting-edge hardware, this device delivers superior WiFi 7 performance, ultrahigh-speed 10 Gigabit Ethernet, and flexible connectivity options for always-connected smart homes.

Unrivaled Coverage and Reliability

ASUS's renowned engineering expertise shines in the design of the ZenWiFi BQ16. With twelve internal antennas and sixteen high-power front-end modules, this system eliminates WiFi dead zones, delivering consistent coverage in all directions. Efficient heat dissipation also maintains cool and quiet operation for enhanced performance and long-lasting reliability.

Always Connected with Peace of Mind

Dual 10G Ports

This future-proof system boasts one 10 Gbps Ethernet WAN/LAN port and one 10 Gbps Ethernet LAN port, making it ready to handle the ever-growing demands of your connected home. Experience ultra-immersive entertainment like 8K HDR gaming and streaming, or power home studio applications with ease.

Multiple WAN Capability

The ZenWiFi BQ16 offers versatile WAN options, including one 10 Gigabit WAN/LAN port and one 1 Gigabit WAN/LAN port for a seamless high-speed connection.

4G LTE & 5G Mobile Tethering

Stay connected no matter what with the convenient USB WAN for instant 4G LTE and 5G mobile tethering to ensure that your smart home remains online anytime, even during internet outages.

Master Your Smart Home Network

Worry-Free WiFi

3-Step Easy Setup via ASUS Router App

The ASUS Router mobile app with its intuitive interface makes managing your mesh WiFi system simple right from your smartphone. Simply follow the on-screen directions, and you will be up and running in no time!

Effortless Network Segmentation

The ZenWiFi BQ16 introduces the innovative Smart Home Master, a powerful and user-friendly tool for network segmentation with up to three SSIDs. This simplifies the process of creating and managing advanced subnetworks scenarios like creating a dedicated SSID for your children’s devices, connecting to a VPN through a dedicated subnetwork, or even creating one secure SSID for all your IoT devices.

IoT Network

Set up and manage all your IoT devices under one secure SSID to provide enhanced security with commercial-grade protection.

Kid’s Network

Create a dedicated SSID just for the kids to easily manage their screen time without needing to configure each device individually.

VPN Network

The VPN network provides streamlined VPN access. Connect to your preferred VPN service with a single click through a dedicated subnetwork.

Advanced Parental Controls

The ZenWiFi BQ16's built-in advanced parental controls empower you to nurture a balanced digital life for your kids – without subscriptions. Gain valuable insights into their online activity, customize settings seamlessly, and schedule internet access to promote healthy habits.

Internet Activity Dashboard

Monitor your kids' internet usage through a comprehensive graphical dashboard. See their online time, data consumption, and device-specific activity at a glance.

Kid-Safe Preset

Preset profiles make it easy to apply settings based on your children's ages. These profiles automatically filter inappropriate content and set age-appropriate screen time limits.

Flexible Time Scheduling

Define online and offline hours for each child, ensuring balanced screen time and fostering healthy digital habits. Reward good behavior with extra online time as positive reinforcement.

Content Filter

Identify and block hidden threats across websites and mobile apps, safeguarding your kids from harmful content.

Specifications

• Model : ASUS ZenWiFi BQ16

Model Name

• BQ16 (W-3-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 6E (802.11ax)
• WiFi 7 (802.11be)
• IPv4
• IPv6

Product Segment

• BE25000 ultimate BE performance: 1376+5764+5764+11529 Mbps

WiFi Data Rate

• WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps
• WiFi 7 (802.11be) (5GHz-1): up to 5764 Mbps
• WiFi 7 (802.11be) (5GHz-2): up to 5764 Mbps
• WiFi 7 (802.11be) (6GHz): up to 11529 Mbps

Antenna

• Internal antenna x 12

Transmit / Receive

• 2.4GHz 4x4
• 5GHz-1 4x4
• 5GHz-2 4x4
• 6GHz 4x4

Memory

• RAM 2GB , Flash 256MB

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160/320 MHz bandwidth

Operating Frequency

• 2.4 GHz / 5 GHz / 6 GHz
• 2.4 GHz
• 5 GHz-1
• 5 GHz-2
• 6 GHz

Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode

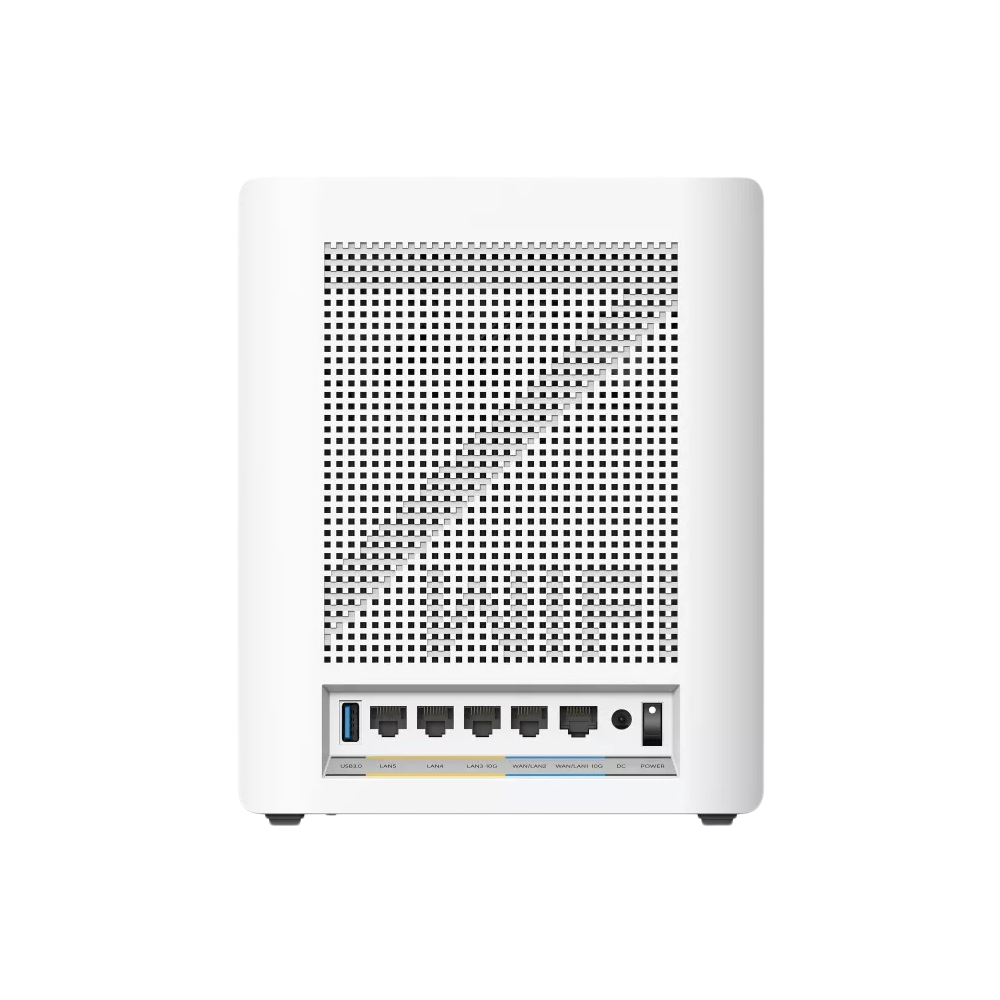

• I/O Ports
• 10G WAN/LAN x 1, 10G LAN x 1, 1G WAN/LANx 1, 1G LAN x2, USB 3.0

Buttons

• Reset/ WPS/ Rocker Switch
• LED Indicator
• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19V with max. 3.42A current

Package Content

• ZenWiFi BQ16
• RJ-45 cable
• Power adapter
• Warranty card
• Quick start guide

Product Weight (g)

• 1341g

Product Dimensions

• 214*174.2*72 mm

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Web & Apps Filters
• Time Scheduling
• Reward
• Parental Control - Safe Browsing
• Customized Internet Schedule
• • Maximum Parental Control Profile : 64
• • Maximum Parental Control Content Filter Rule : 64

Router APP

• APP: ASUS Router APP

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Support Guest Network
• • Maximum Guest Network Rule : 2.4G+5G/ 2.4G+5G+6G: 8
• Guest Network Connection Time Limit
• Open system, WPA/WPA2-Personal/WPA3-Personal

Security

• AiProtection
• VPN
• WPA3 Enterprise, WPA3 Personal, WPA2 Enterprise , WPA2 Personal, WPA Personal, WPA Enterprise , WPS support
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• • Maximum Firewall Keyword Filter : 64
• • Maximum Firewall Network Service Filter : 32
• • Maximum Firewall URL Filter : 64

AiProtection

• AiProtection Pro
• • Router Security Assessment
• • Malicious Site Blocking
• • Two-Way IPS
• • Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS
• • Bandwidth Monitor
• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• Traffic Monitor
• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• Traffic Analyzer
• • Traffic Analysis Period : Daily, Weekly, Monthly
• • Website History

WAN

• Internet Connection Type
• • PPPoE
• • PPTP
• • L2TP
• • Automatic IP
• • Static IP
• Dual WAN
• 4G / 5G Auto Mobile Tethering
• Port Forwarding
• • Maximum Port Forwarding Rule : 64
• Port Triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• LAN
• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• Wake on LAN (WOL)

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• Universal Beamforming
• Explicit Beamforming

USB application

• 4G / 5G Auto Mobile Tethering
• HDD Hibernation
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server

Administration

• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
