ASUS ZENWIFI XD5 AX3000 Whole-Home Mesh WiFi 6 System 3 Pack - White

Key Features:

• The WiFi 6 Superhighway — Operating in 160MHz of Wifi 6 standard for faster, more efficient networking in crowded WiFi environments, provides total wireless speed of 3000Mbps.
• Space-saving and Nice-looking — The iconic design also supports wall mount. Hang it on the wall or place it anywhere, the choice is yours!
• Hassle Free Control — 3 steps setup and easy management with ASUS Router App
• Always Up-to-date Protection — The lifetime free cloud-based security powered by Trend Micro™ makes sure your privacy on connected devices is protected.
• AiMesh Supported — Mix and match ZenWiFi with AiMesh-compatible routers to form powerful and flexible whole-home WiFi system

AX3000 Whole-Home Mesh WiFi 6 System – Coverage up to 5,000 Sq. ft. / 5+ rooms, easy setup, life-time free network security & parental control.

Whole-home Coverage

People enjoy family time together with good WiFi performance provided by ZenWiFi

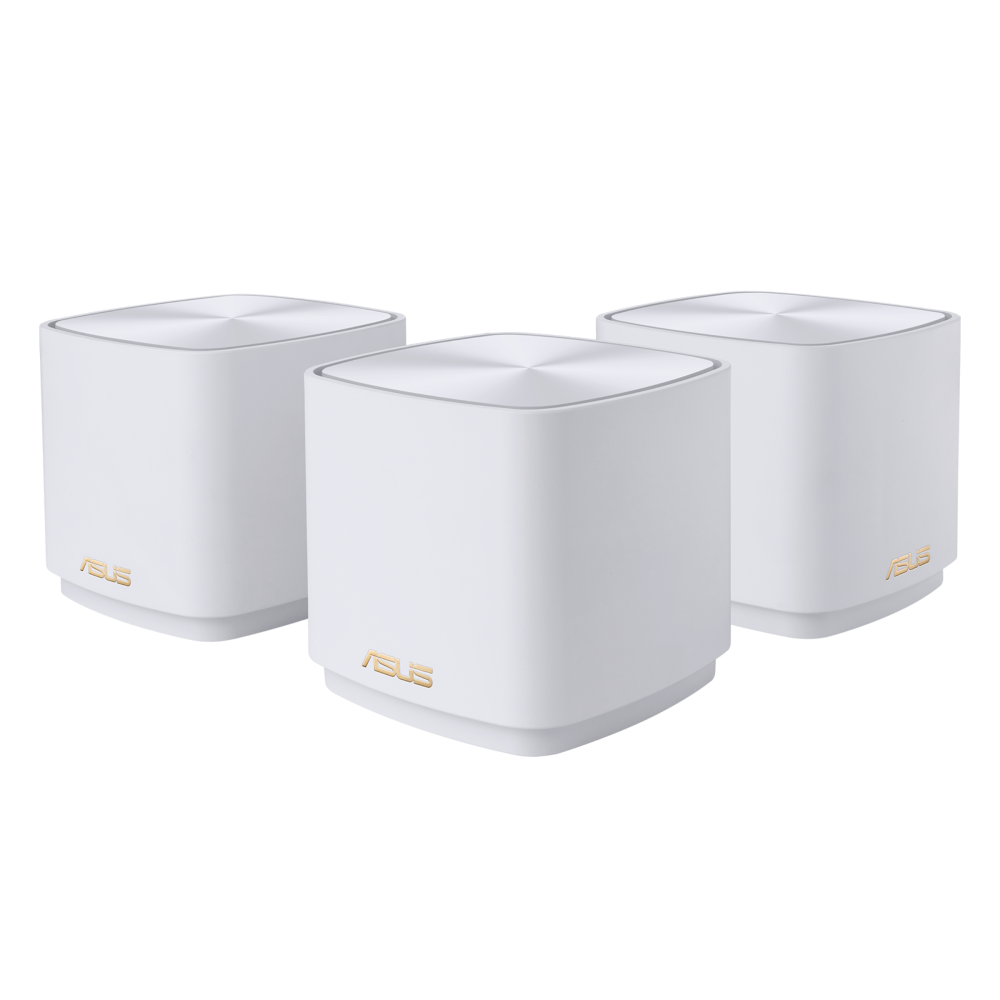

The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

WiFi 6

True 8K Streaming

ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers **.

Explore ultimate WiFi 6 performance

The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth*. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.

Flexible Network Naming

Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Easier-than-ever Setup

What makes ZenWiFi XD5 setup so easy?

One-time setup, with auto synchronization for all the hubs in each package

Use a network cable to connect your modem to the WAN port of one XD5. This ZenWiFi XD5 will be the AiMesh router, and the other two ZenWiFi XD5 will be the AiMesh nodes.

Make the Internet a Safer Place for Everyone

AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes

ZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor.

Space-saving and Great Design

Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!

AiMesh Technology

Easy setup. Flexible management.

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Specifications

Model Name

• XD5 (W-3-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 867 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

• Internal dual-band antenna x 2

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• 1.7 GHz quad-core processor

Memory

• 128 MB Flash 512 MB RAM

Boosts Speed

• MIMO technology

Operating Frequency

• 2.4 GHz
• 5 GHz

Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode

I/O Ports

• RJ45 for Gigabits BaseT for WAN/LAN x 1 RJ45 for Gigabits BaseT for LAN x1

Buttons

• WPS Button, Reset Button

LED Indicator

• Power x 1

Power Supply

• AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 1.5 A current

Package Content

• ZenWiFi XD5 RJ45 Ethernet cable Power adapter Quick start guide Warranty Card Screw Pack

Product Weight (g)

• 307 g

Product Dimensions

• 90 x 90 x 85 mm

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Time Scheduling
• Reward
• Parental Control - Safe Browsing
• Customized Internet Schedule

Router APP

• APP: ASUS Router APP

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Support Guest Network
• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection Time Limit
• Open system, WPA/WPA2/WPA3-Personal

Security

• AiProtection
• VPN
• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• • Maximum Firewall Keyword Filter : 64
• • Maximum Firewall Network Service Filter : 32
• • Maximum Firewall URL Filter : 64

AiProtection

• AiProtection Classic
• • Router Security Assessment
• • Malicious Site Blocking
• • Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• Traffic Monitor
• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Internet Connection Type
• • PPPoE
• • PPTP
• • L2TP
• • Automatic IP
• • Static IP
• Port Forwarding
• • Maximum Port Forwarding Rule : 64
• Port Triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address
• • Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• Universal Beamforming
• Explicit Beamforming

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
