Cooler Master Elite 1200W Fully Modular PCIe 5.1 ATX 3.1 80 Plus Gold Power Supply Unit - Black

Key Features:

• Supports ATX 3.1 and PCIe Gen 5.1 standards

• Ideal for RTX 50 GPUs

• Stable performance under high loads at up to 40°C

• Quiet, long-life FDB fan cooling

• 1200W output with 80 Plus Gold-certified efficiency

• Fully modular embossed cable design

HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS
Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.

High Temperature Resilience
Operates reliably at up to 40°C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloads—all without sacrificing stability or efficiency.

Compatible with ATX 3.1 and PCIe Gen 5.1 standards
ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.

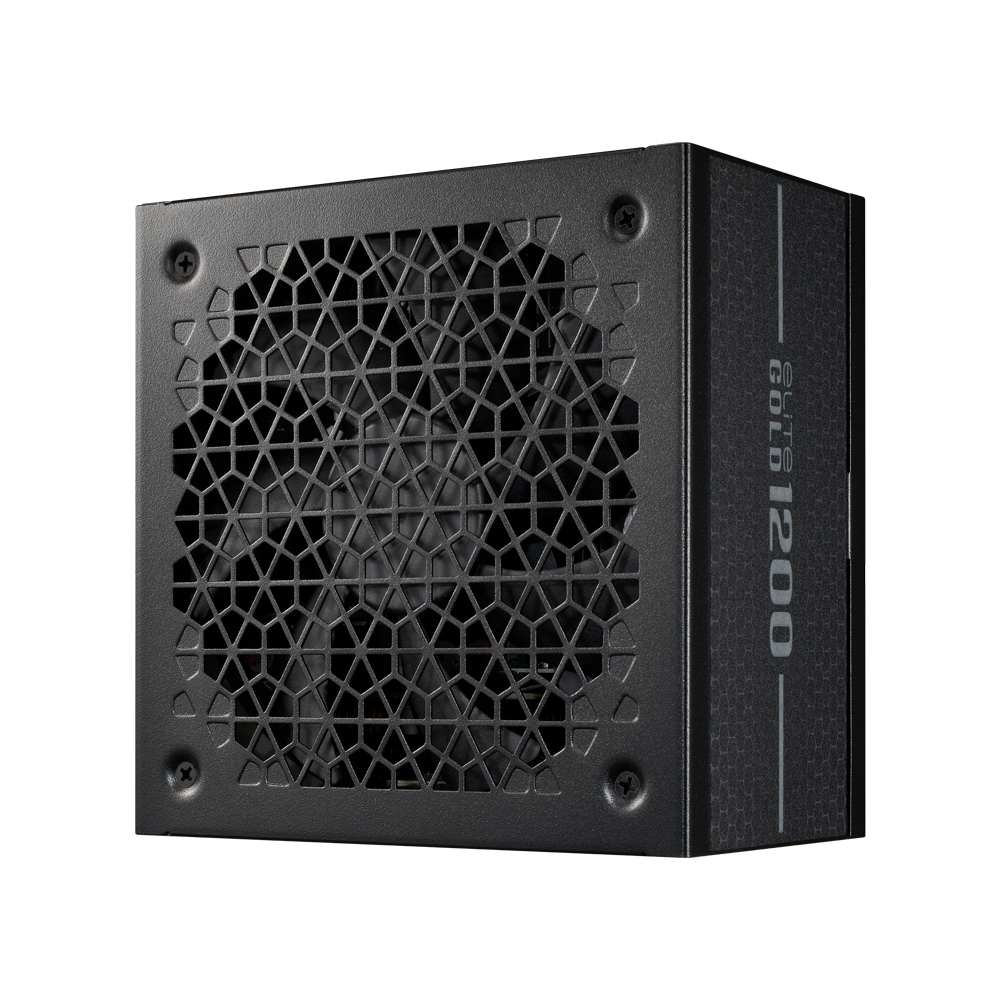

QUIET FDB FAN
Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).

80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1200 achieves over 90% efficiency at typical loads, reducing energy waste and heat output.

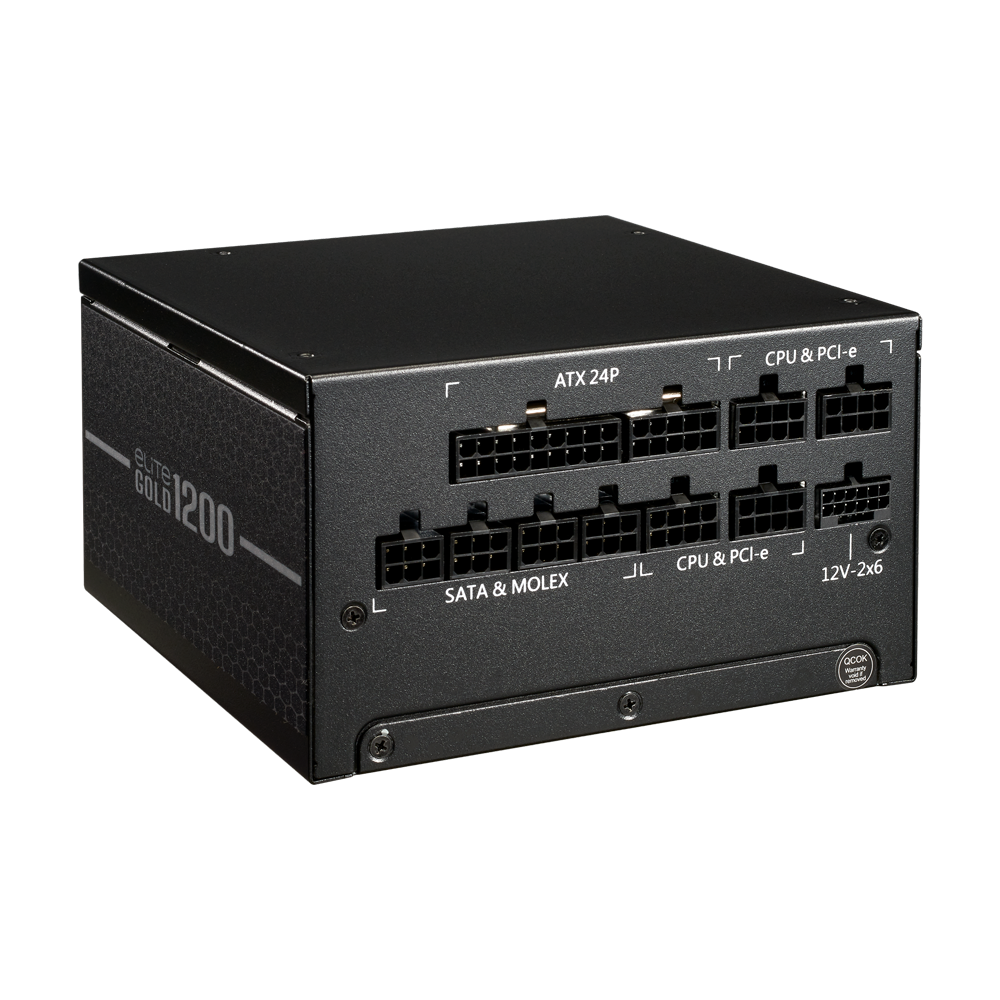

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup.

Specifications

• Product Name : ELITE GOLD 1200

• Model : MPW-C001-AFAG

• ATX Version : ATX 12V Ver. 3.1

• PFC : Active PFC

• Input Voltage : 100-240V

• Input Current  : 7.5 ~ 15A

• Input Frequency : 50-60Hz

• Dimensions (L x W x H)  : 150 x 150 x 86 mm

• Fan Size : 135mm

• Fan Bearing  : FDB

• Efficiency  : ≥90% @ Typical Load

• 80 PLUS Rating : 80 PLUS Gold

• ErP 2014 Lot 3   : Yes

• Operating Temperature  : 0-40°C

• Power Good Signal : 100 - 150 ms

• Hold Up Time : ≥16ms at 80% Load

• MTBF  : >100,000 hours @ 25℃ ambient

• Protections : UVP / OVP / OPP / OTP / SCP

• Regulatory : cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

• ATX 24 Pin Connectors : x1 = 1 (600mm)

• EPS 4+4 Pin Connectors : x2 = 2 (700mm)

• SATA Connectors : x9 = 3 (500+100+100mm)

• Peripheral 4 Pin Connectors : x3 = 1 (500+100+100mm)

• PCI-e 6+2 Pin Connectors  : x6 = 3 (550+120mm)

• 12+4 Pin Connectors : x1 = 1 (600mm)

• Series : Elite Series

• Form Factor  : ATX

• Watts : 1200W

• Modular : Fully Modular

• 80 Plus Efficiency : Gold
