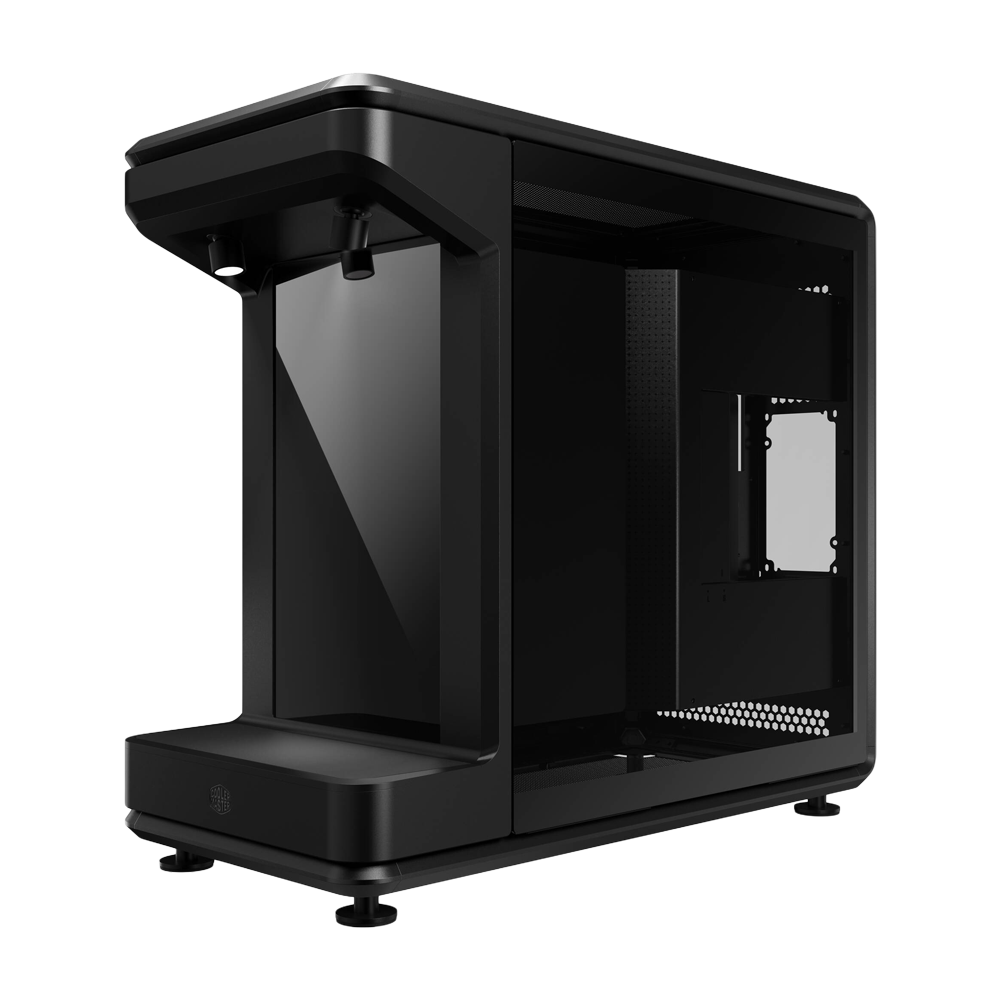

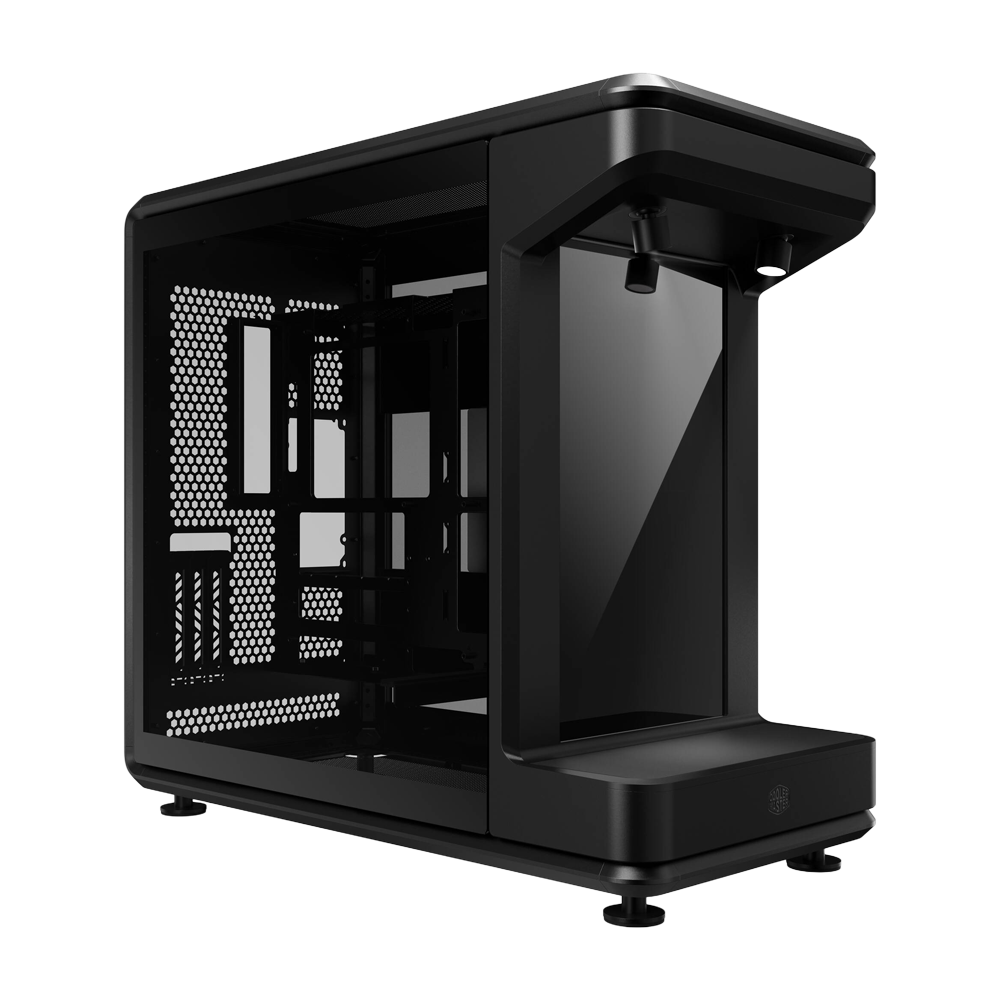

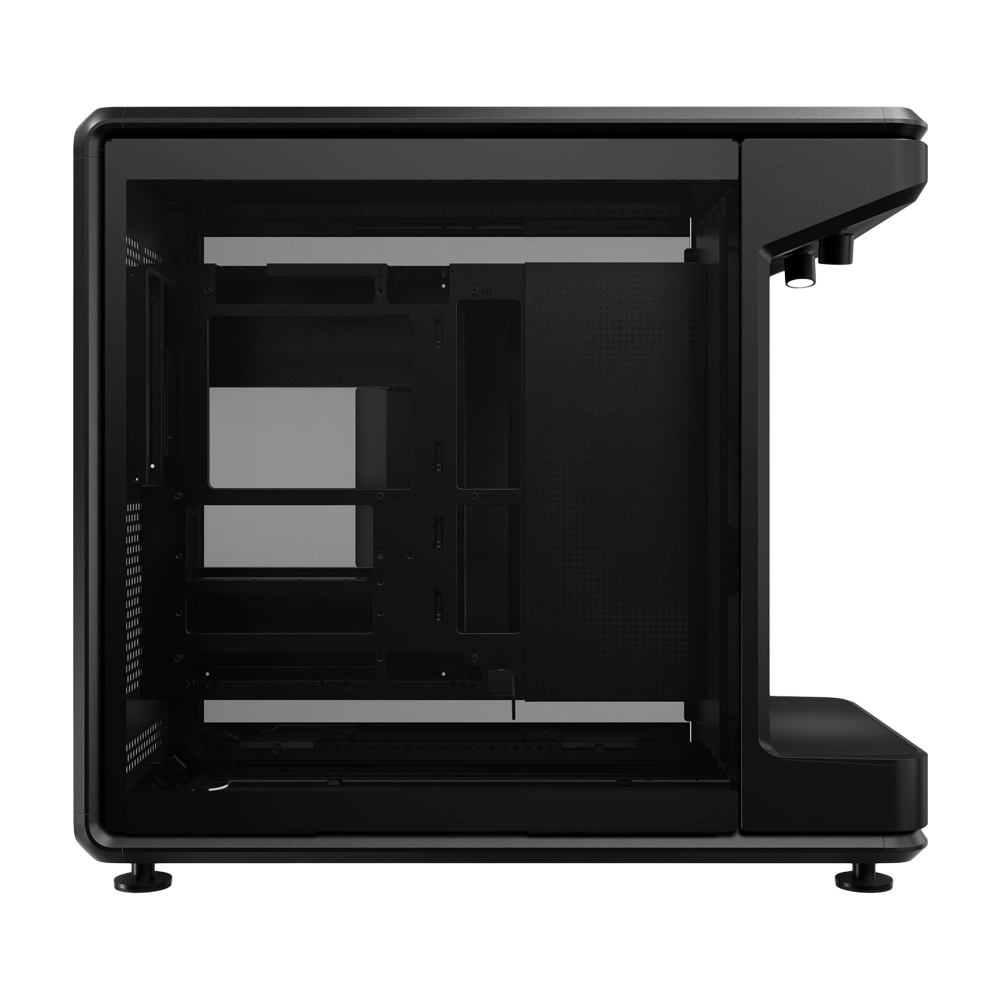

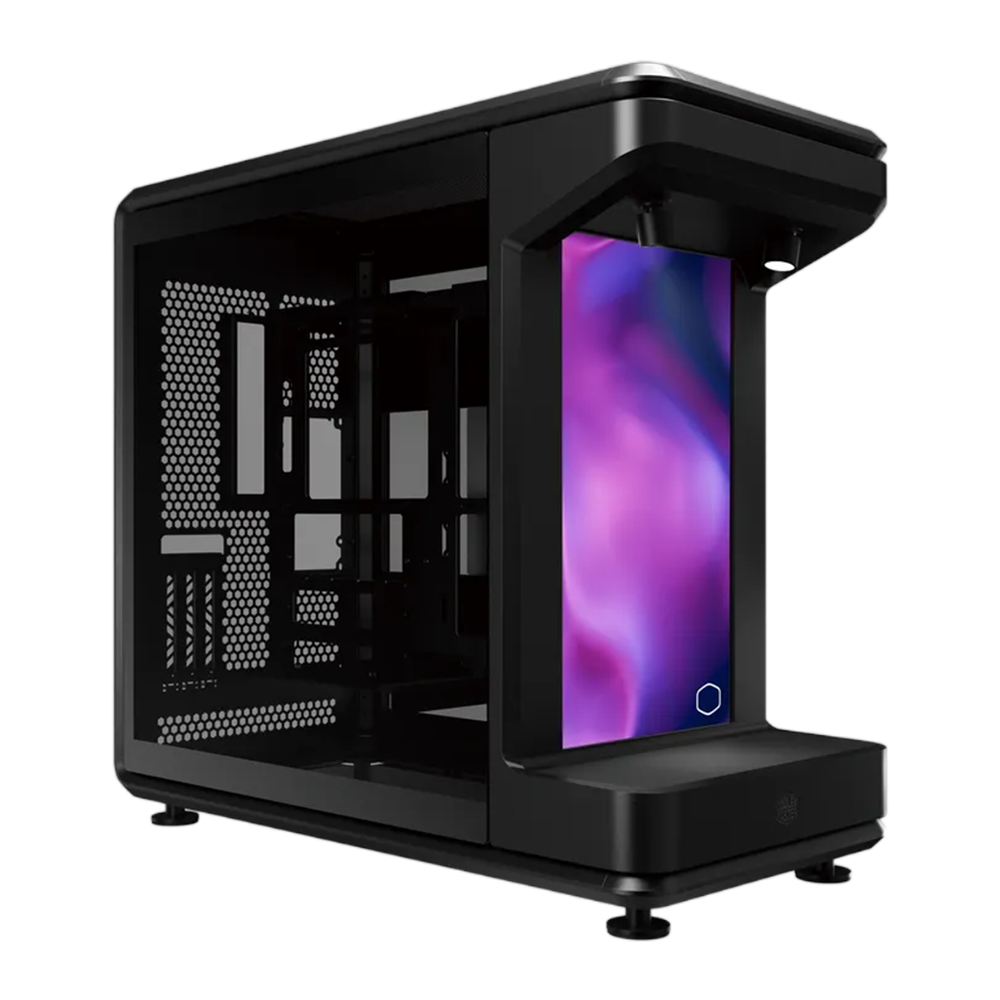

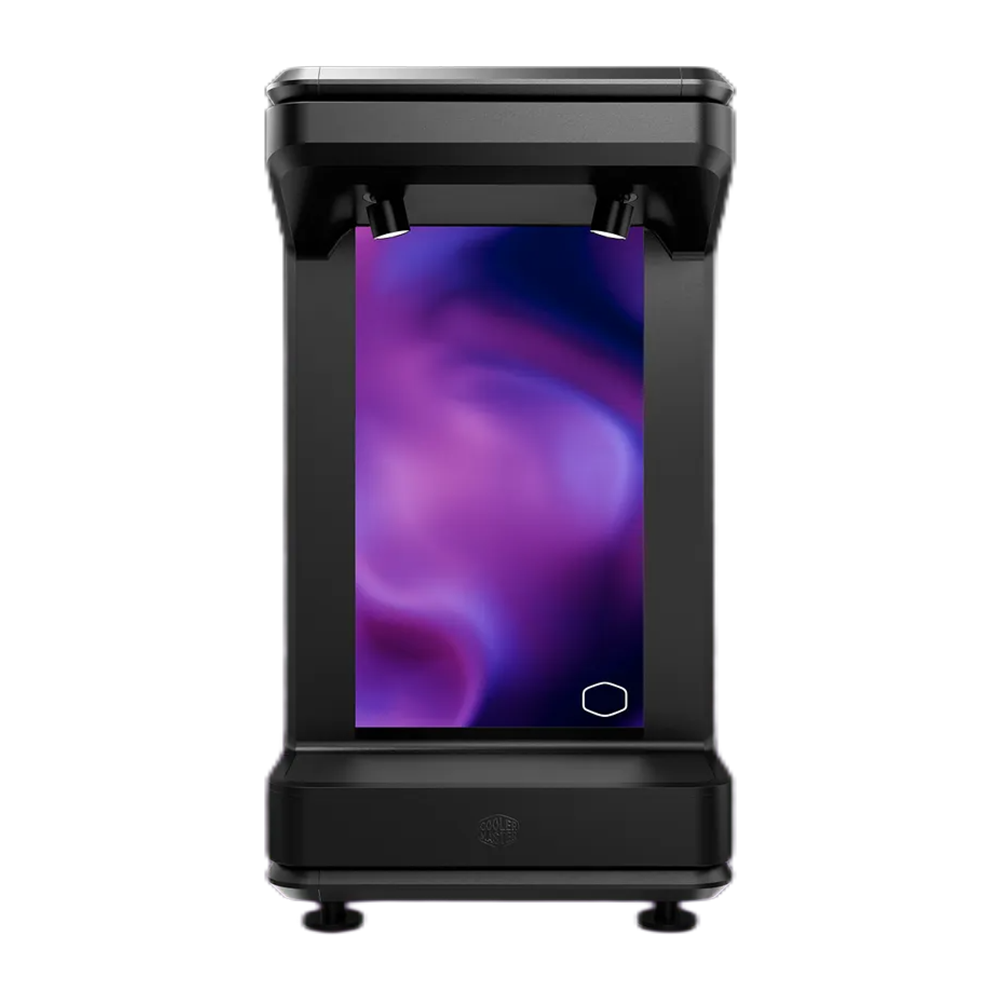

Cooler Master MasterFrame 360 Stage With 15.6 Inch LCD Screen ATX Case - Black

Key Features:

• ATX, Micro-ATX, & Mini-ITX Support

• Aluminum Frame w/ Tempered Glass Panel

• Open Design with LCD Screen

• 1 x 3.5" Drive Bay

• 2 x 2.5" Drive Bays

• Fits 3.5 Expansion Slot-Sized GPUs

• USB-A 3.2 Gen 1 | USB-C 3.2 Gen 2x2

• Supports GPUs up to 16.9"

• Supports CPU Coolers Up to 5.7"

• Includes PCI-e 5.0 Riser

SHOWCASE WITHOUT COMPROMISE
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.

The PC is no longer just a machine — it’s a statement.

The Stage for Personal Expression
Open-frame design removes traditional enclosure constraints, allowing you to freely position figures, collectibles, and creative accessories without visual or spatial limits. Combined with the signature front-facing LCD/mirror, it creates a 360-degree display effect—reflecting every angle in vivid detail. This unique design transforms your build into a personal gallery, where story and style take center stage.

Massive Cooling Compatibility
Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.

Features 110 mm of cable routing clearance for a clean and clutter-free showcase.

PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.

Specifications

• Model Number : MASTERFRAME 360 STAGE LCD: MF360-KHNN-S02

• Product Name : MASTERFRAME 360 STAGE LCD

• Color(s) : Black

• Materials - Exterior : SGCC

• Materials - Side panel (Right / Left) : TG / TG

• Dimensions (L x W x H) : 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)

• Volume

• 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)

• Motherboard Support

• Mini-ITX, Micro-ATX, ATX, BTF (ATX)

• Power Supply Support : ATX

• PCI Expansion Slots : 3.5

• Drive bay support - 3.5" Drive Bays : 0

• Drive bay support - 2.5" / 3.5" Drive Bays (or SSD) : 1x HDD or 2x SSD

• Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity)

• 1x HDD or 2x SSD

• I/O Panel - USB Ports : 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G

• I/O Panel - Audio In / Out : 1x 3.5mm Headset Jack (Audio+Mic)

• Fan Support - Top : 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm

• Fan Support - Bottom : 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm

• Radiator Support - Top : 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

• Radiator Support - Bottom : 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

• Dust Filters : Mesh Only (Removable Filters)

• Other electronic components : 1x PCI-e 5.0 Riser / 2x ARGB spotlight

• Maximum Dimensions for Front Collectibles Display (H x W x D) : 328 x 290 x 110 mm

• DIY tank & Pump support : MASTERFRAME 360 PANORAMA: Yes (with right side tank & pump bracket)

• DIY tank & Pump support : MASTERFRAME 360 STAGE LCD & MIRROR: Yes (Left side)

• Toolbox : Yes

• Clearances - CPU Cooler : 145 mm

• Clearances - Power Supply : 210 mm

• Clearances - Graphics Card : 430 mm

• Cable Routing - Behind Motherboard Tray : 110 mm

• Size : Mid Tower

• Series : MasterFrame Series
