Cooler Master MWE 750W V3 ATX 3.1 80 Plus Bronze Power Supply - Black

COOLER MASTER MWE 750 V3 - 80 Plus Bronze ATX 3.1 Power Supply Unit - Black

Power Evolved

MWE Bronze 750 V3 230V

Power Evolved

Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable.

ATX 3.1 Support

Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.

*All performance stats confirmed in 25°C ambient temperature testing.

Embossed Cable

An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.​

Quiet HDB Fan

A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.​

High Temperature Resilience

A 40°C operating temperature allows for pushing your machine to the limits.​

Specifications

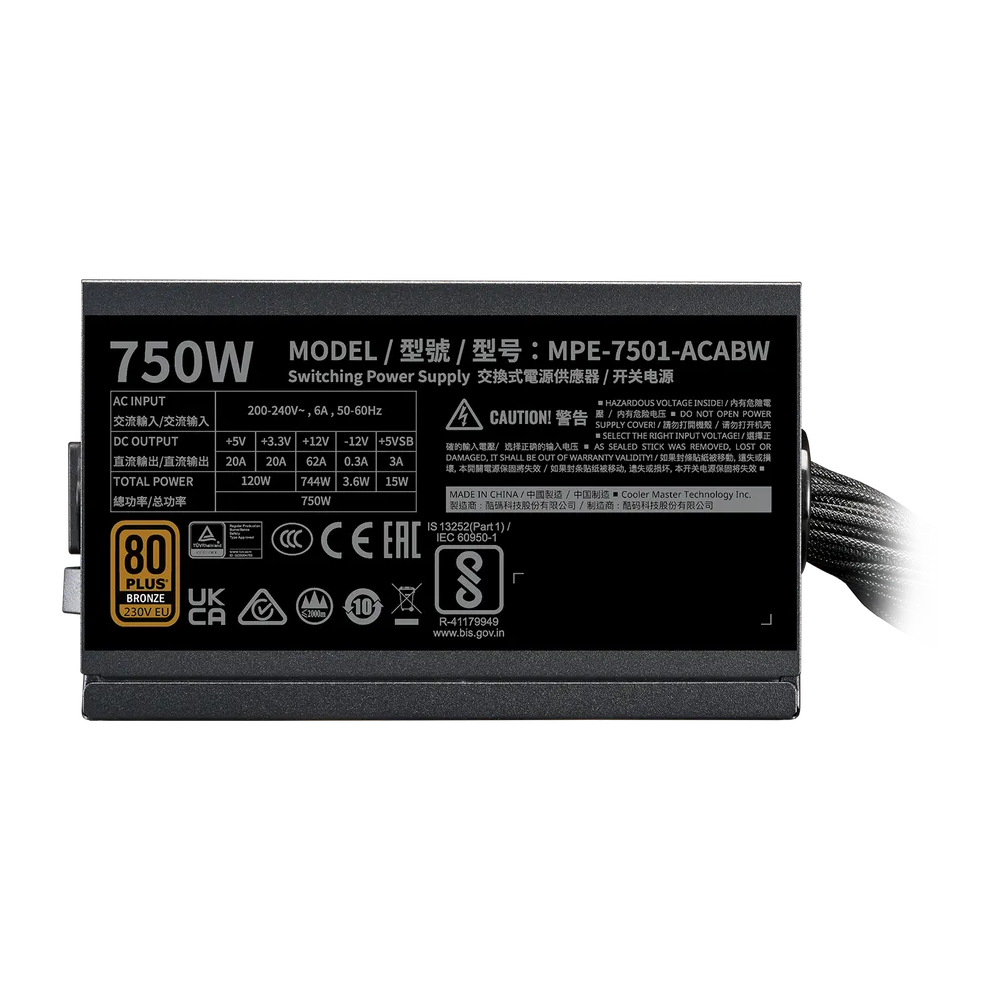

• Model : MPE-7501-ACABW-3B

• ATX Version : ATX 12V Ver. 3.1

• PFC : Active PFC

• Input Voltage : 200-240V

• Input Current : 6A

• Input Frequency : 50-60Hz

• Dimensions (L x W x H) : 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch

• Fan Size : 120mm

• Fan Bearing : HDB

• Efficiency> : 88% @ Typical Load

• 80 PLUS Rating : 80 PLUS Bronze EU 230V

• ErP 2014 Lot 3 : Yes

• Operating Temperature : 0-40°C

• Power Good Signal : 100 - 150 ms

• Hold Up Time : >16ms

• MTBF : >100,000 Hours

• Protections : UVP / OVP / OPP / OTP / SCP

• Regulatory : TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)

• ATX 24 Pin Connectors : 1

• EPS 8 Pin / 4+4 Pin Connectors : 2

• SATA Connectors " 6

• Peripheral 4 Pin Connectors : 3

• PCI-e 6+2 Pin Connectors : 4

• Series : MWE Bronze Series

• Category : 500 to 750W

• Modular : Non Modular

• 80 Plus Efficiency : Bronze

• Form Factor : ATX

• Watts : 750W
