CORSAIR Force Series MP510 M.2 SSD - (R-3,480MB/s,W-2,000MB/s) 480GB

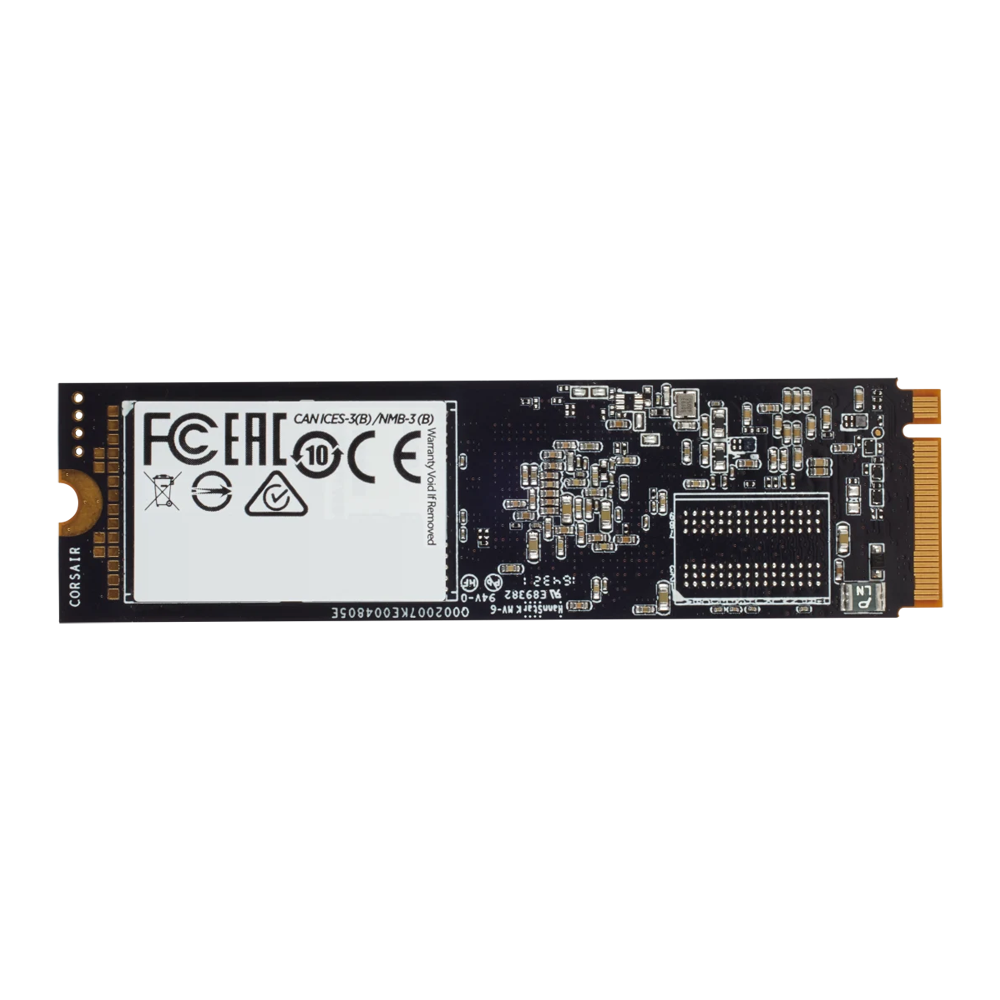

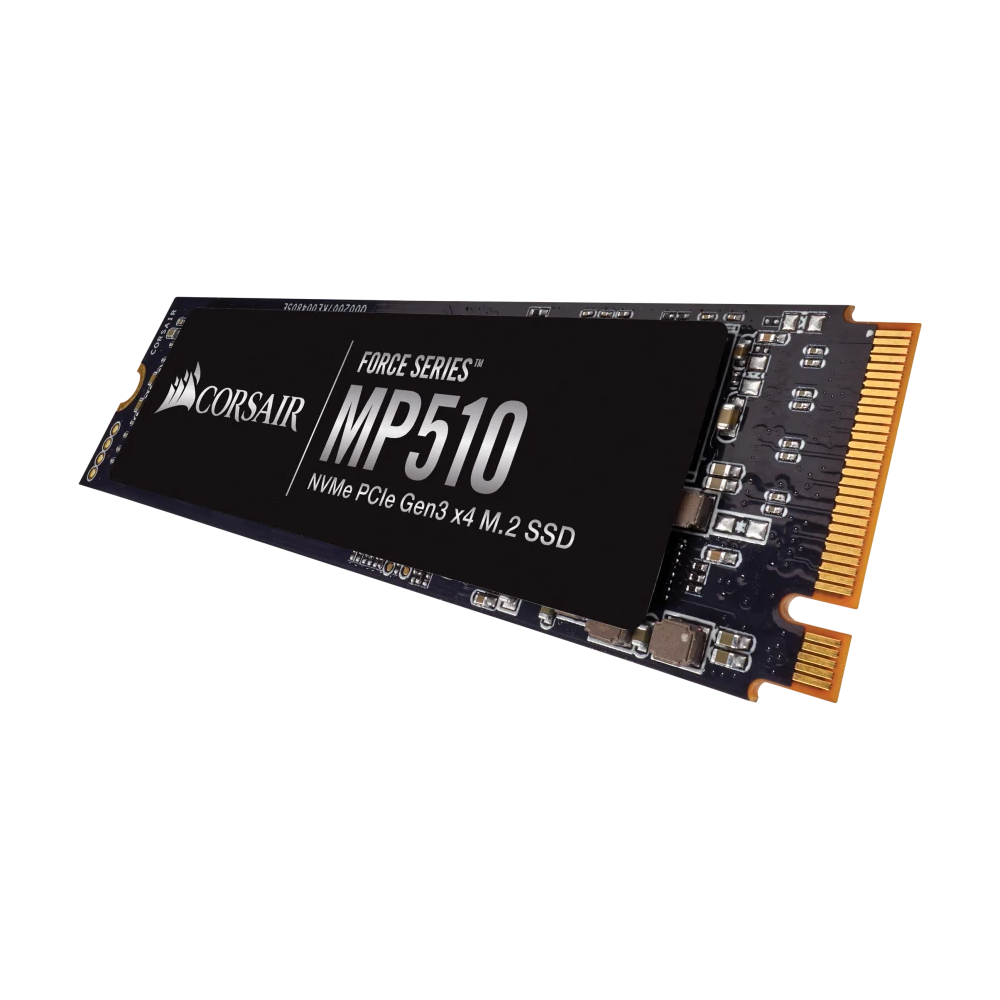

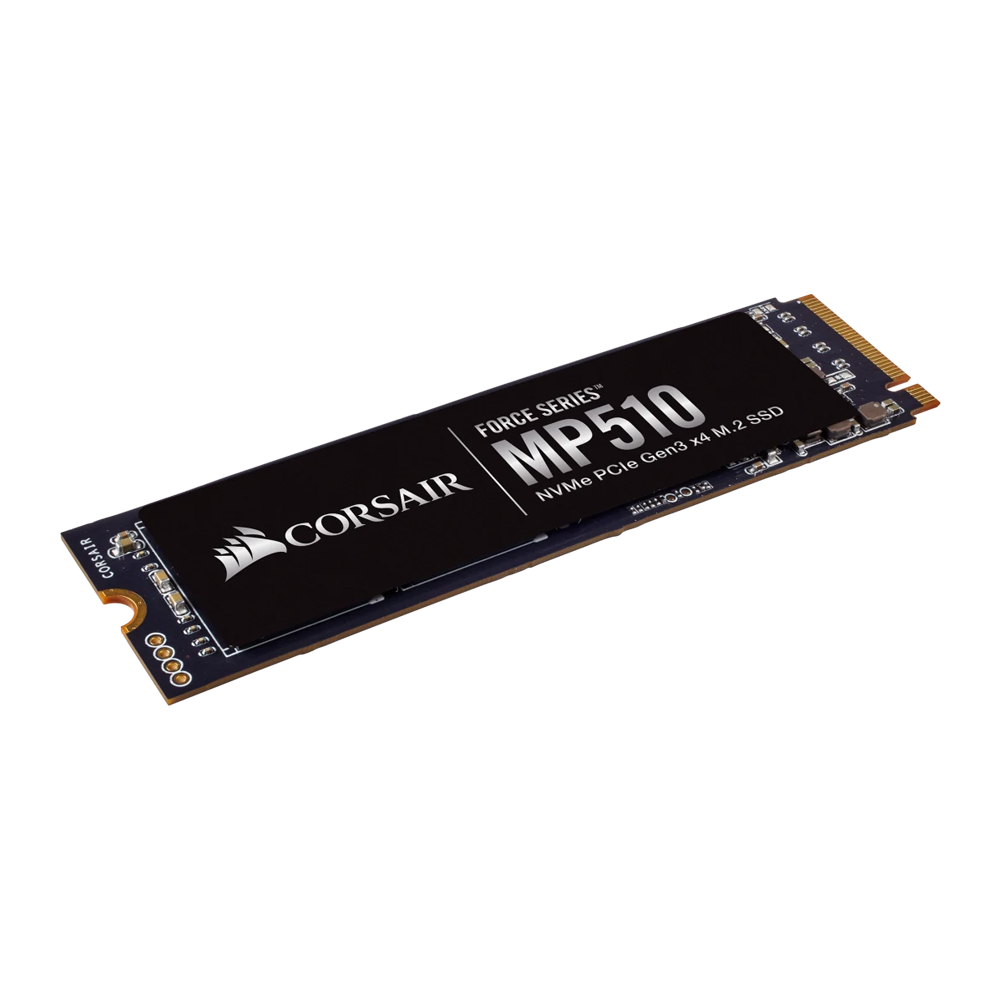

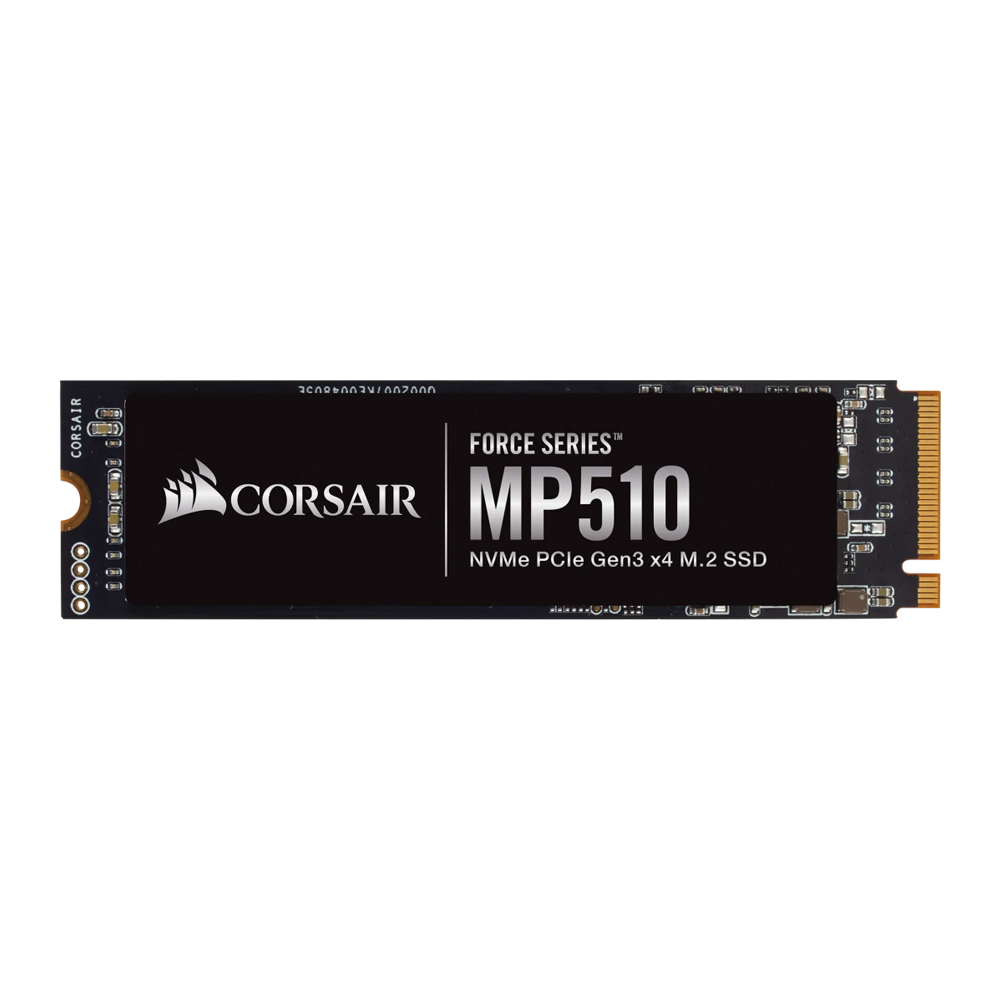

Corsair Force Series MP510 480GB M.2 SSD

The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage performance with blazing fast read speeds of up to 3,480MB/sec.

EXTREME STORAGE PERFORMANCE

All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.

HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE

For simple connection and maximum bandwidth.

HIGH-DENSITY 3D TLC NAND

Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years

COMPACT M.2 2280 FORM FACTOR

Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.

Specifications

• SSD Unformatted Capacity : 480 GB
• SSD Smart Support : Yes
• Weight : 0.055kg
• SSD Interface : PCIe Gen 3.0 x4
• SSD Max Sequential Read CDM : Up to 3,480MB/s
• SSD Max Sequential Write CDM : Up to 2,000MB/s
• Max Random Write QD32 IOMeter : Up to 440K IOPS
• Max Random Read QD32 IOMeter : Up to 360K IOPS
• Form Factor : M.2 2280
• Dimension : 80mm x 22mm x 3mm
• NAND Technology : 3D TLC NAND
• Voltage : 3.3V, +/- 5%
• Endurance : 800 TBW
• TBW : 800
• MTBF : 1,800,000 Hours
• DEVSLP : L1.2 < 2mW
• Encryption : AES 256-bit Encryption
• Storage Temperature : -40 °C to +85 °C
• SSD Operating Temperature : 0 °C to +70 °C
• SSD Shock : 1500 G
• Storage Humidity : 93% RH (40 ° C)
• Operating Humidity : 90% RH (40 ° C)
• Vibration : 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
