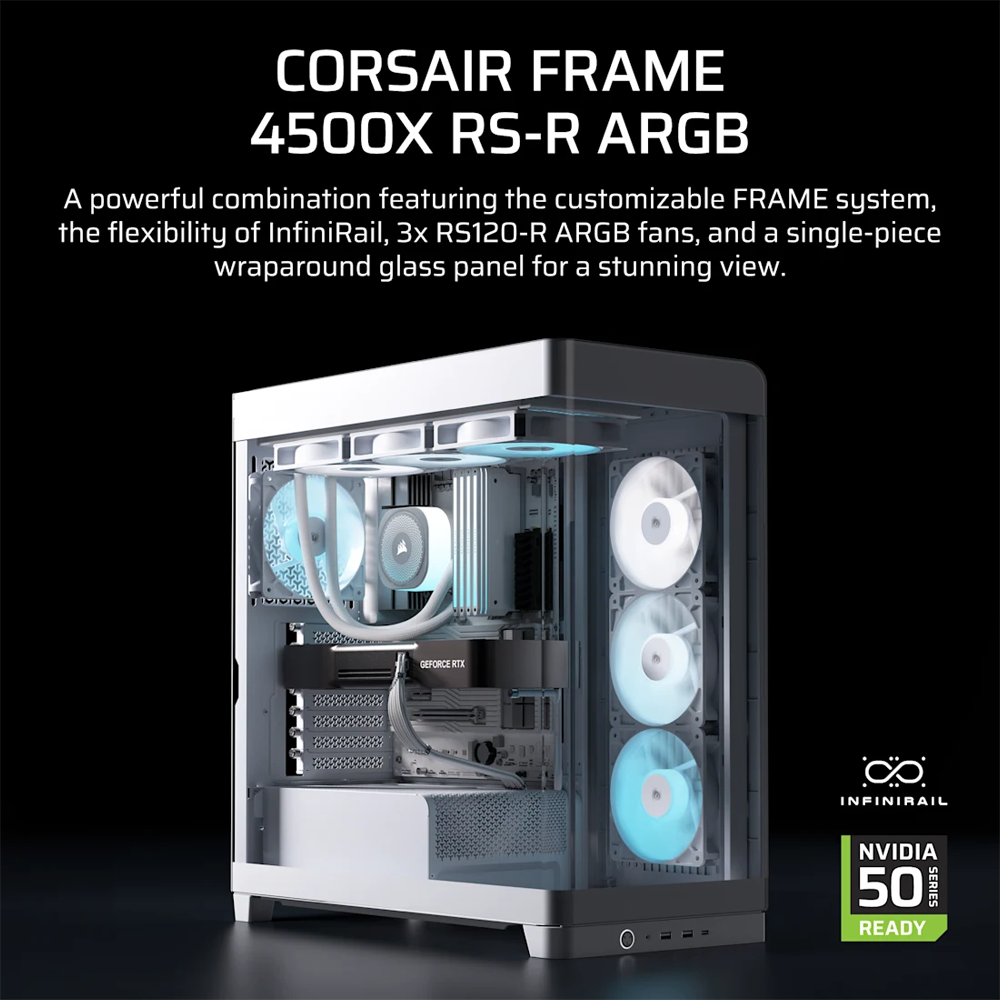

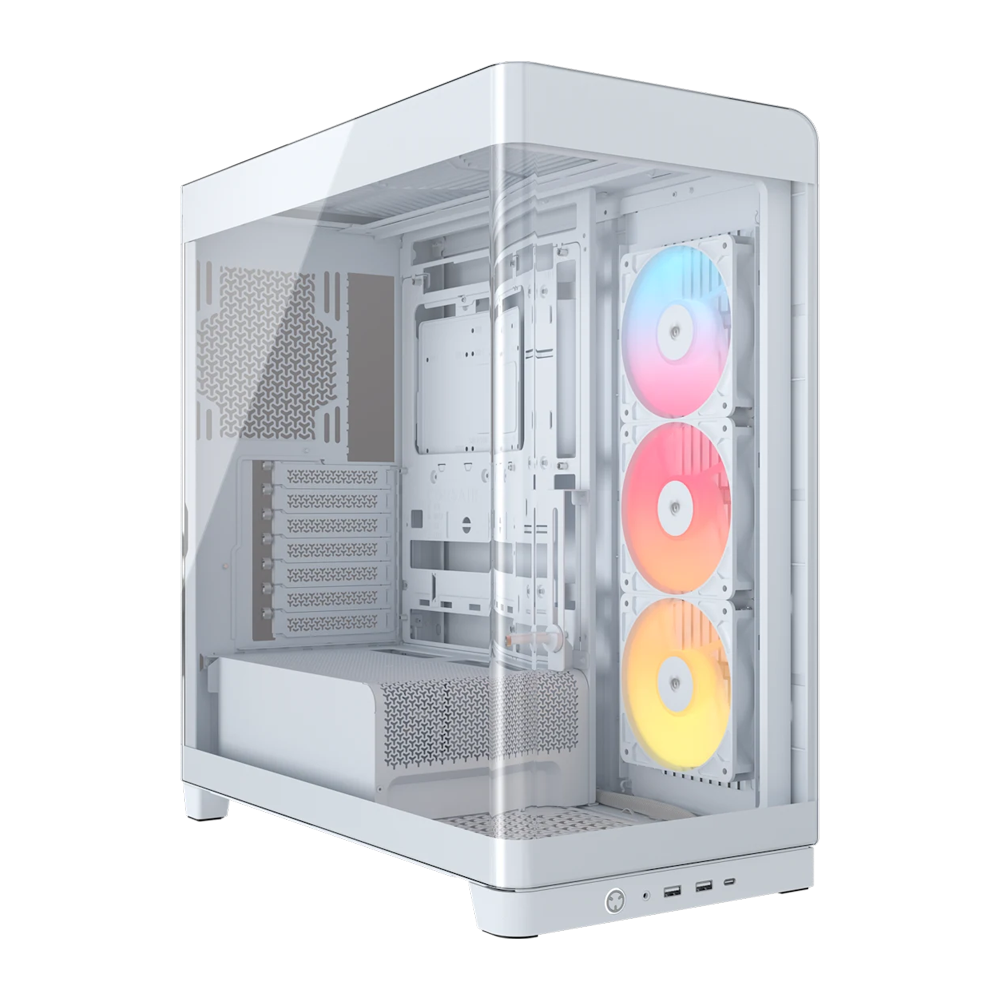

CORSAIR FRAME 4500X RS-R ARGB Panoramic Glass Mid Tower Case - White

GO BIG, OR GO BIGGER

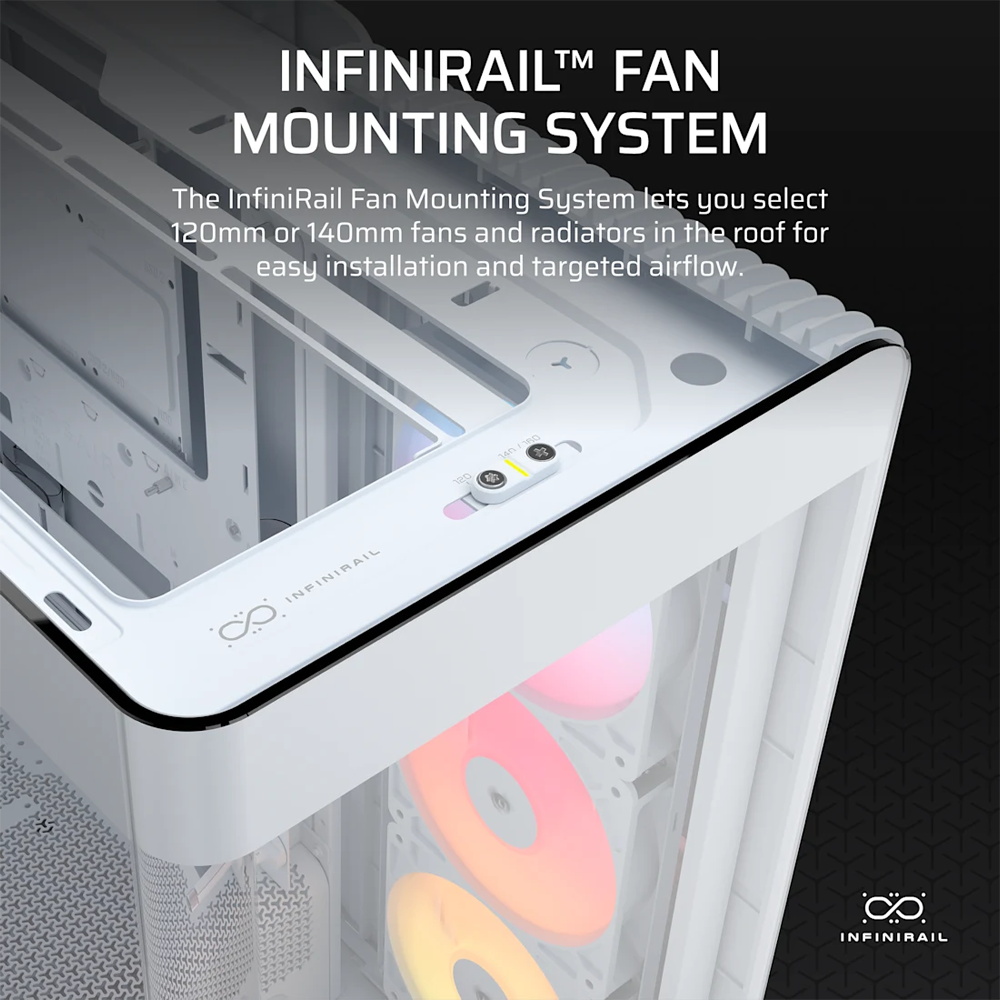

CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
This steel multi-point fan mounting system provides unmatched flexibility for the roof fan configuration. Easily slide the rail to mount either 120mm or 140mm fans exactly where you need it, ensuring targeted airflow without the limitation of fixed mounting points.

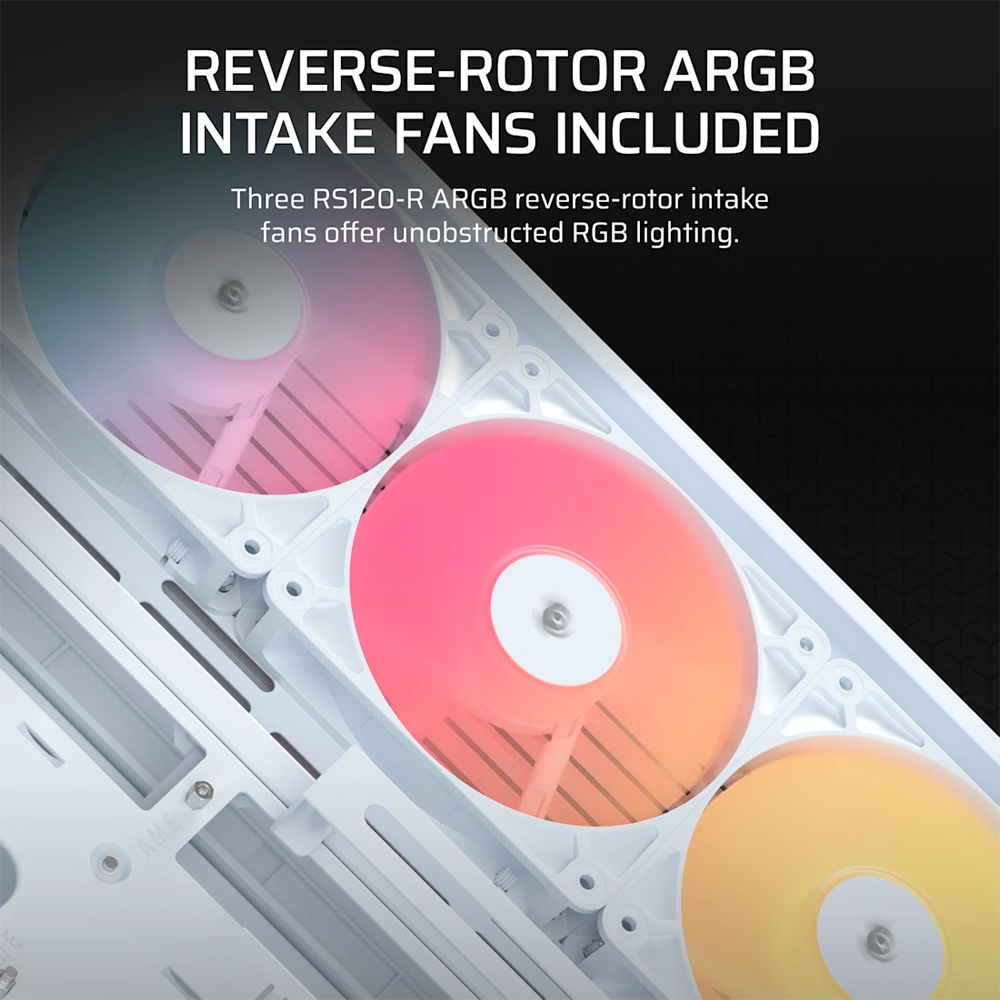

A FAN FAVORITE

RS-R REVERSE-ROTOR INTAKE FANS INCLUDED
Reverse-rotor ARGB PWM RS-R intake fans are included for unobstructed RGB lighting and low-noise cooling. Fresh air is pulled through the ventilated side and into the spacious mid-tower chassis for effective cooling and plenty of airflow to ensure maximum performance.

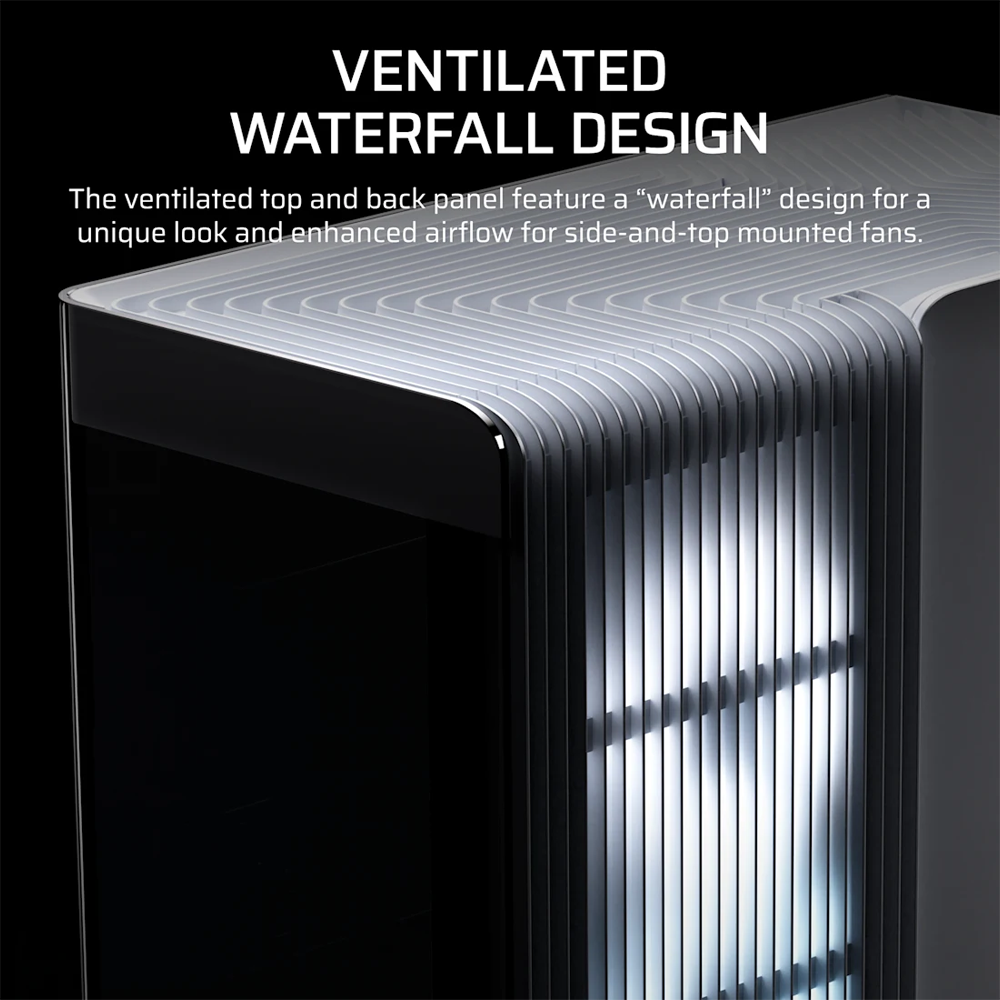

CASCADING COOL

VENTILATED SIDE AND TOP PANELS
Airflow optimized panels adorn the top and side of the FRAME 4500X to provide maximum breathability for fans mounted in both locations.

The side-mounted reverse-rotor intake fans pull cool air in from outside the chassis, while top-mounted fans (sold separately) exhaust hot air out of the case to keep the interior frosty.

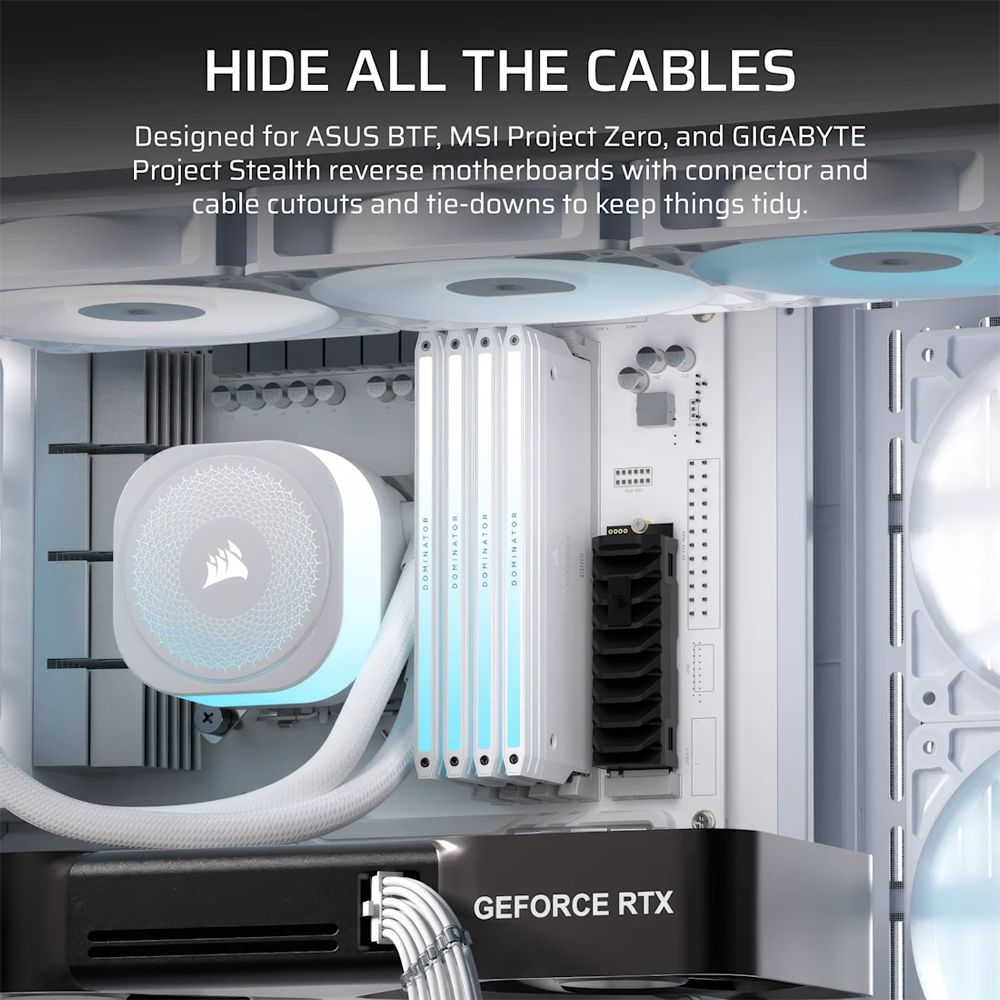

HIDDEN FROM VIEW

LOOK, NO CABLES
Fully compatible with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth, this design features ample connector and cable cutouts, along with tie-downs to keep your build neat and organized, even where you can’t see them.

EASY TO LIVE WITH
DIY DONE RIGHT
The FRAME 4500X incorporates useful features to make building a PC easier.

VERTICAL GPU READY
Put your GPU front and center in your new build with easy vertical mounting, no tools or bracket required (Riser Cable sold separately).

SAG-FREE GRAPHICS CARDS
A GPU Anti-sag Stabilization Arm keeps your GPU steady, so you never have to worry about damaging your PCIe slot.

REUSABLE SCREW BOX
Never lose an important screw again thanks to the included reusable screw box holding everything you need securely locked away.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 2x 360mm radiators at the same time.

The FRAME 4500X has more than enough space to accommodate and cool your most ambitious build.

Surround your system on all sides with a healthy amount of airflow to keep it running at its peak.

Enjoy the low noise and temperatures that come with liquid cooling thanks to multiple radiator mounting positions.

Specifications

• Case Supported : Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
• Case Height : 478
• Case Length : 499
• Case Width : 246
• Material : Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
• Motherboard Support : Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
• Color : WHITE
• Case Size : Mid-Tower
• Radiator Compatibility : 120mm, 140mm, 240mm, 280mm, 360mm
• Case Window : Tempered Glass
• Compatible Liquid Coolers : H60, H100, H115, H150, NAUTILUS, TITAN
• Internal 3.5" Drive Bays : 1
• Internal 2.5" Drive Bays : 2
• Maximum CPU Cooler Height : 185mm
• Maximum PSU Length : 250mm
• Case Front IO : (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
• Maximum GPU Length : 460mm
• Weight : 11.58kg
• Case Expansion Slots : 7 Horizontal or 3 Vertical
• Case Power Supply : ATX
• Radiator Support - Top : 360mm, 280mm, 240mm
• Radiator Support - Front : None
• Radiator Support - Bottom : None
• Radiator Support - Side : 360mm, 280mm, 240mm
• Radiator Support - Rear : 140mm, 120mm
• Fan Support - Top : 3x 120mm, 2x 140mm
• Fan Support - Front : None
• Fan Support - Bottom : 3x 120mm, 1x 140mm
• Fan Support - Side : 3x 120mm, 2x 140mm
• Fan Support - Rear : 1x 120mm, 1x 140mm
• Front IO Motherboard Connections : 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
• Reverse Connector Motherboard Support : Yes
• Included Fans : RS ARGB Series
• Dust Filtration : Yes
• Cable Routing Space : 37mm
• RapidRoute Included : No
• Left Side Panel : Tempered Glass
• Right Side Panel : Steel
• Vertical Mount Support : Supported (Riser Card Sold Separately)
