CORSAIR SPEC-05 Carbide Series Mid-Tower - Black

Carbide Series SPEC-05 Mid-Tower Gaming Case — Black

CORSAIR Carbide Series SPEC-05 case is a mid tower ATX case gaming case that combines a stylish and distinctive exterior with excellent cooling potential, a straightforward layout, and a dedicated cable routing compartment for effortlessly clean builds.

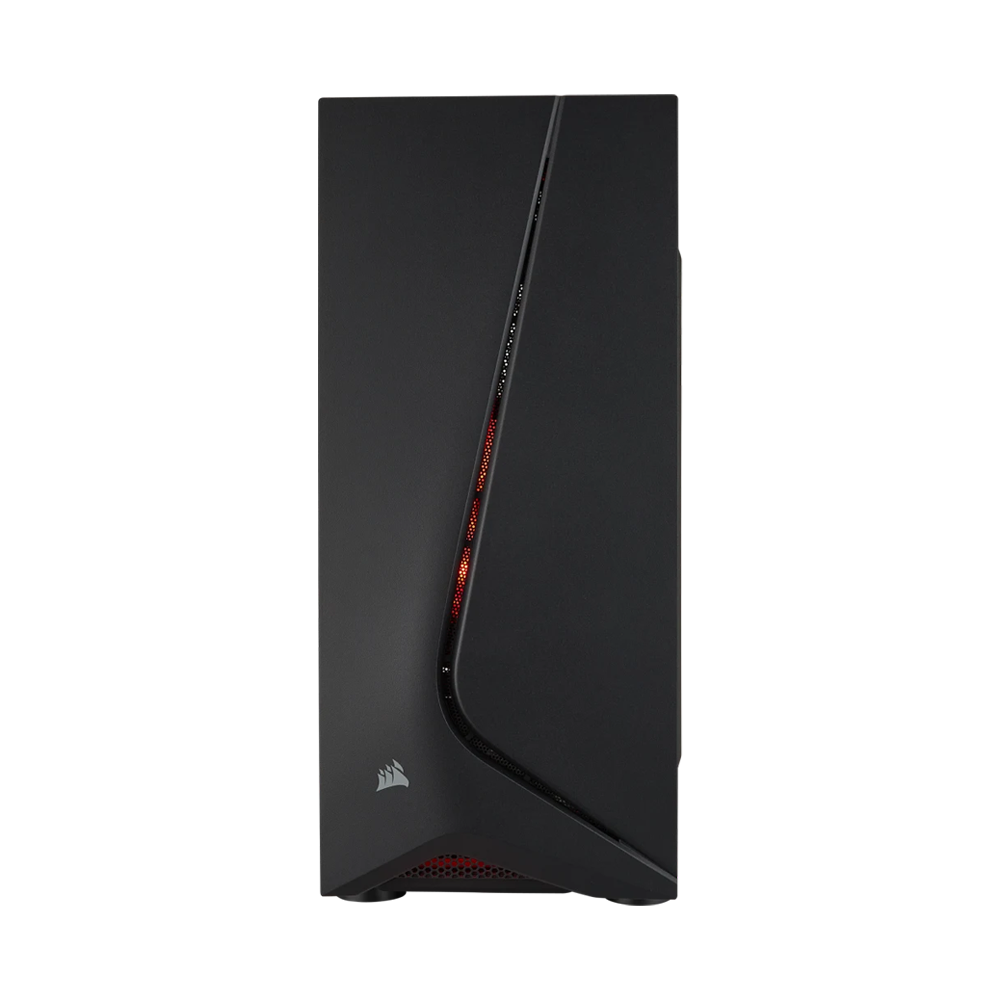

DISTINCTIVE STYLE FROM EDGE-TO-EDGE

The asymmetrical, smooth-edged design adds bold styling to your build.

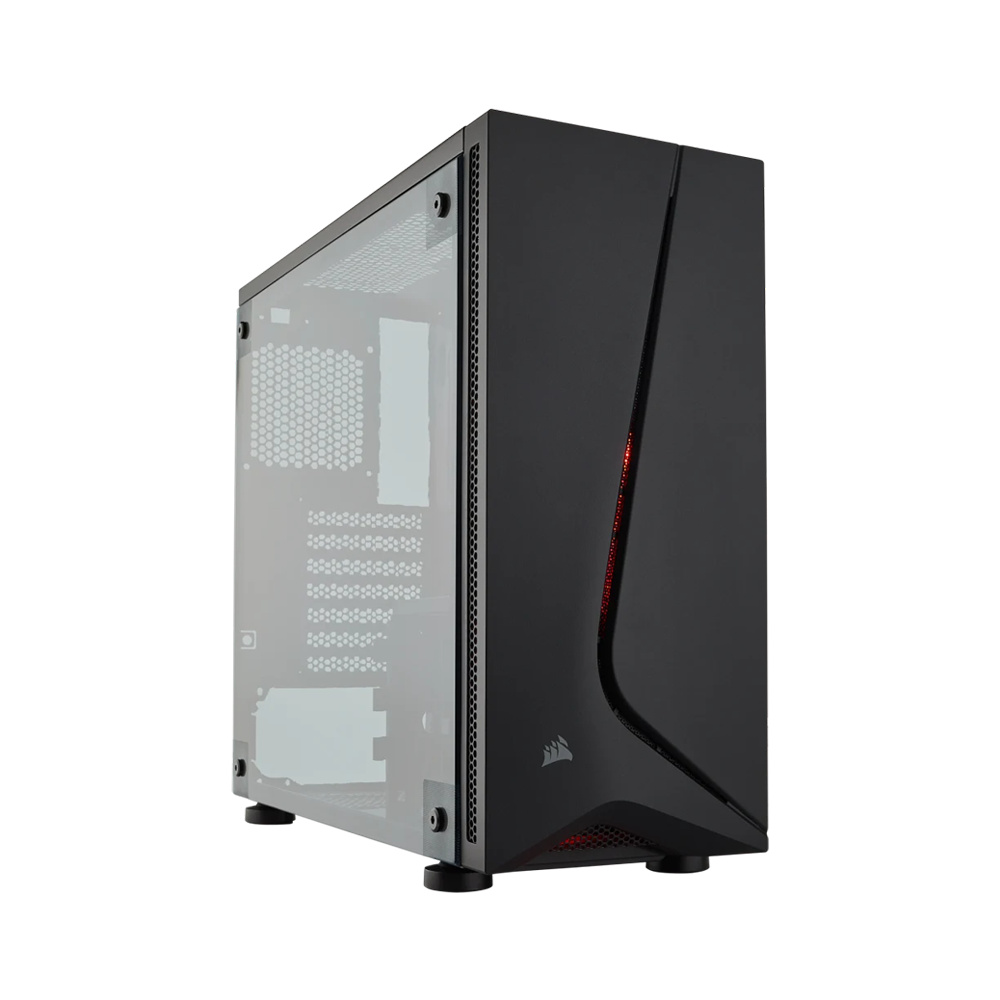

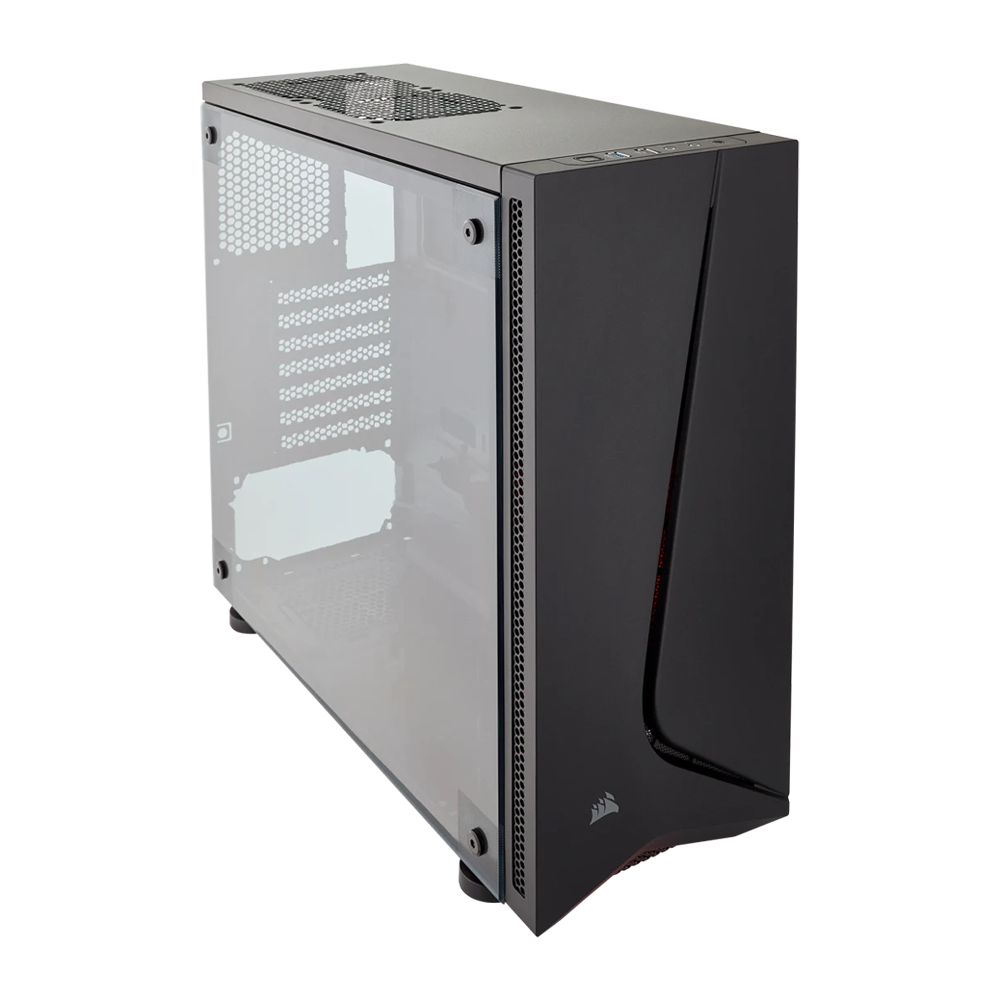

HUGE SIDE PANEL WINDOW

A stunning full-side panel window offers an unrestricted window into the heart of your PC.

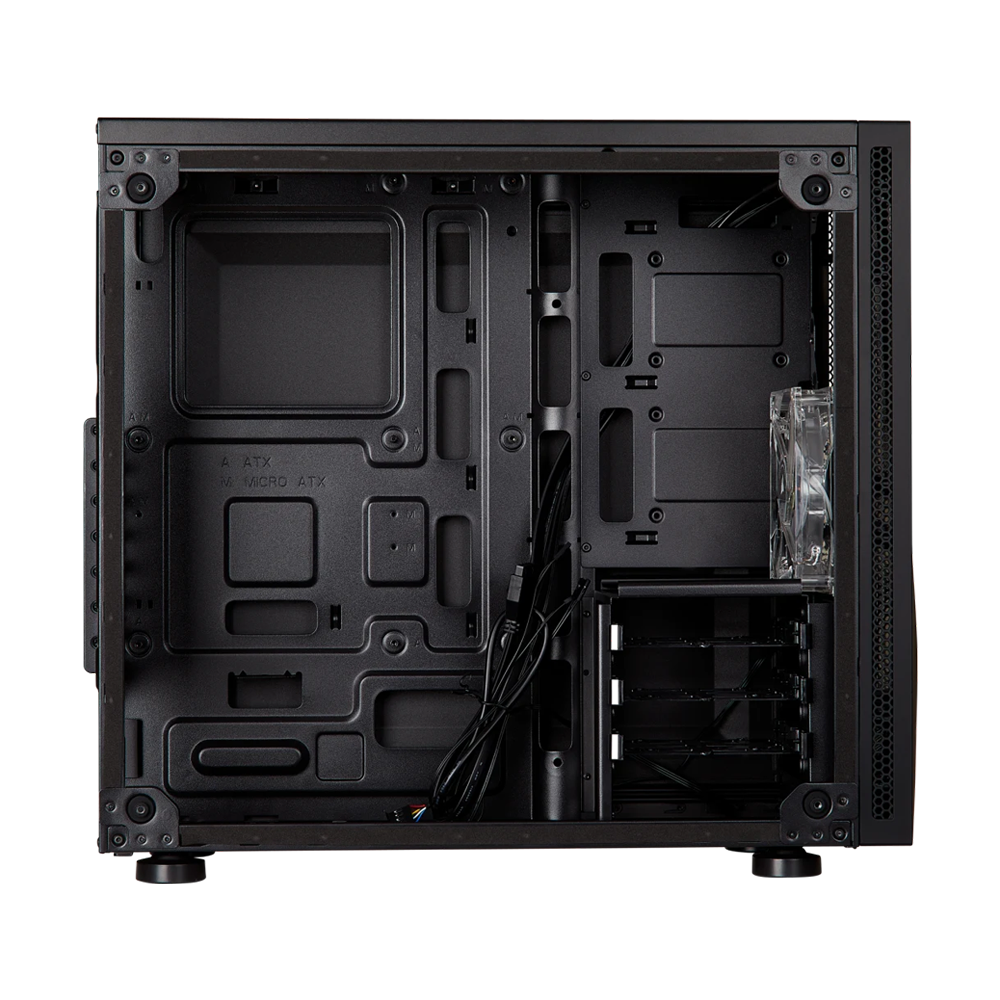

EXPANSIVE SPACE AND COOLING

With room for up to six* 120mm fans (one red LED fan included), SPEC-05 supports a huge array of cooling options, as well as easy-to-use drive mounts for up to three HDD’s and two SSD’s.

HIGH-SPEED CONNECTIVITY

Featuring a front panel USB 3.0 port for high-speed external connections.

BUILT FOR PC BUILDERS

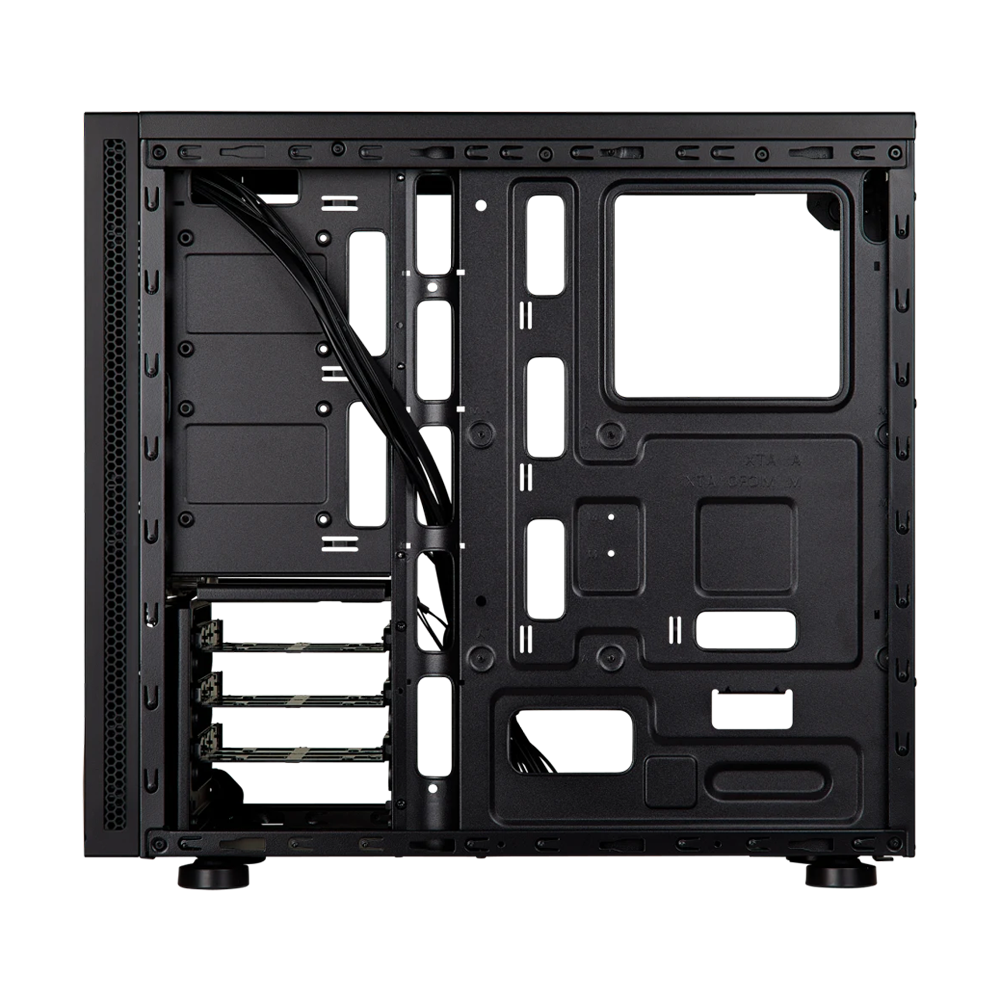

Multiple tie-down points and cable routing holes make it easy to neatly hide your cables behind the motherboard tray, keeping your build looking great and optimizing cooling.

KEEP IT CLEAN

Easily removable dust filters help keep your PC clean and your components running cooler.

CONTENTS AND SPECIFICATIONS

PACKAGE CONTENTS

• Carbide Series SPEC-05 Mid-Tower Gaming Case
• Accessory Kit
• Quick Start Guide

COMPATIBILITY

• Mini-ITX
• MicroATX
• ATX

TECHNICAL SPECIFICATIONS

• Maximum GPU Length: 370mm
• Maximum PSU Length: 180mm
• Maximum CPU Cooler Height: 150mm

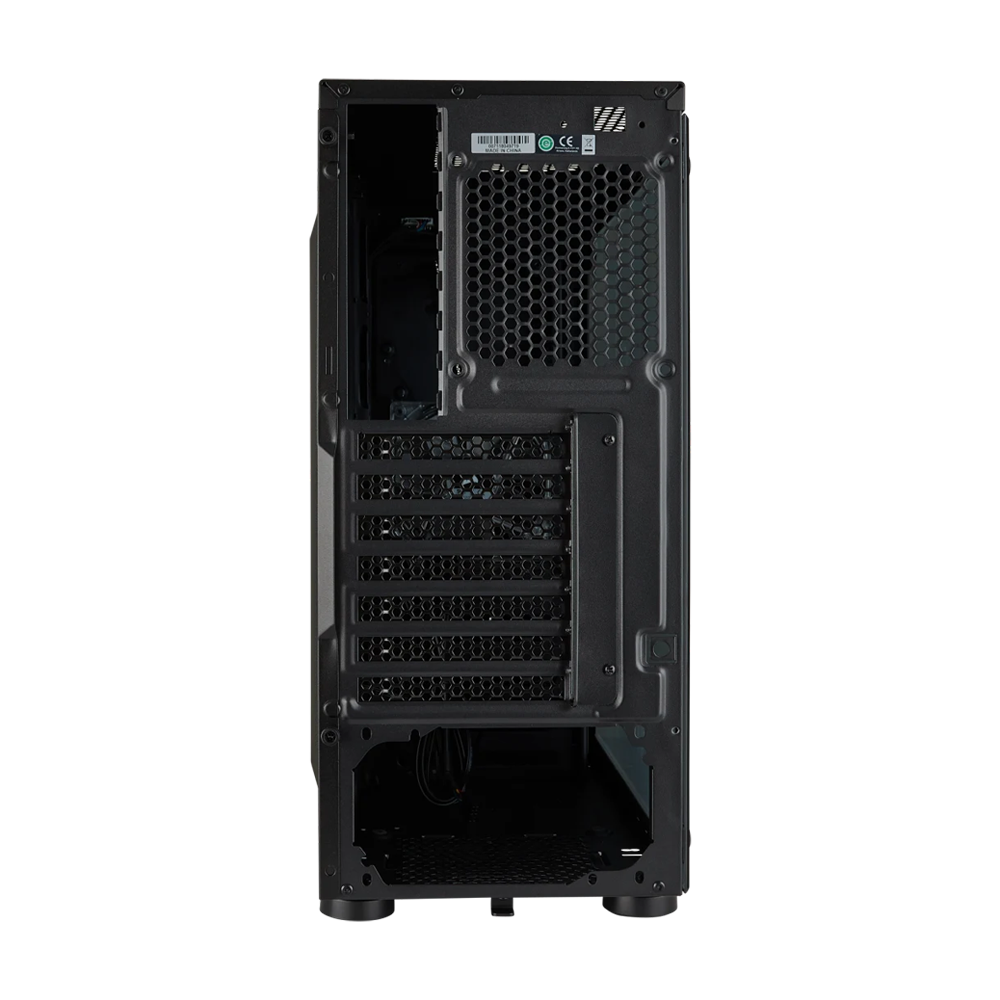

• Case Expansion Slots: 7
• Case Drive Bays: (x2) 3.5in (x3) 2.5in

• Case Material: Steel
• Radiator Compatibility: 120mm; 140mm; 240mm
• Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i
