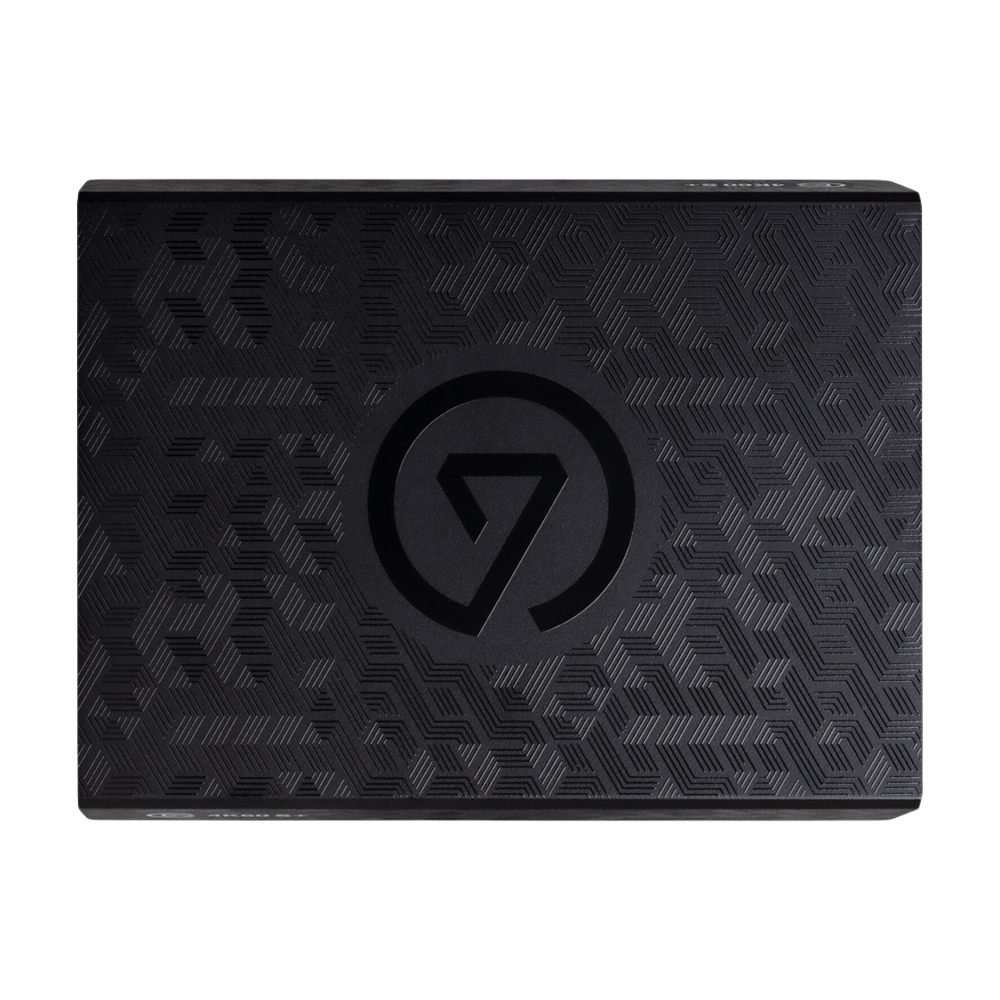

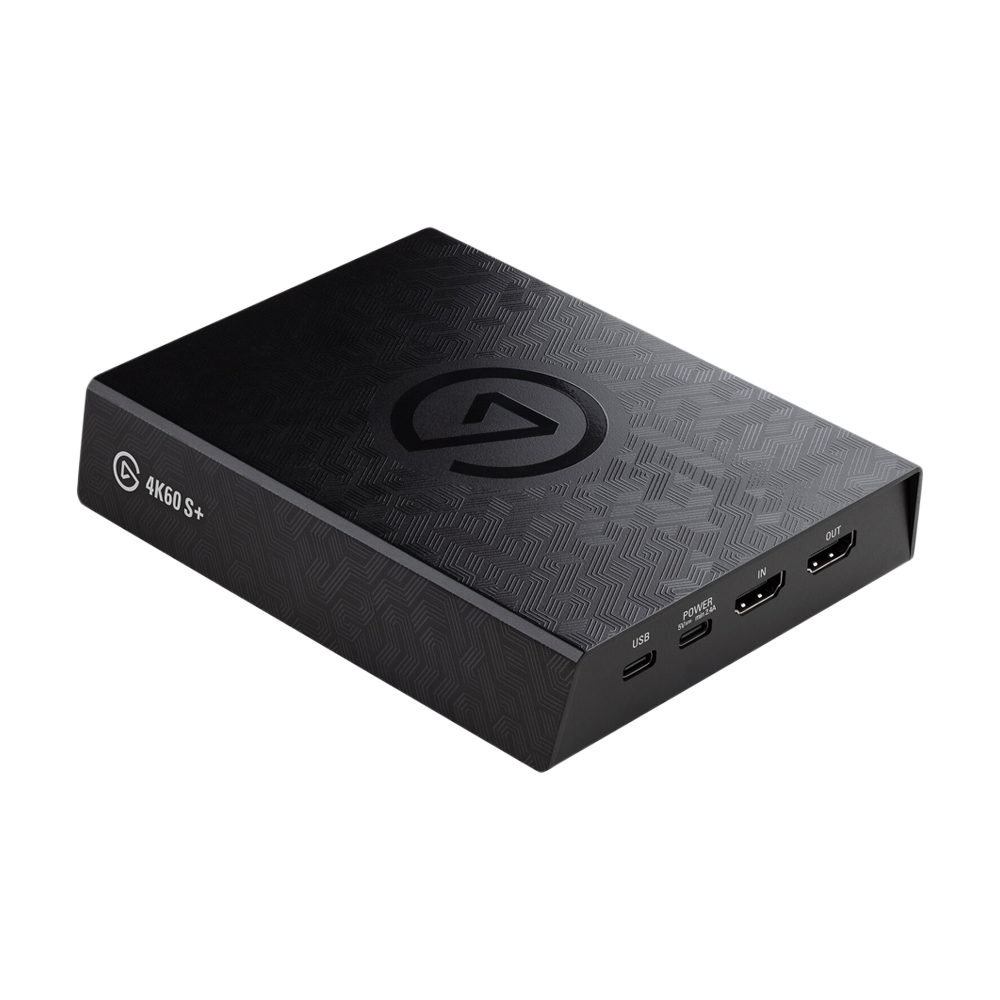

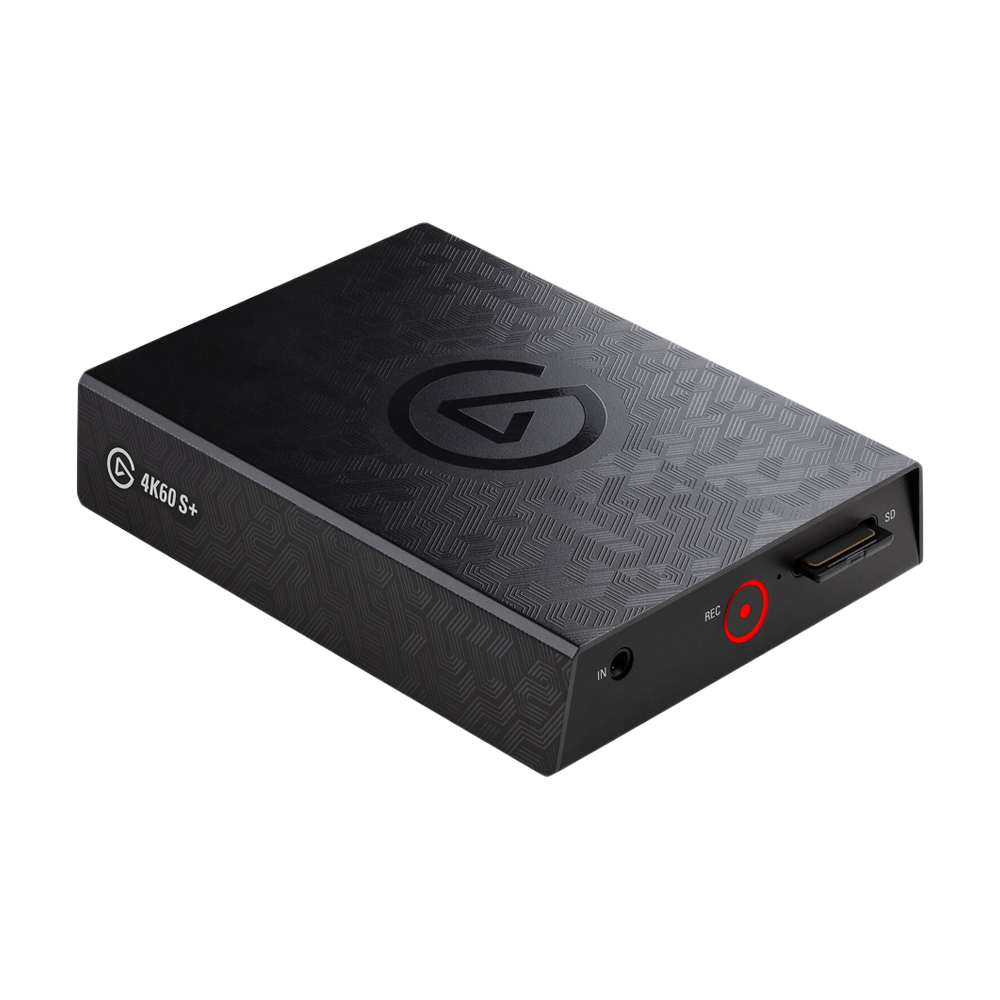

ELGATO Game Capture 4K60 S+

Key Features:

• Capture 4K, 60 fps HDR Gameplay
• True 4K 60 fps HDR10 Passthrough
• Works with Most Streaming Platforms
• Flashback Recording
• HDMI In | HDMI Out
• Audio Input
• SD Card Slot
• Use Standalone or via PC Connection
• Windows Compatible

4K60 S+ sports 4K60 HDR10 capture and zero-lag passthrough, an SD card slot for standalone recording, and compatibility with leading PC broadcasting software.

Recording 4K HDR content is usually confined to production studios with hefty desktop rigs. Not anymore. Compact and portable, 4K60 S+ sports all the cutting-edge technology you need to record high-fidelity gameplay. Anywhere, even without a computer.

BUILT TO TOUR

From local meetups to global capture events, saving your performance couldn’t be easier. Just insert an SD card and hit record. No PC or software necessary.

NEXT-GEN ENCODING

The HEVC chip on board 4K60 S+ touts the highest encoding performance possible. Now, you can record up to seven hours of action-packed 4K HDR gameplay to a 256GB SD card*. Or record directly to your PC's hard drive without overloading its CPU.

TRUE PASSTHROUGH

Whether broadcasting live or future proofing your archive, your gaming experience remains unaltered: stunning 4K HDR at 60 frames per second with absolute zero lag.

SET FOR THE STUDIO

Back at your workspace, connect via USB 3.0 and instantly elevate your Twitch or YouTube channel. 4K60 S+ works seamlessly with popular PC broadcasting apps, including OBS Studio.

Specifications

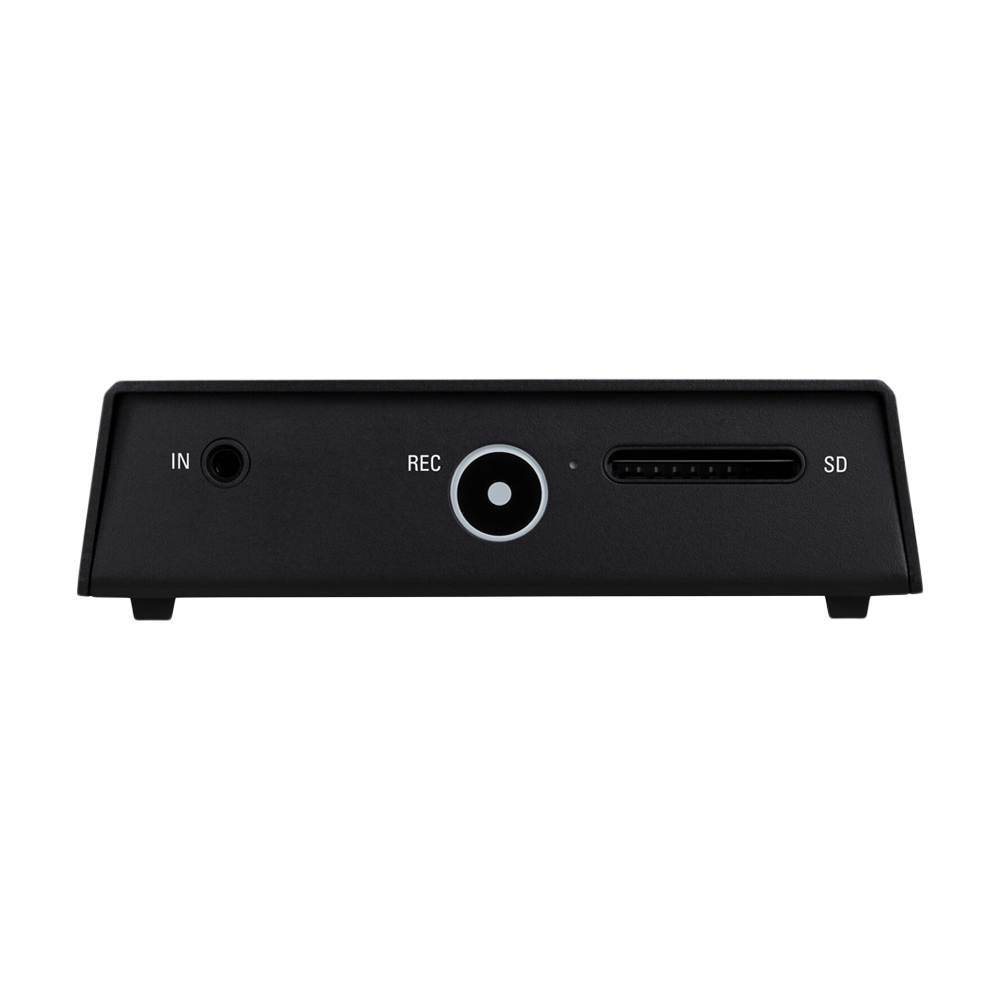

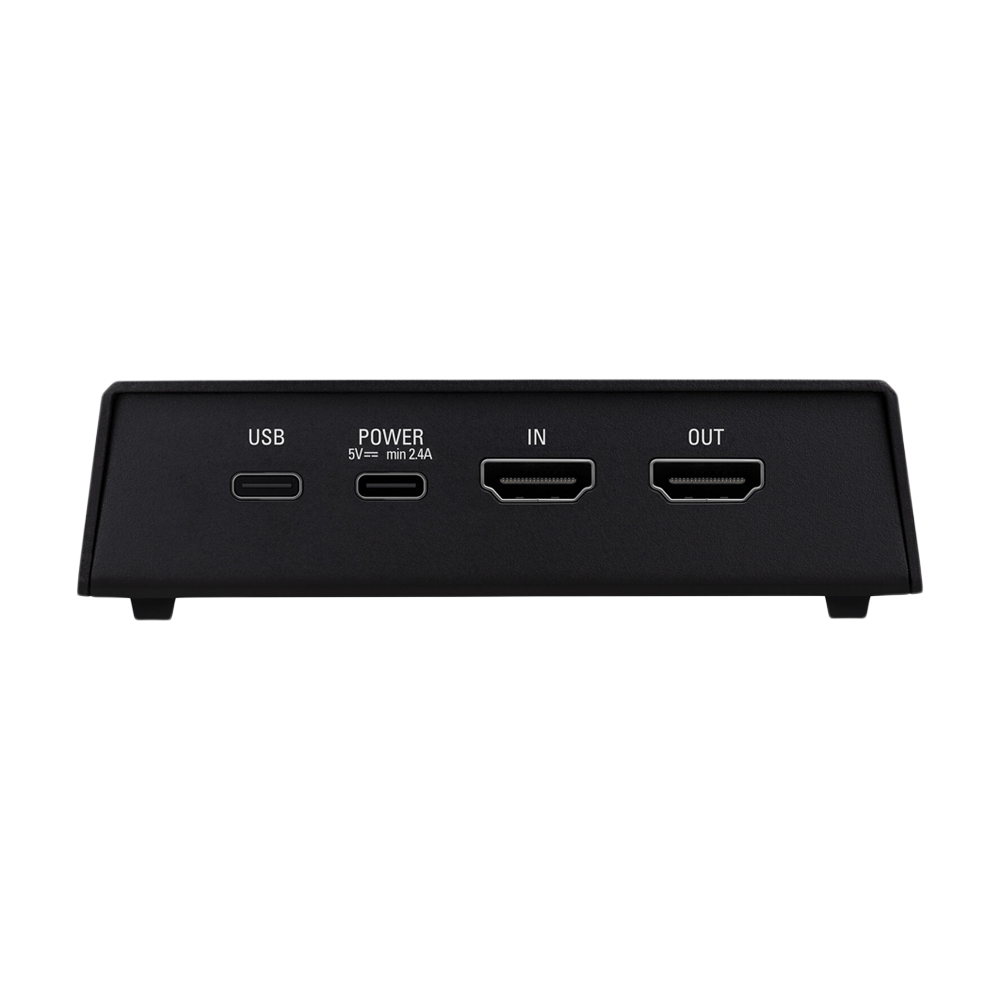

Interface:

• USB 3.0 Type-C
• USB Type-C (Power Supply)
• HDMI 2.0 Input (Unencrypted)
• HDMI 2.0 Output (Lag-Free Passthrough)
• 3.5 mm TRS (stereo) line-in port

Supported Sources:

• Sony PlayStation 5
• Sony PlayStation 4
• Microsoft Xbox Series X/S
• Microsoft Xbox One X/S
• Nintendo Switch
• PC and other unencrypted (without HDCP) HDMI sources.
• Supported Resolutions:
• 3840x2160 60fps (4K60)
• 1920x1080 60fps (1080p60)
• 1280x720 60fps (720p60)

Encoding:

• On-board Hardware Encoder
• Up to 200Mbps at 2160p (4K) 60fps AVC/H.264 (SDR Recording)
• Up to 140Mbps at 2160p (4K) 60fps HEVC/H.265 (HDR Recording)

In The Box:

• Elgato Game Capture 4K60 S+
• Power Supply
• 2x USB 3.0 Type-C Cable
• Premium High Speed HDMI (2.0) cable
• Dimensions and Weight:
• Dimensions: 142 x 111 x 32 mm / 5.59 x 4.37 x 1.26 in
• Weight: 345 g / 12.35 oz

Power Usage:

• 5v at 2.4A

Requirements:

• Windows 10 (64-bit)
• 6th generation Intel Core i5 CPU (i5-6xxx) or AMD Ryzen 7 (or better)
• NVIDIA GeForce GTX 10xx
• 8 GB RAM
• USB 3.0 port
• Internet Connection
• Power Outlet
