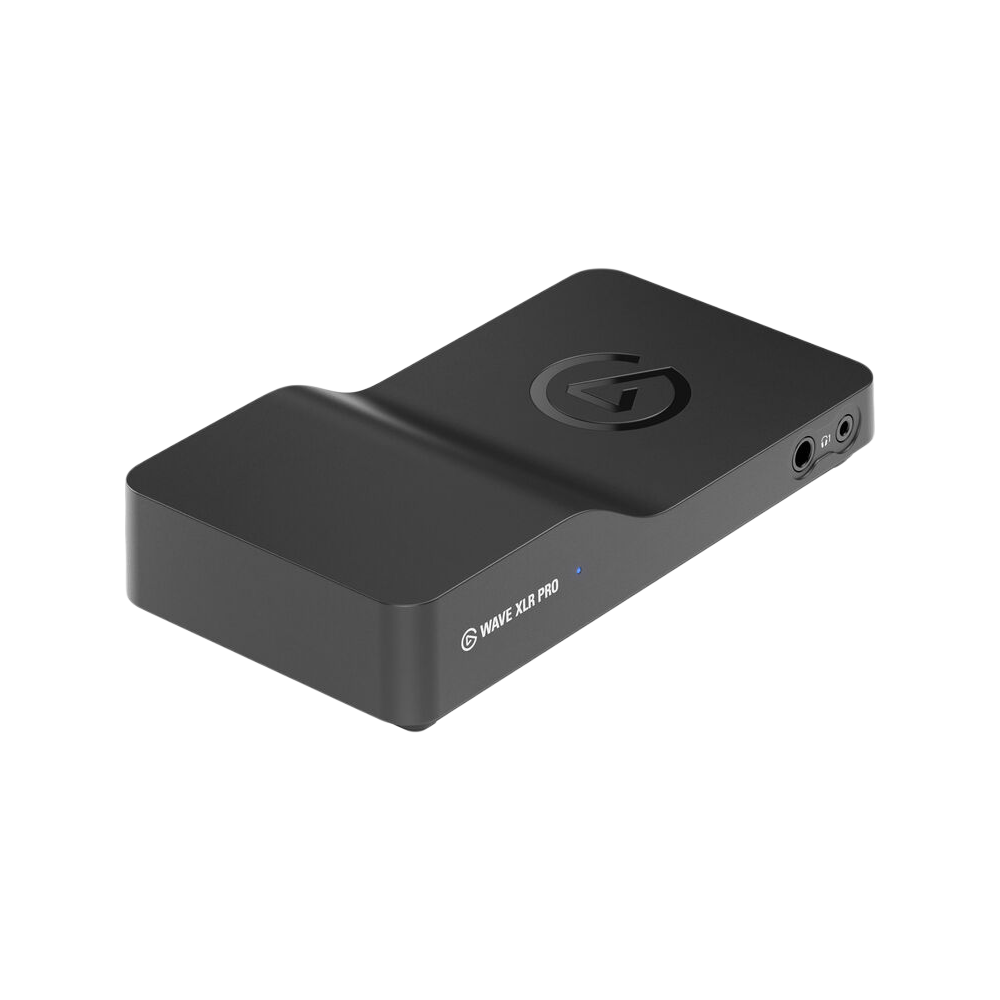

ELGATO Wave XLR Pro - Black

Built for modern workflows, Wave XLR Pro delivers onboard effects with real-time processing, VST effects integration, and full control through Wave Link. Its software-driven architecture gives you the kind of flexibility traditional gear can’t match—all powered by Wave FX Processor.

NOTHING COMES CLOSE
Wave XLR Pro drops a full-sized mixing desk in the palm of your hand. But it’s more than a mixer. It’s a powerful audio matrix that pairs hyper-customizable routing with all the right connections, unlocking capabilities mixers simply can’t match. Creators, podcasters, anyone who’s serious about audio—this is the solution you’ve been waiting for. No workarounds. All flow.

Hardware
GIVE YOUR SETUP SUPERPOWERS
We didn’t just add connections—we added the right ones. For co-hosted studios with remote guests, channels powered by fully stacked setups, and solo projects destined to grow. Whatever your workflow, Wave XLR Pro brings all your gear together.

WAVE FX
The Pro in the Processor
Your voice flows through Clipguard, onboard DSP, and VST effects in one continuous signal path. So you get studio-grade sound with super-responsive monitoring, but none of the routing complexity.

ONE APP FOR ALL YOUR AUDIO
Wave Link gives you full control over your Wave hardware, but that’s just the start. Apply and customize effects, add a soundboard to voice chat, create a separate recording mix, and so much more. Everything you need for professional sound, all in one place.

Workflows
ANY SETUP IMAGINABLE
Workflows that require workarounds now connect and scale without friction. From dual-mic setups to complex production studios, your gear becomes a seamlessly integrated ecosystem. So what once felt hacked together now feels streamlined and fully under your control. Everything just works.

With stream deck
TACTILE CONTROL, PERFECTED
Paired with Wave XLR Pro, Stream Deck + XL becomes the tactile controller for your entire signal chain. And because it’s a Stream Deck, it extends far beyond audio to lighting, video, apps, everything.

Specifications

• XLR INPUT 1/2

• Frequency range: 20 - 20.000 Hz

• Dynamic range: 135 dB

• Equivalent Input Noise (EIN) (A-weighted): -130 dBV(A)

• Gain: 80 dB (digital)

• Phantom Power: 48 V, 7 mA

• Maximum input level: 6 dBV

• ADC resolution and sample frequency: 24 bit; 48 kHz

• HEADPHONE OUTPUT 1/2

• Maximum output level @16R: 50 mW

• Maximum output level @600R: 18 mW

• DAC resolution and frequency: 32 bit; 48 kHz

• LINE IN

• Frequency range: 20 - 20.000 Hz

• Maximum input level: 10 dBV

• LINE OUT

• Frequency range: 20 - 20.000 Hz

• Maximum output level: 10 dBV

• CONNECTORS

• Microphone 1 (XLR, Mono)

• Microphone 2 (XLR, Mono)

• Headphone 1 (6.3 and 3.5 mm TRS Jack, Stereo)

• Headphone 2 (6.3 and 3.5 mm jack, Stereo)

• Line Input (3.5 mm TRS jack, Stereo)

• Line Output (3.5 mm TRS jack, Stereo)

• Host I/O (USB-C 2.0 High-Speed)

• Aux I/O (USB-C 2.0 Full-Speed)

• MOUNTING POINT : 3/8” (housing) and 1/4” (adaptor, pre-mounted)

• POWER CONSUMPTION

• 5 VDV 900 mA max

• WEIGHT : 385 g

• DIMENSIONS : 97 × 185 × 37 mm (D x W x H)

• In The Box

• Wave XLR Pro, USB-C cable (150 cm | 59 in), Quick Start Guide

• SKU: 10MAM9901
