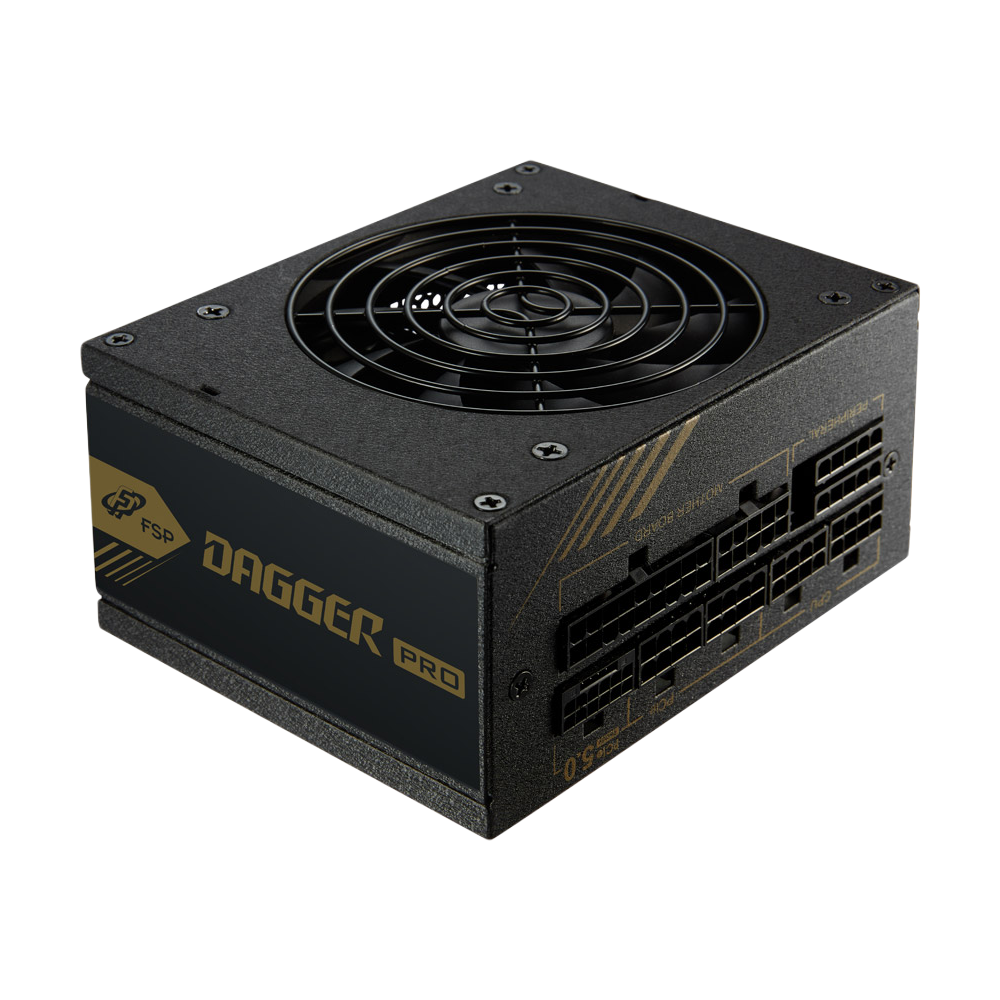

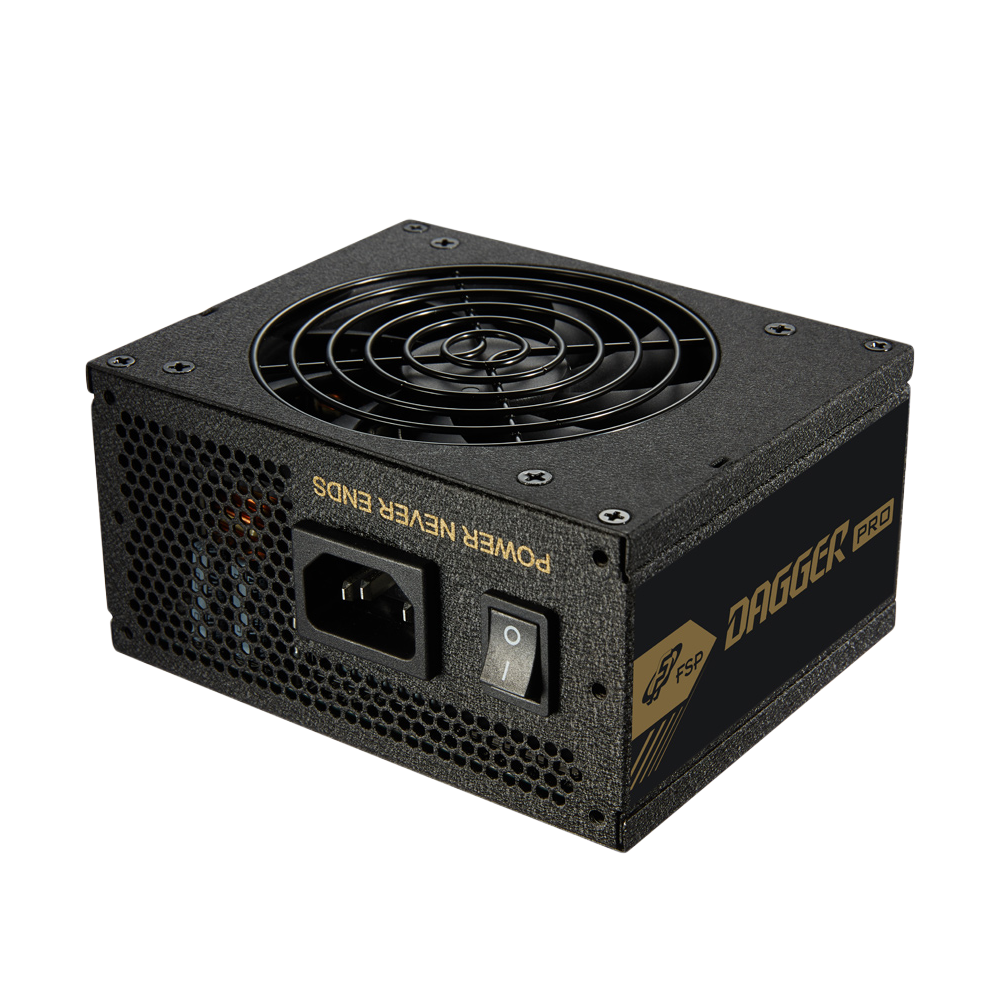

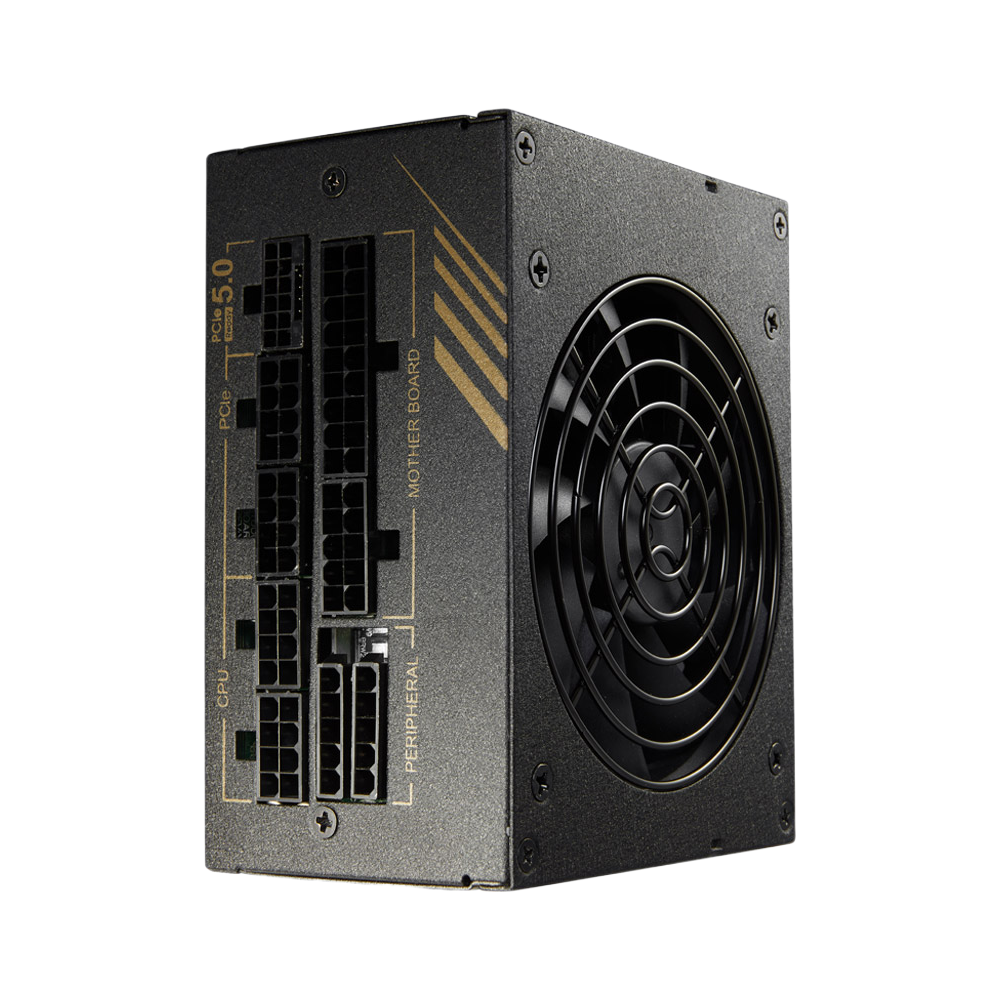

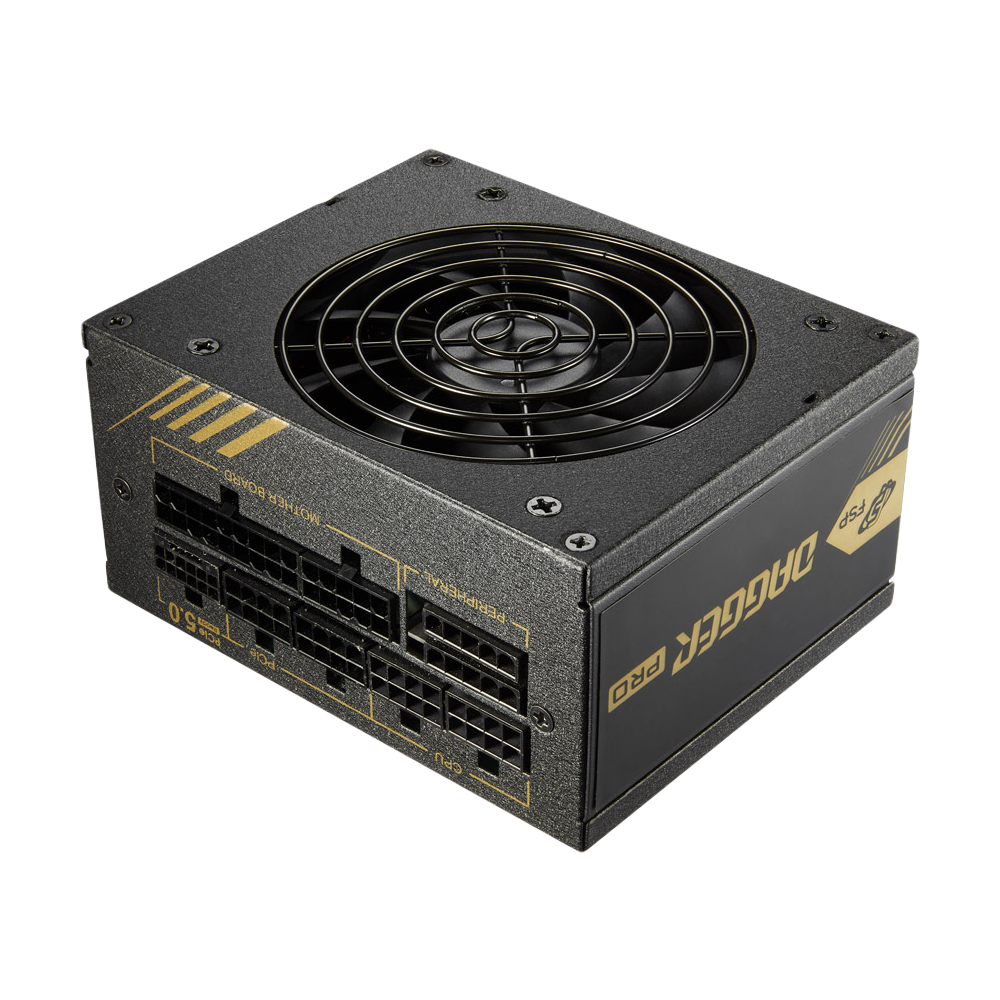

FSP DAGGER PRO 850W 80+ Gold PCIe 5.0 Power Supply - Black

Key Features:

• Compliance with ATX12V V3.0

• Compliance with PCIe 5.0

• Efficiency ≧ 90% at typical load

• MIA IC (Multiple Intelligence Ability) chip set inside

• Semi-fanless design for silent operation

• Quiet and long-lasting 92mm ball bearing fan

• Powerful single +12V rail design

• Intel Latest CPU ready

• Japanese electrolytic capacitors

• Full protection OCP, OVP, SCP, OPP, OTP

New ATX PSU Specifications

Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.

Tiny but Powerful

The DAGGER PRO ATX3.0 series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

Advance Cable Management and Flat Ribbon Cables

Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

92mm Fan Optimized for Low-noise Operation

Dagger PRO ATX3.0 series is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.

80 Plus® Gold Certification

DAGGER PRO ATX3.0 series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.

Powerful +12V Single Rail for your VGA

VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO ATX3.0 series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.

High Compatibility for High Power

The DAGGER PRO 850W comes with a native PCIe 5.0 connector for the latest graphic card and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts.

Supports High-end Motherboard

Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.

Japanese electrolytic capacitors

DAGGER PRO ATX3.0 series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!

Specifications

• Model : SDA2-850, Gen5

• Rated Output Power  : 850W

• Form Factor  : SFX

• 80 PLUS Certification  : Gold

• Input Voltage  : 100-240V

• Input Current  : 12-6A

• Input Frequency  : 50-60Hz

• PFC  : Active PFC

• Efficiency  : ≥90% at typical load

• Fan Type  : ball bearing fan,92mm

• Dimensions(L x W x H)  : 125 × 100 × 63.5 mm

• Protection  : OCP, OVP, SCP, OPP, OTP
