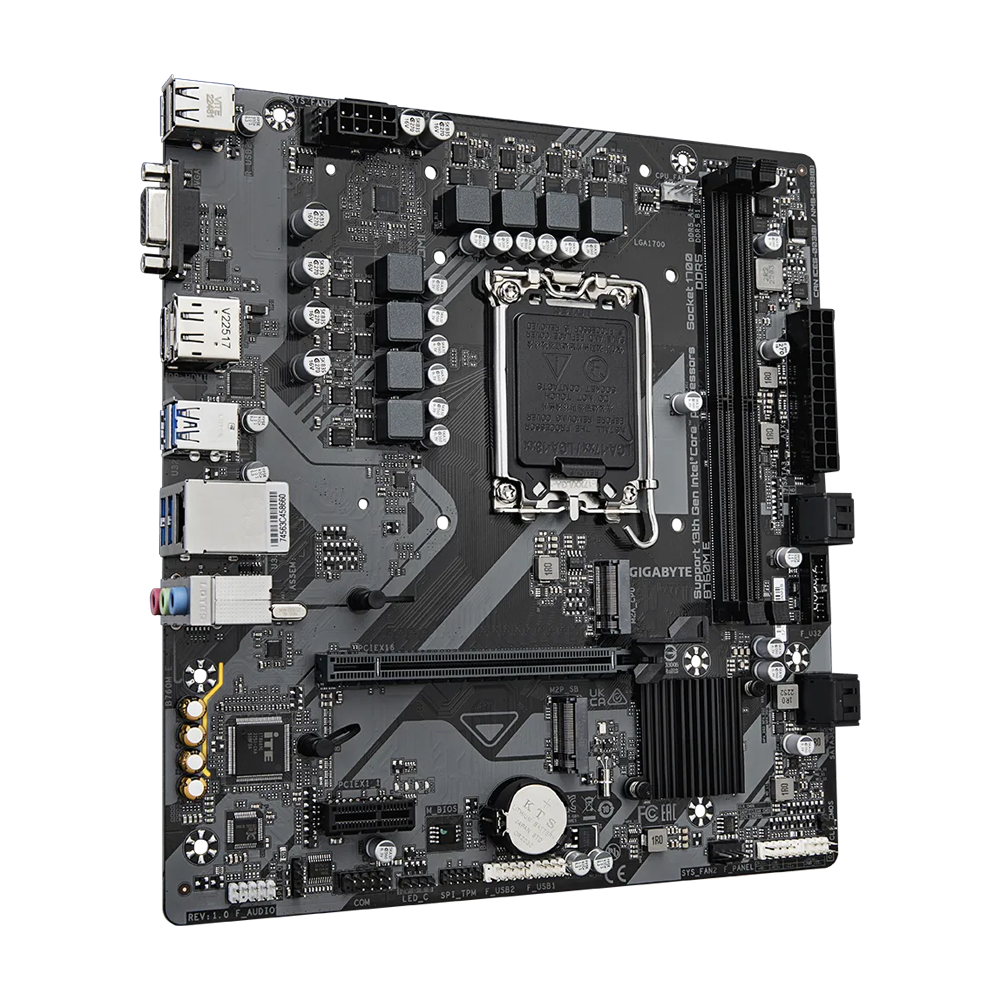

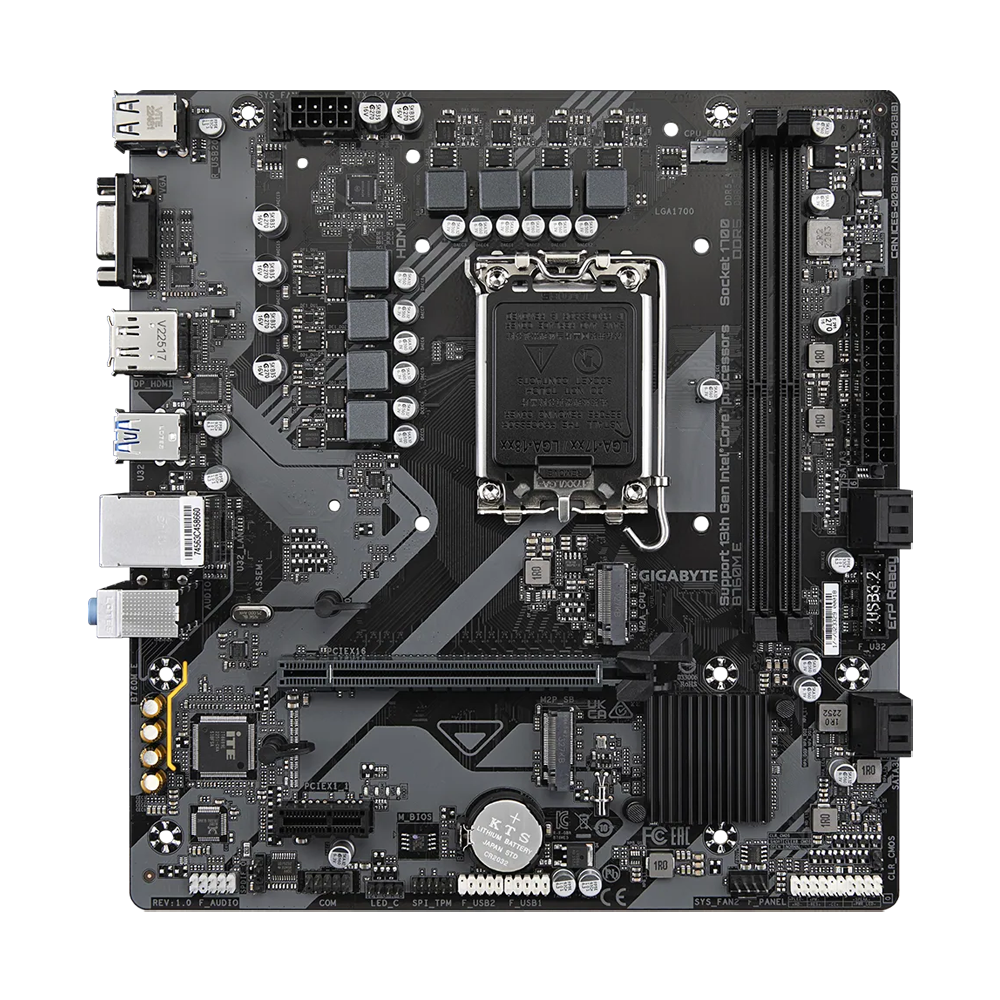

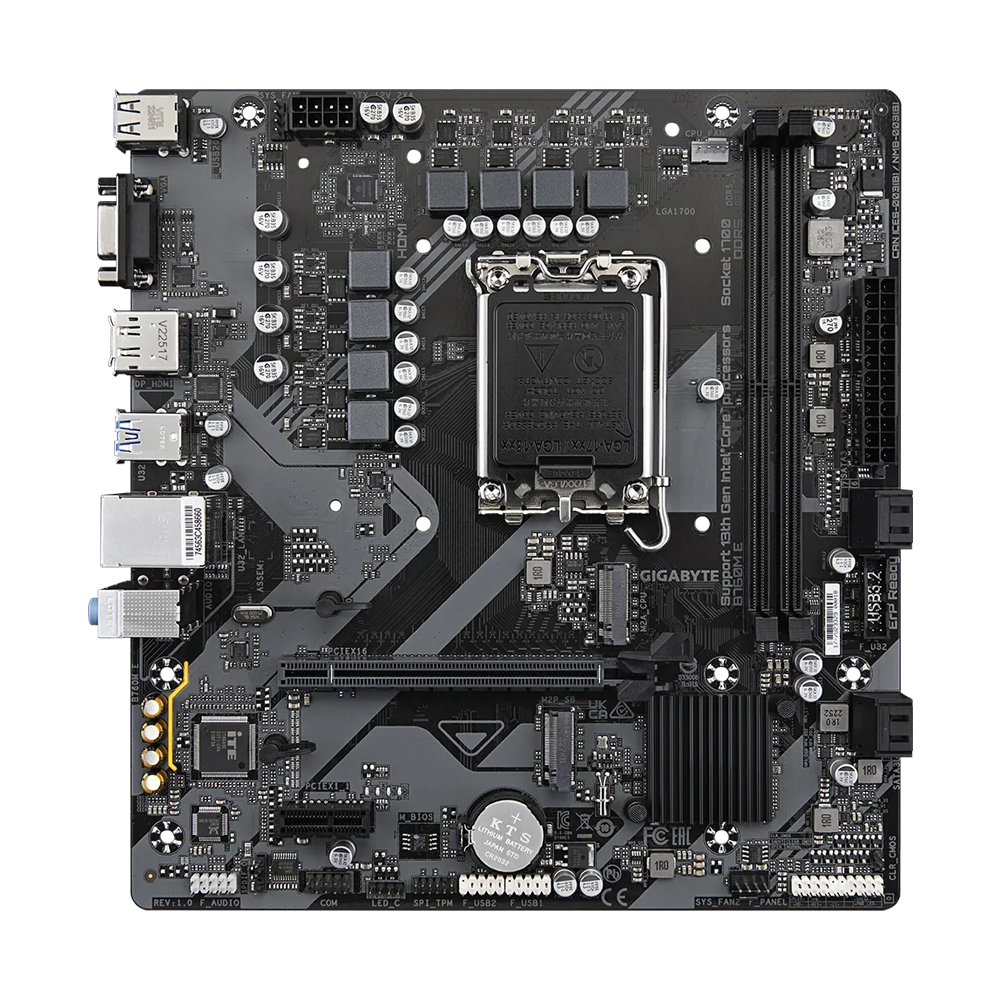

GIGABYTE B760M E DDR5 Micro ATX Motherboard - Black

CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

• L3 cache varies with CPU

• (Please refer "CPU Support List" for more information.)

Chipset

• Intel ® B760 Express Chipset

Memory

• Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

• (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:

• - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

• - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• * Support for DisplayPort 1.2 version and HDCP 2.3

• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• * Support for HDMI 2.1 version and HDCP 2.3.

• ** Support native HDMI 2.1 TMDS compatible ports.

• (Graphics specifications may vary depending on CPU support.)

• Support for up to triple-display at the same time

• Realtek® Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel

• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• Support for S/PDIF Out

• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

• Expansion Slots

• CPU:

• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

• * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

• Chipset:

• - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

• CPU:

• - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)

• Chipset:

• - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)

• - 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• Chipset:

• - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 2 x system fan headers

• 1 x RGB LED strip header

• 2 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x S/PDIF Out header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

• 1 x serial port header

• 1 x Clear CMOS jumper

Back Panel Connectors

• 2 x USB 2.0/1.1 ports

• 1 x D-Sub port

• 1 x DisplayPort

• 1 x HDMI port

• 4 x USB 3.2 Gen 1 ports

• 1 x RJ-45 port

• 3 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

• H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control

• * Whether the fan speed control function is supported will depend on the fan you install.

• 1 x 128 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)

• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• Support for Q-Flash

Bundled Software

• Norton® Internet Security (OEM version)

• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor; 23.0cm x 21.5cm
