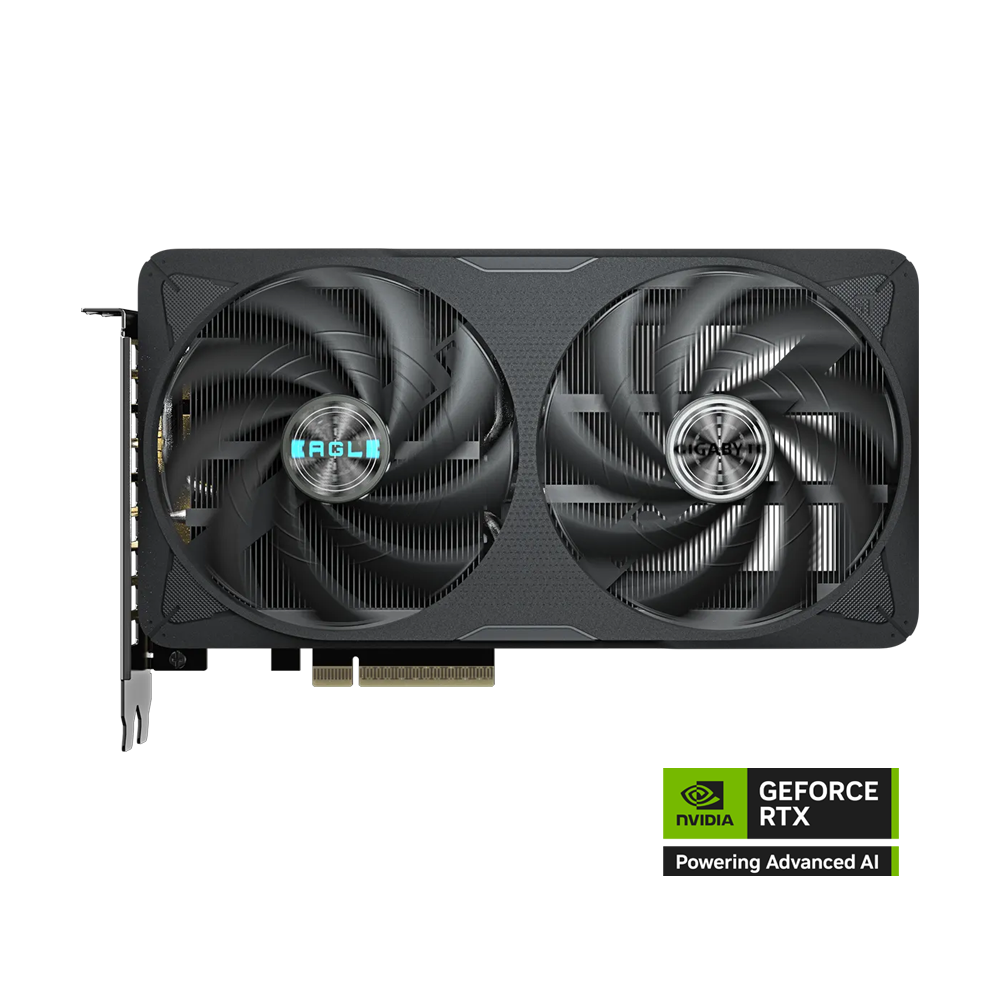

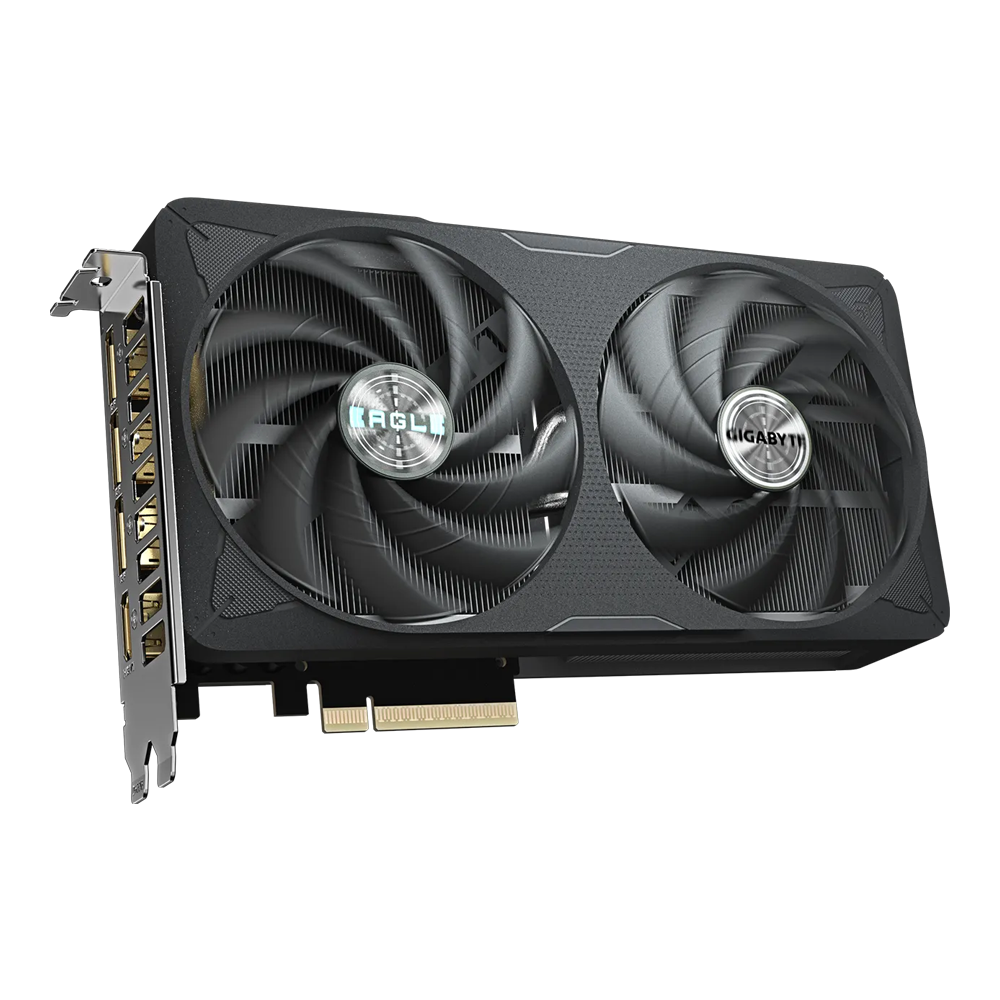

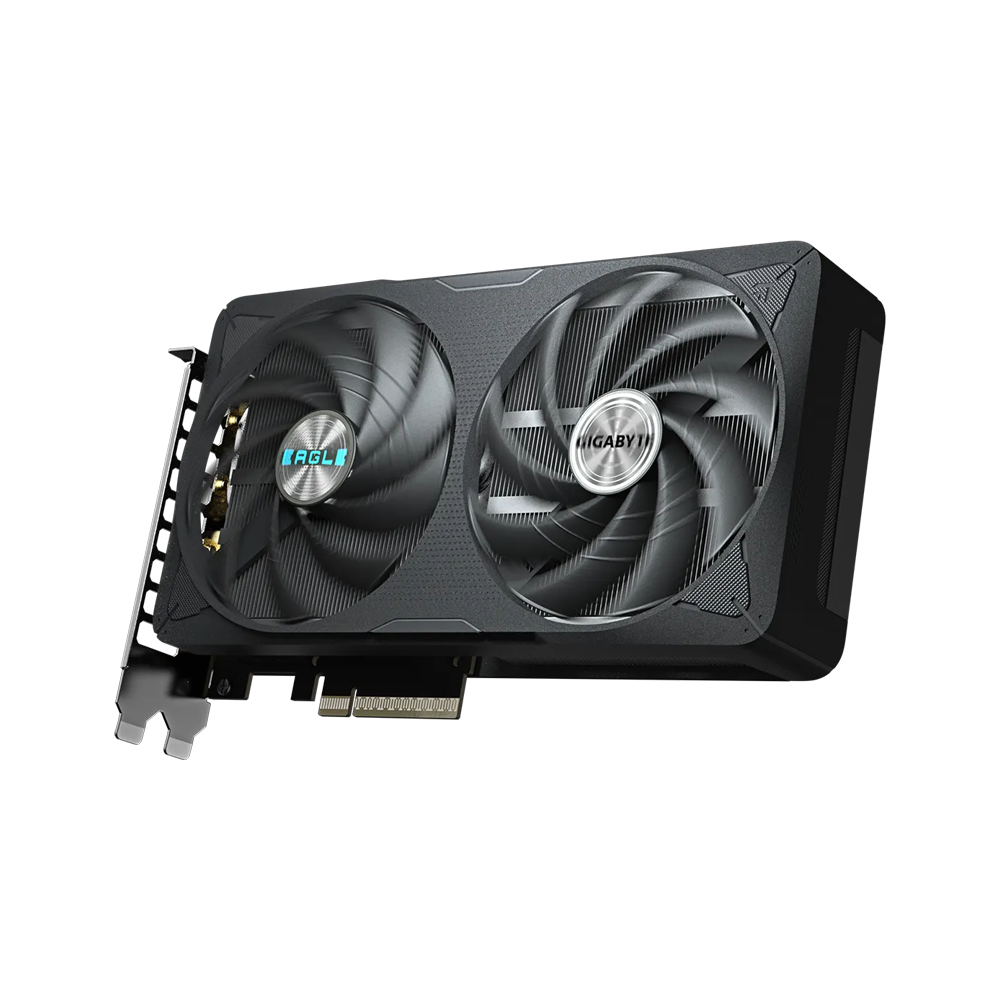

GIGABYTE GeForce RTX 5060 Ti EAGLE OC 8GB Graphic Card - Black

GIGABYTE NVIDIA GEFORCE RTX 5060 Ti EAGLE OC 8GB GDDR7 DLSS 4 Graphics Card - Black

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

SIGNATURE IDENTITY

The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.

REINFORCED STRUCTURE

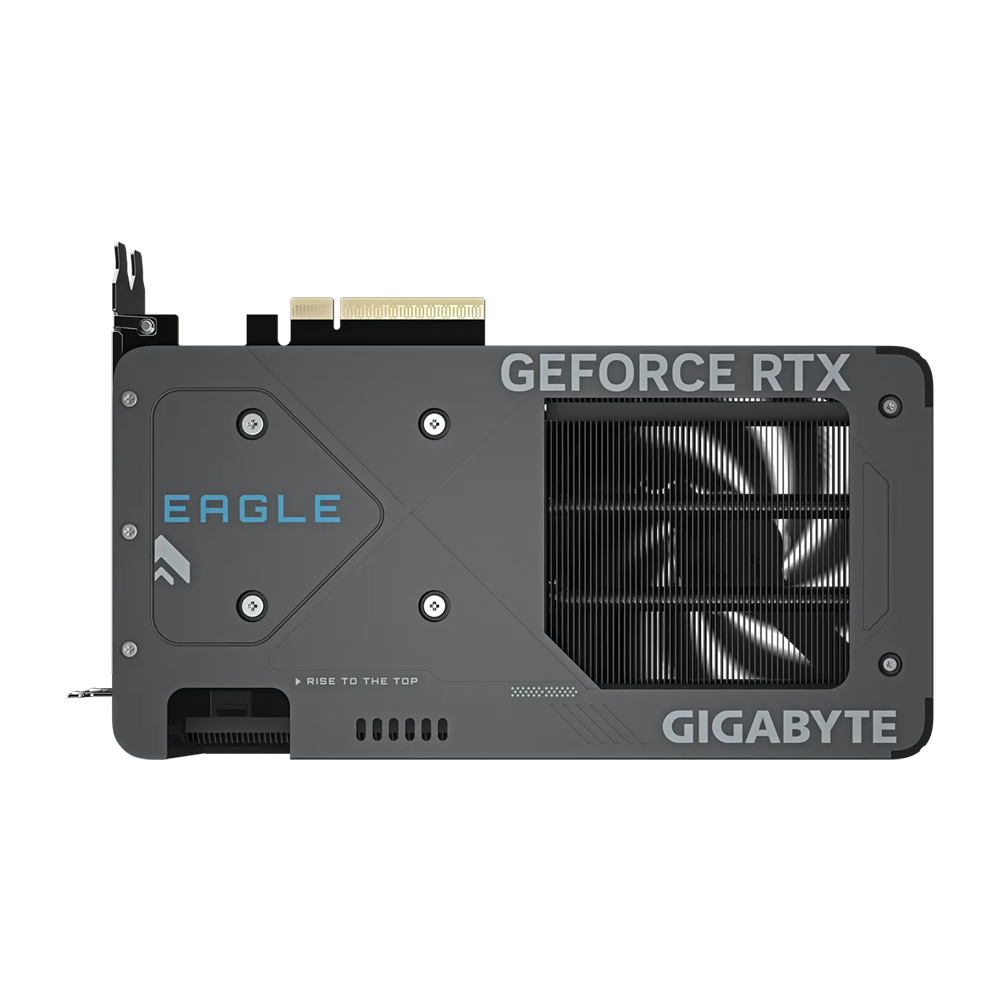

The reinforced backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Specifications

• Graphics Processing : GeForce RTX™ 5060 Ti

• Core Clock : 2617 MHz (Reference card :2572 MHz)

• CUDA® Cores : 4608

• Memory Clock : 28 Gbps

• Memory Size : 8 GB

• Memory Type : GDDR7

• Memory Bus : 128 bit

• Card Bus : PCI-E 5.0

• Digital max resolution : 7680x4320

• Multi-view : 4

• Card size : L=215 W=122 H=40 mm

• PCB Form : ATX

• DirectX : DirectX 12 API

• OpenGL : 4.6

• Recommended PSU : 650W

• Power Connectors : 8 Pin*1

• Output : DisplayPort 2.1b *3

                                  HDMI 2.1b *1

• Accessories : Quick guide
