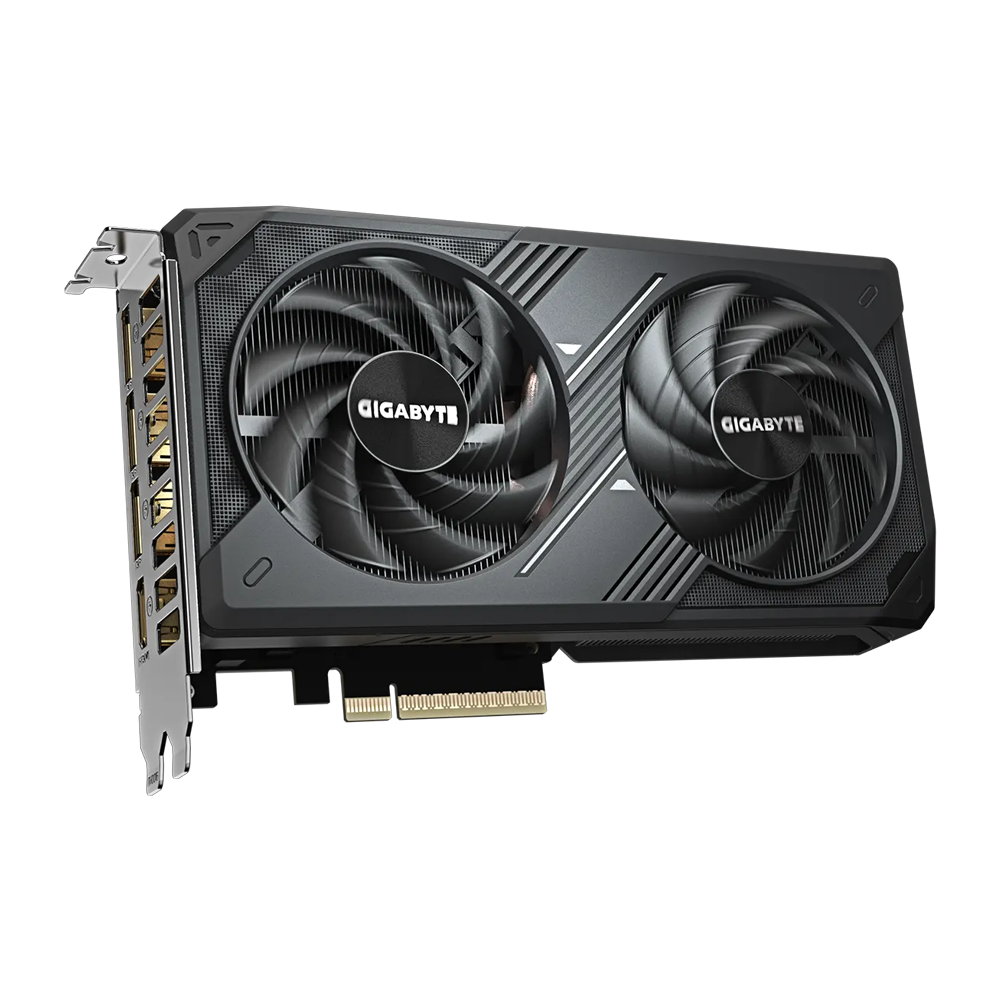

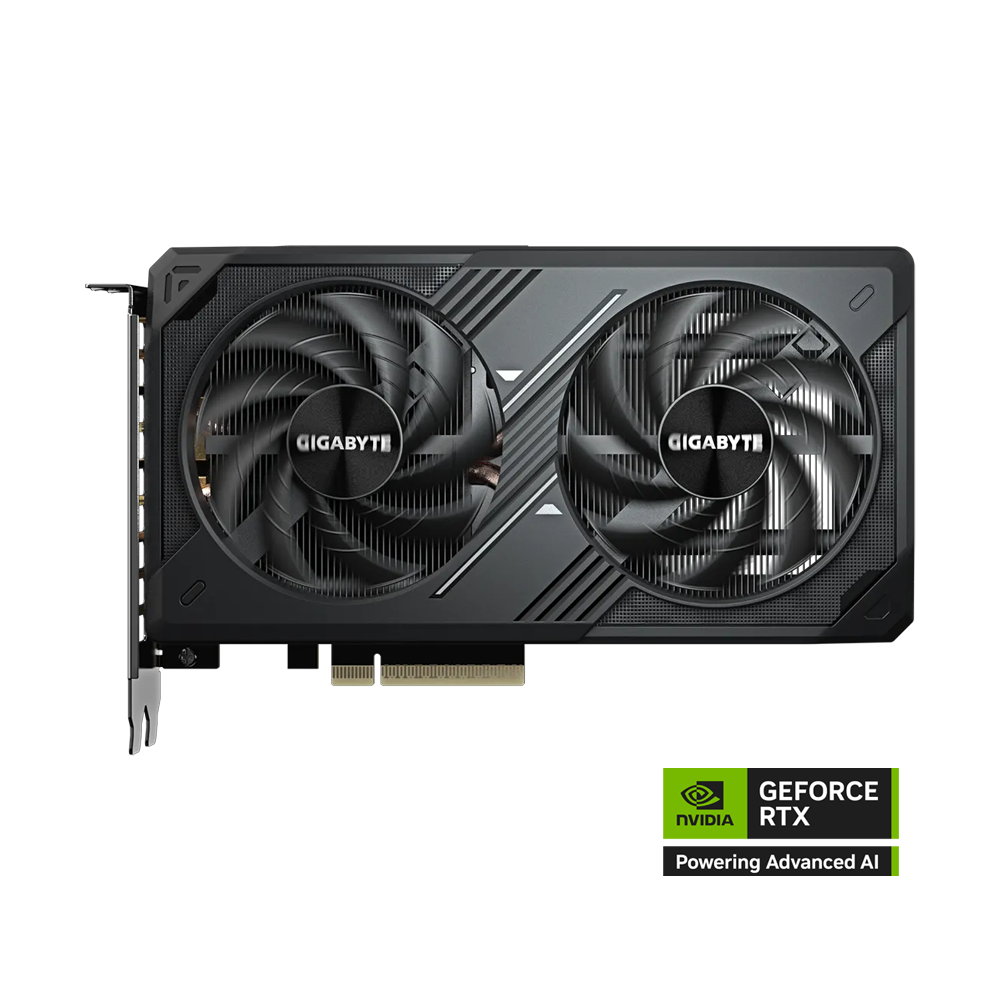

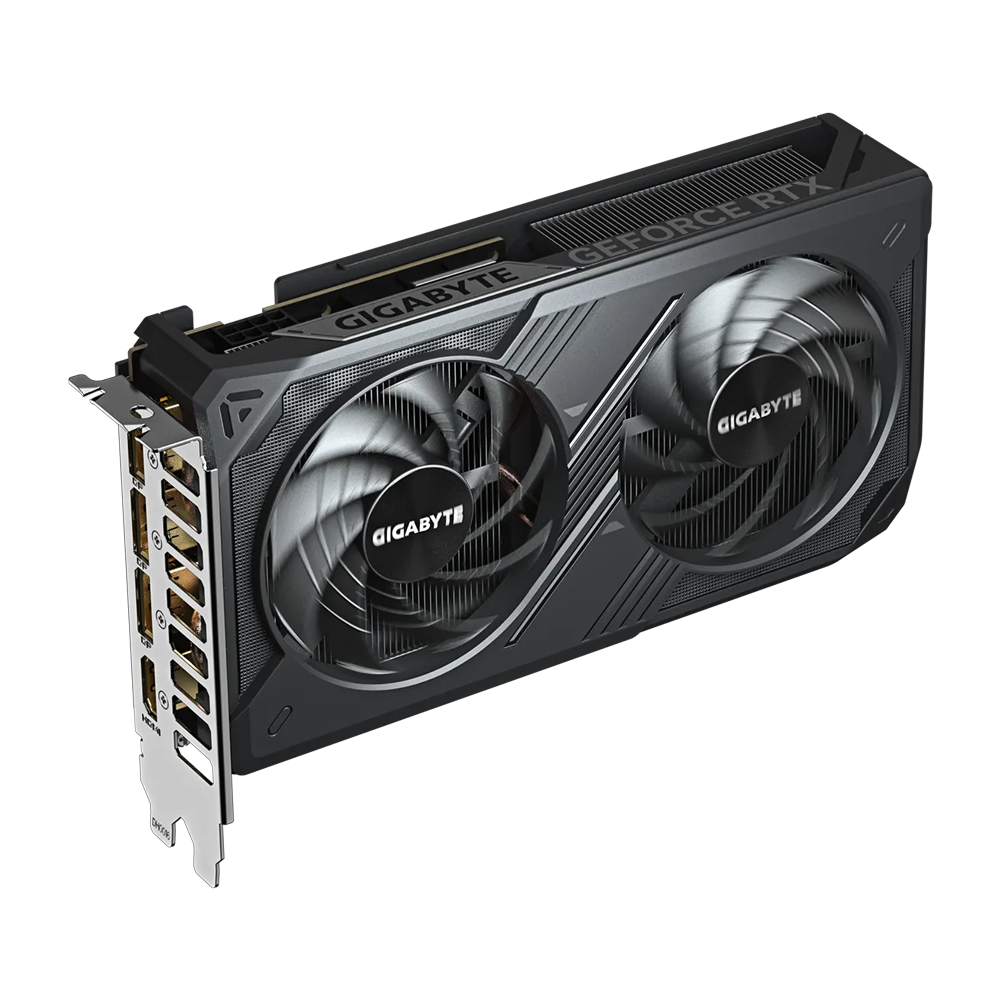

GIGABYTE GeForce RTX 5060 WINDFORCE OC 8GB Graphic Card - Black

GIGABYTE NVIDIA GEFORCE RTX 5060 WINDFORCE OC 8GB GDDR7 DLSS 4 Graphics Card - Black

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

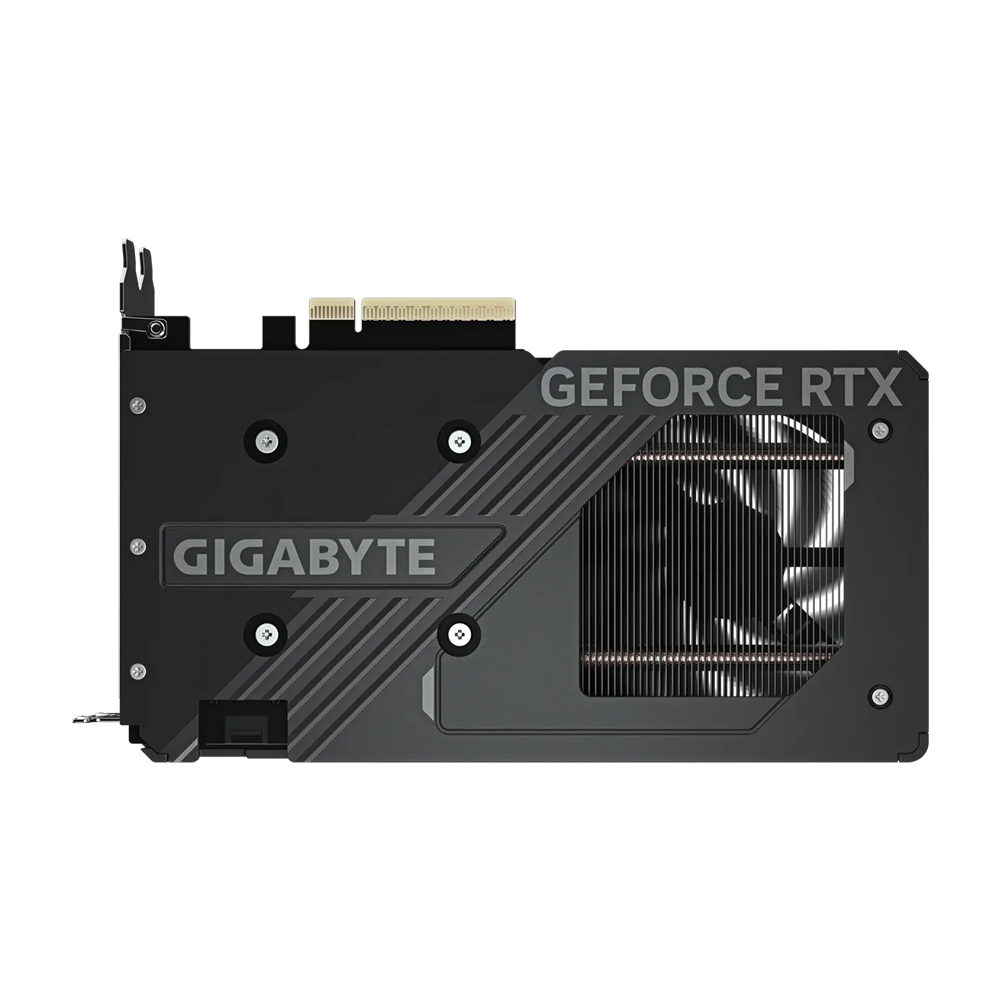

REINFORCED STRUCTURE

The reinforced backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE

ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

• Graphics Processing : GeForce RTX™ 5060

• Core Clock : 2512 MHz (Reference card : 2497MHz)

• CUDA® Cores : 3840

• Memory Clock : 28 Gbps

• Memory Size : 8 GB

• Memory Type : GDDR7

• Memory Bus : 128 bit

• Card Bus : PCI-E 5.0

• Digital max resolution : 7680x4320

• Multi-view : 4

• Card size : L=199 W=116 H=40

• PCB Form : ATX

• DirectX : DirectX 12 API

• OpenGL  : 4.6

• Recommended PSU : 550W

• Power Connectors : 8 Pin*1

• Output : DisplayPort 2.1b *3

                             HDMI 2.1b *1

• Accessories : Quick guide
