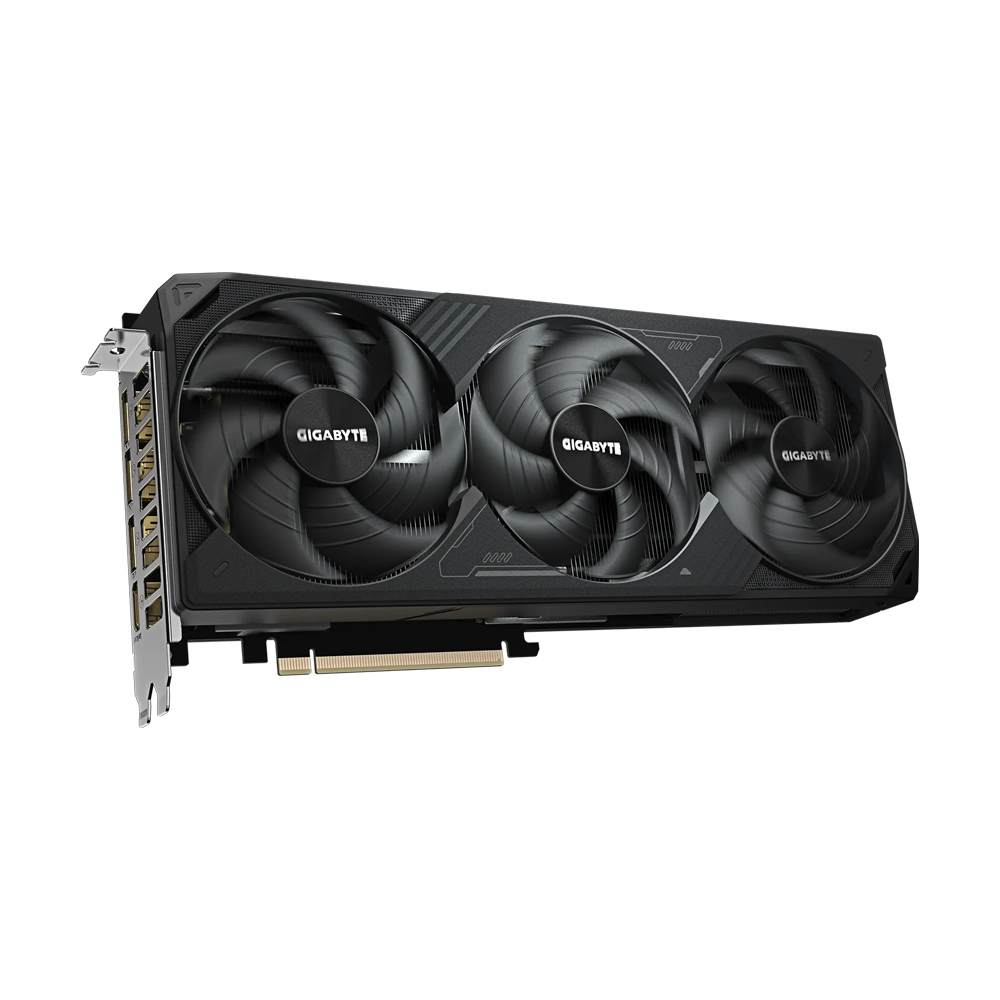

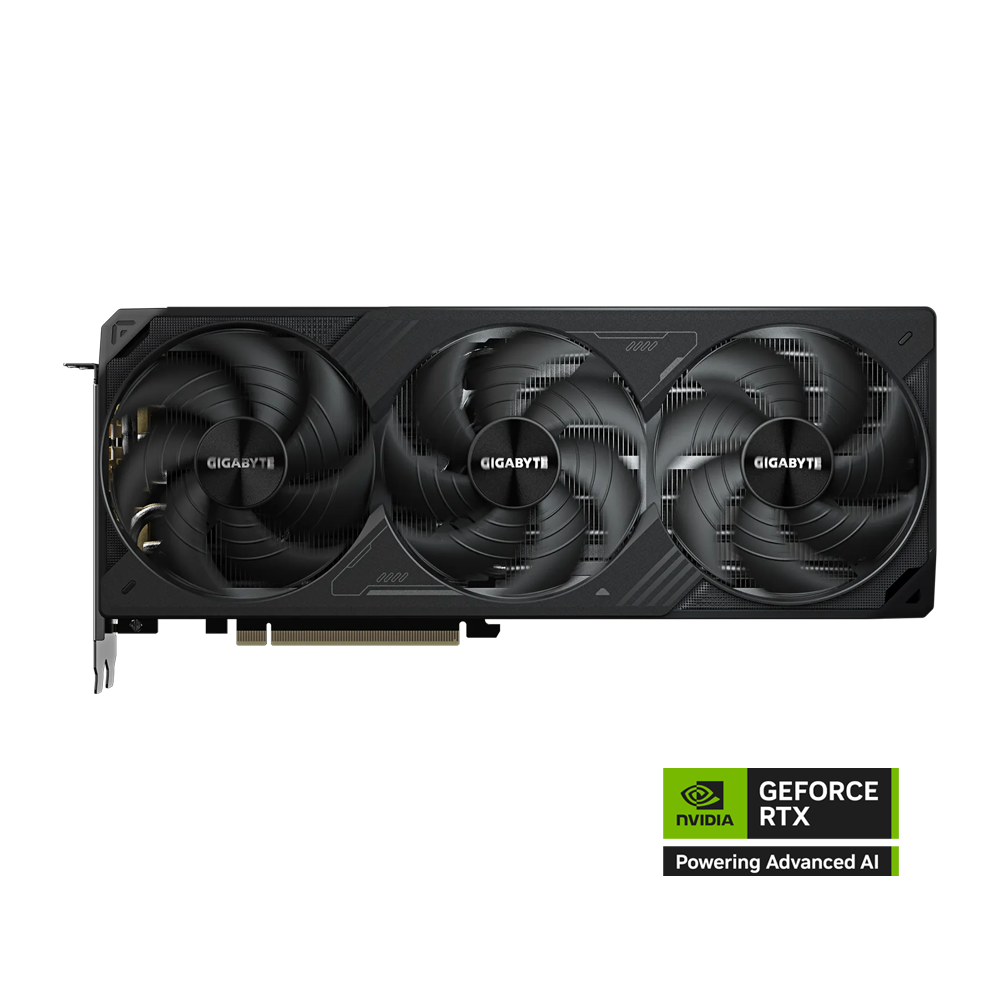

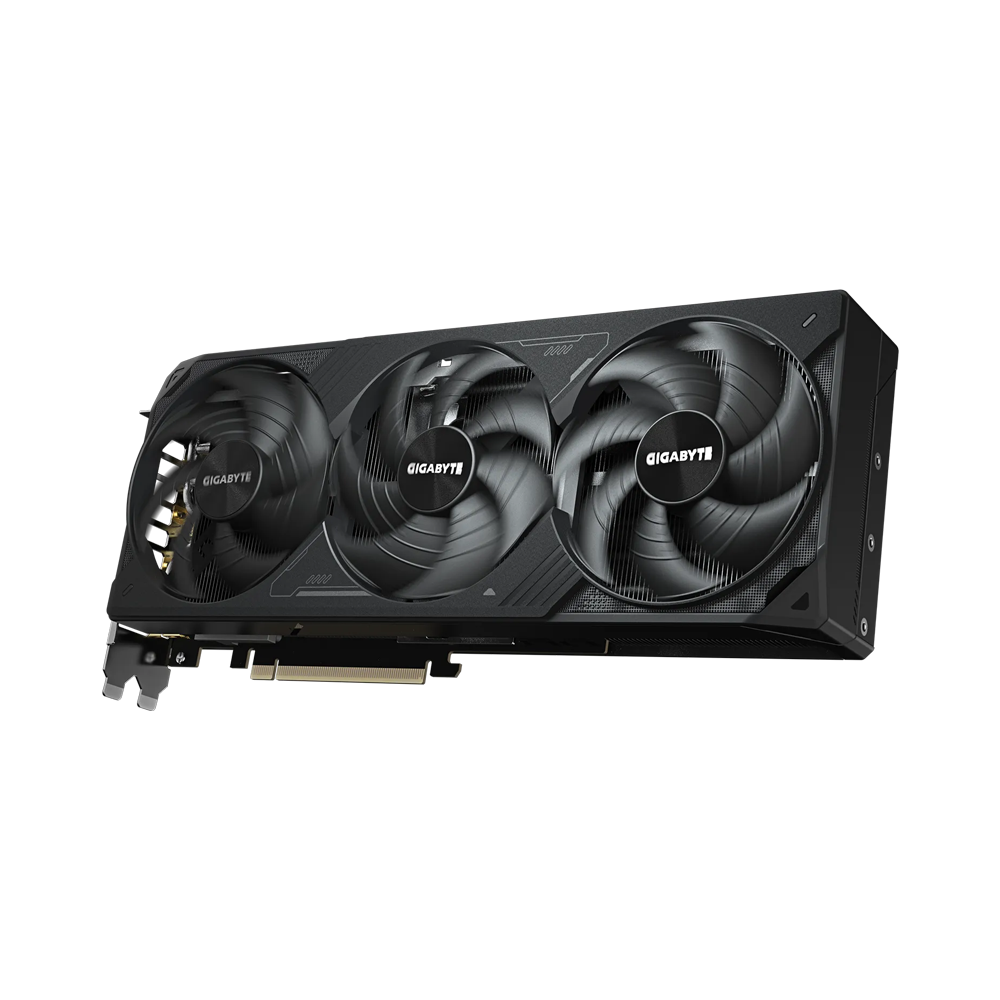

GIGABYTE GeForce RTX 5070 Ti WINDFORCE SFF 16GB Graphic Card - Black

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX 5070 Ti
• Integrated with 16GB GDDR7 256bit memory interface
• WINDFORCE cooling system
• Hawk fan
• Server-grade thermal conductive gel
• Dual BIOS (Performance / Silent)
• NVIDIA SFF-ready
• Reinforced structure
• Versatile VGA holder
• CORE CLOCK : 2452 MHz


GIGABYTE NVIDIA GEFORCE RTX 5070 Ti WINDFORCE SFF 16GB GDDR7 DLSS 4 Graphics Card - Black

GeForce RTX 50 Series - Game Changer! Powered by NVIDIA Blackwell, GeForce RTX 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

DUAL BIOS (Performance / Silent)

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

NVIDIA SFF-READY

Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

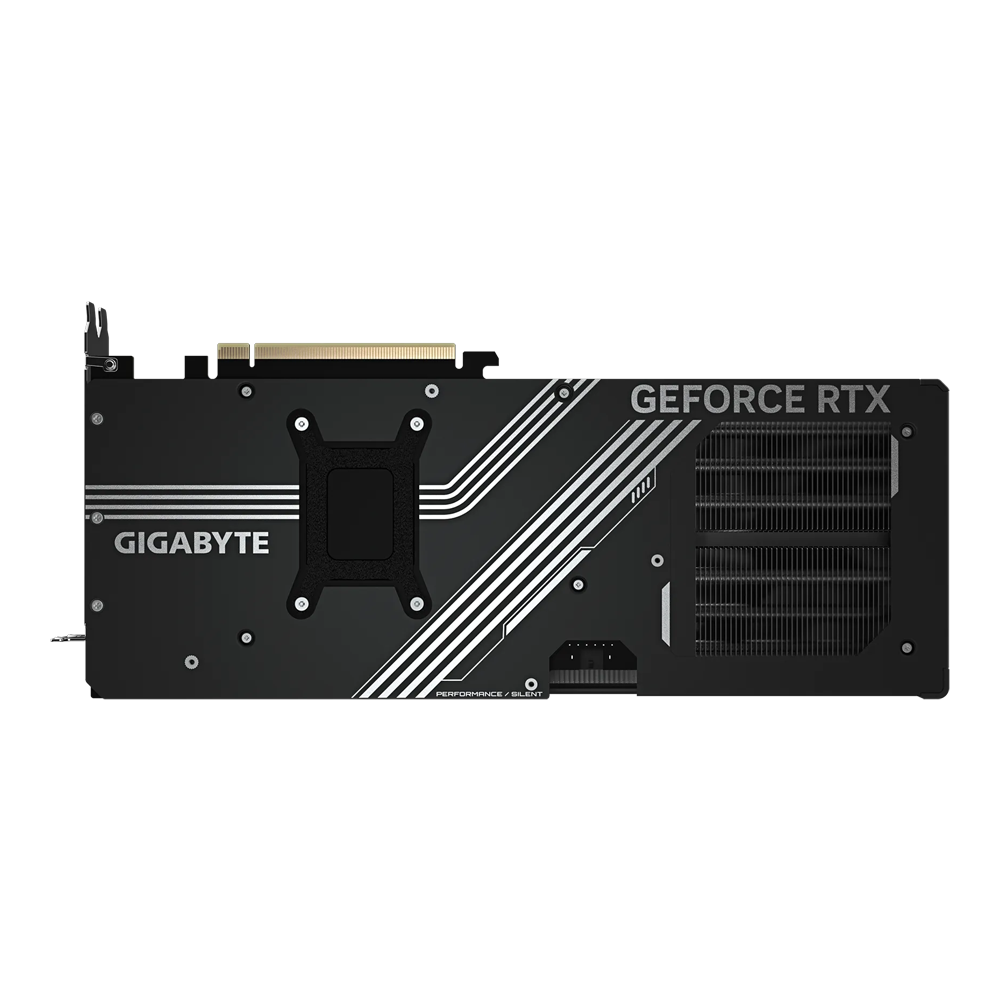

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

Specifications

• Graphics Processing : GeForce RTX™ 5070 Ti
• Core Clock : 2452 MHz
• CUDA® Cores : 8960
• Memory Clock : 28 Gbps
• Memory Size : 16GB
• Memory Type : GDDR7
• Memory Bus : 256 bit
• Card Bus : PCI-E 5.0
• Digital max resolution : 7680 x 4320
• Multi-view : 4
• Card size : L=304 W=126 H=50 mm
• PCB Form : ATX
• DirectX : DirectX 12 API
• OpenGL : OpenGL 4.6
• Recommended PSU : 750W
• Power Connectors :  16 pin*1
• Output : DisplayPort 2.1b x3

                             HDMI 2.1b x1

Accessories

1. VGA manual

2. 1x 12V-2x6 to 2x PCIe 8pin adapter

3. Versatile VGA holder

4. Versatile VGA holder manual
