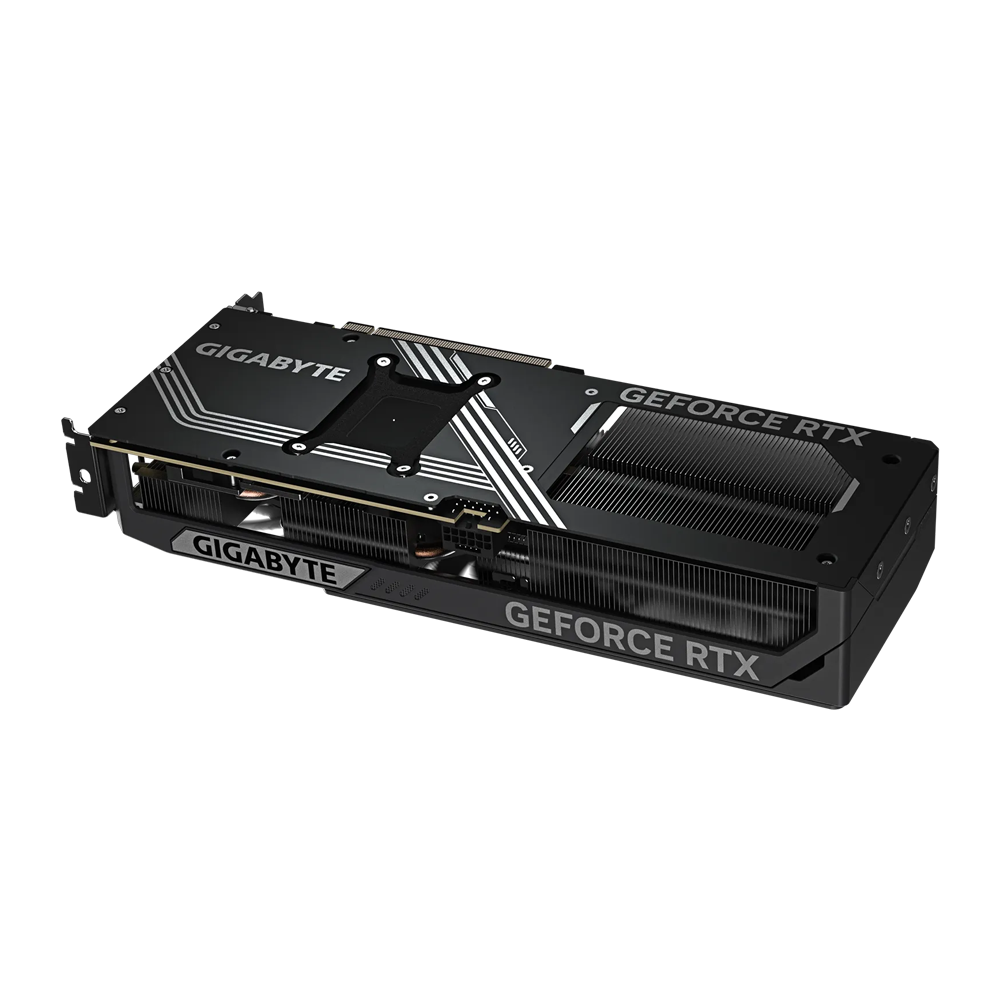

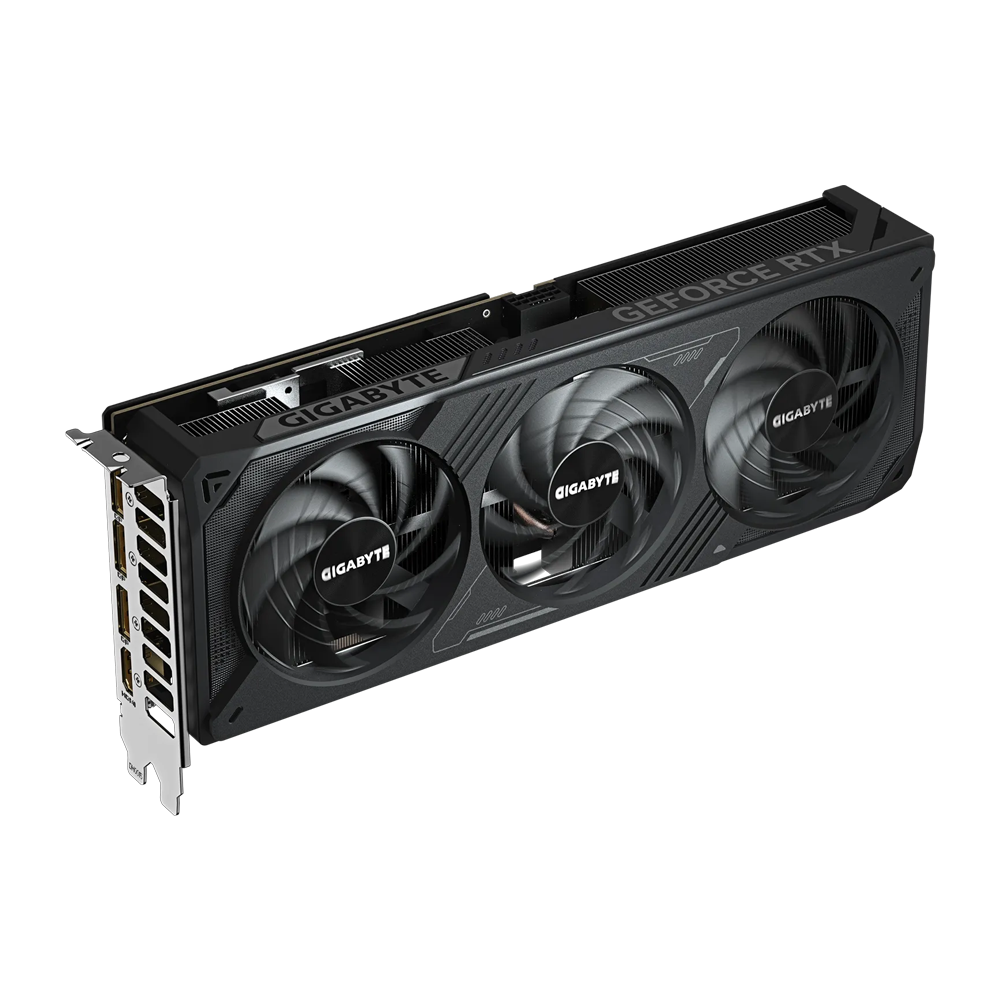

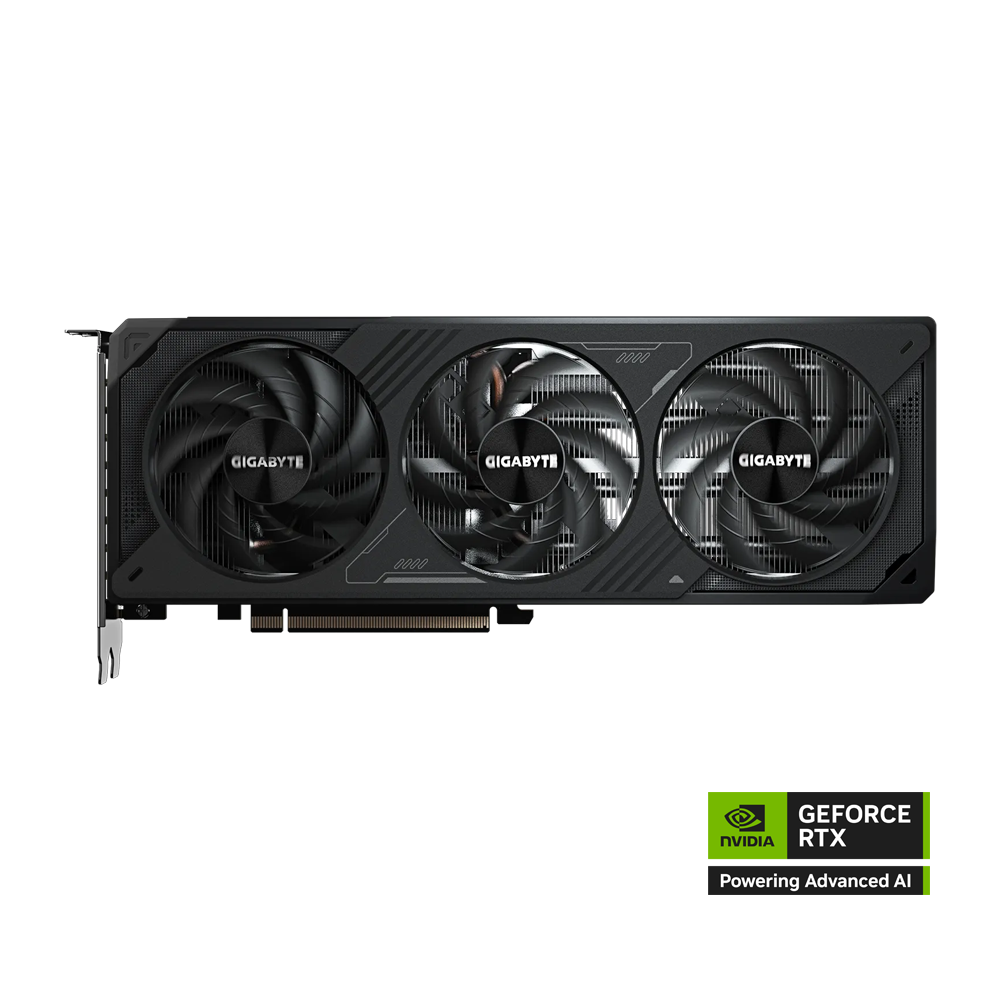

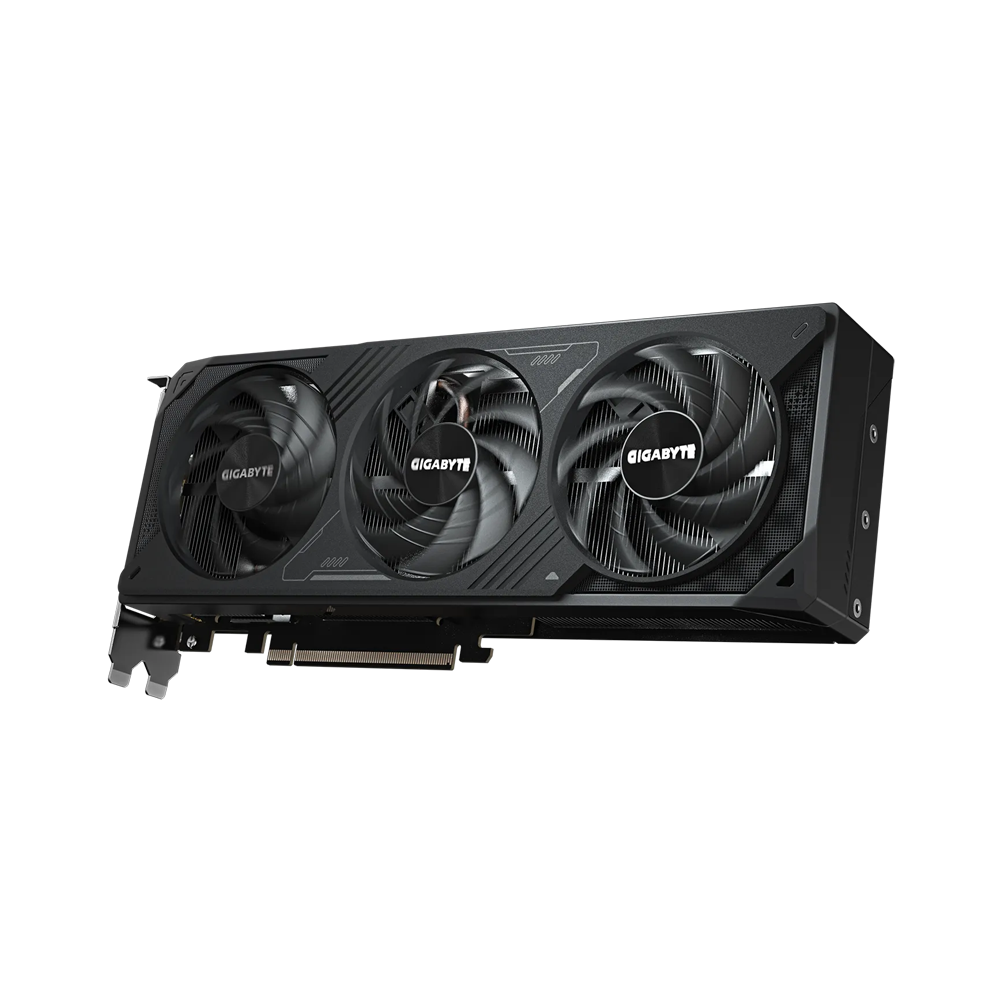

Gigabyte Nvidia GeForce RTX 5070 WINDFORCE OC SFF 12GB GDDR7 DLSS 4 Graphic Card - Black

Key Features:

GeForce RTX 50 Series - Game Changer! The Most Advanced AI platform for Gamers, Creators and beyond. Multiply performance with NVIDIA DLSS 4.5, generate
images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

NVIDIA SFF-READY
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Specifications

• Graphics Processing : GeForce RTX™ 5070

• Core Clock : 2542 MHz (Reference card : 2512 MHz)

• CUDA® Cores : 6144

• Memory Clock : 28 Gbps

• Memory Size : 12 GB

• Memory Type : GDDR7

• Memory Bus : 192 bit

• Card Bus : PCI-E 5.0

• Digital max resolution : 7680x4320

• Multi-view : 4

• Card size : L=282 W=110 H=50 mm

• PCB Form : ATX

• DirectX : DirectX 12 API

• OpenGL : 4.6

• Recommended PSU : 750W

• Power Connectors : 16 Pin*1

• Output : DisplayPort 2.1b *3; HDMI 2.1b *1

• Accessories

• 1. Quick guide

• 2. 1x 12V-2x6 to 2x PCIe 8pin adapter
