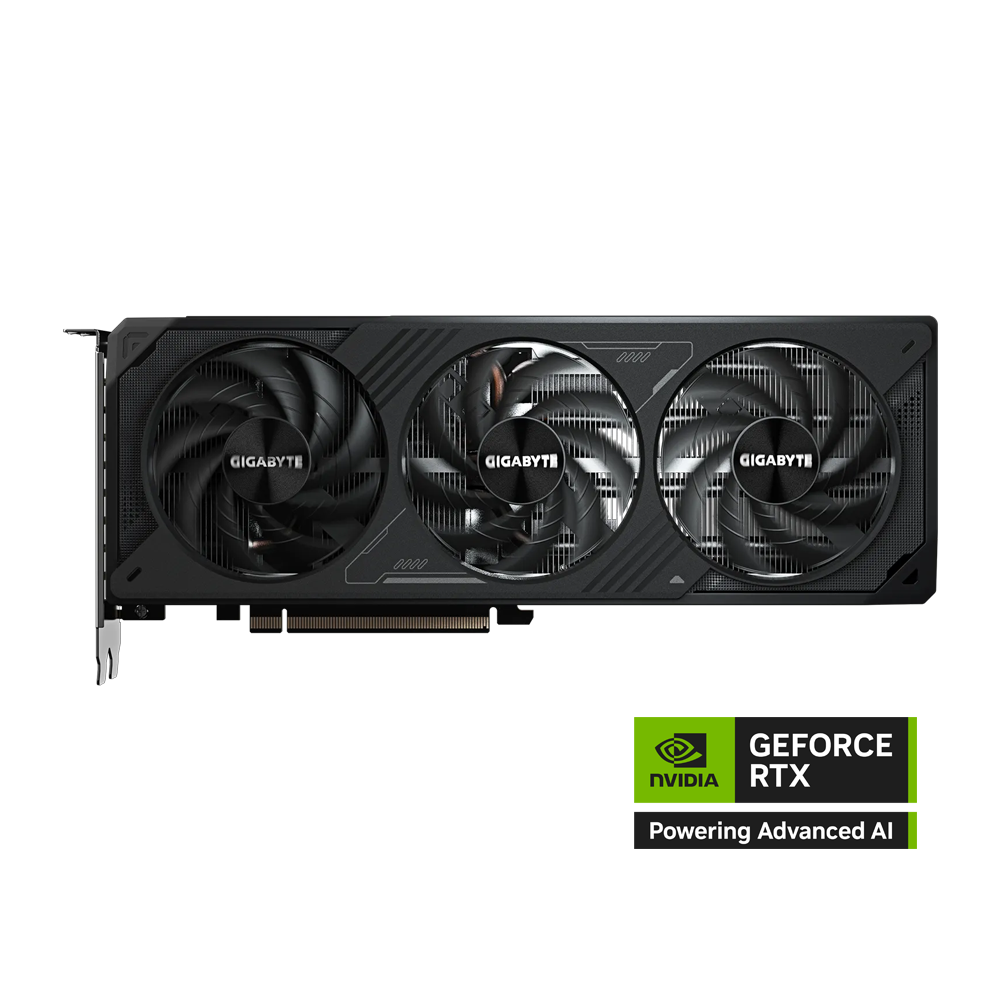

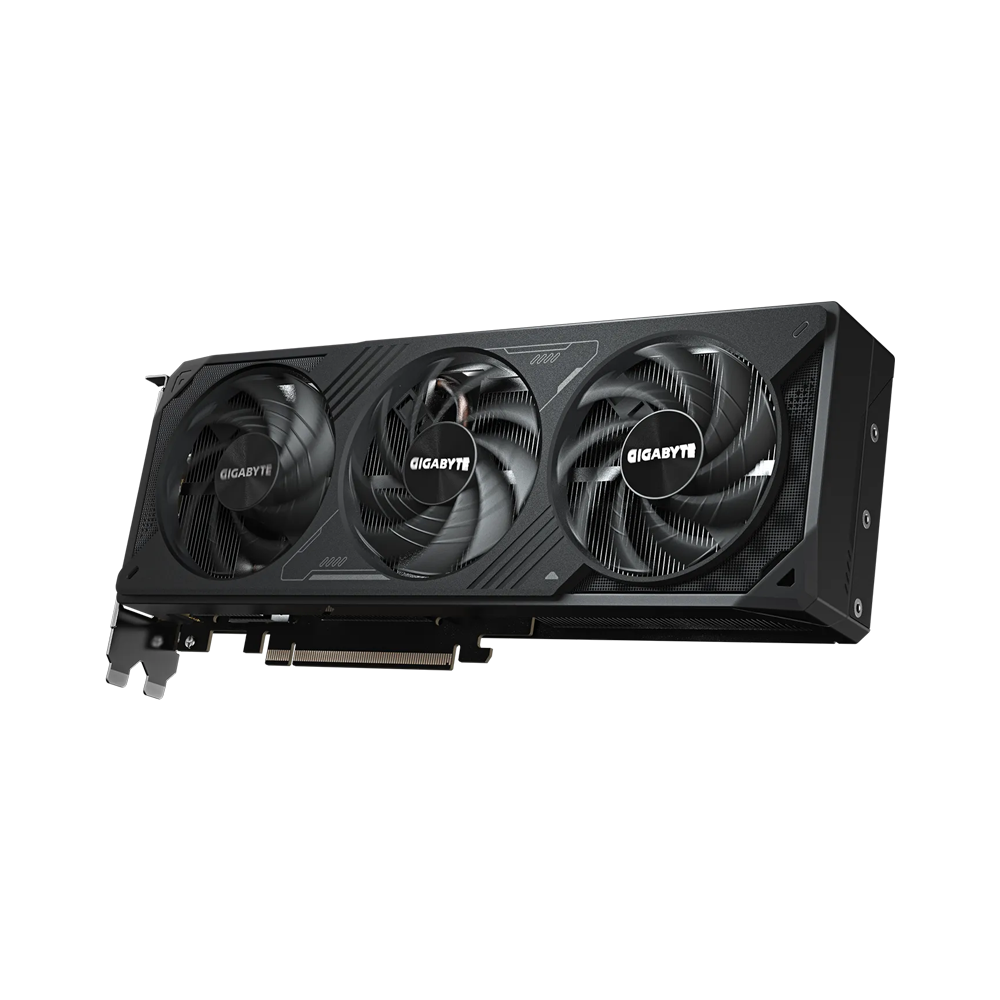

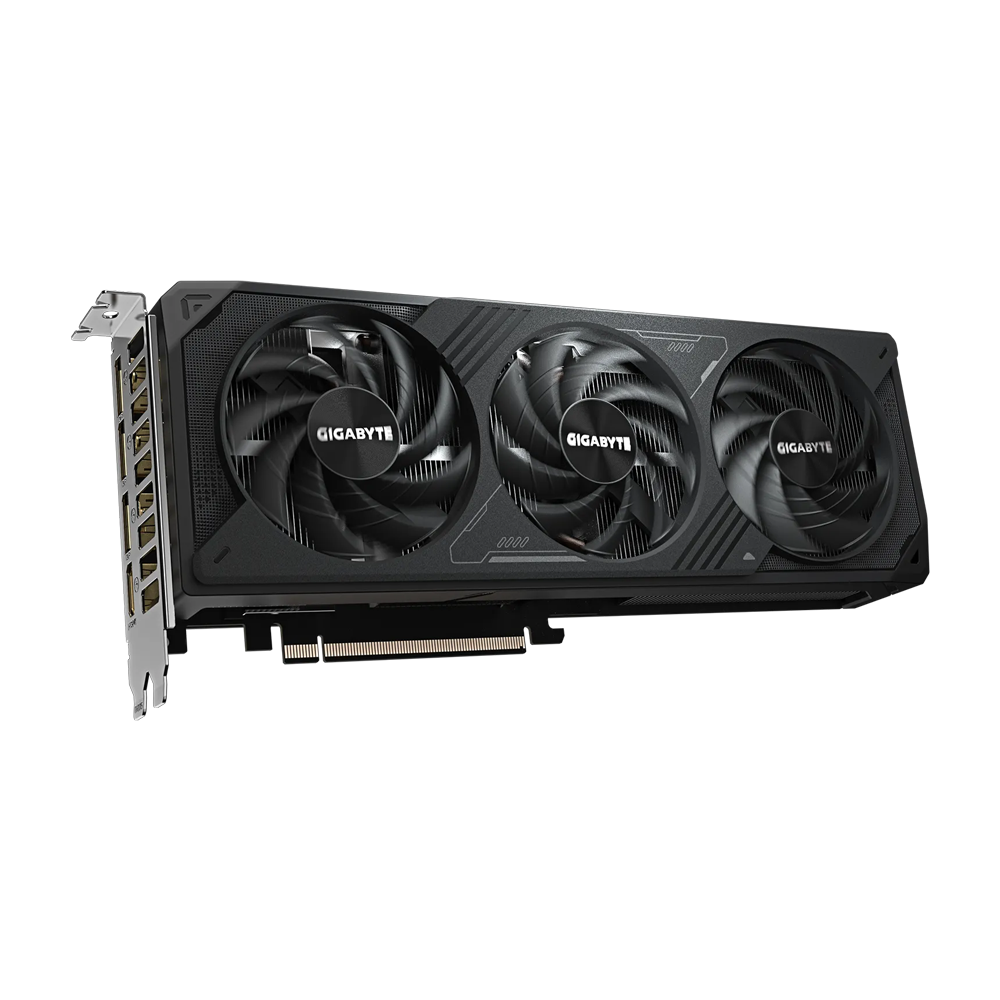

GIGABYTE NVIDIA GEFORCE RTX 5070 WINDFORCE SFF 12GB GDDR7 DLSS 4 Graphics Card - Black

Key Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX 5070
• Integrated with 12GB GDDR7 192bit memory interface
• WINDFORCE cooling system
• Hawk fan
• Server-grade thermal conductive gel
• NVIDIA SFF-ready
• Reinforced structure
• CORE CLOCK : 2512 MHz

GeForce RTX 50 Series - Game Changer! Powered by NVIDIA Blackwell, GeForce RTX 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

NVIDIA SFF-READY

Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

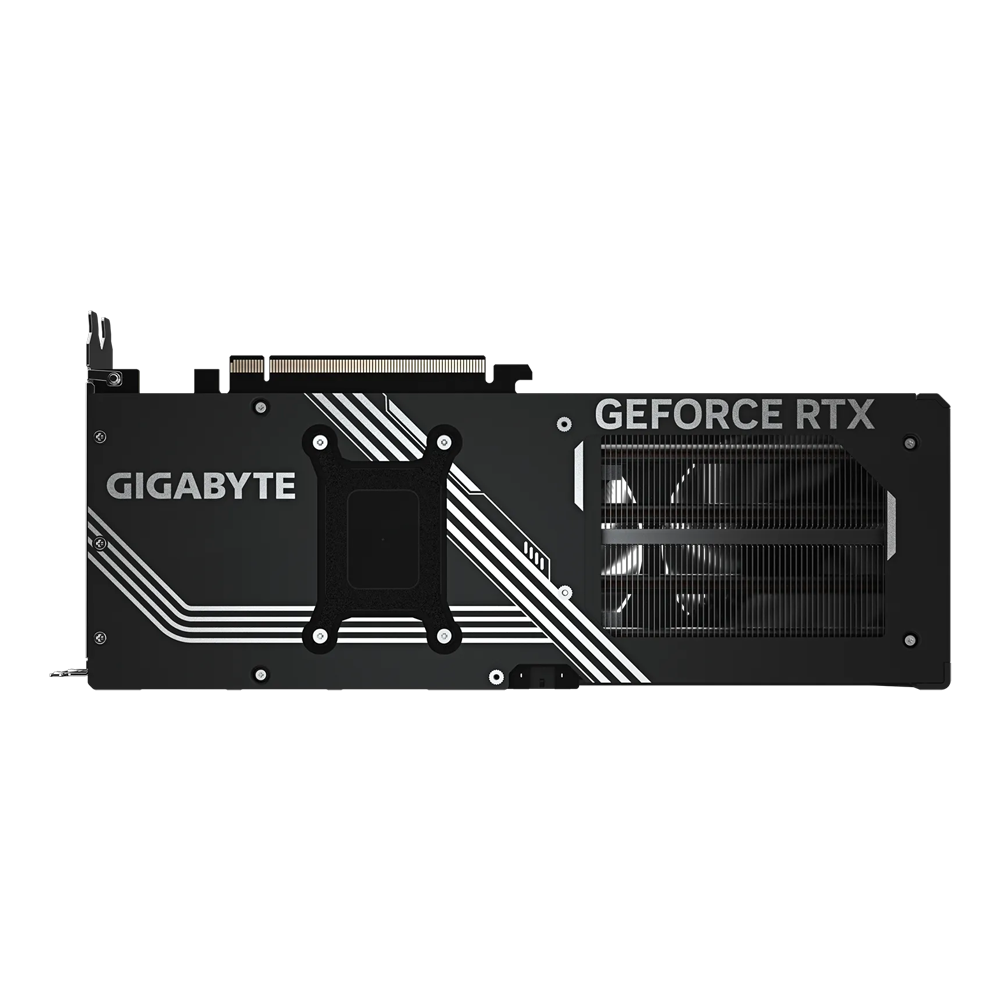

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

ULTRA DURABLE

ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications

• Graphics Processing : GeForce RTX™ 5070
• Core Clock : 2512 MHz
• CUDA® Cores : 6144
• Memory Clock : 28 Gbps
• Memory Size : 12 GB
• Memory Type : GDDR7
• Memory Bus : 192 bit
• Card Bus : PCI-E 5.0
• Digital max resolution : 7680x4320
• Multi-view : 4
• Card size : L=282 W=110 H=50 mm
• PCB Form : ATX
• DirectX : DirectX 12 API
• OpenGL : 4.6
• Recommended PSU : 750W
• Power Connectors : 16 Pin*1
• Output : DisplayPort 2.1b *3

                HDMI 2.1b *1

• Accessories : 1. Quick guide

                            2. 1x 12V-2x6 to 2x PCIe 8pin adapter
