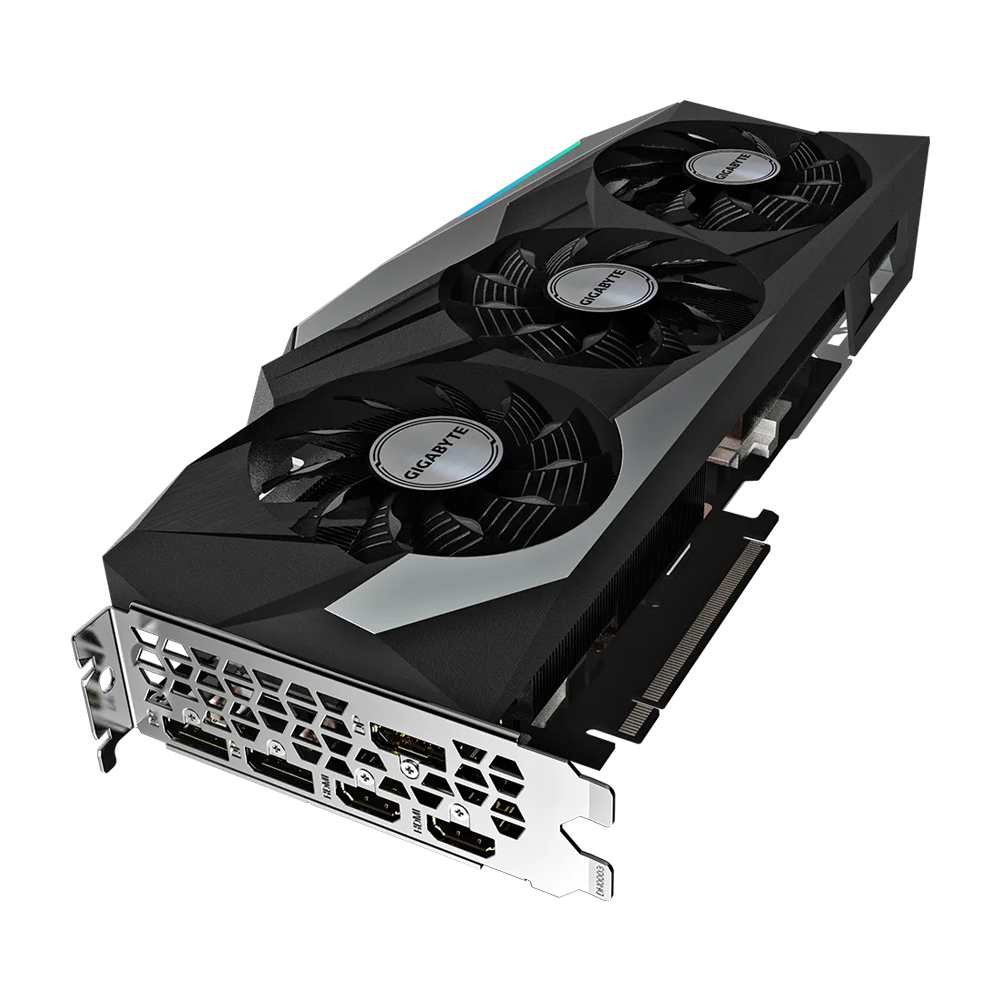

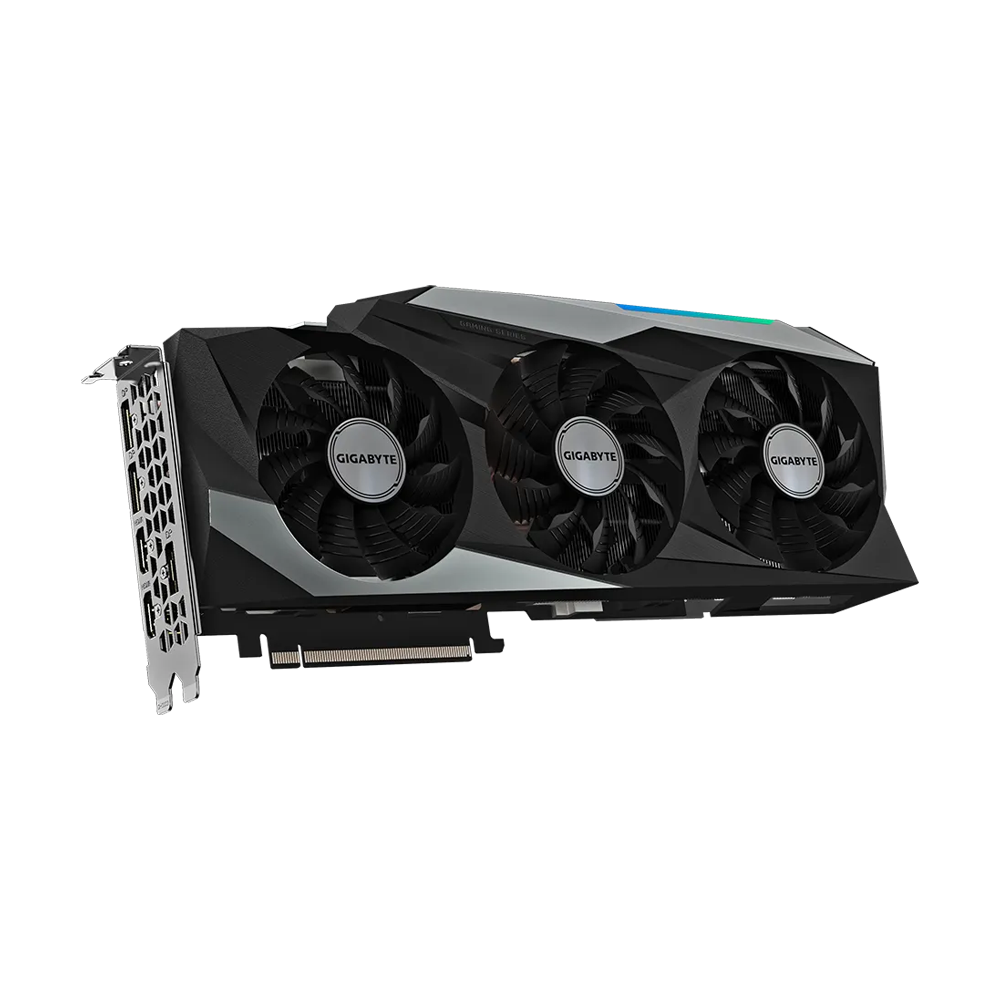

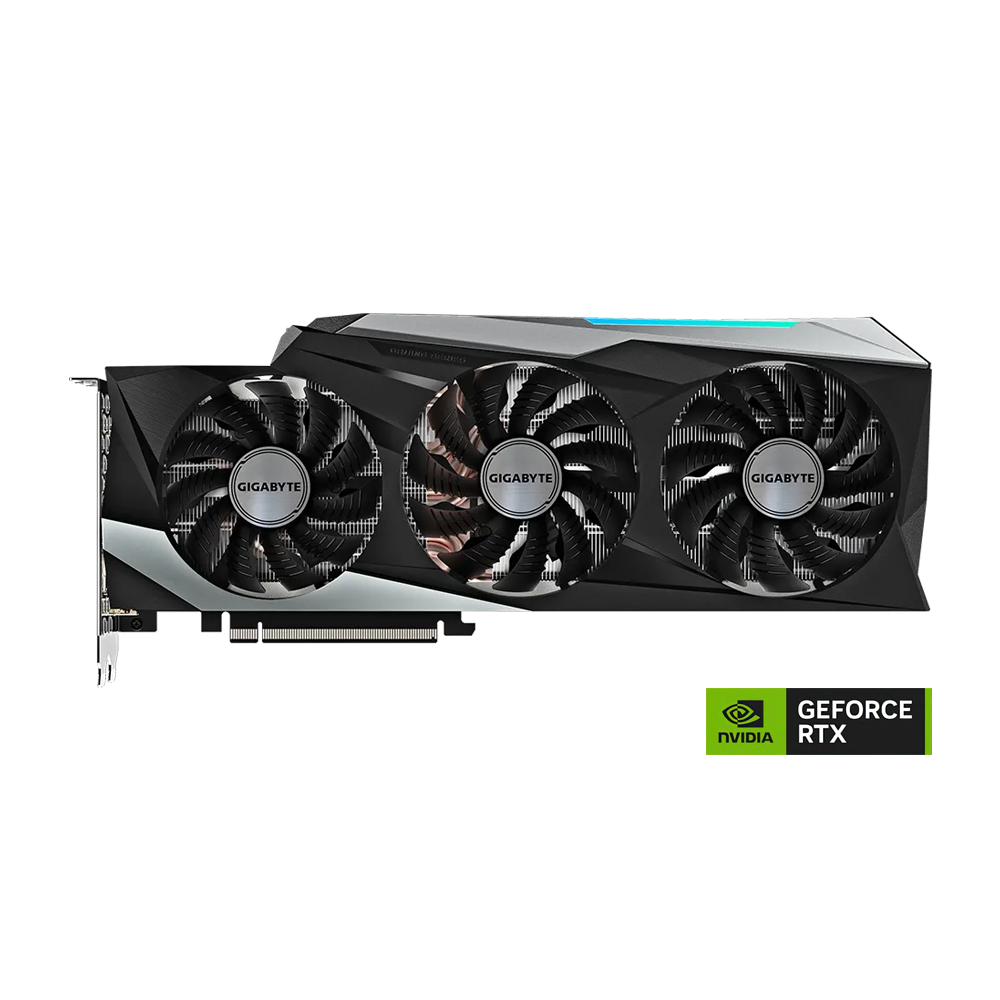

GIGABYTE NVIDIA GEFORCE RTX 3080 GAMING OC 12GB GDDR6X Graphics Card - Black

Key Features:

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3080
• Integrated with 12GB GDDR6X 384-bit memory interface
• WINDFORCE 3X Cooling System with alternate spinning fans
• RGB Fusion 2.0
• Protection metal back plate
• CORE CLOCK : 1755 MHz (Reference Card: 1710 MHz)

WINDFORCE 3X
COOLING SYSTEM
The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

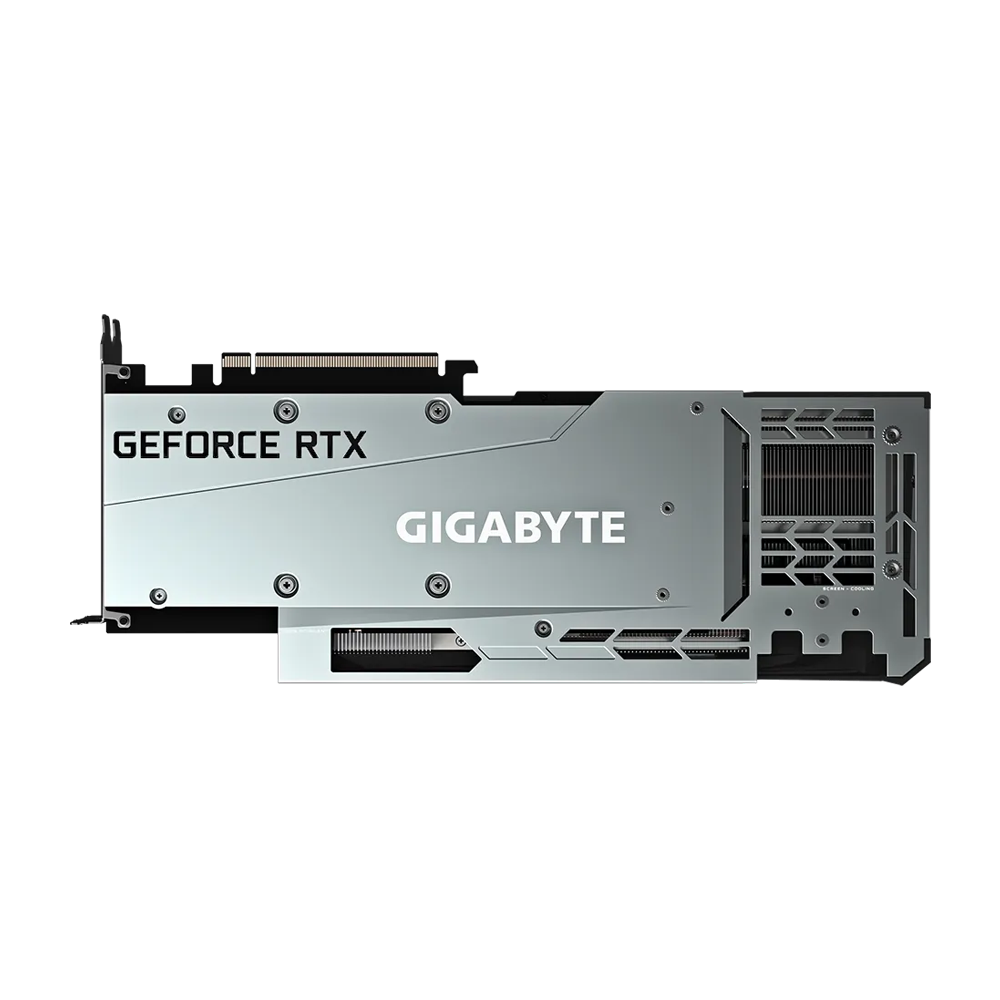

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications

• Graphics Processing : GeForce RTX™ 3080
• Core Clock : 1755 MHz (Reference Card: 1710 MHz)
• CUDA® Cores : 8960
• Memory Clock : 19000 MHz
• Memory Size : 12 GB
• Memory Type : GDDR6X
• Memory Bus : 384 bit
• Memory Bandwidth (GB/sec) : 912 GB/s
• Card Bus : PCI-E 4.0 x 16
• Digital max resolution : 7680x4320
• Multi-view : 4
• Card size : L=320 W=129 H=55 mm
• PCB Form : ATX
• DirectX : 12 Ultimate
• OpenGL : 4.6
• Recommended PSU : 750W
• Power Connectors : 8 pin*2
• Output : DisplayPort 1.4a *3
• HDMI 2.1 *2
• SLI Support : N/A
• Accessories
• 1. Quick guide
• 2. Warranty registration
