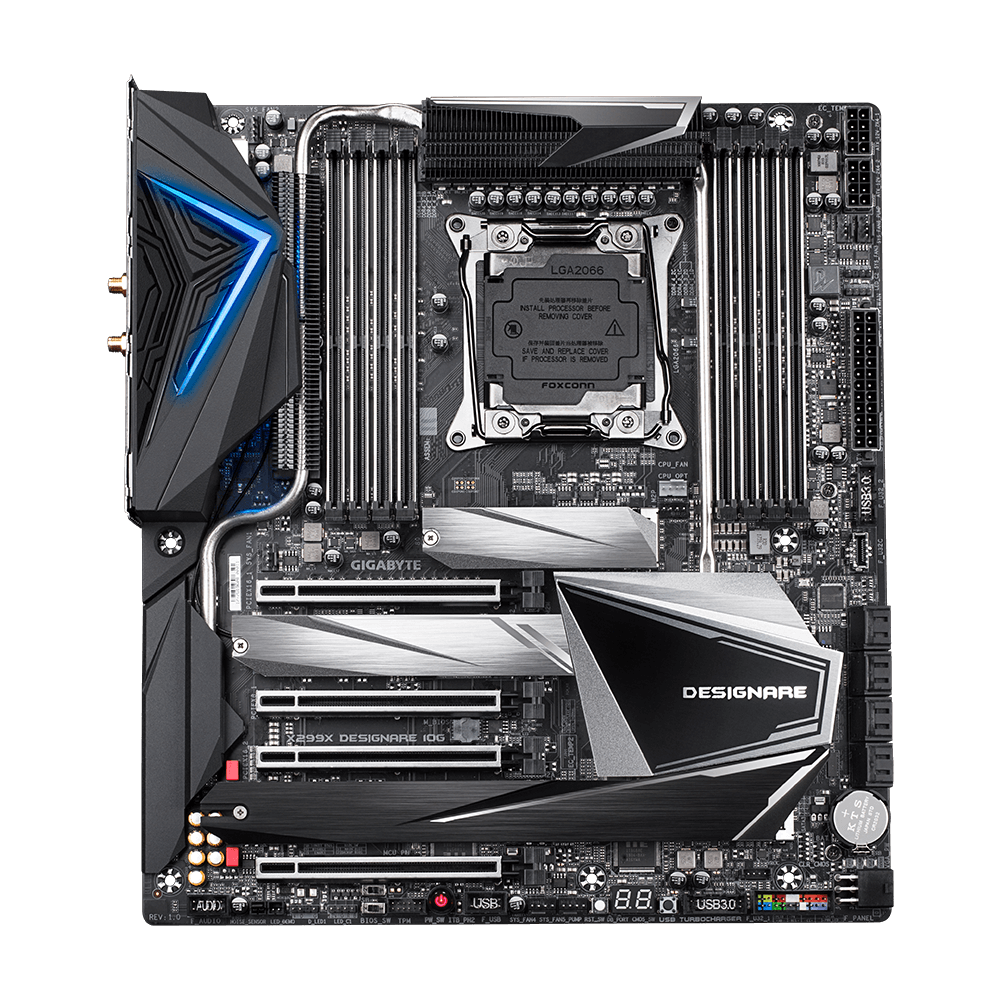

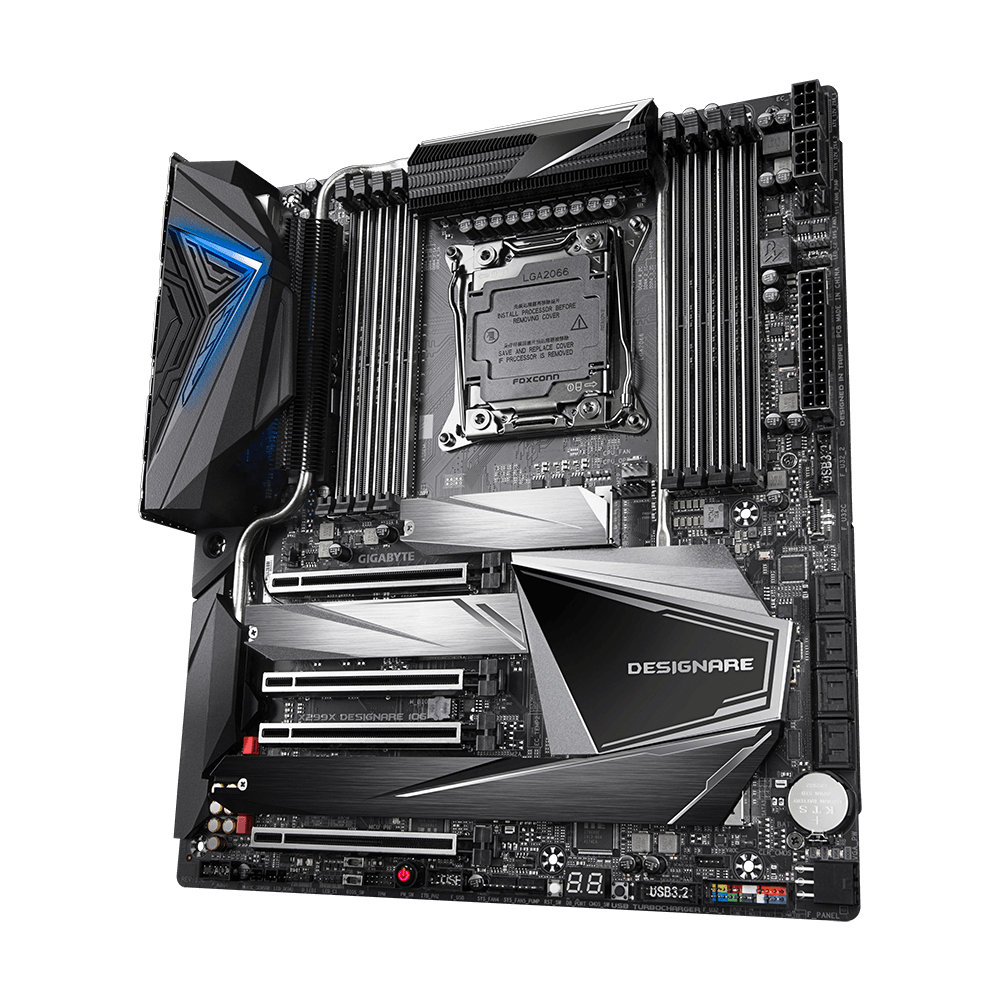

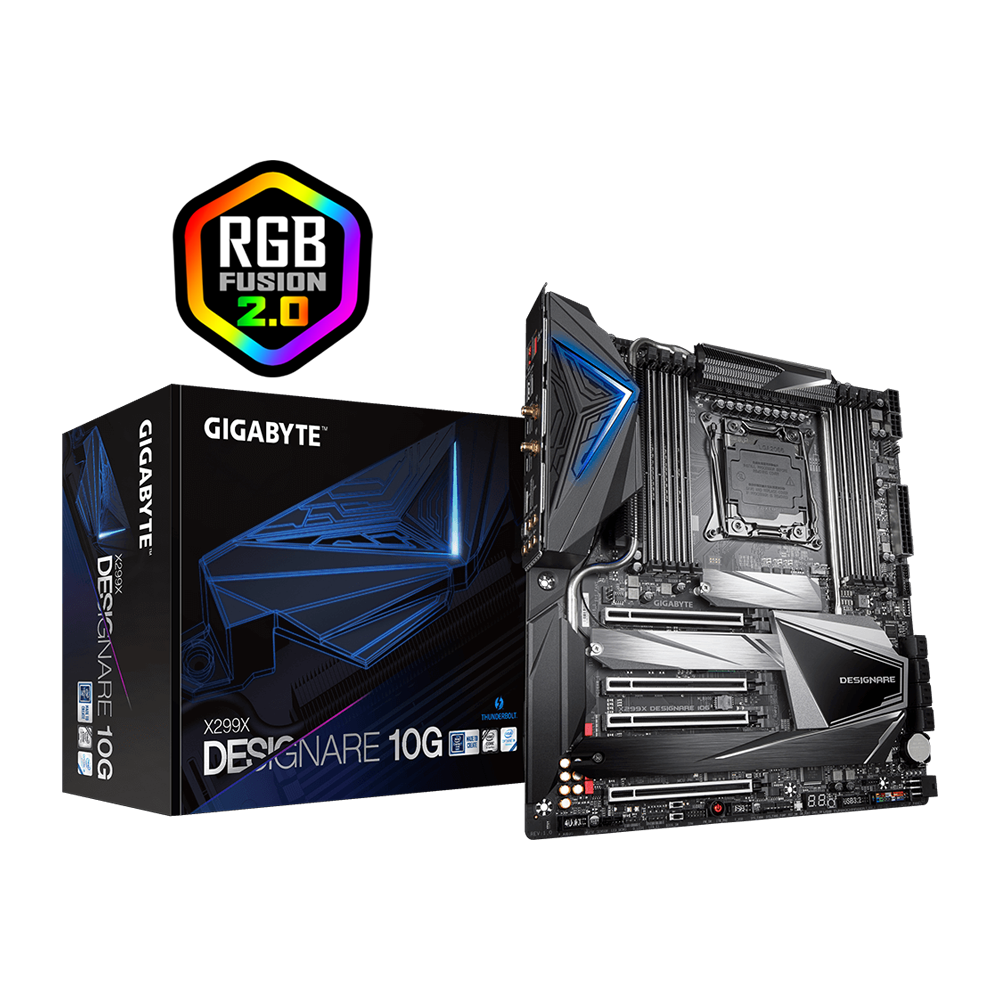

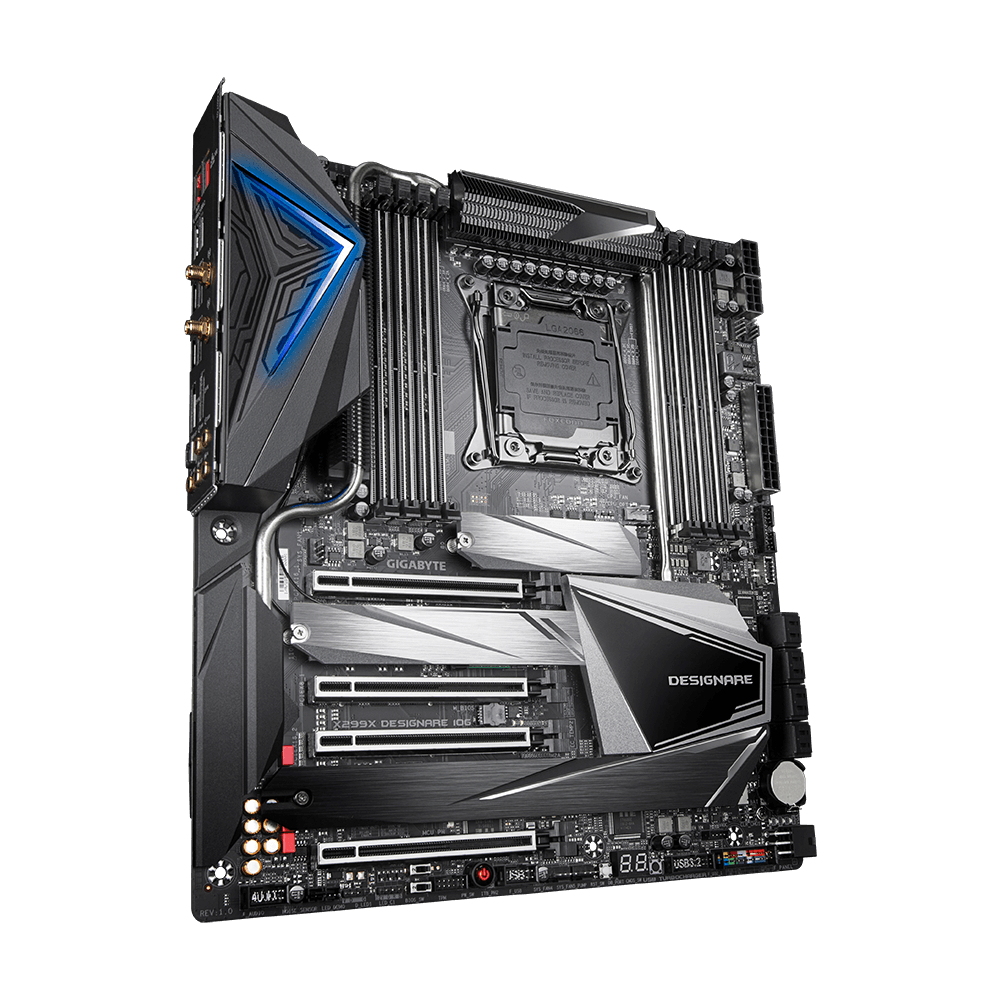

GIGABYTE X299X DESIGNARE 10G E-ATX Motherboard - Black

Gigabyte X299X DESIGNARE 10G Motherboard

Intel^® X299 Made To Create Motherboard with 12 Phases IR Digital VRM, Intel^® Thunderbolt 3, Intel^® X550-AT2 Dual 10GbE, Intel^® WiFi 6 AX200 802.11ax, ALC1220-VB HD Audio with WIMA, AORUS Gen4 AIC Adaptor

12 Phases IR Digital VRM Solution with 70A Power Stage

To unleash the full power of the new Intel 18 core CPU, the motherboard demands un-precedented strong power solution. GIGABYTE R&Ds selects the best components and never stop pursuing the highest overclock performance. That makes X299X DESIGNARE 10G an un-beatable motherboard in the market.

Smart Fan 5

With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

Integrated I/O Shield Armor
Durable Design And Easy Installation

With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Optimized Memory Installation Reminder

Displays correct installation reminder message when user installs two memory modules but runs single channel mode.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

Specifications

• CPU
1. Support for Intel^® Core i7-7800X and above X series processors/ Intel^® Core i9 X series processors in the LGA2066 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset
1. Intel^® X299 Express Chipset
• Memory
1. Intel^® Core X series 48-lane processors:
   8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
   Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules
2. Intel^® Core X series 44-lane/28-lane processors:
   8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
   Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules
3. 4 channel memory architecture
4. Support for non-ECC Un-buffered DIMM memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Intel^® Thunderbolt 3 Controller:

1. 2 x Intel^® Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304@60 Hz
   * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
   * Support for DisplayPort 1.4 version.

Maximum shared memory of 1 GB

• Audio
1. Realtek^® ALC1220-VB codec
   * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
• LAN
1. Intel^® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
• Wireless Communication module
1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.
• Expansion Slots

Intel^® Core X series 48-lane processors:

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
   * The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot operates at up to x4 mode when an SSD is installed in the M2M connector.

Intel^® Core X series 44-lane processors:

3. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
4. 1 x PCI Express x16 slot, running at x8 (PCIEX8_2)
5. 1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
   * The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.

Intel^® Core X series 28-lane processors:

6. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
7. 1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
8. 1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
   * The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

• Multi-Graphics Technology
1. S upport for NVIDIA^® Quad-GPU SLIâ„¢ and 2-Way NVIDIA^® SLI technologies
2. S upport for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
• Storage Interface

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

Chipset:

2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
4. 6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* The M2M connector must work with an Intel^® VROC Upgrade Key to support RAID configuration.
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX8_1, M.2, and SATA connectors.

Intel^® Optane Memory Ready
* Only Intel^® Core X series 48-lane processors support Intel^® Optane Memory.

Intel^® VROC Ready

ASMedia^® SATA 6Gb/s controller:

5. 2 x SATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only
• USB

Chipset+Intel^® Thunderboltâ„¢ 3 Controller:

1. 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support

Chipset+ASMedia^® USB 3.2 Gen 2 controller:

2. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

Chipset+Genesys USB 3.2 Gen 1 hub:

3. 3 x USB 3.2 Gen 1 ports on the back panel

Chipset:

4. 5 x USB 3.2 Gen 1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
5. 2 x USB 2.0/1.1 ports available through the internal USB header
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x VGA_PW power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 8 x SATA 6Gb/s connectors
12. 1 x Intel^® VROC Upgrade Key header
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-Câ„¢ header, with USB 3.2 Gen 2 support
16. 2 x USB 3.2 Gen 1 headers
17. 1 x USB 2.0/1.1 header
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 1 x noise detection header
20. 1 x Clear CMOS jumper
21. 1 x power button
22. 1 x reset button
23. 1 x Clear CMOS button
24. 2 x temperature sensor headers
25. 2 x BIOS switches
• Back Panel Connectors
1. 2 x DisplayPort In ports
2. 2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
3. 2 x SMA antenna connectors (2T2R)
4. 4 x USB 3.2 Gen 1 ports
5. 2 x RJ-45 ports
6. 1 x optical S/PDIF Out connector
7. 5 x audio jacks
• I/O Controller
1. iTE^®I/O Controller Chip
• H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
8. Noise detection
• BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Game Boost
   Platform Power Management
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart Survey
   System Information Viewer
   USB Blocker
   USB TurboCharger
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
• Bundled Software

1. Norton^® Internet Security (OEM version)

2. cFosSpeed

3. XSplit Gamecaster + Broadcaster (12 months license)
• Operating System
1. Support for Windows 10 64-bit
• Form Factor
1. E-ATX Form Factor; 30.5cm x 27.5cm
