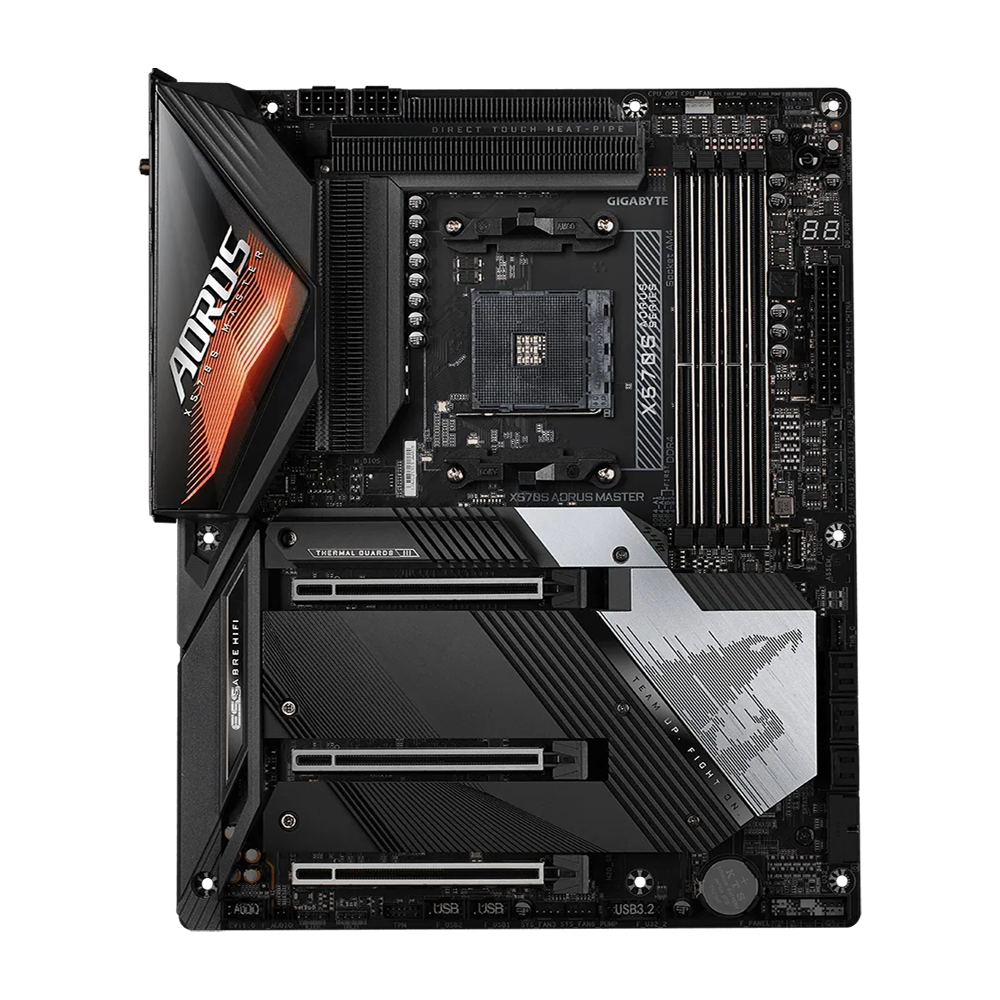

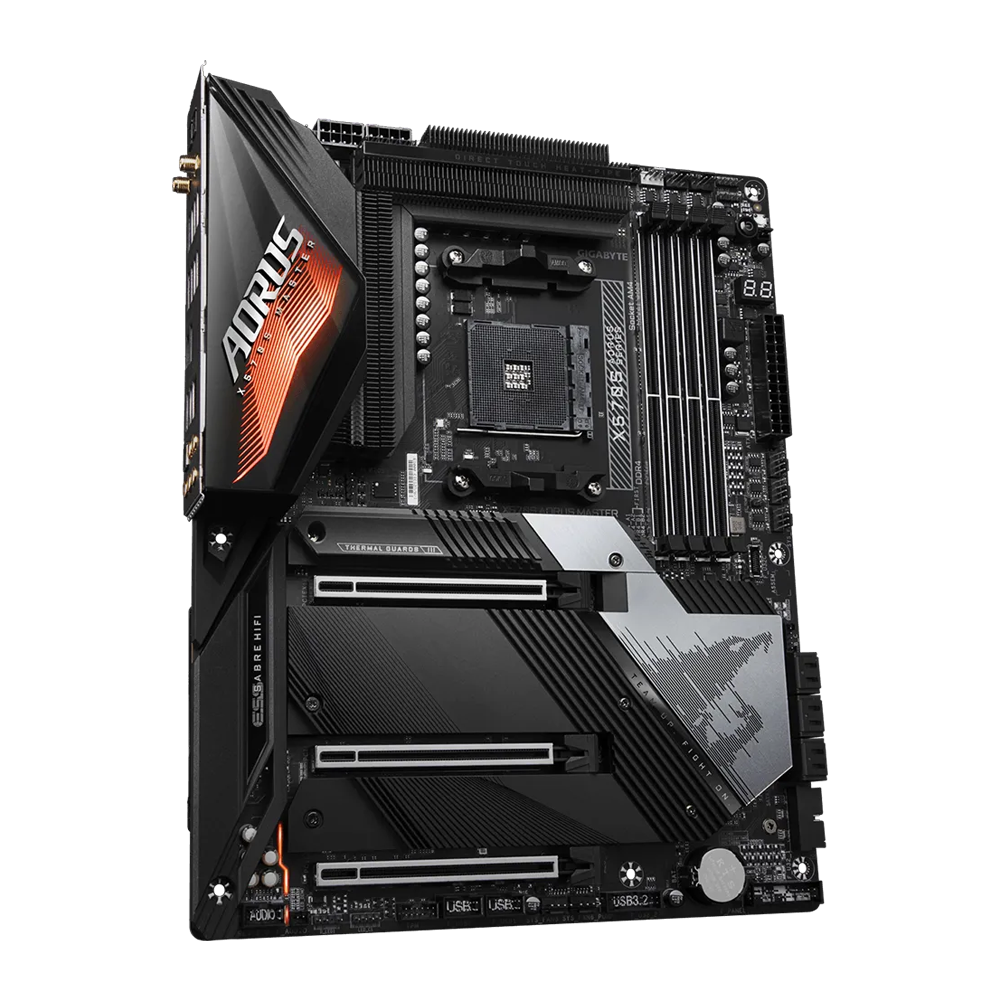

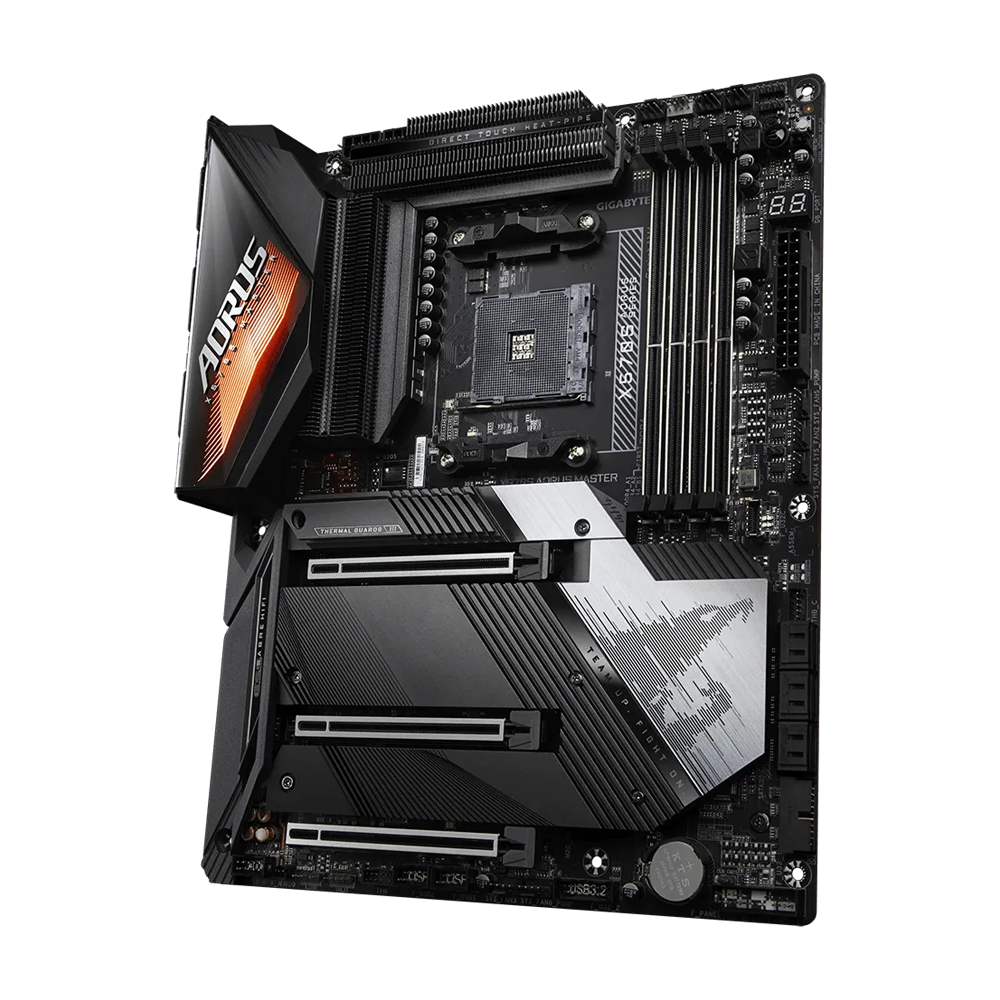

GIGABYTE X570S AORUS MASTER AMD ATX Motherboard - Black

Name: GIGABYTE X570S AORUS MASTER AMD ATX Motherboard - Black
Brand: Quadra Stores
SKU: X570S AORUS MASTER
Price: 134.0 KWD
Availability: InStock

SKU:X570S AORUS MASTER

QR Code : 1213004

Low stock

KWD 134.000

Sale

Manufacturer GIGABYTE

Product variants

Description

Key Features:

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings
Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage
Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate
Intel^® WiFi 6E 802.11ax & BT 5.2
Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Blazing Fast Intel^® 2.5GbE LAN with cFosSpeed
SuperSpeed USB 3.2 Gen 2x2 TYPE-C^® delivers up to 20Gb/s transfer speeds
125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB and WIMA Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.

UNPARALLELED PERFORMANCE
To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS MASTER is a true beast among motherboards.

ADVANCED THERMAL SOLUTION
X570S AORUS MASTER uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.

NEXT GENERATION CONNECTIVITY
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE Motherboard and reinforce every slot to make each of them solid and durable.

Specifications

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD X570
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
1. Realtek^® ALC1220-VB audio CODEC
  * The front panel line out jack supports DSD audio.
2. ESS SABRE9118 DAC chip
3. Support for DTS:X^® Ultra
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out
LAN
1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel^® Wi-Fi 6E AX210
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMDRyzen™ 5000 Series Processors*/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 mode
2. AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 mode
3. AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
1. AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 mode
2. AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 mode
3. AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
1. Supporting PCIe 4.0* /3.0 x4 mode
  * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
  * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
* Actual support may vary by AMD CPU's specification
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. Supporting PCIe 4.0* /3.0 x4/x2 SSDs
  * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
  * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Support for RAID 0, RAID 1, and RAID 10
  * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
CPU:
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia^® USB 3.2 Gen 2x2 Controller:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
1. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 4 x USB 3.2 Gen 1 ports, available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 1 x Thunderbolt™ add-in card connector
20. 2 x temperature sensor headers
21. 1 x power button
22. 1 x reset button
23. 1 x Clear CMOS jumper
24. Voltage Measurement Points
Back Panel Connectors
1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
5. 5 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
8. Noise detection
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
