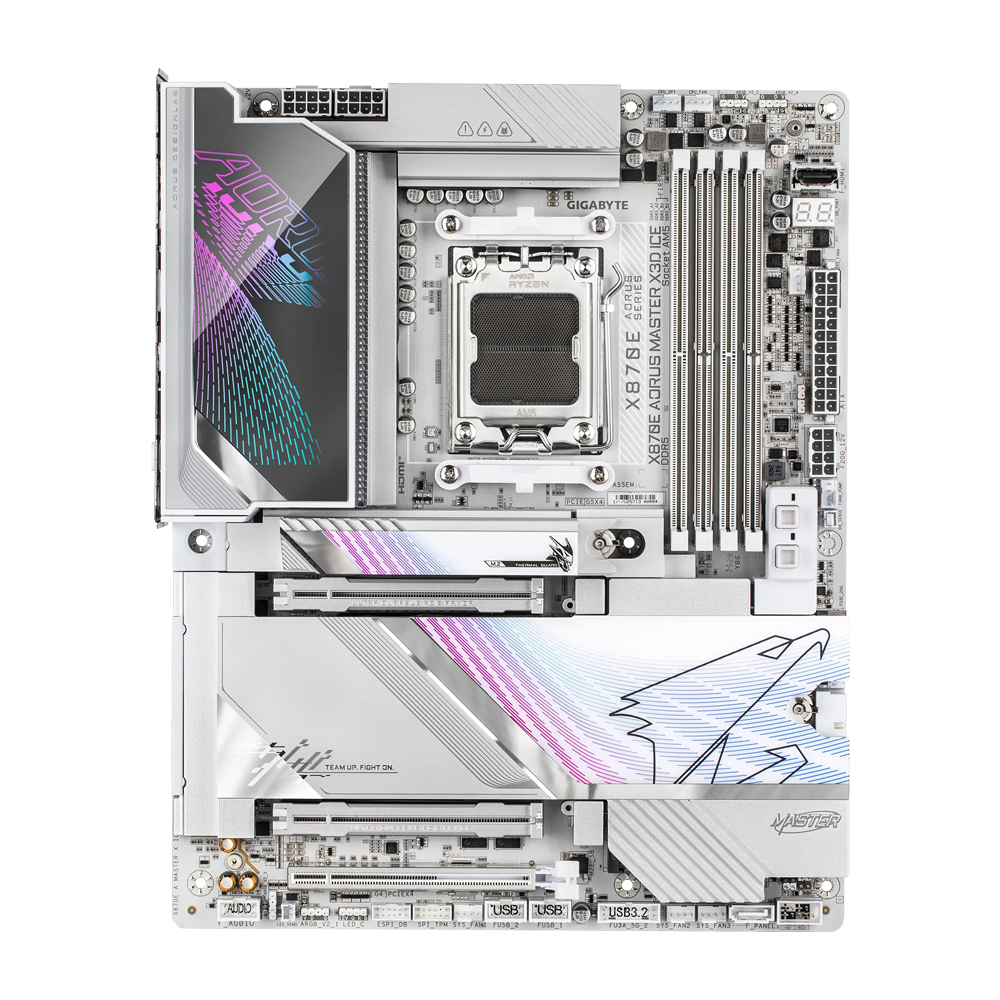

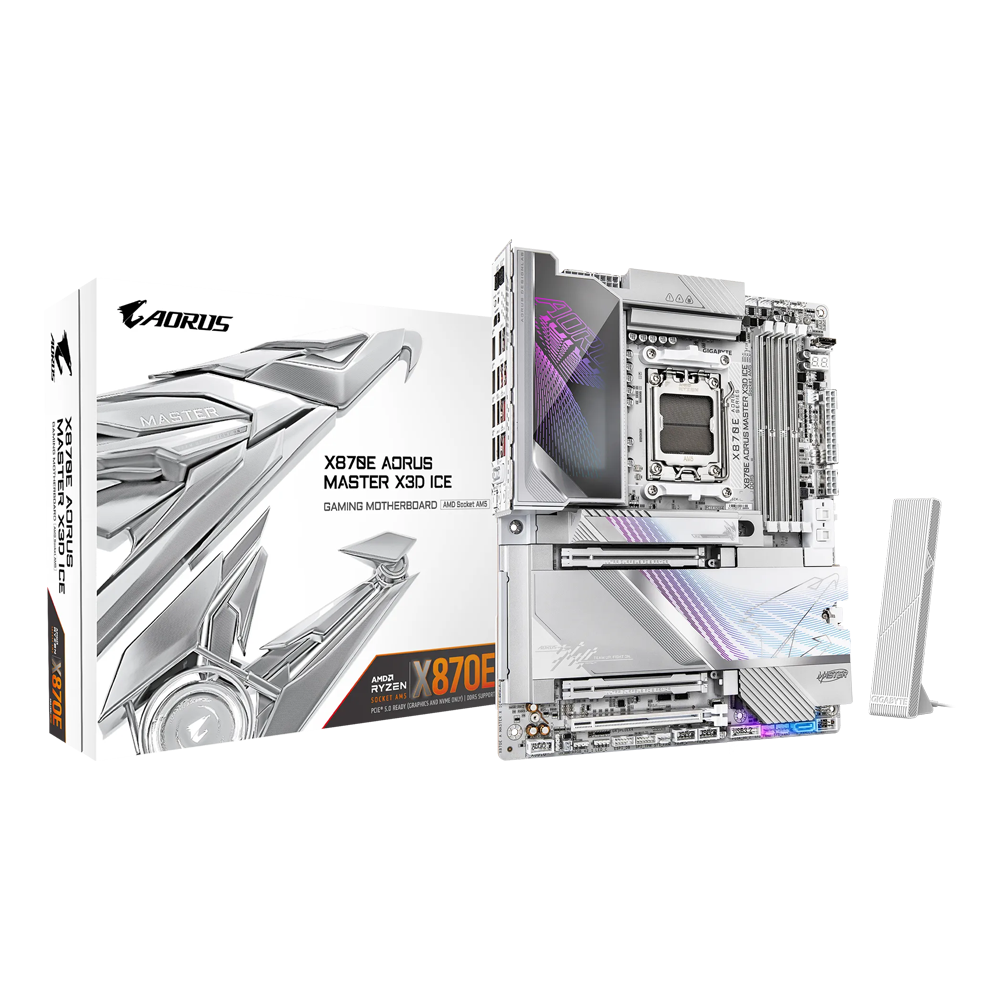

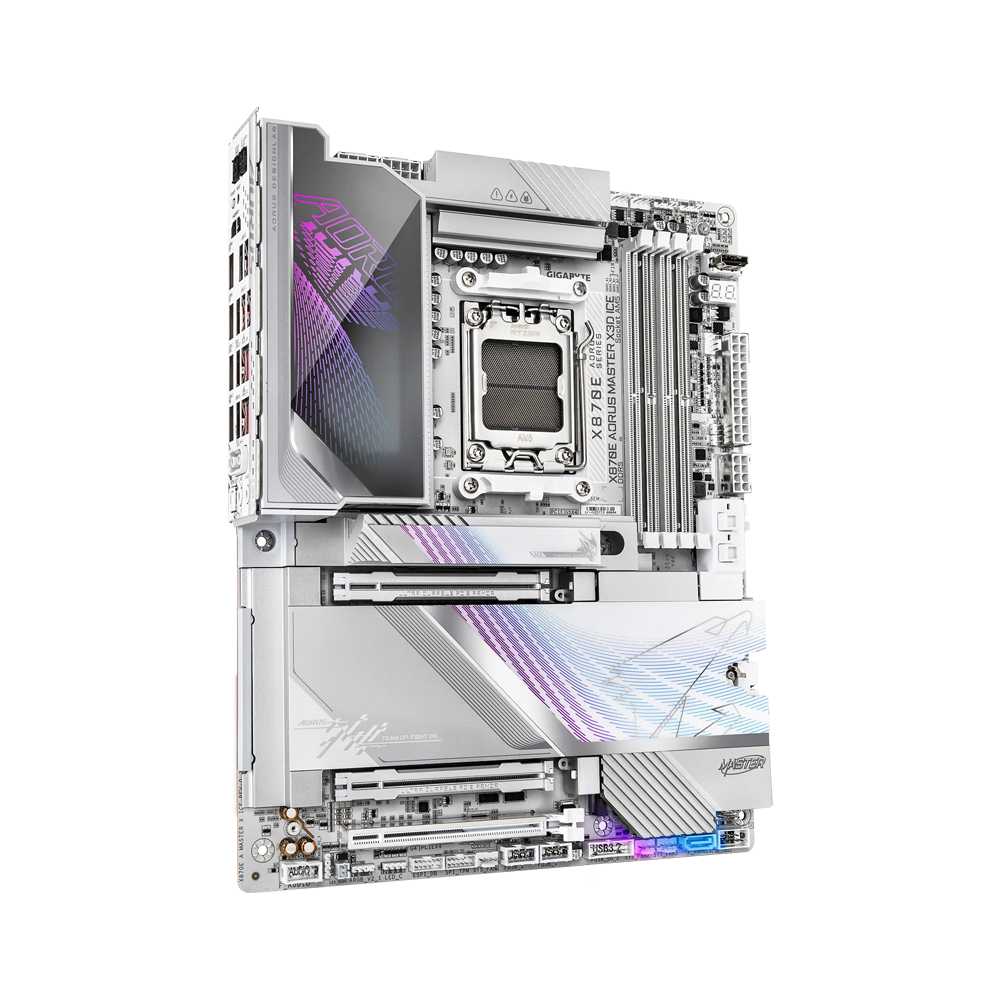

GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - White

Key Features:

• X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
• DDR5 OC up to 9000MT/s
• DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 18+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• PCIe EZ-Latch Plus Duo : One click for screwless & quick release on dual PCIe slots
• M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 5*M.2 slots, including PCIe 5.0 x4
• PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
• Fast Networking : 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Brand New Gaming Experience
X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI.

X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance.

Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.

One-Click Acceleration:
Faster, fiercer, more precise with a single click.

Enhance Up to 25%.

Memory
Infinite Memory Performance
X3D series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

PCB Mastery
Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.

PCB Back drilling Technology
Enhances signal integrity in high-speed PCB designs and Reduces signal reflections.

2X Copper Enhancement
Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.

8L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.

56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.

Sturdy VRM Design
Steady Power
X3D Series with steady power keeps your operation smooth.

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

18
VCORE Phases SPS 110A
Unlock the full power of your multi-core CPU for unmatched performance.

2
SOC Phases SPS 110A
Optimized for integrated GPU performance and memory management within the CPU.

2
MISC Phases Dr.MOS 60A
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard XL
with M.2 Thermal Guard Backplate

Premium VRM Thermal Armor for Superior Cooling

Superior Direct-touch Heatpipe for optimal heat transfer
Features direct-touch heatpipes with a thickened design & advanced manufacturing process
Minimized gap between the heatpipe & heatsink for enhanced thermal transfer to the MOSFETs
Designed for optimal thermal conductivity
Ensures efficient heat transfer and maintains system stability

Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience

Connectivity
Future Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

All-round Connectivity
Front QC-USB 65W
Dual Native 40Gbps USB4
Dual 10G + 5G LAN
Wi-Fi 7

Ultra Durable™
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. Elite series motherboards are engineered to endure and excel.

Tailored Computing
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specifications:

• CPU
• AMD Socket AM5, support for:
  AMD Ryzen™ 9000 Series Processors/
  AMD Ryzen™ 8000 Series Processors/
  AMD Ryzen™ 7000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)

• Chipset
• AMD X870E

• Memory
• Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics
• Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
  - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz


  * Support for DisplayPort 1.4 version and HDR.

  Integrated Graphics Processor with AMD Radeon™ Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz


  * Support for HDMI 1.4 version.

  (Graphics specifications may vary depending on CPU support.)

• Audio
• Realtek® ALC1220 CODEC


  * The front panel line out jack supports DSD audio.

  ESS ES9118 DAC chip
  Support for DTS:X® Ultra
  High Definition Audio
  2/4/5.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

  Support for S/PDIF Out

• LAN
• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
  Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

• Wireless Communication module
• MediaTek Wi-Fi 7 MT7927, RZ738
  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 320MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)


  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
  *** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

• Expansion Slots
• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode


  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode


  * The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.

  Chipset:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)


  * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

• Storage Interface
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs


  * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth.
  When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

  2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
  2 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices


  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

  RAID 0 and RAID 1 support for SATA storage devices

• USB
• CPU+ASMedia USB4® controller:
  - 2 x USB4® USB Type-C® ports on the back panel
  CPU:
  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  Chipset+USB 3.2 Gen 1 Hub:
  - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  Chipset:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)


  * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors."

  - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x PCIe power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  4 x system fan headers
  1 x system fan extension cable header (can extend three system fan headers through one cable)
  1 x system fan/water cooling pump header
  4 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  5 x M.2 Socket 3 connectors
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x speaker header
  1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  2 x USB 3.2 Gen 1 headers
  2 x USB 2.0/1.1 headers
  1 x noise detection header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x HDMI port (Note)
  1 x chassis intrusion header
  1 x reset jumper
  1 x Clear CMOS jumper
  2 x temperature sensor headers

  (Note) Actual support may vary by CPU.

• Back Panel Connectors
• 1 x Q-Flash Plus button
  1 x Clear CMOS button
  1 x reset button
  1 x power button
  1 x HDMI port (Note)
  2 x USB4® USB Type-C® ports (DisplayPorts (Note))
  1 x USB Type-C® port, with USB 3.2 Gen 2 support
  1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  7 x USB 3.2 Gen 2 Type-A ports (red)
  2 x RJ-45 ports
  2 x antenna connectors (2T2R)
  2 x audio jacks
  1 x optical S/PDIF Out connector

  (Note) Actual support may vary by CPU.

• I/O Controller
• iTE® I/O Controller Chip

• H/W Monitoring
• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  Noise detection

• BIOS
• 1 x 512 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features
• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software
• Norton® Internet Security (OEM version)

• Operating System
• Support for Windows 11 64-bit

• Form Factor
• ATX Form Factor; 30.5cm x 24.4cm
