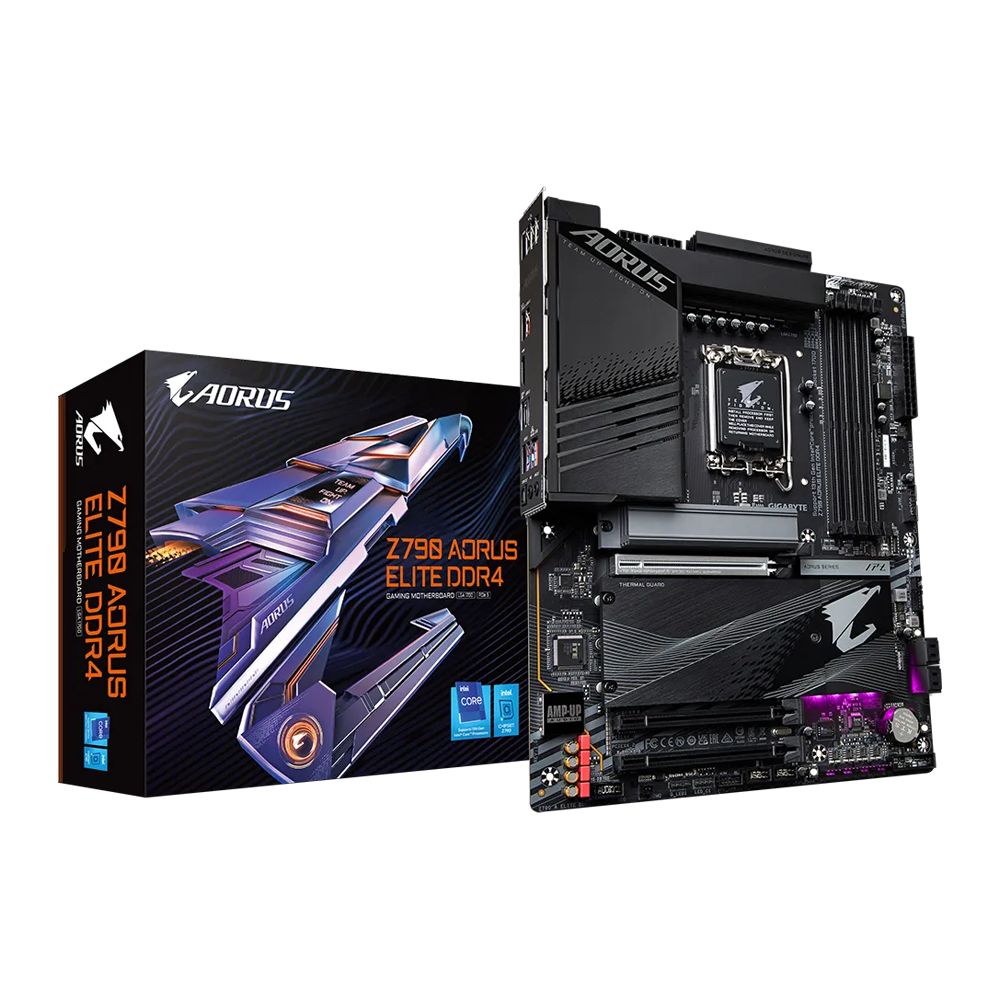

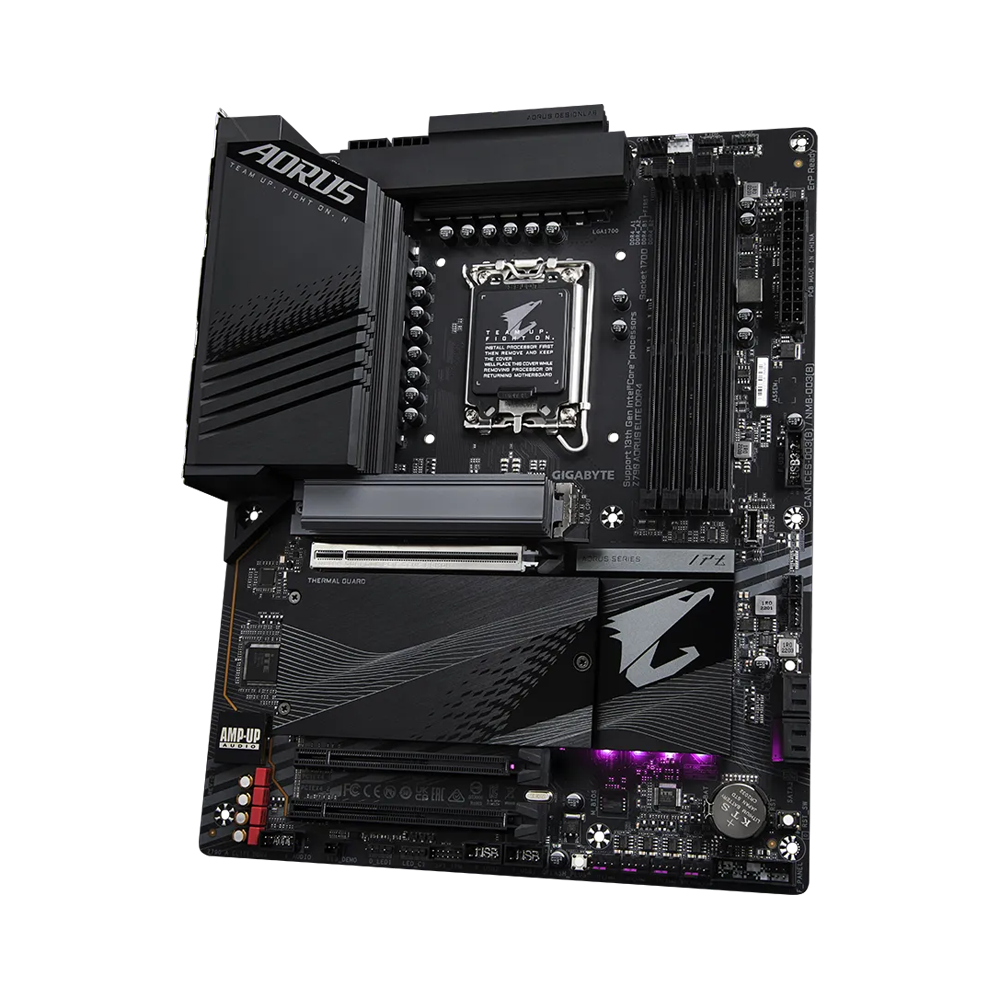

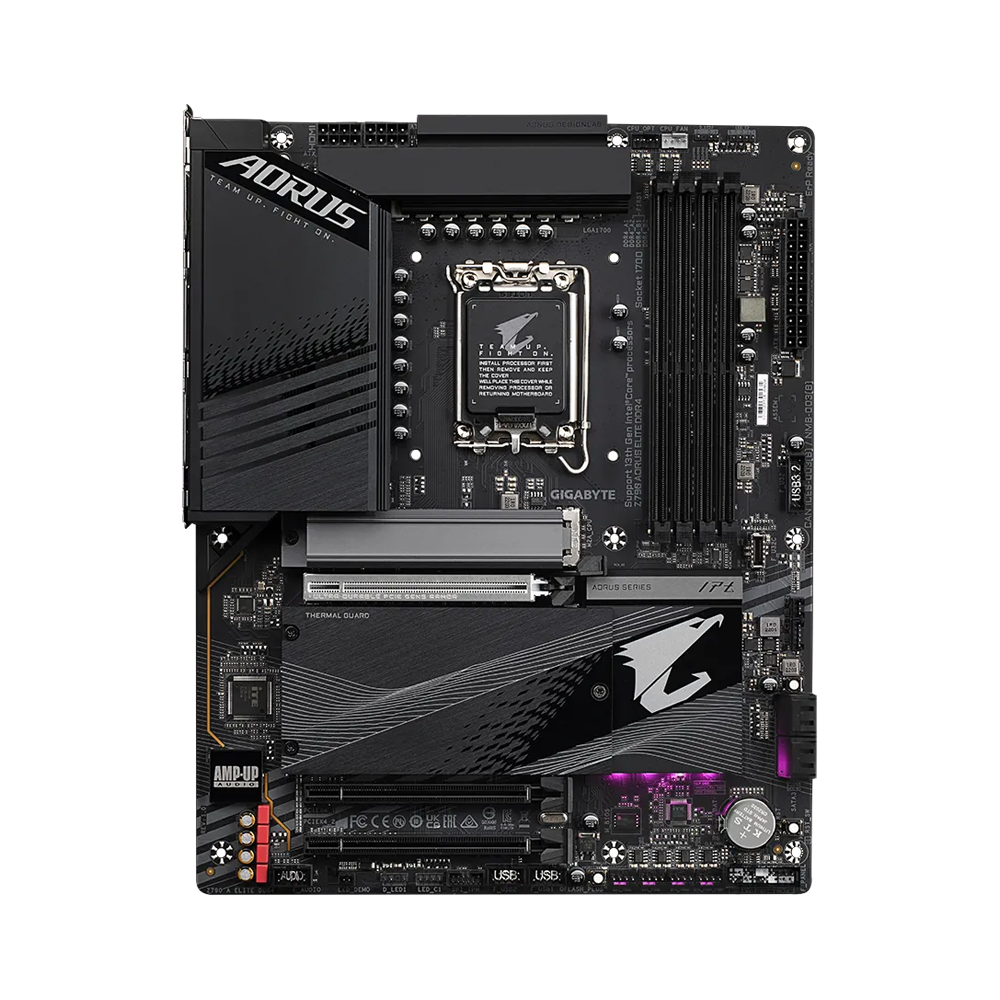

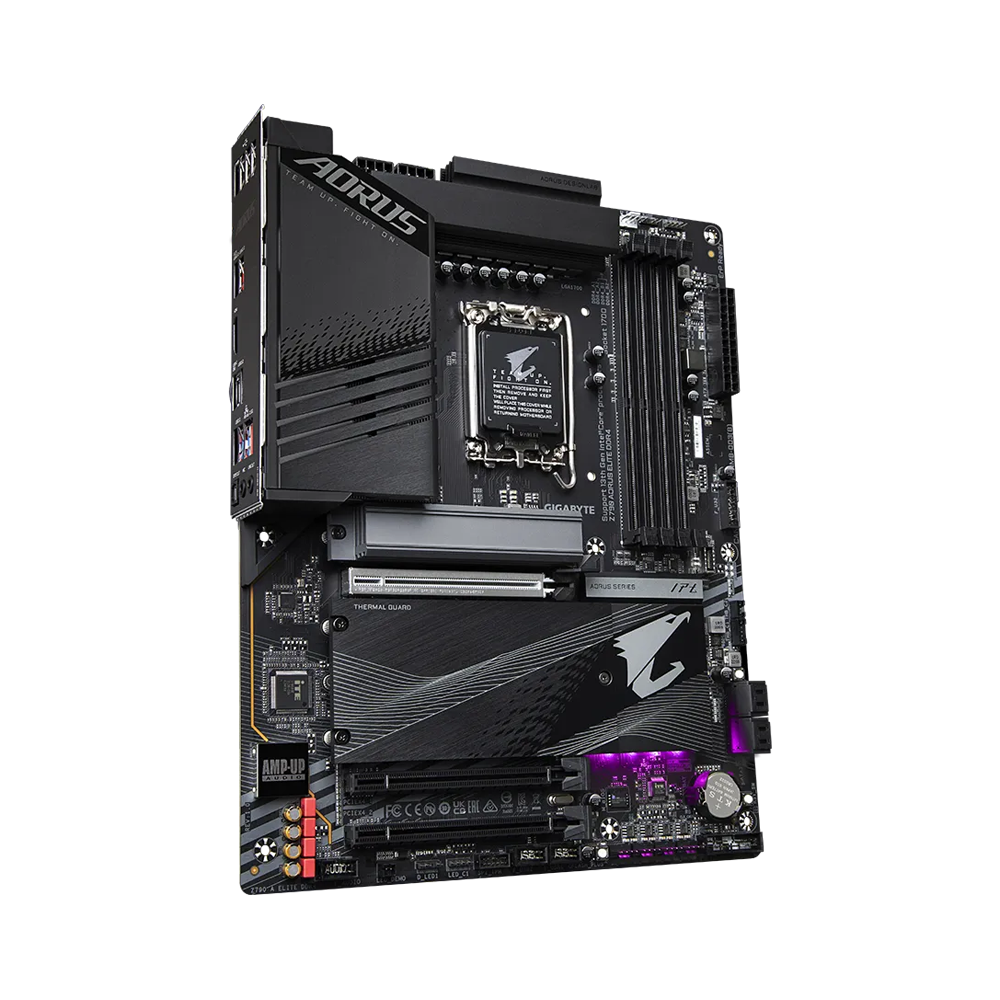

GIGABYTE Z790 AORUS ELITE DDR4 1.0 ATX Motherboard - Black

1. LGA1700 socket : Support for the 13th and 12th Generation Intel^® Core, Pentium^® Gold and Celeron^® Processors

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. Intel^® Z790 Express Chipset

1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor-Intel^® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

1. Realtek^® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

4. Support for S/PDIF Out

1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

3. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Chipset:

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support

2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header

3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector

2. 2 x 8-pin ATX 12V power connectors

3. 1 x CPU fan header

4. 1 x water cooling CPU fan header

5. 3 x system fan headers

6. 1 x system fan/water cooling pump header

7. 2 x addressable LED strip headers

8. 2 x RGB LED strip headers

9. 4 x M.2 Socket 3 connectors

10. 4 x SATA 6Gb/s connectors

11. 1 x front panel header

12. 1 x front panel audio header

13. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support

14. 1 x USB 3.2 Gen 1 header

15. 2 x USB 2.0/1.1 headers

16. 2 x Thunderbolt add-in card connectors

17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

18. 1 x reset button

19. 1 x Q-Flash Plus button

20. 1 x Clear CMOS button

21. 1 x reset jumper

22. 1 x Clear CMOS jumper

1. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

2. 2 x USB 3.2 Gen 2 Type-A ports (red)

3. 3 x USB 3.2 Gen 1 ports

4. 4 x USB 2.0/1.1 ports

5. 1 x HDMI 2.0 port

6. 1 x RJ-45 port

7. 1 x optical S/PDIF Out connector

8. 2 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

2. Support for Q-Flash

3. Support for Q-Flash Plus

4. Support for Smart Backup

1. Norton^® Internet Security (OEM version)

2. LAN bandwidth management software

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

1. ATX Form Factor; 30.5cm x 24.4cm
