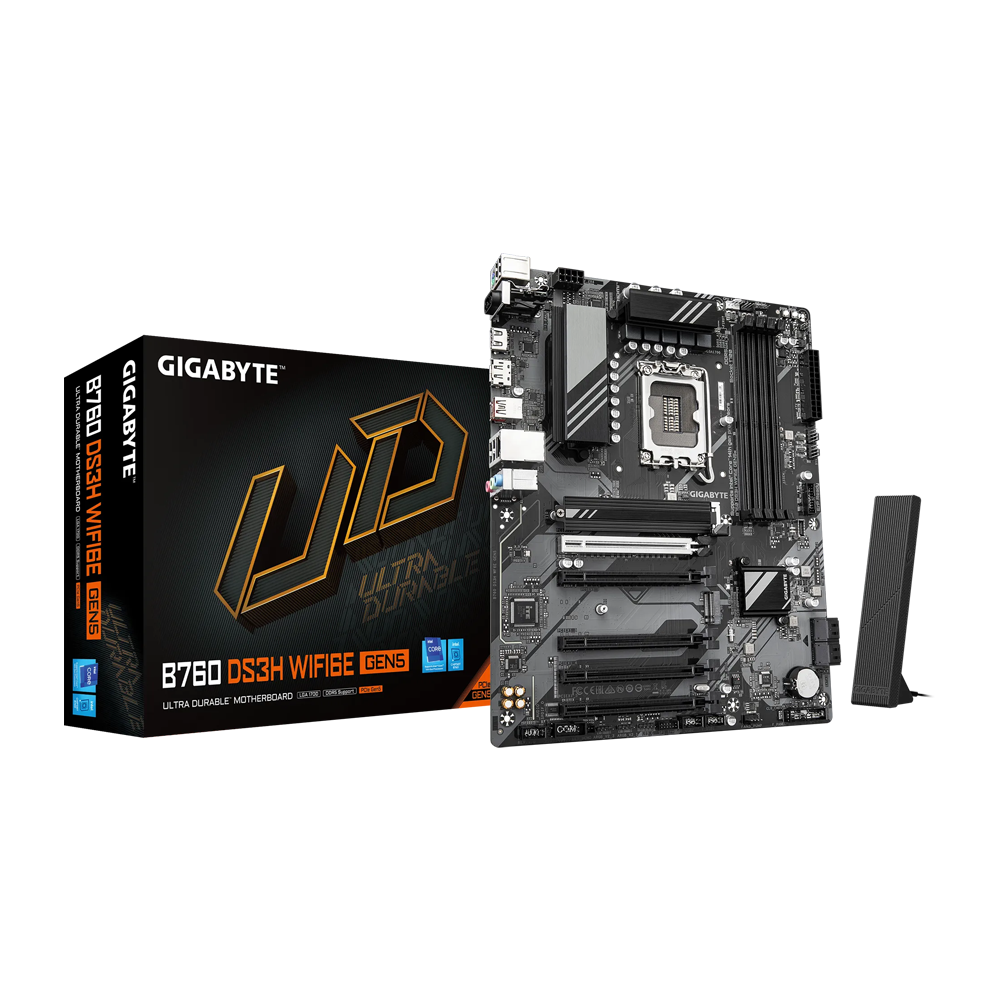

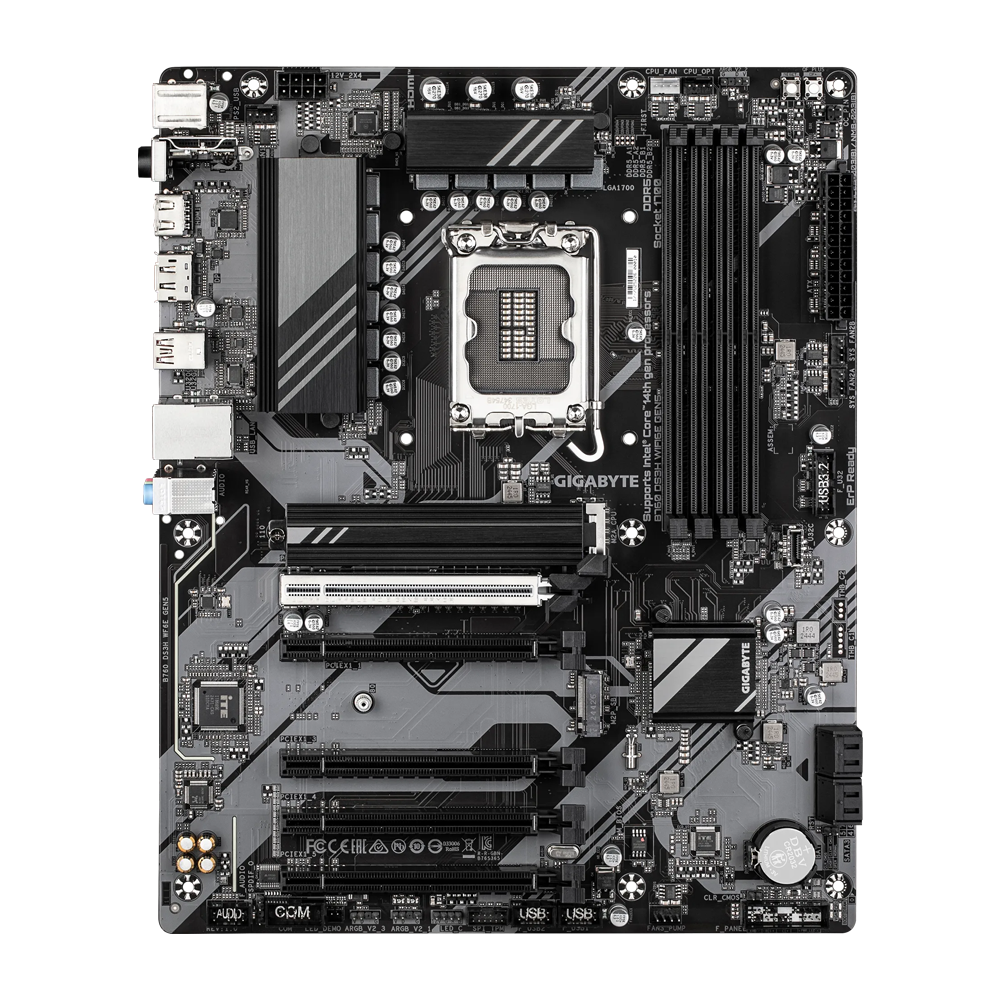

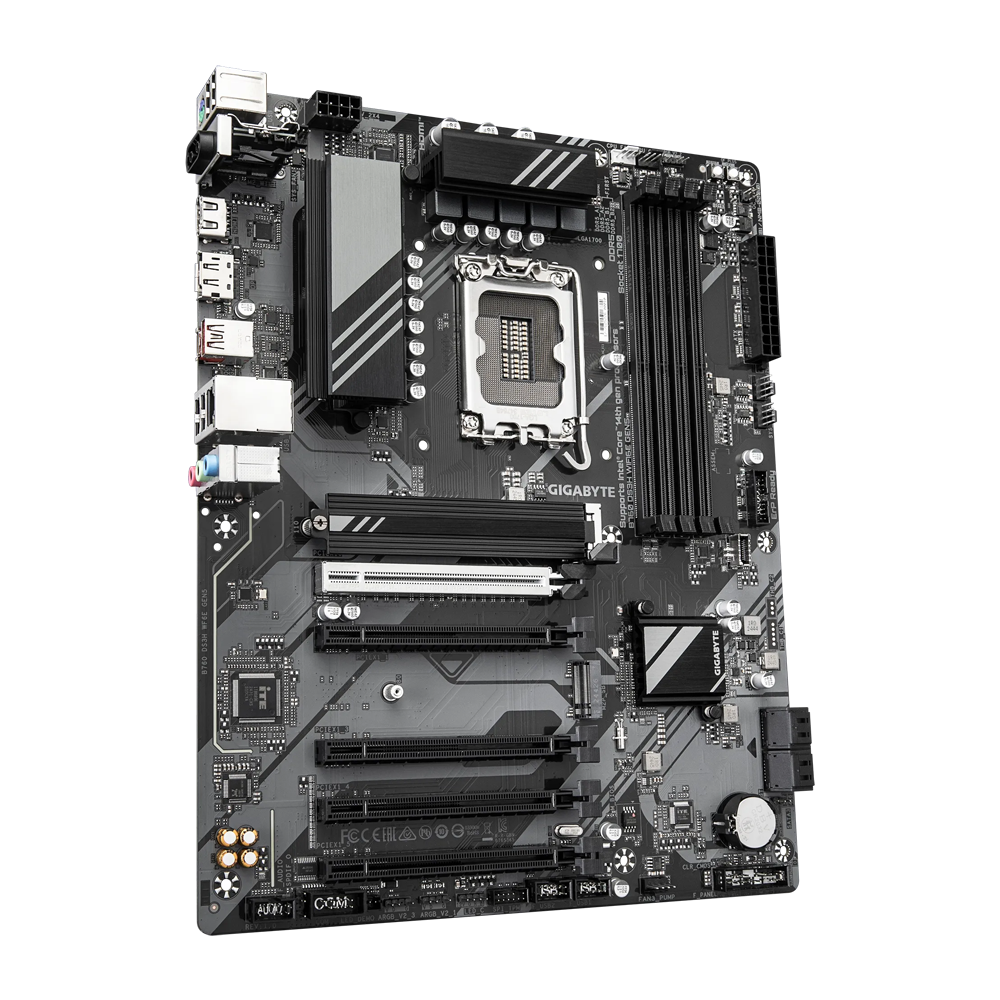

GIGBAYTE B760 DS3H WIFI6E GEN5 DDR5 Gaming Motherboard - Black

Key Features:

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel® Core™ 14th/ 13th /12th processors
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
• EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
• PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Hybrid 8+2+1 Phases VRM Solution
• Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
• Fast Networks : GbE LAN & Wi-Fi 802.11ax
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Extended Connectivity : Rear USB-C® 20Gb/s, DP, HDMI
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

B760 DS3H WIFI6E GEN5

Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

1.7X stronger shearing test

3.2X stronger retention force test

Reduced Signal Degradation with SMD Technology

UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections

VRM Thermal
Durable VRM heatsinks keep your system cool and efficient.

Smart Fan 6
Cool. Quiet. Customized.

2X
Massive cooling surface
Exceptional heat dissipation
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Unlock DDR5 Performance
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

DDR5 Overclocking Up to 7600 MT/s

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

WIFI Compass
Features auto detection to help users find the best antenna position for stronger Wi-Fi signal.

EZ-Latch Designs
User-friendly designs simplifying the assembly process.

PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

UC BIOS
Redesigned UI and UX
an intuitive operation interface with an aesthetically pleasing design.

Quick Access
9 customizable option slots for effortless access in Easy Mode.

PerfDrive
exclusive BIOS settings that optimize the performance based on the cooling configuration

Multi-key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.

Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

RGB Fusion
Personalize the RGB illumination on connected peripherals.

Specifications

• CPU
• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
  Pentium® Gold and Celeron® Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  L3 cache varies with CPU

• Chipset
• Intel® B760 Express Chipset

• Memory
• Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


  * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio
• Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  Support for S/PDIF Out

• LAN
• Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

• Wireless Communication module
• Intel® Wi-Fi 6E AX210
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots
• CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:
  - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)

• Storage Interface
• CPU:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB
• Chipset:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Q-Flash Plus button
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper

• Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
  2 x antenna connectors (2T2R)
  1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 2 Type-A port (red)
  4 x USB 2.0/1.1 ports
  1 x HDMI port (Note)
  1 x DisplayPort (Note)
  1 x RJ-45 port
  3 x audio jacks

  (Note) Actual support may vary by CPU

• I/O Controller
• iTE® I/O Controller Chip

• H/W Monitoring
• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS
• 1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features
• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software
• Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System
• Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor
• ATX Form Factor; 30.5cm x 24.4cm
