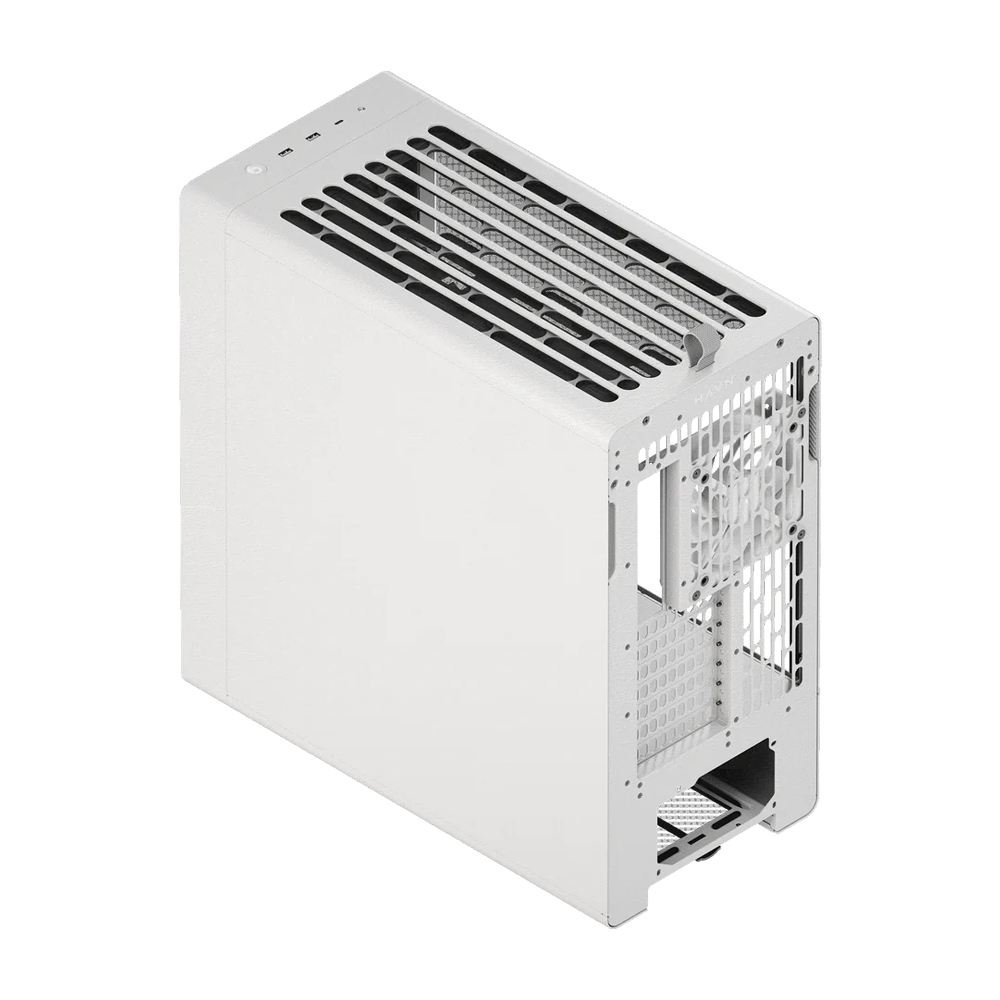

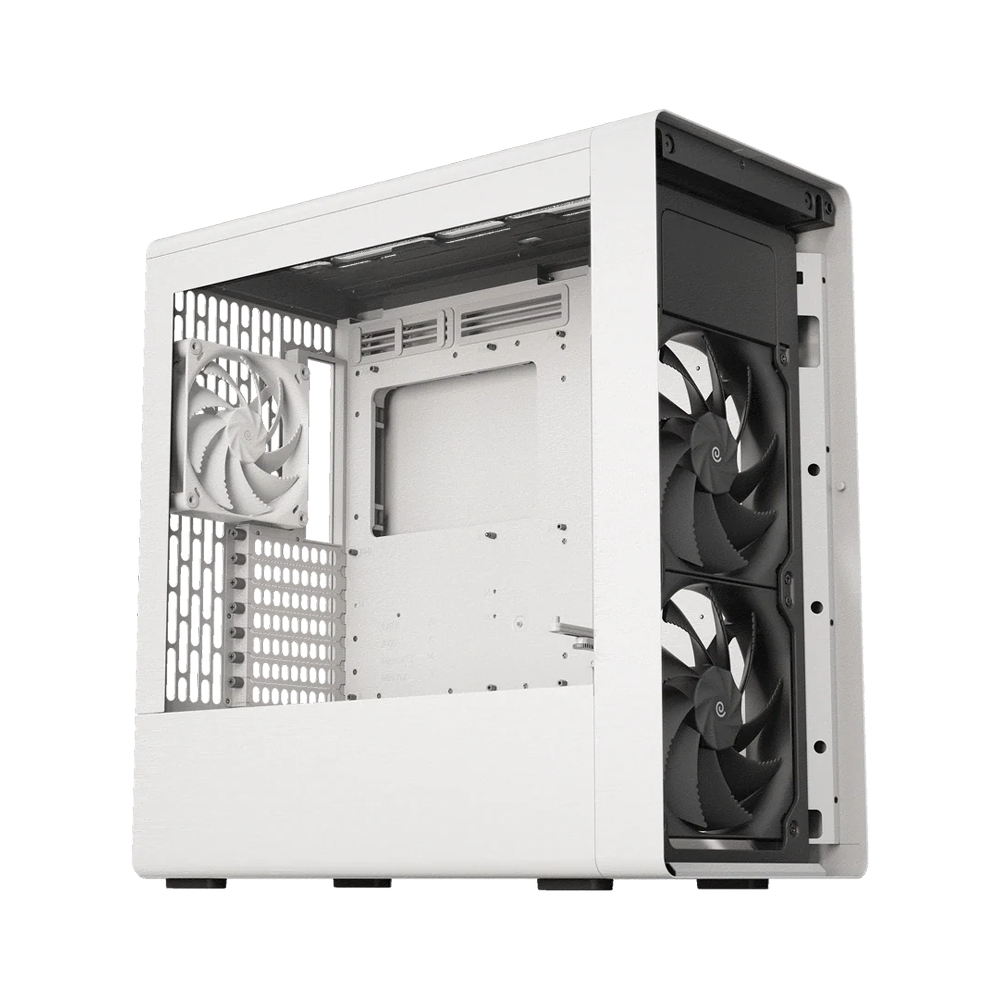

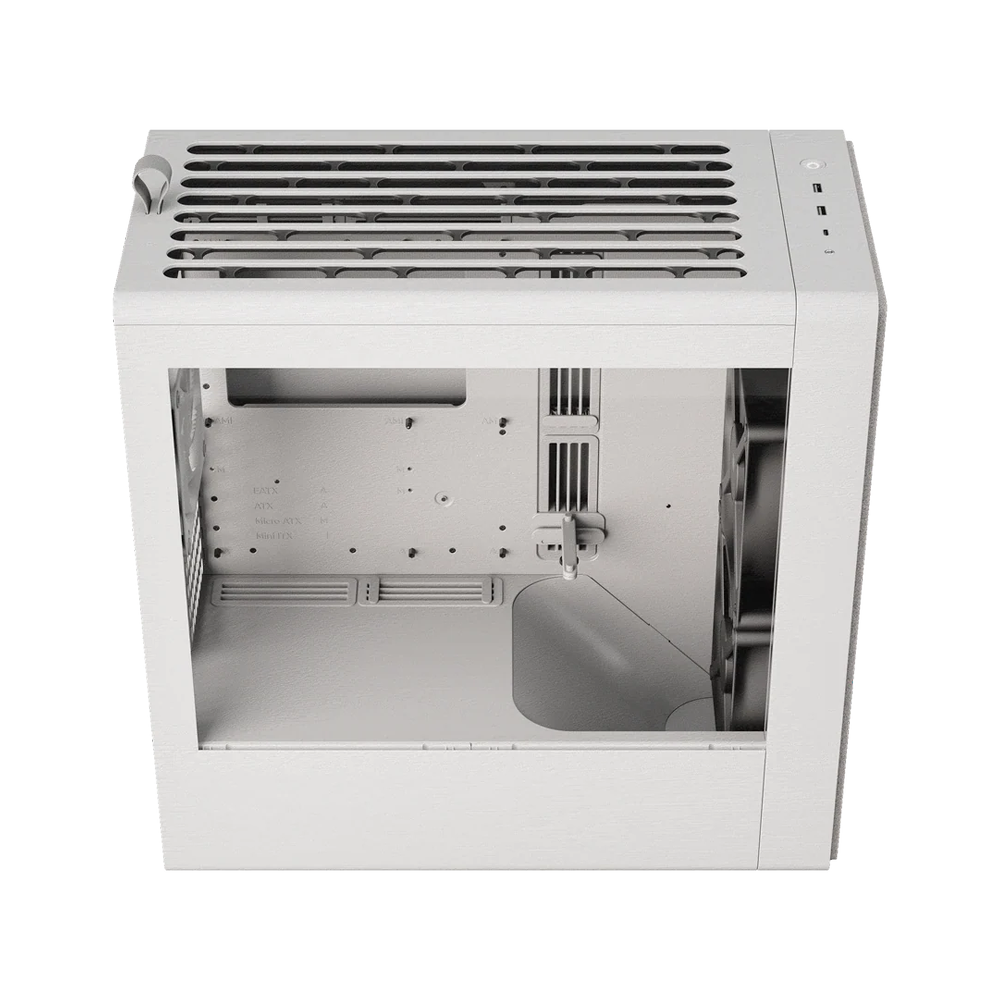

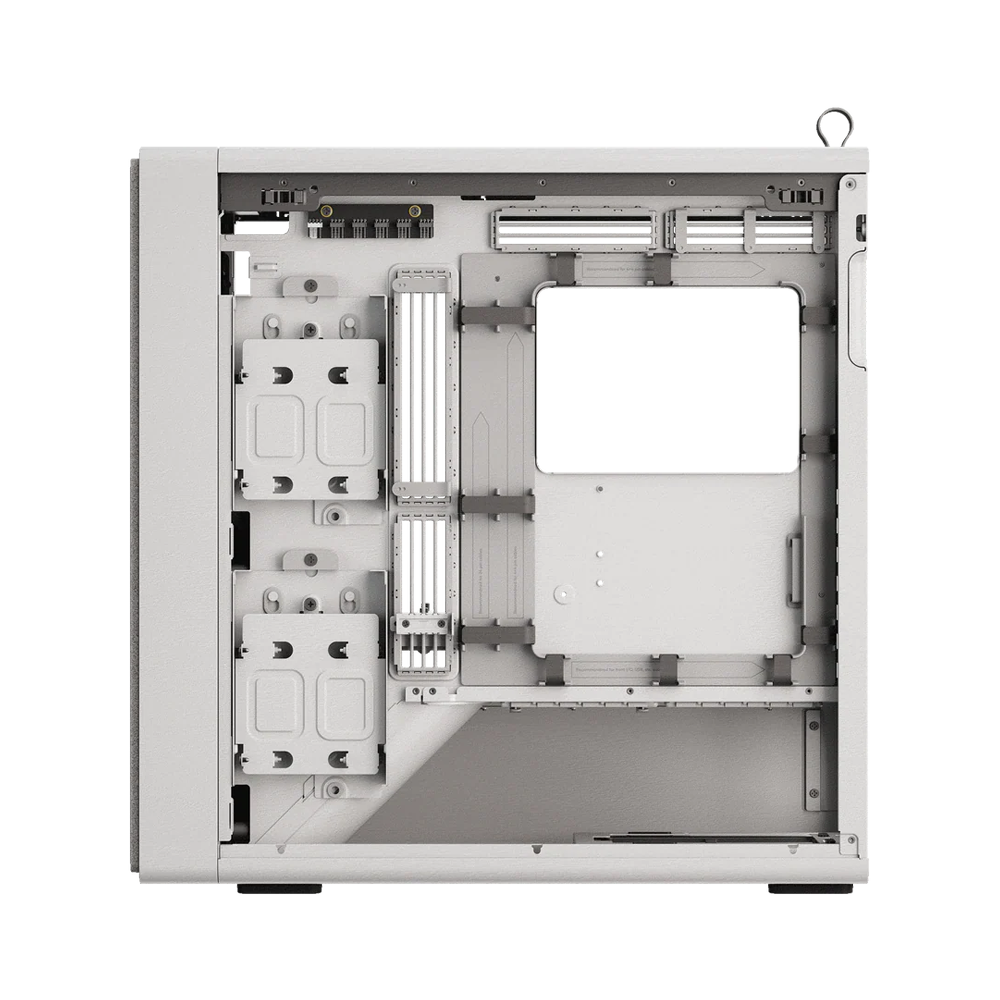

HAVN BF 360 Flow Mid Tower Case - White

Key Features:

• High-airflow ATX mid-tower with GPU-focused air guide ramp and dual 180mm fans.
• Ultra-quiet operation with premium FDB bearings and vibration isolation.
• Minimalistic stone-textured front panel with SimpliCable routing system for a cleaner build.

GPU-Focused Air Guide Ramp
Channels airflow directly to graphics card intake.

Precision Aerodynamic Design
Optimized airflow delivers efficient GPU cooling.

Semi-Open Frame Access
Easier upgrades and improved cooling efficiency.

Highly Adjustable GPU Support
Neatly hidden bracket stabilizes heavy GPUs.

Dual 180mm H18 Fans
Maximum airflow capacity for high-end GPUs.

Triple-Groove FDB Bearings
Long-lasting, whisper-quiet fan operation.

Stone-Textured Front Panel
Minimalistic stone-textured finish for premium aesthetic.

Specifications

• Form Factor : Mid Tower
• Material : SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
• PC Case Dimensions (L x W x H) : 515 x 254 x 522.6 mm
• Net Weight : 14.79 kg
• Front I/O : USB 3.2 Gen 2 Type-C x1
• USB 3.2 Gen 1 Type-A x2 :
• Audio Jack x1
• Power & Reset Button x1
• Motherboard Support : E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
• Expansion Slots : 7
• Fan Support : Maximum Amount: 6
• Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
• Front: 2 x 180 mm
• Left: N/A
• Right: N/A
• Bottom: N/A
• Rear: 1 x 140 / 1 x 120 mm
• Fan PWM Repeater : Fan Ports: 1 x PWM repeaters, 6 ports total
• Location: 1 x Cable Management Tray
• Fan Connectors: 6 ports per repeater x 4-pin PWM
• (Connect your primary fan to the white port to control PWM signal.
• All other ports mirror the white port's signal.)
• Fan Rated Voltage: 12V
• Fan Safety Current: Up to 2.6A across 6 ports
• Power Connector: 1 x SATA Power
• Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)
• CPU Tower Cooler Clearance : Height: Up to 195 mm.
• Liquid Cooling Support : Top: 240 / 280 / 360 mm
• Front: N/A
• Left: N/A
• Right: N/A
• Bottom: N/A
• Graphics Card Clearance : Length: Up to 410 mm
• Width: Up to 195 mm.
• GPU Support : 1 - 4.5 Slots
• RAM Clearance : If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm
• Power Supply Support : ATX
• Length: Up to 200mm (Clearance - 260mm)
• Storage : Right Mount: 2 Storage Bays: 2 x 3.5'' / 8 x 2.5''
• Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
• Storage Bay Included: 2x (2 x 3.5'' / 4 x 2.5'')
• Dust Filter : Front: 1 (Built-in)
• Top: 1 (Built-in)
• Rear Bottom: 1 (Removable)
• Pre-installed Fans : 2x H18 Fan (Front) - Case Version
• 1x H14 Fan (Rear) - Case Version
• (The Loopin™ System is available on the Retail Version only. Pre-installed case fans use single-female fan connectors.)
