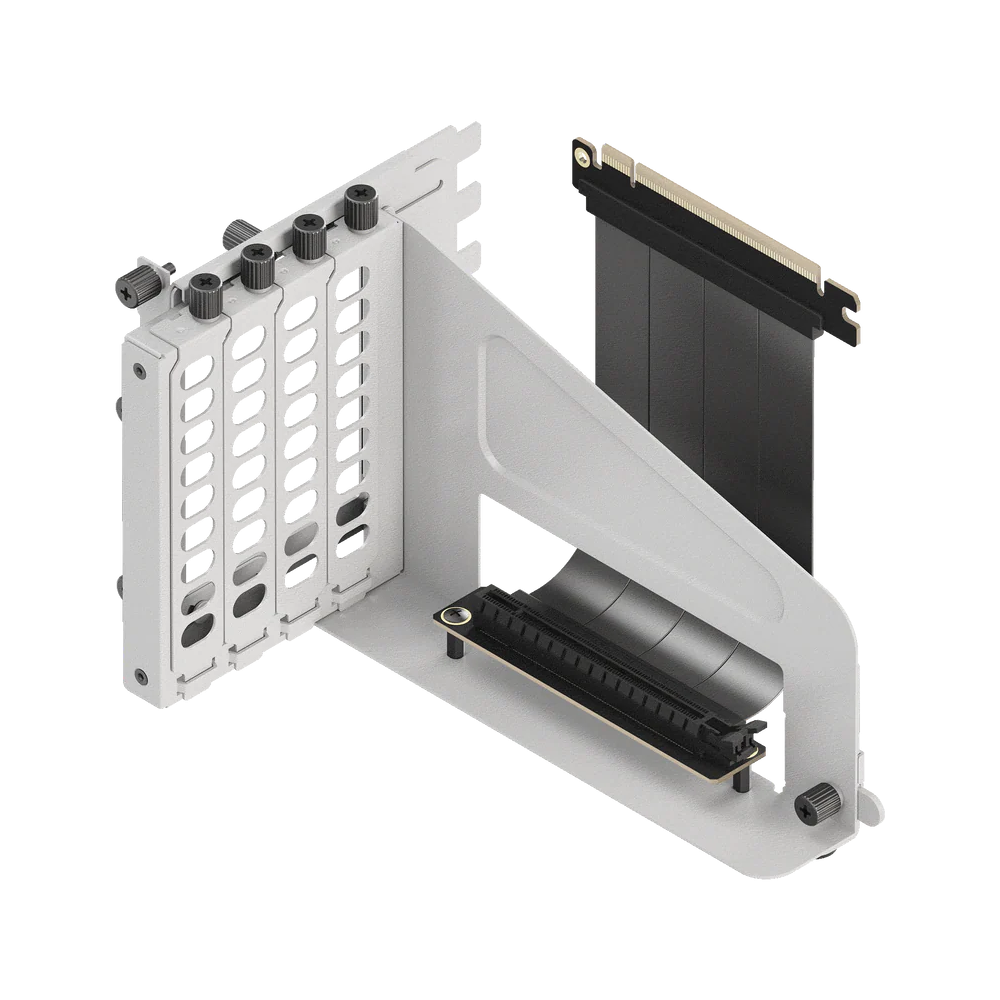

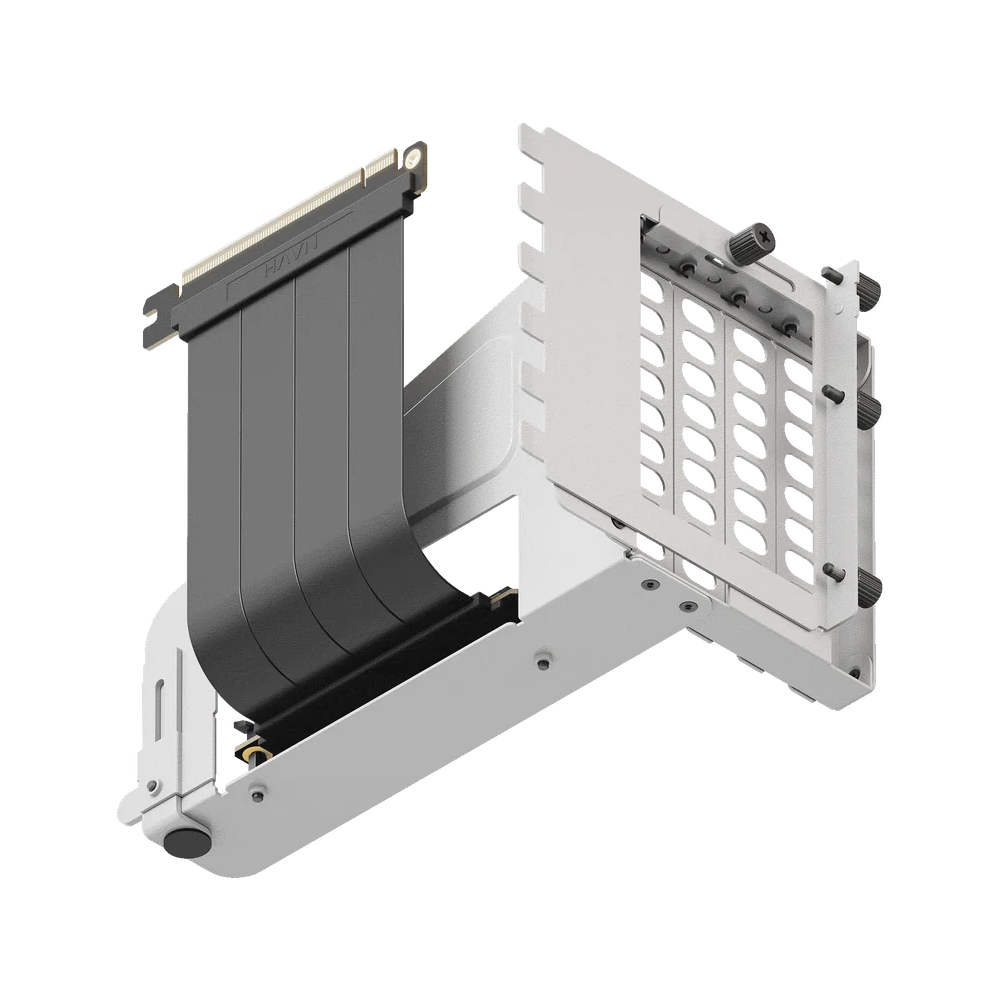

HAVN Universal Vertical GPU Kit - White
HAVN Universal Vertical GPU Kit - White
SKU:HVN-AS-UVGPK-50
QR Code : 1327821
In stock
Description
Description
Key Features:
- Six-Slot height adjustment for flexible GPU placement.
- Telescoping support foot fits PSU shrouds of varying heights.
- PCIe 5.0 riser cable from a premium Japanese supplier.
Adjustable Precision Control
Six-slot height, side-to-side, and telescoping support. PCIe 5.0 ready for next-gen GPUs.
Six-Slot Height Adjustment
Fine-tune GPU positioning for airflow and aesthetics.
Side-to-Side Clearance
Works with large CPU coolers and various case layouts.
Telescoping Support Foot
Adapts to PSU shroud height for stability.
PCIe 5.0 Riser Cable
Next-gen bandwidth with premium Japanese quality.
Specifications
- Dimensions : L x W x H : 213.95 x 142.85 x 135.3 mm
- GPU Support mount : Chassis GPU clearance refers to the maximum supported GPU length minus the 18 mm thickness of the VGPU mount
- Metal Material : SGCC Sheet Metal, 1215 Steel, ABS, PE, FFC, PA10T, TU883a
- Thickness : 0.8 mm, 1.0 mm, and 2.0 mm
- Screw Washers : ABS plastic
- Net Weight : 498 g
- Gross Weight : 854 g
- Riser Cable Spec.
-
- 190 mm (cable: 145 mm + connectors)
- PCI express 5.0
- X16 128 GB/s Speed
- Compatible with PCIe 4.0
- Cable Length 145 mm
- GPU Thickness - 4.5 slots
- GPU Width - GPU width depends on cooler size
- CPU center to graphics card PCIe edge - connector; ~ 199 mm (varies by motherboard)
- Recommended with liquid cooling
