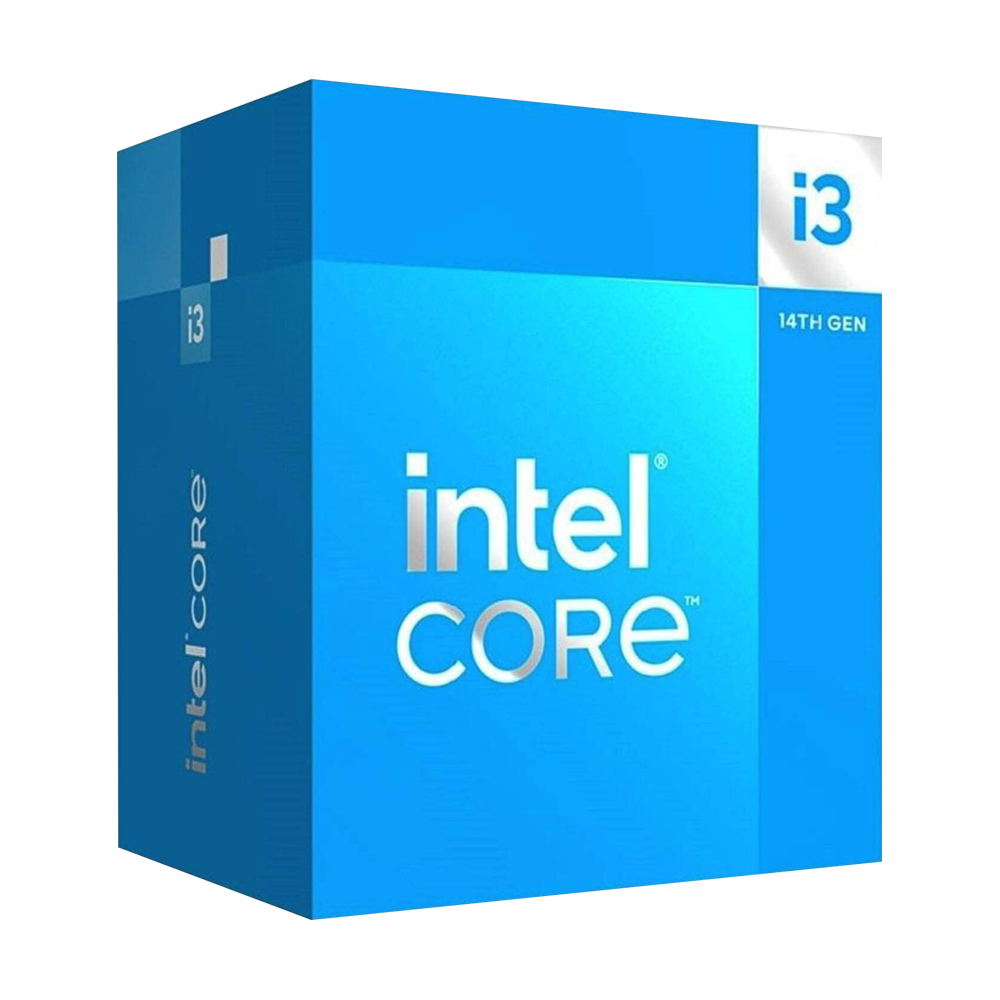

Intel Core i3 processor 14100F 12M Cache up to 4.70 GHz Processor

INTEL CORE i3-14100F 4-Core LGA 1700 14th Gen Processor

Power up your everyday tasks with the Intel Core i3-14100F 3.5 GHz 4-Core LGA 1700 Processor. Built with the Intel 7 process, this entry-level 14th generation desktop processor delivers optimized power efficiency with four 3.5 GHz Performance cores while fitting the LGA 1700 socket.

With 12MB of cache and a 4.7 GHz Max Turbo frequency, this processor is made to handle a variety of workloads. The Core i3-14100F also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 4800 MHz.

The Core i3-14100F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. A Laminar RM1 cooler is included.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Specifications

Essentials

• Product Collection : Intel® Core™ i3 Processors (14th gen)

• Code Name : Products formerly Raptor Lake

• Vertical Segment : Desktop

• Processor Number : i3-14100F

• Lithography : Intel 7

CPU Specifications

• Total Cores : 4

• # of Performance-cores : 4

• # of Efficient-cores : 0

• Total Threads : 8

• Max Turbo Frequency : 4.7 GHz

• Performance-core Max Turbo Frequency : 4.7 GHz

• Performance-core Base Frequency : 3.5 GHz

• Cache : 12 MB Intel® Smart Cache

• Total L2 Cache : 5 MB

• Processor Base Power : 58 W

• Maximum Turbo Power : 110 W

Supplemental Information

• Embedded Options Available : No

• Use Conditions : PC/Client/Tablet

Memory Specifications

• Max Memory Size (dependent on memory type) : 192 GB

• Memory Types : Up to DDR5 4800 MT/s

• Up to DDR4 3200 MT/s

• Max # of Memory Channels : 2

• Max Memory Bandwidth : 76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision : 4.0

• Max # of DMI Lanes : 8

• Scalability : 1S Only

• PCI Express Revision : 5.0 and 4.0

• PCI Express Configurations : Up to 1x16+4, 2x8+4

• Max # of PCI Express Lanes : 20

Package Specifications

• Sockets Supported : FCLGA1700

• Max CPU Configuration : 1

• Thermal Solution Specification : PCG 2020C

• TJUNCTION : 100°C

• Package Size : 45.0 mm x 37.5 mm

• Max Operating Temperature : 100 °C

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 3.0

• Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes

• Intel® Speed Shift Technology : Yes

• Intel® Turbo Boost Technology : 2.0

• Intel® Hyper-Threading Technology : Yes

• Intel® 64 : Yes

• Instruction Set : 64-bit

• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

• Idle States : Yes

• Enhanced Intel SpeedStep® Technology : Yes

• Thermal Monitoring Technologies : Yes

• Intel® Volume Management Device (VMD) : Yes

Security & Reliability

• Intel® Standard Manageability (ISM) : Yes

• Intel® Control-Flow Enforcement Technology : Yes

• Intel® AES New Instructions : Yes

• Secure Key : Yes

• Intel® OS Guard : Yes

• Execute Disable Bit  : Yes

• Intel® Boot Guard : Yes

• Mode-based Execute Control (MBEC) : Yes

• Intel® Virtualization Technology (VT-x)  : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d)  : Yes

• Intel® VT-x with Extended Page Tables (EPT)  : Yes
