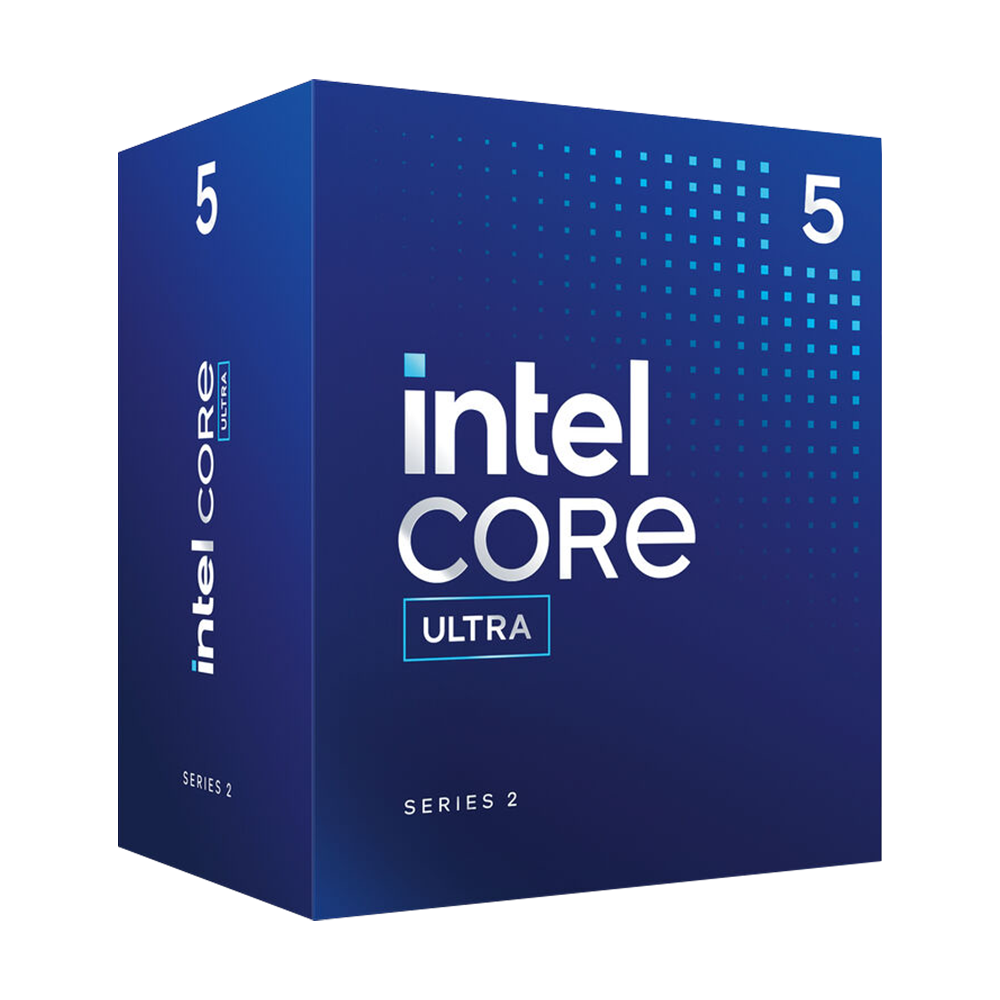

INTEL CORE Ultra 5 Processor 225

INTEL CORE Ultra 5 Processor 225

KWD 65.900
KWD 65.900 KWD 75.000
Sale

BX80768225

QR Code : 1330218

In stock

Manufacturer

Description

Key Features:

  • 10 Cores & 10 Threads

  • 3.3 GHz P-Core Clock Speed

  • 4.9 GHz Maximum Turbo Boost Frequency

  • LGA 1851 Socket

  • 20MB Cache Memory

  • Dual-Channel DDR5-6400 Memory

  • Integrated Intel Graphics & NPU

  • Hybrid Core Architecture

  • Includes Laminar RM2 Cooler

  • Arrow Lake-S Architecture

Power your productivity, gaming, and content creation experiences with the Intel Core Ultra 5 225 10-Core LGA 1851 Processor. Designed for everyday tasks and gaming, this desktop processor fits LGA 1851 socket motherboards and delivers improved power efficiency, stability, and performance with its optimized Hybrid Core Architecture, single-thread cores, and integrated NPU. Six 3.3 GHz Performance-cores drive applications while the four low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.With 20MB of cache and a 4.9 GHz Turbo Boost Max frequency, this processor is made to handle a variety of workloads. The Core Ultra 5 225 also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 6400 MHz.The Core Ultra 5 225 features integrated Intel Graphics. A Laminar RM2 cooler is included.

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 10 threads are assigned to the right core at the right time.

AI Ready

An integrated NPU can handle up to 13 trillion operations per second (TOPs), providing accelerated performance for AI applications and features.

PCIe 4.0 & 5.0

This processor supports PCIe 4.0 and PCIe 5.0 technologies, providing a combined total of 24 lanes for exceptional data throughput with compatible devices.

Integrated Graphics

The integrated Intel Graphics delivers fast, rich 3D performance for high-quality visuals.

Gaussian & Neural Accelerator

Gaussian and Neural Accelerator 3.5 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Specifications

Essentials

  • Product Collection : Intel® Core™ Ultra Processors (Series 2)

  • Code Name : Products formerly Arrow Lake

  • Vertical Segment : Desktop

  • Processor Number  : 225

  • Overall Peak TOPS (Int8)  : 23

CPU Specifications

  • Total Cores  : 10

  • # of Performance-cores : 6

  • # of Efficient-cores : 4

  • # of Low Power Efficient-cores : 0

  • Total Threads  : 10

  • Max Turbo Frequency  : 4.9 GHz

  • Performance-core Max Turbo Frequency  : 4.9 GHz

  • Efficient-core Max Turbo Frequency  : 4.4 GHz

  • Performance-core Base Frequency  : 3.3 GHz

  • Efficient-core Base Frequency  : 2.7 GHz

  • Cache  : 20 MB Intel® Smart Cache

  • Total L2 Cache : 22 MB

  • Processor Base Power  : 65 W

  • Maximum Turbo Power  : 121 W

  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU  : Yes

  • AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

  • CPU Lithography  : TSMC N3B

Supplemental Information

  • Embedded Options Available  : Yes

  • Use Conditions  : PC/Client/Tablet

Memory Specifications

  • Max Memory Size (dependent on memory type)  : 256 GB

  • Memory Types  : Up to DDR5 6400 MT/s

  • Max # of Memory Channels  : 2

  • ECC Memory Supported ‡  : No

GPU Specifications

  • GPU Name‡  : Intel® Graphics

  • Graphics Base Frequency  : 300 MHz

  • Graphics Max Dynamic Frequency  : 1.8 GHz

  • GPU Peak TOPS (Int8)  : 4

  • Graphics Output  : eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL

  • Xe-cores : 2

  • Max Resolution (HDMI)‡  : 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)

  • 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)

  • Max Resolution (DP)‡  : 7680 x 4320 @ 60Hz

  • Max Resolution (eDP - Integrated Flat Panel)‡  : 3840 x 2400 @ 120Hz

  • DirectX* Support  : 12

  • OpenGL* Support  : 4.5

  • OpenCL* Support  : 3

  • H.264 Hardware Encode/Decode  : Yes

  • H.265 (HEVC) Hardware Encode/Decode  : Yes

  • AV1 Encode/Decode  : Yes

  • Intel® Quick Sync Video  : Yes

  • # of Displays Supported ‡ : 4

  • Device ID : 0x7D67

  • Intel® Deep Learning Boost (Intel® DL Boost) on GPU  : Yes

  • AI Software Frameworks Supported by GPU

  • OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications

  • NPU Name‡ : Intel® AI Boost

  • NPU Peak TOPS (Int8)  : 13

  • Sparsity Support : Yes

  • Windows Studio Effects Support : Yes

  • AI Software Frameworks Supported by NPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

  • Direct Media Interface (DMI) Revision : 4

  • Max # of DMI Lanes : 8

  • Intel® Thunderbolt™ 4  : Yes

  • Scalability : 1S Only

  • PCI Express Revision  : 5.0 and 4.0

  • PCI Express Configurations ‡  : Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

  • Max # of PCI Express Lanes  : 24

Package Specifications

  • Sockets Supported  : FCLGA1851

  • Thermal Solution Specification  : PCG 2022C

  • Max Operating Temperature  : 105 °C

  • Package Size : 45 mm x 37.5 mm

Advanced Technologies

  • Intel® Gaussian & Neural Accelerator  : 3.5

  • Intel® Thread Director  : Yes

  • Intel® Speed Shift Technology  : Yes

  • Intel® Turbo Boost Technology ‡  : 2.0

  • Intel® Hyper-Threading Technology ‡  : No

  • Intel® 64 ‡  : Yes

  • Instruction Set  : 64-bit

  • Instruction Set Extensions  : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

  • Idle States  : Yes

  • Enhanced Intel SpeedStep® Technology  : Yes

  • Thermal Monitoring Technologies  : Yes

  • Intel® Volume Management Device (VMD)  : Yes

Security & Reliability

  • Intel® Threat Detection Technology (TDT) : Yes

  • Intel® Active Management Technology (AMT) ‡  : No

  • Intel® Standard Manageability (ISM) ‡  : Yes

  • Intel® Remote Platform Erase (RPE) ‡ : No

  • Intel® One-Click Recovery ‡ : No

  • Intel® Secure Key  : Yes

  • Intel® Control-Flow Enforcement Technology  : Yes

  • Intel® Total Memory Encryption - Multi Key : No

  • Intel® AES New Instructions  : Yes

  • Intel® Trusted Execution Technology ‡  : Yes

  • Execute Disable Bit ‡  : Yes

  • Intel® OS Guard : Yes

  • Intel® Boot Guard  : Yes

  • Mode-based Execute Control (MBEC)  : Yes

  • Intel® Stable IT Platform Program (SIPP)  : No

  • Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ : No

  • Intel® Virtualization Technology (VT-x) ‡  : Yes

  • Intel® Virtualization Technology for Directed I/O (VT-d) ‡  : Yes

  • Intel® VT-x with Extended Page Tables (EPT) ‡  : Yes
