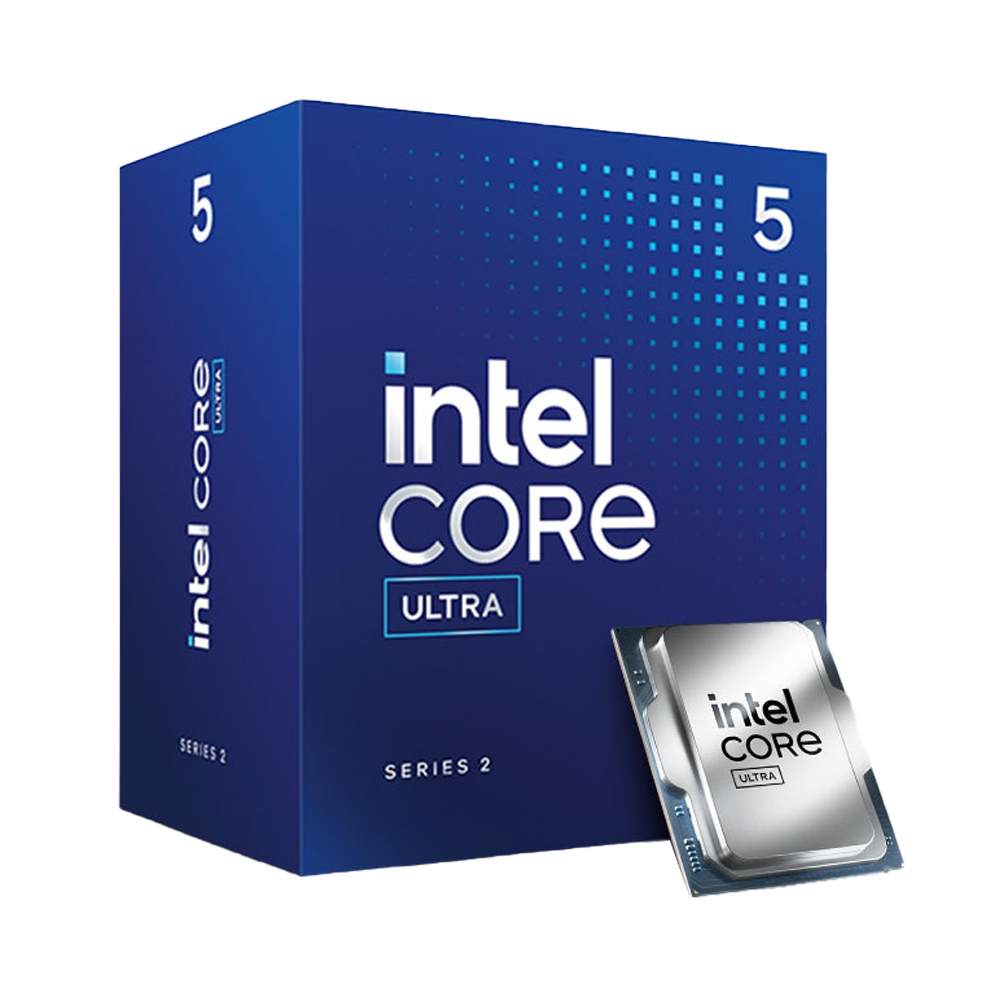

Intel Core Ultra 5 processor 225F

Key Features:

• Processor 10 Cores / 10 Threads

• 6 Performance-Cores (3.3 GHz – 4.9 GHz) + 4 Efficient-Cores (2.7 GHz – 4.4 GHz)

• L3 cache 20 MB + L2 cache 22 MB

• Memory controller: DDR5

• iGP: none

• PCI-E 5.0 compatible

• TDP: 65W

• Max. TDP (Turbo Power): 121W

• Fan included: Intel Laminar RM2

The Intel Core Ultra 5 225F desktop processor enables you to meet the challenges of today and tomorrow. Whether you’re gaming, streaming or creating content, Intel Core Ultra processors open up a whole new world of possibilities thanks to artificial intelligence. Enjoy an ultra-smooth gaming experience, optimal multitasking performance and improved energy efficiency with this processor designed for gamers and occasional content creators.

The new Intel Core Ultra processors are designed to boost the performance of your PC, so you can play, create and stream to your heart’s content. Faster and more energy-efficient than previous-generation processors, they deliver an enhanced user experience across the board. By unleashing the potential of your computer thanks to AI, Intel Core Ultra processors (r)open up the field of possibilities.

Revolutionary architecture

Be ready to enter the new era of gaming, choose a PC with AI equipped with an Intel Core Ultra processor. Enjoy top performance for streaming and gaming. Entrust tasks involving AI such as background suppression, audio optimisation and automatic framing to the Neural Processing Unit (NPU) and enjoy ideal streaming and gaming conditions.

Specifications

Essentials

• Product Collection : Intel® Core™ Ultra Processors (Series 2)

• Code Name : Products formerly Arrow Lake

• Vertical Segment : Desktop

• Processor Number  : 225F

• Overall Peak TOPS (Int8)  : 19

• CPU Specifications

• Total Cores  : 10

• # of Performance-cores : 6

• # of Efficient-cores : 4

• # of Low Power Efficient-cores : 0

• Total Threads  : 10

• Max Turbo Frequency  : 4.9 GHz

• Performance-core Max Turbo Frequency  : 4.9 GHz

• Efficient-core Max Turbo Frequency  : 4.4 GHz

• Performance-core Base Frequency  : 3.3 GHz

• Efficient-core Base Frequency  : 2.7 GHz

• Cache  : 20 MB Intel® Smart Cache

• Total L2 Cache : 22 MB

• Processor Base Power  : 65 W

• Maximum Turbo Power  : 121 W

• Intel® Deep Learning Boost (Intel® DL Boost) on CPU  : Yes

• AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• CPU Lithography  : TSMC N3B

• Supplemental Information

• Marketing Status : Launched

• Embedded Options Available  : No

• Use Conditions  : PC/Client/Tablet

• Datasheet : View now

• Memory Specifications

• Max Memory Size (dependent on memory type)  : 256 GB

• Memory Types  : Up to DDR5 6400 MT/s

• Max # of Memory Channels  : 2

• ECC Memory Supported ‡  : No

• GPU Specifications

• Graphics Output  : n/a

• Xe-cores : 0

• Intel® Quick Sync Video  : No

• # of Displays Supported  : 0

• NPU Specifications

• NPU Name : Intel® AI Boost

• NPU Peak TOPS (Int8)  : 13

• Sparsity Support : Yes

• Windows Studio Effects Support : Yes

• AI Software Frameworks Supported by NPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• Expansion Options

• Direct Media Interface (DMI) Revision : 4

• Max # of DMI Lanes : 8

• Intel® Thunderbolt™ 4  : Yes

• Scalability : 1S Only

• PCI Express Revision  : 5.0 and 4.0

• PCI Express Configurations  : Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

• Max # of PCI Express Lanes  : 24

• Package Specifications

• Sockets Supported  : FCLGA1851

• Thermal Solution Specification  : PCG 2022C

• Max Operating Temperature  : 105 °C

• Package Size : 45 mm x 37.5 mm

• Advanced Technologies

• Intel® Gaussian & Neural Accelerator  : 3.5

• Intel® Thread Director  : Yes

• Intel® Speed Shift Technology  : Yes

• Intel® Turbo Boost Technology ‡  : 2.0

• Intel® Hyper-Threading Technology : No

• Intel® 64  : Yes

• Instruction Set  : 64-bit

• Instruction Set Extensions

• Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

• Idle States  : Yes

• Enhanced Intel SpeedStep® Technology  : Yes

• Thermal Monitoring Technologies  : Yes

• Intel® Volume Management Device (VMD)  : Yes

• Security & Reliability

• Intel® Threat Detection Technology (TDT) : Yes

• Intel® Active Management Technology (AMT)  : No

• Intel® Standard Manageability (ISM)  : Yes

• Intel® Remote Platform Erase (RPE) : No

• Intel® One-Click Recovery  : No

• Intel® Secure Key  : Yes

• Intel® Control-Flow Enforcement Technology  : Yes

• Intel® Total Memory Encryption - Multi Key : No

• Intel® AES New Instructions  : Yes

• Intel® Trusted Execution Technology  : Yes

• Execute Disable Bit  : Yes

• Intel® OS Guard : Yes

• Intel® Boot Guard  : Yes

• Mode-based Execute Control (MBEC) : Yes

• Intel® Stable IT Platform Program (SIPP)  : No

• Intel® Virtualization Technology with Redirect Protection (VT-rp)  : No

• Intel® Virtualization Technology (VT-x) : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes

• Intel® VT-x with Extended Page Tables (EPT)  : Yes
