Intel Core Ultra 5 Processor 245K

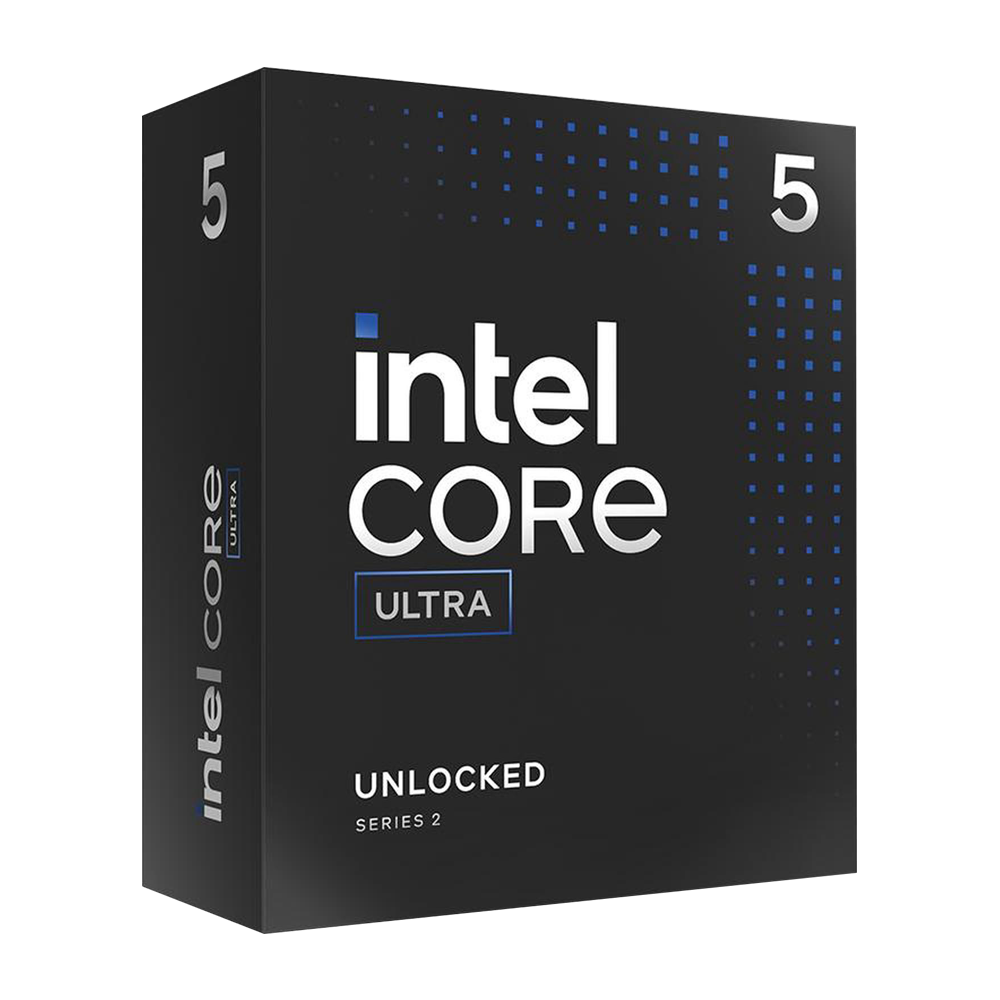

INTEL CORE ULTRA 5 - 245K 14-Core LGA 1851 Gaming Processor

Power your productivity, gaming, and content creation experiences with the Intel Core Ultra 5 245K 14-Core LGA 1851 Processor. Designed for content creators and gamers, this desktop processor fits LGA 1851 socket motherboards and delivers improved power efficiency, stability, and performance with its optimized Hybrid Core Architecture, single-thread cores, and integrated NPU. Six 4.2 GHz Performance-cores drive demanding applications while the eight low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 24MB of cache and a 5.2 GHz Turbo Boost Max frequency that can be pushed higher with Thermal Velocity Boost technology, this processor is made to handle a variety of workloads. You can overclock this processor for even greater performance. The Core Ultra 5 245K also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 6400 MHz.

The Core Ultra 5 245K features integrated Intel Graphics. Please note that a thermal solution is NOT included. This processor is backed

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 14 threads are assigned to the right core at the right time.

AI Ready

An integrated NPU can handle up to 13 trillion operations per second (TOPs), providing accelerated performance for AI applications and features.

PCIe 4.0 & 5.0

This processor supports PCIe 4.0 and PCIe 5.0 technologies, providing a combined total of 24 lanes for exceptional data throughput with compatible devices.

Thermal Velocity Boost

Intel Thermal Velocity Boost (TVB) is a technology that unlocks extra CPU performance by pushing the maximum frequency to 5.5 GHz when thermal headroom and turbo power budget are available. It is ideal for burst workloads that have sudden spikes in CPU utilization, providing a temporary performance boost to help avoid slowdowns.

Integrated Graphics

The integrated Intel Graphics delivers fast, rich 3D performance for high-quality visuals.
Gaussian & Neural Accelerator

Gaussian and Neural Accelerator 3.5 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Specifications

Essentials

• Product Collection : Intel® Core™ Ultra Processors (Series 2)

• Code Name : Products formerly Arrow Lake

• Vertical Segment : Desktop

• Processor Number : 245K

• Overall Peak TOPS (Int8) : 30

CPU Specifications

• Total Cores : 14

• # of Performance-cores : 6

• # of Efficient-cores : 8

• Total Threads : 14

• Max Turbo Frequency : 5.2 GHz

• Performance-core Max Turbo Frequency : 5.2 GHz

• Efficient-core Max Turbo Frequency : 4.6 GHz

• Performance-core Base Frequency : 4.2 GHz

• Efficient-core Base Frequency : 3.6 GHz

• Cache : 24 MB Intel® Smart Cache

• Total L2 Cache : 26 MB

• Processor Base Power : 125 W

• Maximum Turbo Power : 159 W

• Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes

• AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• CPU Lithography : TSMC N3B

Supplemental Information

• Embedded Options Available : No

• Use Conditions : PC/Client/Tablet, Workstation

• Datasheet : View now

Memory Specifications

• Max Memory Size (dependent on memory type) : 192 GB

• Memory Types : Up to DDR5 6400 MT/s

• Maximum Memory Speed : 6400 MHz

• Max # of Memory Channels : 2

• ECC Memory Supported  : Yes

GPU Specifications

• GPU Name : Intel® Graphics

• Graphics Base Frequency : 300 MHz

• Graphics Max Dynamic Frequency : 1.9 GHz

• GPU Peak TOPS (Int8) : 8

• Graphics Output : DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

• Xe-cores : 4

• Max Resolution (HDMI)‡ : 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

• Max Resolution (DP) : 8K @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel) : 4K @ 60Hz

• DirectX* Support : 12

• OpenGL* Support : 4.5

• OpenCL* Support : 3Intel® Quick Sync Video : Yes

• # of Displays Supported  : 4

• Device ID : 0x7D67

• Intel® Deep Learning Boost (Intel® DL Boost) on GPU : Yes

NPU Specifications

• NPU Name : Intel® AI Boost

• NPU Peak TOPS (Int8) : 13

• Sparsity Support  : Yes

• Windows Studio Effects Support : Yes

• AI Software Frameworks Supported by NPU

• OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• Direct Media Interface (DMI) Revision : 4

• Max # of DMI Lanes : 8

• Intel® Thunderbolt™ 4 : Yes

• Scalability : 1S Only

• PCI Express Revision : 5.0 and 4.0

• PCI Express Configurations  : Up to 1x16+2x4, 2x8+2x4,

                                                                    1x8+4x4

• Max # of PCI Express Lanes : 24

Package Specifications

• Sockets Supported : FCLGA1851

• Thermal Solution Specification : PCG 2020A

• Max Operating Temperature : 105 °C

• Advanced Technologies

• Intel® Volume Management Device (VMD) : Yes

• Intel® Gaussian & Neural Accelerator : 3.5

• Intel® Thread Director : Yes

• Intel® Speed Shift Technology : Yes

• Intel® Turbo Boost Technology  : 2.0

• Intel® 64  : Yes

• Instruction Set : 64-bit

• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

• Idle States : Yes

• Enhanced Intel SpeedStep® Technology : Yes

• Thermal Monitoring Technologies  : Yes

Security & Reliability

• Intel vPro® Eligibility  : Intel vPro® Enterprise, Intel vPro® Platform

• Intel® Threat Detection Technology (TDT) : Yes

• Intel® Active Management Technology (AMT)  : Yes

• Intel® Standard Manageability (ISM)  : Yes

• Intel® Remote Platform Erase (RPE)  : Yes

• Intel® One-Click Recovery  : Yes

• Intel® Hardware Shield Eligibility  : Yes

• Intel® Control-Flow Enforcement Technology : Yes

• Intel® Total Memory Encryption - Multi Key : Yes

• Intel® AES New Instructions : Yes

• Secure Key : Yes

• Intel® Trusted Execution Technology  : Yes

• Execute Disable Bit  : Yes

• Intel® OS Guard : Yes

• Intel® Boot Guard : Yes

• Mode-based Execute Control (MBEC) : Yes

• Intel® Stable IT Platform Program (SIPP) : Yes

• Intel® Virtualization Technology with Redirect Protection (VT-rp)  : Yes

• Intel® Virtualization Technology (VT-x)  : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d)  : Yes

• Intel® VT-x with Extended Page Tables (EPT)  : Yes
