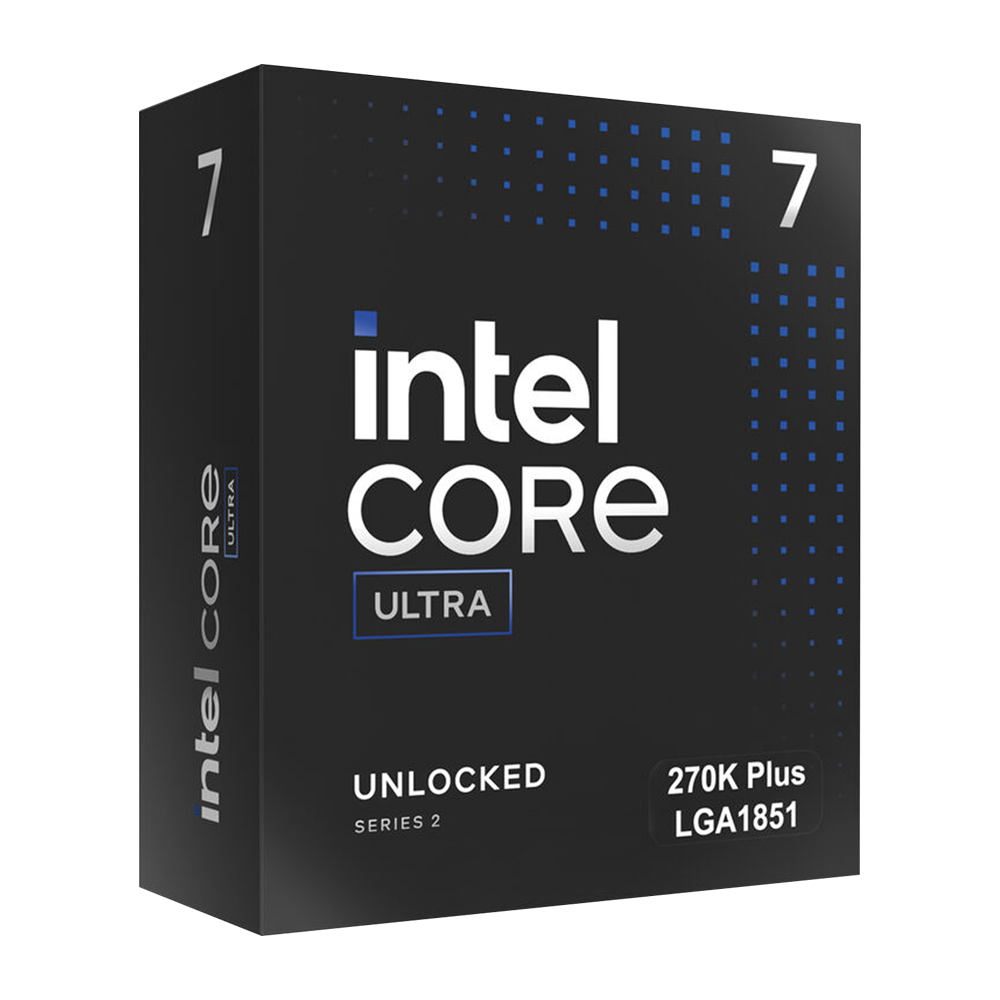

Intel Core Ultra 7 Processor 270K Plus

Intel Core Ultra 7 Processor 270K Plus

The Intel Core Ultra 7 270K Plus is a 24-core (8P+16E) desktop processor built for the LGA 1851 socket. Featuring a 5.5 GHz boost clock and 36 MB of L3 cache, it delivers highly competitive gaming and multi-threaded performance, often retailing around $300 to help it rival top-end competitors.

Specifications

Essentials

• Product Collection : Intel® Core™ Ultra Processors (Series 2)

• Code Name : Products formerly Arrow Lake

• Vertical Segment : Desktop

• Processor Number  : 270K PLUS

• Overall Peak TOPS (Int8)  : 36

CPU Specifications

• Total Cores  : 24

• # of Performance-cores : 8

• # of Efficient-cores :16

• # of Low Power Efficient-cores : 0

• Total Threads  : 24

• Max Turbo Frequency  : 5.5 GHz

• Intel® Turbo Boost Max Technology 3.0 Frequency : 5.5 GHz

• Performance-core Max Turbo Frequency  : 5.4 GHz

• Efficient-core Max Turbo Frequency  : 4.7 GHz

• Performance-core Base Frequency  : 3.7 GHz

• Efficient-core Base Frequency  : 3.2 GHz

• Cache  : 36 MB Intel® Smart Cache

• Total L2 Cache : 40 MB

• Processor Base Power  : 125 W

• Maximum Turbo Power  : 250 W

• Intel® Deep Learning Boost (Intel® DL Boost) on CPU  : Yes

• AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• CPU Lithography  : TSMC N3B

• Supplemental Information  : Marketing Status

• Embedded Options Available  : No

• Use Conditions  : PC/Client/Tablet, Workstation

• Datasheet : View now

Memory Specifications

• Max Memory Size (dependent on memory type)  : 256 GB

• Memory Types  : Up To DDR5 7200 MT/s

• Max # of Memory Channels   : 2

• ECC Memory Supported  : Yes

GPU Specifications

• GPU Name : Intel® Graphics

• Graphics Base Frequency  : 300 MHz

• Graphics Max Dynamic Frequency  : 2 GHz

• GPU Peak TOPS (Int8)  : 8

• Graphics Output  : eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL

• Xe-cores : 4

• Max Resolution (HDMI) : 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)

• 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)

• Max Resolution (DP) : 7680 x 4320 @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel)‡

• 3840 x 2400 @ 120Hz

• DirectX* Support  : 12

• OpenGL* Support  : 4.5

• OpenCL* Support : 3

• H.264 Hardware Encode/Decode  : Yes

• H.265 (HEVC) Hardware Encode/Decode  : Yes

• AV1 Encode/Decode  : Yes

• Intel® Quick Sync Video  : Yes

• # of Displays Supported : 4

• Device ID : 0x7D67

• Intel® Deep Learning Boost (Intel® DL Boost) on GPU  : Yes

• AI Software Frameworks Supported by GPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications

• NPU Name :Intel® AI Boost

• NPU Peak TOPS (Int8)  : 13

• Sparsity Support : Yes

• Windows Studio Effects Support : Yes

• AI Software Frameworks Supported by NPU

• OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• Direct Media Interface (DMI) Revision : 4

• Max # of DMI Lanes : 8

• Intel® Thunderbolt™ 4  : Yes

• Scalability : 1S Only

• PCI Express Revision  : 5.0 and 4.0

• PCI Express Configurations  : Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

• Max # of PCI Express Lanes  : 24

Package Specifications

• Sockets Supported  : FCLGA1851

• Thermal Solution Specification  : PCG 2020A

• Max Operating Temperature  : 105 °C

• Package Size : 45 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator  : 3.5

• Intel® Thread Director  : Yes

• Intel® Speed Shift Technology  : Yes

• Intel® Turbo Boost Max Technology 3.0 : Yes

• Intel® Turbo Boost Technology  : 2.0

• Intel® Hyper-Threading Technology  : No

• Intel® 64  : Yes

• Instruction Set  : 64-bit

• Instruction Set Extensions  : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

• Idle States  : Yes

• Enhanced Intel SpeedStep® Technology  : Yes

• Thermal Monitoring Technologies  : Yes

• Intel® Volume Management Device (VMD)  : Yes

Security & Reliability

• Intel vPro® Eligibility : Intel vPro® Enterprise

• Intel® Threat Detection Technology (TDT) : Yes

• Intel® Active Management Technology (AMT) : Yes

• Intel® Standard Manageability (ISM)  : Yes

• Intel® Remote Platform Erase (RPE) : Yes

• Intel® One-Click Recovery  : Yes

• Intel® Secure Key  : Yes

• Intel® Control-Flow Enforcement Technology  : Yes

• Intel® Total Memory Encryption - Multi Key : Yes

• Intel® AES New Instructions  : Yes

• Intel® Trusted Execution Technology : Yes

• Execute Disable Bit : Yes

• Intel® OS Guard : Yes

• Intel® Boot Guard  : Yes

• Mode-based Execute Control (MBEC)  : Yes

• Intel® Stable IT Platform Program (SIPP)  : Yes

• Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes

• Intel® Virtualization Technology (VT-x) : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes

• Intel® VT-x with Extended Page Tables (EPT) : Yes
