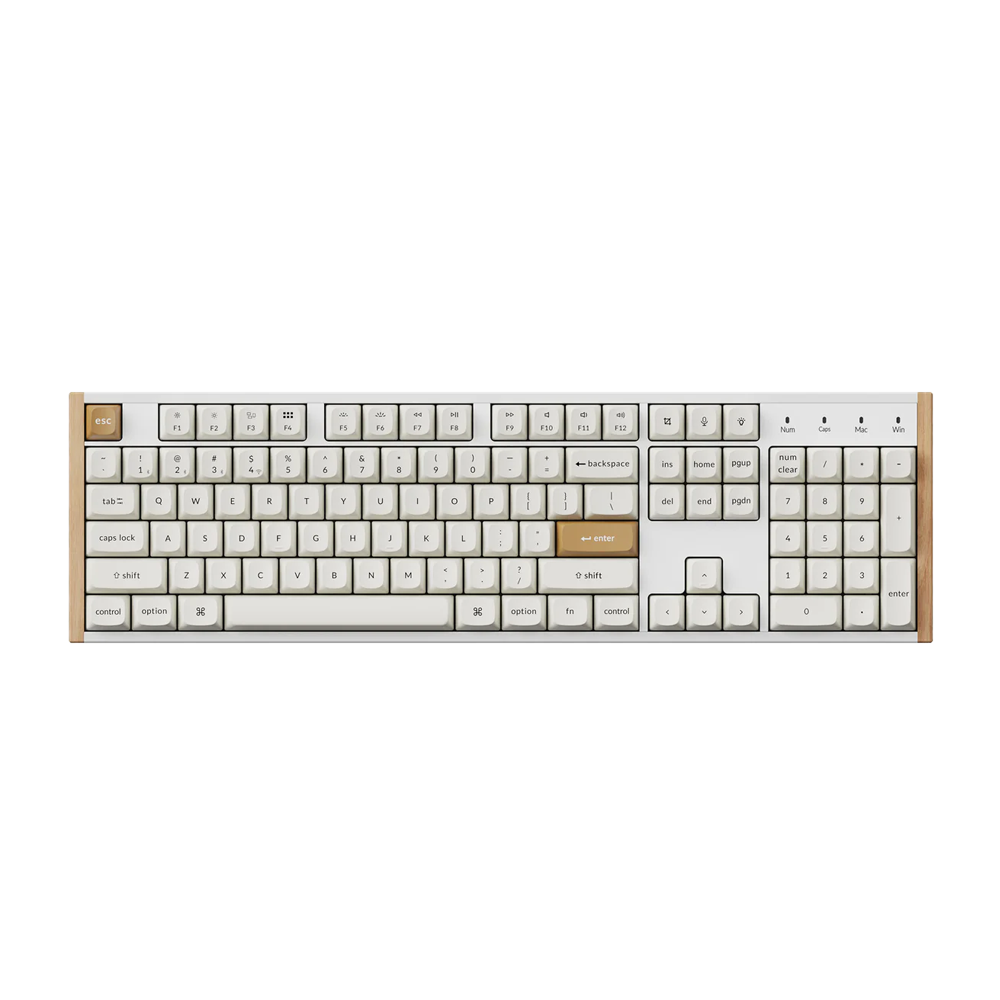

KEYCHRON K10 HE Special Edition 80% Wireless Mechanical Gaming Keyboard AR - Silver

Key Features:

• The keyboard PCB, the case, and the aluminum plate.
• Keycaps (included Mac & Windows keycaps).
• Adjustable-actuation-point Gateron double-rail magnetic switches.

The K10 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches, such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.

KEYCHRON K10 HE
Transform your gaming and typing experience with the Keychron K10 HE. Combining classic mechanical feel with cutting-edge magnetic technology, it offers exceptional performance in a sleek design—enhanced by elegant natural rosewood accents.

A fully customizable 100% layout wireless keyboard with magnetic switches — a breakthrough in switch technology, which—instead of physical contacts—uses magnetic sensors to measure actuation depth, putting you in total control over the response of each and every switch.

COLOR VERSIONS

Special Edition ＆ Standard Version
The Special Edition offers two colorways, both with natural rosewood accents—light wood for the white version and dark wood for the black version. Both editions feature OSA profile double-shot PBT keycaps and aluminum with wooden frames.

The Standard Version features Cherry profile double-shot shine-through PBT keycaps and aluminum frames.

switch

Gateron Double-Rail Magnetic Switches
Keychron K10 HE comes with pre-lubed Gateron double-rail magnetic switches for an ultra-stable and ultra-responsive typing experience with an industry leading, lightning-fast response time, and precise control over the way your keyboard feels and responds. Jump into action with unmatched smoothness and stability.

MAGNETIC SWITCH

ADVANCED TMR SENSORS
Equipped with cutting-edge Tunneling Magnetoresistance (TMR) technology to detect precise distance and magnetic field variations through subtle resistance shifts. Every key features a dedicated TMR sensor for superior resolution, delivering pinpoint accuracy, ultra-low latency, and an unparalleled magnetic switch input experience.

Magnetic Field Sensitivity: up to 100 mV/V/Oe

Magnetic Switch

Adjustable Actuation Point
Customize each key with precision, adjusting actuation points from 0.2 to 3.8 mm with 0.1 mm sensitivity. Set shallow keypresses for instant actions and deeper ones for deliberate engagement, minimizing accidental touches and giving you an edge in both gaming and typing.

Magnetic Switch

Last Key Priority (LKP) & Snap Click
LKP allows seamless directional changes by prioritizing the last key pressed, ensuring smoother gameplay in titles like Valorant. With Snap Click, deeper keypresses take precedence when two keys are hit at once, automatically resetting shallower presses.

*They are disabled by default, but you can easily enable them in our Launcher web app when needed.

Magnetic Switch

One Key. Multiple Actions
Thanks to Dynamic Keystrokes (DKS), you can now assign up to 4 distinct actions per key based on press depth. A light press moves your character, a deeper press makes them run, and releasing the key enables additional commands. This layered control lets you execute multiple moves with ease,

Magnetic Switch

Dynamic Rapid Trigger
Activate or deactivate keys based on how far they travel, not predefined points. This means immediate key reactions—press to activate, release to reset—allowing for faster, more precise keystrokes. In rapid gameplay, this translates to executing complex actions in real-time without delay, giving you a serious advantage during fast-paced sequences.

Magnetic Switch

Analog Mode
Experience the power of Analog Mode on your K10 HE, bringing game controller-like precision to your keyboard. This mode enables variable inputs instead of the usual on/off signals, letting you achieve more fluid and dynamic control.
With each keypress, the K10 HE detects how far you press, translating it into different speeds and intensities. Enjoy nuanced control and heightened responsiveness in racing games, sports simulations, and more.

LAUNCHER WEB APP

Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

PRECISION

2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the K10 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the K10 HE via Bluetooth 5.2 to three devices.

The K10 HE keyboard delivers exceptional latency performance within its class, outperforming other flagship keyboards in the industry.

POWERFUL ARM CORE

An Epic Core Inside The Keyboard
Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

Customise

Satisfying Keyboard Acoustics
With pre-lubed switches, 3.5 mm thick EVA acoustic foam, EPDM foam, and a silicone pad inside the keyboard, the Keychron K10 HE delivers an exceptionally satisfying, soft, and thocky typing sound, enhancing your typing experience.

CUSTOMIZE

Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the K10 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

KEYCAP

Double-shot PBT Keycaps
The PBT keycaps (shine-through cherry profile on the standard version, non-shine-through OSA profile for the special editions) will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

CUSTOMIZE HOT-SWAPPABLE
Unlike mechanical switches, which depend on physical contact, magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible magnetic switches.

*The K10 HE is compatible with the double-rail magnetic switches sold on the Keychron website only.

STABILITY

Newly Enhanced Stabilizers
Our upgraded stabilizers now feature reinforced sidewalls around the stem, providing extra protection and significantly improving stability. These "walls" create a stronger connection between the switches and keycaps, ensuring smoother, more reliable typing on big keys like the spacebar, shift, enter, and delete.

Backlight

North-facing RGB LED Lights
Choose between 22+ backlight modes, and tune the hue, saturation, brightness, and effect speeds right inside the Keychron Launcher web app. Match your style and create an atmosphere that’s uniquely yours.

Specifications

Product Information

• Size : Standard Version: 440.2 x 129.2 mm
• Sepcial Edition: 444.6 x 129.2 mm
• Front Height : Standard Version: 33.4 mm (incl. keycap)
• Special Edition: 32.94 mm (incl. keycap)
• Back Height : Standard Version: 40.3 mm (incl. keycaps)
• Special Edition: 39.52 mm (incl. keycaps)
• Feet Height : no
• Angle : 3.5° / 7.7° / 11°
• Weight : Standard Version: Approx. 1320 g
• Special Edition: Approx. 1310 g
• Body Material : Standard Version: Aluminum
• Special Edition: Aluminum + Frame
• Keycap : Standard Version: Cherry Profile Double-shot keycaps, shine-through
• Special Edition: OSA Double-shot keycaps, not shine-through
• Plate Material : Aluminum
• Switch : Gateron Double-rail Magnetic Switch
• Stabilizer : Screw-in PCB Stabilizer
• Backlight : North-facing RGB
• Battery : 4000 mAh Rechargeable li-polymer battery
• Compatible System
• Windows/ macOS/ Linux
• Operating Environment : -10 to 50℃

Performance

• Connectivity : 2.4 GHz / Bluetooth / Type-C wired
• Polling Rate : 1000 Hz (Wired and 2.4 GHz)
• 125 Hz (Bluetooth)
• N-Key Rollover (NKRO) : Yes (wireless & wired)
• Rapid Trigger : Yes
• Sensitivity : 0.1mm
• Adjustable Ac-tuation Points : 0.2 - 3.8mm
• Dynamic Keystrokes : 4-in-1 action keys
• Wireless Working Time : Up to 120 hours (Lab test results may vary based on actual use)
• Hot-swappable : Yes, compatible with Gateron double-rail magnetic switch only.
• MCU : 256KB
• Bluetooth Device Name : Keychron K10 HE
• Keychron K10 HE User Guide
