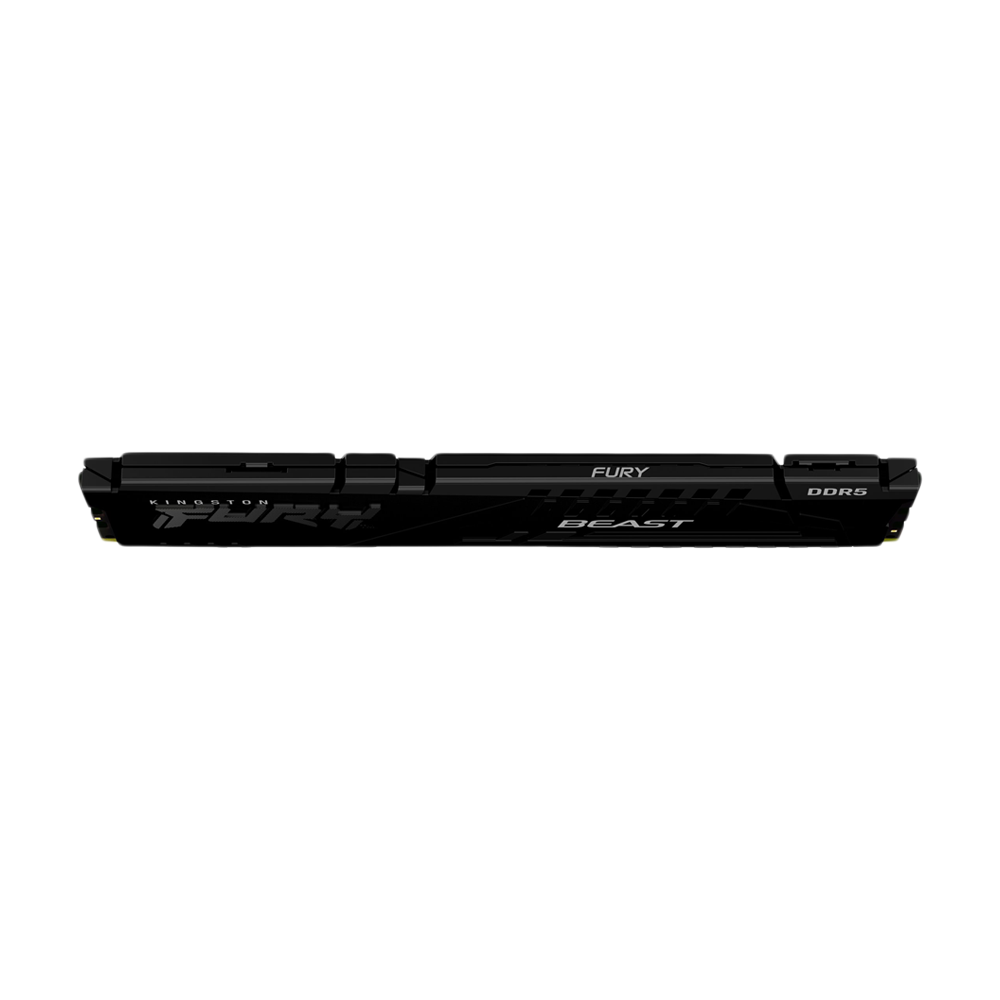

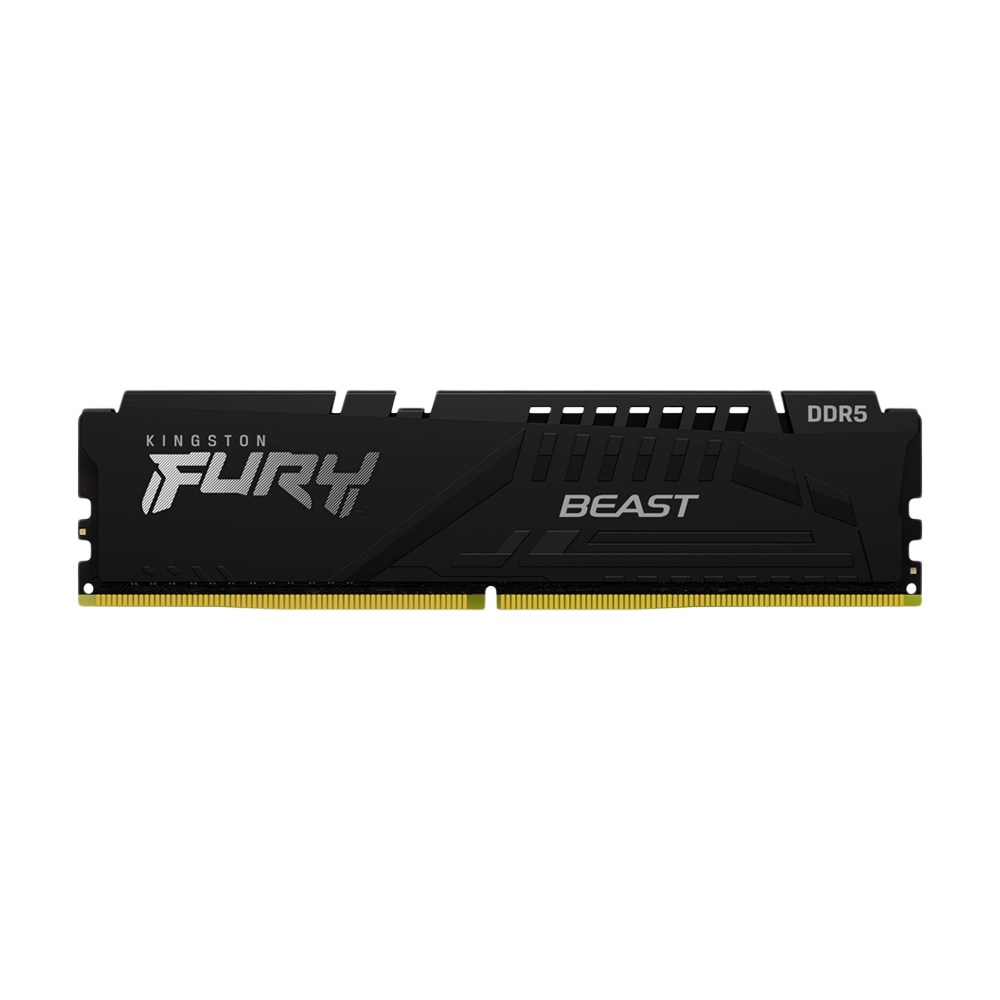

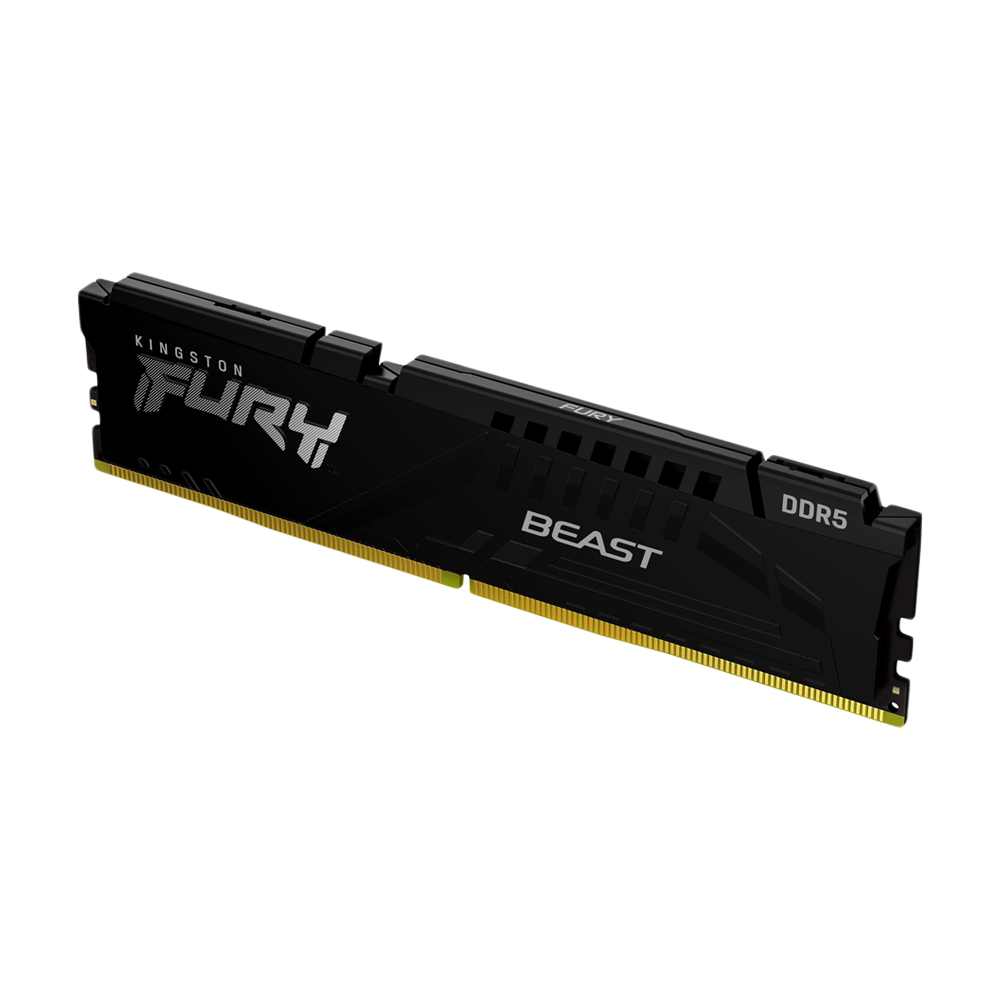

Kingston Fury Beast 16GB DDR5 6000MT/s Non ECC DIMM Memory

Key Features:

• 16GB
• DDR5
• 6000MT/s
• CL40

FURY KF560C40BB-16 is a 2G x 64-bit (16GB) DDR5-6000 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 40-40-40 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37 (34.9mm), w/heatsink

Specifications

• CL(IDD) : 40 cycles
• Row Cycle Time (tRCmin) : 48ns(min.)
• Refresh to Active/Refresh
• Command Time (tRFCmin) : 295ns(min.)
• Row Active Time (tRASmin) : 32ns(min.)
• UL Rating : 94 V - 0
• Operating Temperature : 0o C to +85o C
• Storage Temperature : -55o C to +100o C
