Lian Li HYDROSHIFT II LCD-C 360TL With TL Wireless fans - Black

Key Features:

• Side-mounted tubing and concealed wiring for a minimal, tubeless appearance.
• Features a 2.1” IPS LCD with 480×480 resolution, 500-nit brightness, and 60Hz refresh rate.
• Offers Offline, Wireless, and Advanced USB-connected control modes.
• Three configurations: with TL Wireless, CL Wireless, or fanless for full DIY flexibility.
• Precision tubing alignment with adjustable routing for cleaner builds.
• Slimmed-down 360mm radiator (400×122×24mm) for enhanced case compatibility.
• Pre-installed UNI FANs and support for L-Connect 3 software customization.
• Includes redesigned mounting bracket

Hydroshift II LCD-C is designed for ultimate convenience, with radiators pre-installed with UNI FANs. Users can select from two fan configurations or opt for a fanless version for a fully customizable DIY experience.

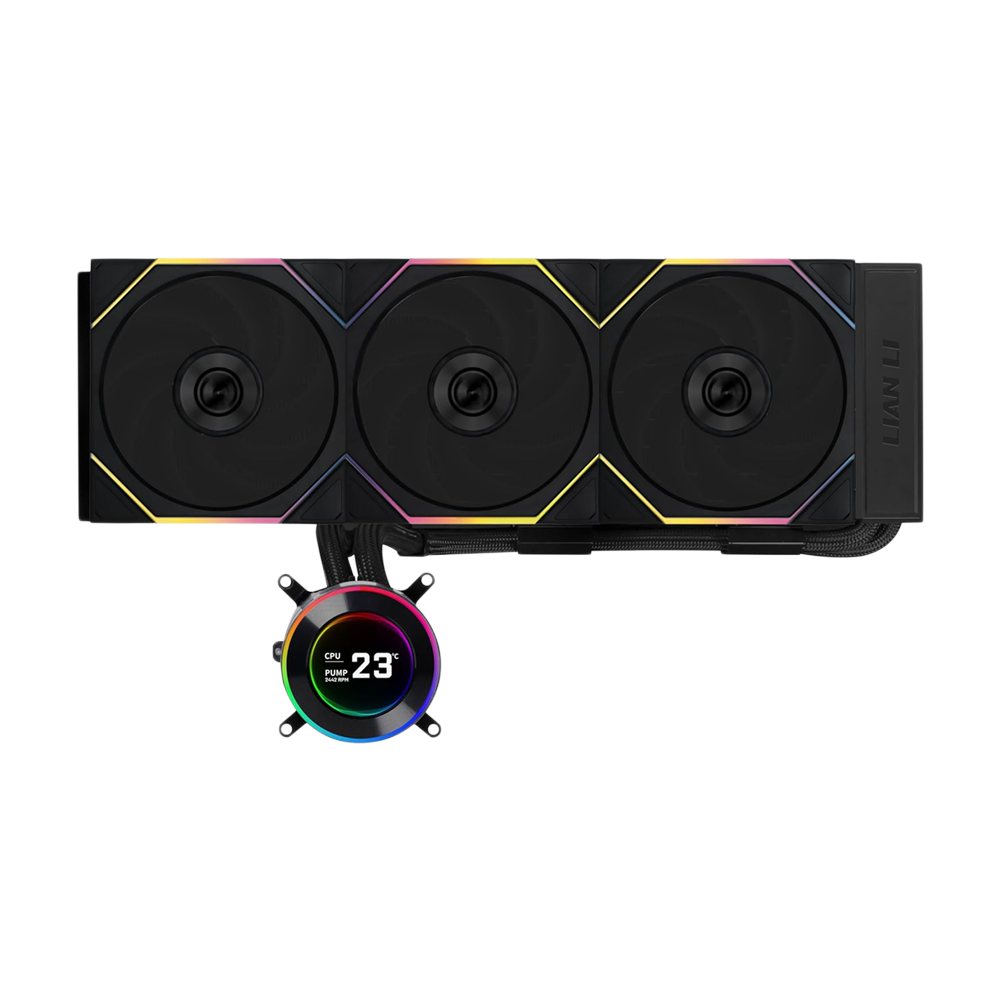

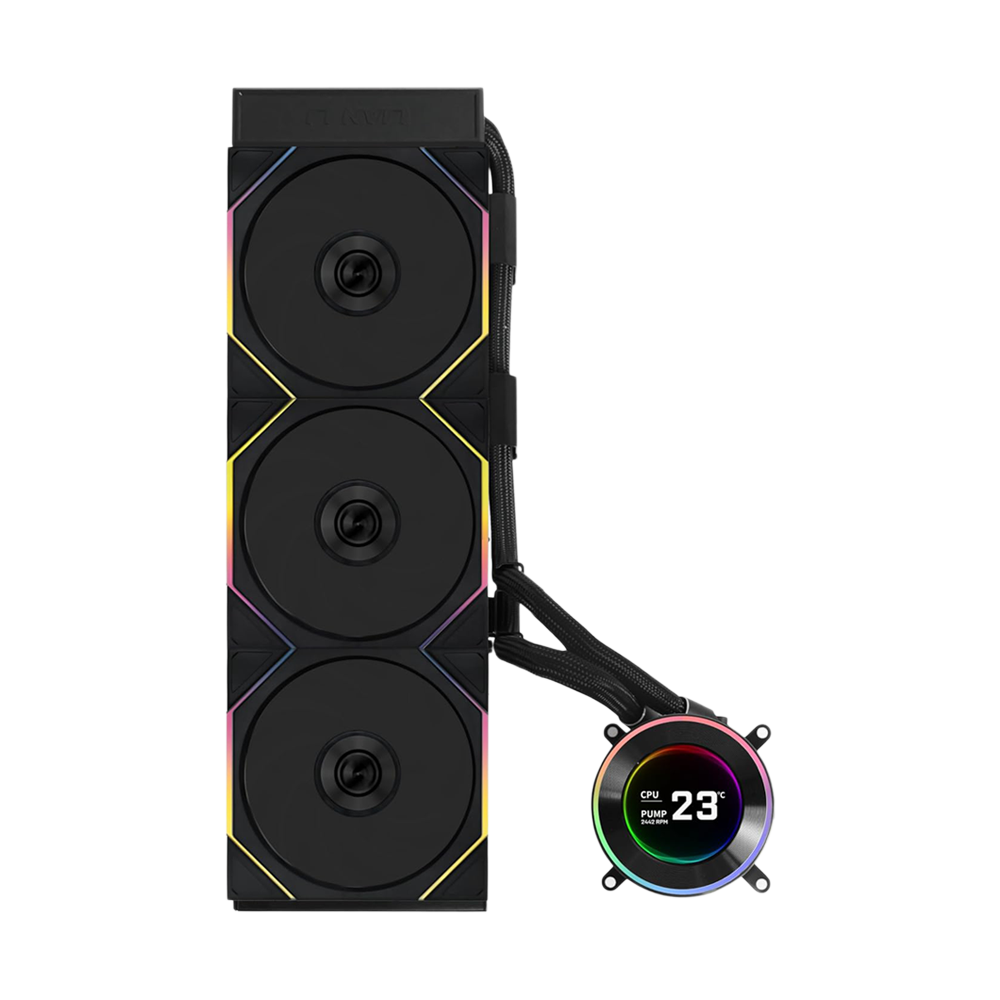

HYDROSHIFT II LCD-C 360TL

Equipped with UNI FAN TL Wireless, this version offers a perfect blend of striking aesthetics and high-performance cooling.

HYDROSHIFT II LCD-C 360CL

Equipped with UNI FAN CL Wireless, this version delivers powerful airflow alongside vibrant, synchronized RGB lighting for a visually stunning build.

HYDROSHIFT II LCD-C 360N

Provides full DIY flexibility, giving users the freedom to choose and install their preferred fans.

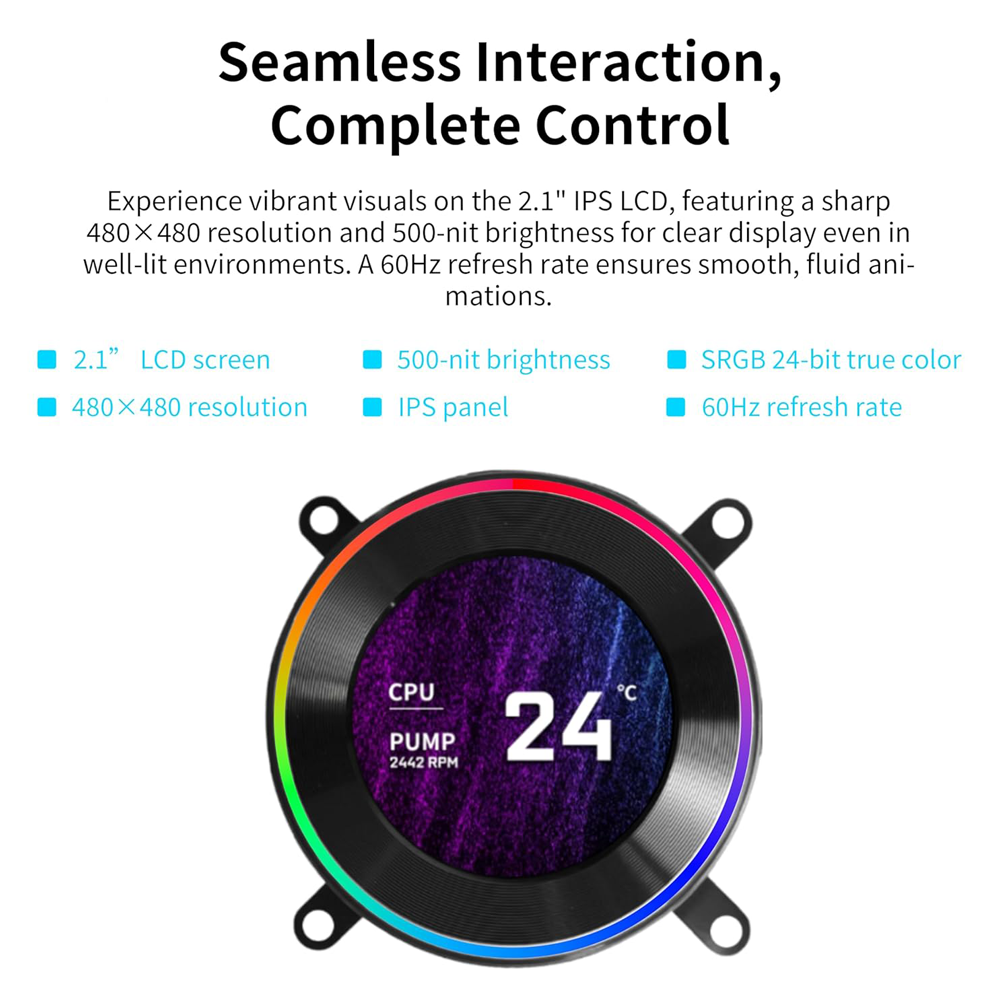

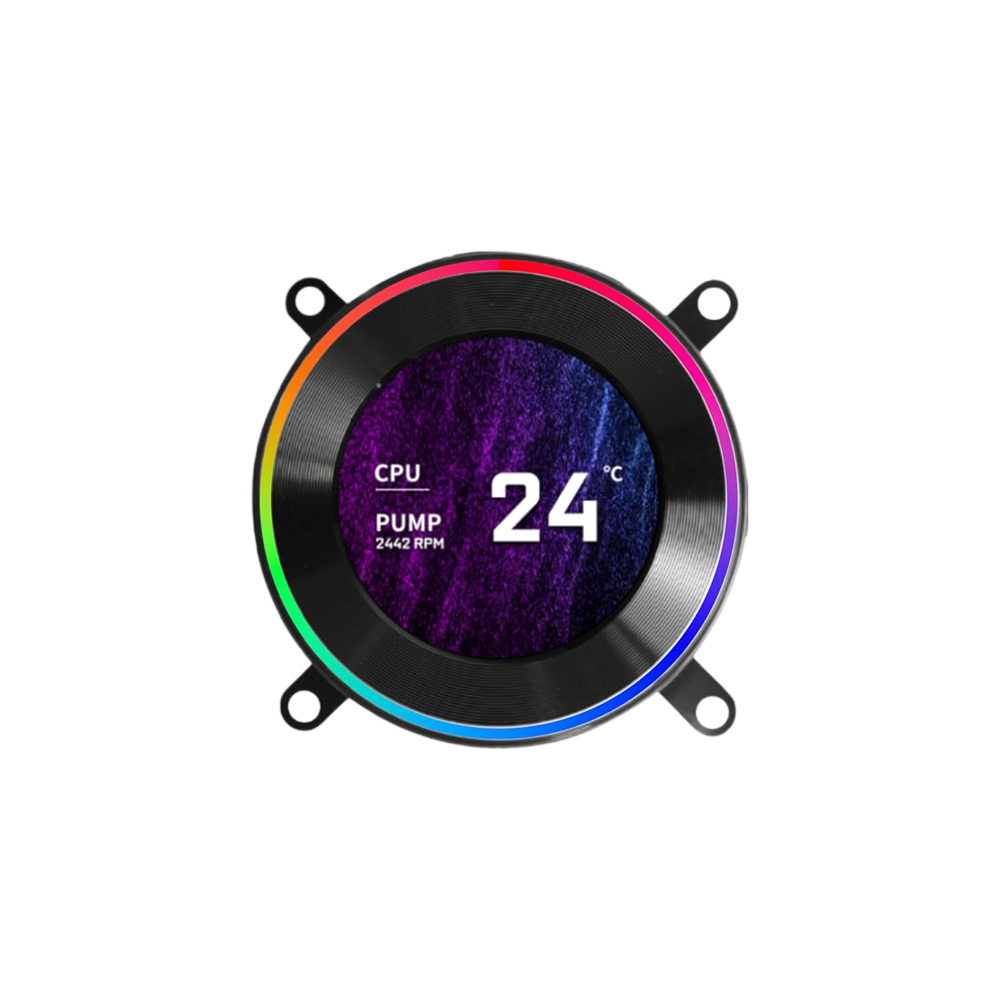

SEAMLESS INTERACTION,COMPLETE CONTROL

Experience vibrant visuals on the 2.1″ IPS LCD, featuring a sharp 480×480 resolution and 500-nit brightness for clear display even in well-lit environments. A 60Hz refresh rate ensures smooth, fluid animations.

MINIMALIST AESTHETICS,MAXIMUM FREEDOM

The innovative side-mounted tubing design routes the tubes along the edge of the radiator, significantly reducing visual clutter. Pump and USB cables are seamlessly hidden in the tubes’ woven sleeve that integrates into the radiator’s side for a “nearly cable-free and tubeless” look.

Additionally, the USB power and data cables are integrated directly into the cooling tubes, leaving the cap completely wire-free, making your computer’s interior more organized.

Pre-installed with three tube support brackets, the water cooling tubes are neatly concealed, while the exposed sections appear more organized, further enhancing the overall tidiness of the case interior.

PRECISION FIT,EFFORTLESS ALIGNMENT

Hydroshift II LCD-C is engineered with both aesthetics and flexibility in mind. Its innovative adjustable tubing design allows for precise alignment directly to the CPU, optimizing cable routing and creating a cleaner internal layout. The result is a sleek, streamlined build that adds refined character to any PC.

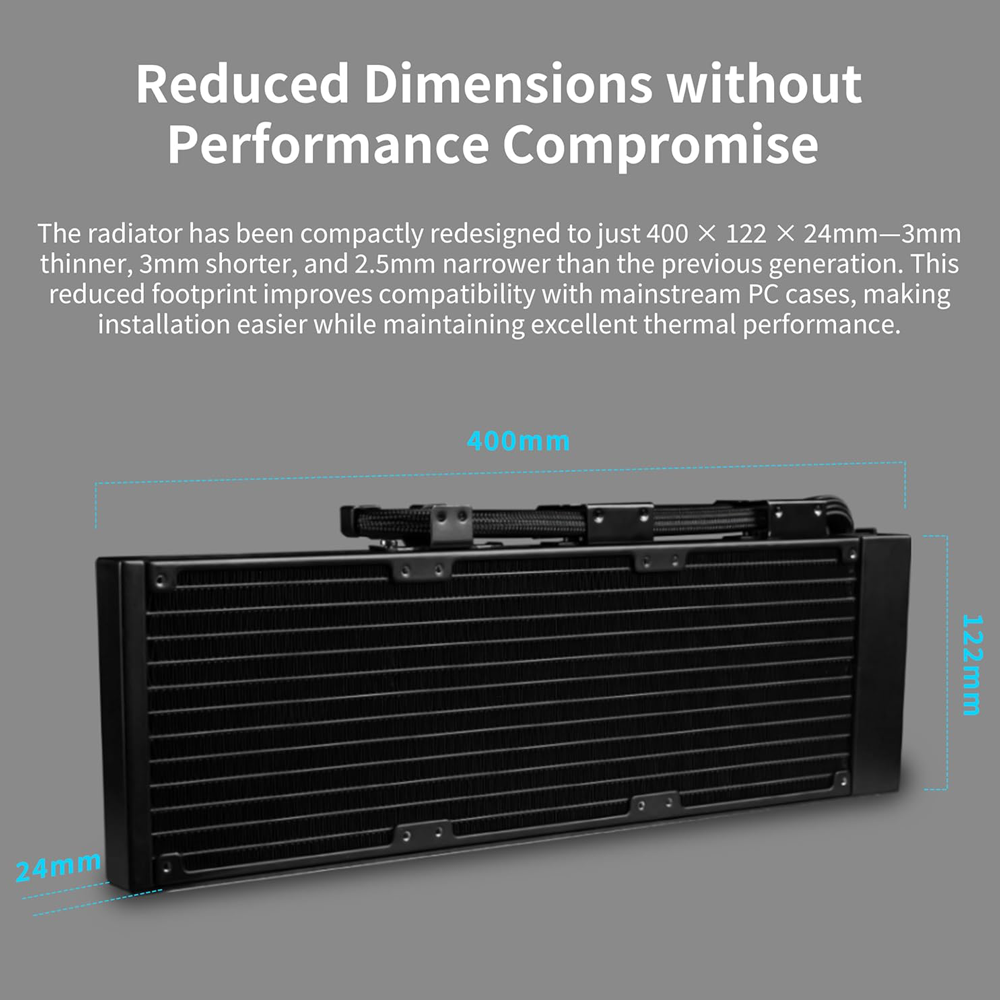

REDUCED DIMENSIONS WITHOUT
PERFORMANCE COMPROMISE

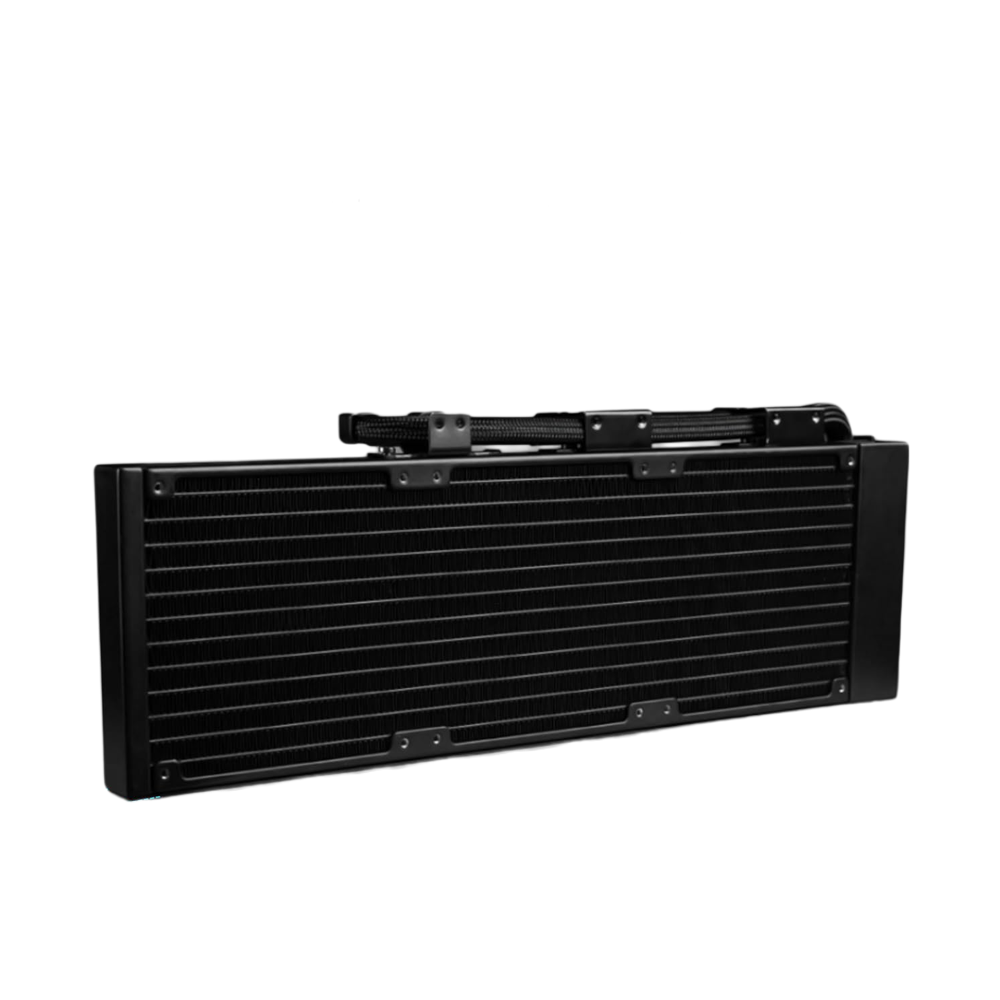

The radiator has been compactly redesigned to just 400 × 122 × 24mm: 3mm thinner, 3mm shorter, and 2.5mm narrower than the previous generation. This reduced footprint improves compatibility with mainstream PC cases, making installation easier while maintaining excellent thermal performance.

REDESIGNED MOUNTING BRACKET

The newly developed mounting system is designed for easier, more intuitive installation. Engineered for simplicity, the new mounting bracket streamlines the setup process with improved structure and logic.

UNIVERSAL COMPATIBILITY, HASSLE-FREE SETUP

Hydroshift II LCD-C is designed for easy installation and supports all major CPU sockets, ensuring a smoother, worry-free building experience.

THREE MODES,DIFFERENT EXPERIENCES

1. Offline Mode (No USB Connection Required)

Easily control the pump cap by rotating the transparent outer ring. A built-in sensor tracks real-time coolant temperature and pump speed, while turning the ring clockwise switches screen themes and counterclockwise adjusts lighting effects—offering seamless customization without the need for a USB connection.

2. Wireless Mode (No USB Connection)

With the L-Wireless Controller, users can wirelessly switch between screen content and select different hardware sensors to monitor. It also enables easy adjustment and synchronization of lighting effects across all LIAN LI wireless products.

Wireless Mode Advanced (With USB Connection)

By adding a USB connection, users can enjoy the best of both worlds: wireless lighting control and full LCD customization. Lighting effects remain wirelessly synced with all LIAN LI wireless products, while the LCD gains full customization capabilities, including video and photo uploads as well as modular assets and theme selection.

3. Streaming Mode (USB Connected)

Unlock full customization capabilities with USB connection. Like the “Wireless Mode Advanced”, the LCD gains full customization capabilities, including video and photo uploads as well as modular assets and theme selection.

FLEXIBLE LAYOUT,
UPGRADED COMPATIBILITY

The top mounting position needs support for both 360mm and 280mm sized radiators, the HydroShift II fits standard 360 AIO spacing of 400mm for radiator length, and 280mm AIO support gives 140mm width for the tubing installation. Depending on the case’s top clearance, users may opt to remove the vertical tubing support bracket. It is recommended for setups with radiator + fan thickness over 55mm.
Since different cases may present varying installation scenarios, users can adjust or remove the support bracket as needed to suit their specific setup. Please refer to the user manual for detailed guidance.

Specifications

• PRODUCT NAME : Hydroshift II LCD-C 360TL
• MODEL : GHS2LCD36TB
• TYPE : 360
• COLOR : Black
• PUMP SPEED : 2000-2500RPM±10％
• PUMP NOISE : 28dBA
• PUMP HEAD DIMENSIONS : 69 x 87 x 87mm
• SCREEN REFRESH RATE : 60Hz
• LCD PANEL : 2.1 IPS
• SCREEN RESOLUTION : 480 x 480
• SCREEN BRIGHTNESS : 500nit
• RADIATOR DIMENSIONS : 400 x 122 x 24mm
• RADIATOR MATERIAL : Aluminum Alloy
• TUBING LENGTH : 450/475mm
• FAN DIMENSIONS : 124 x 120 x 28mm
• FAN SPEED : 0，200-2600RPM
• STATIC PRESSURE : 3.97 H2o
• AIRFLOW : 90.1 CFM
• NOISE LEVEL : 33 dBA
• BEARING TYPE : Fluid Dynamic Bearing (FDB)
• SUPPORTED PLATFORMS : intel：LGA1700 1851
• AMD：AM4 AM5 (FDB)
