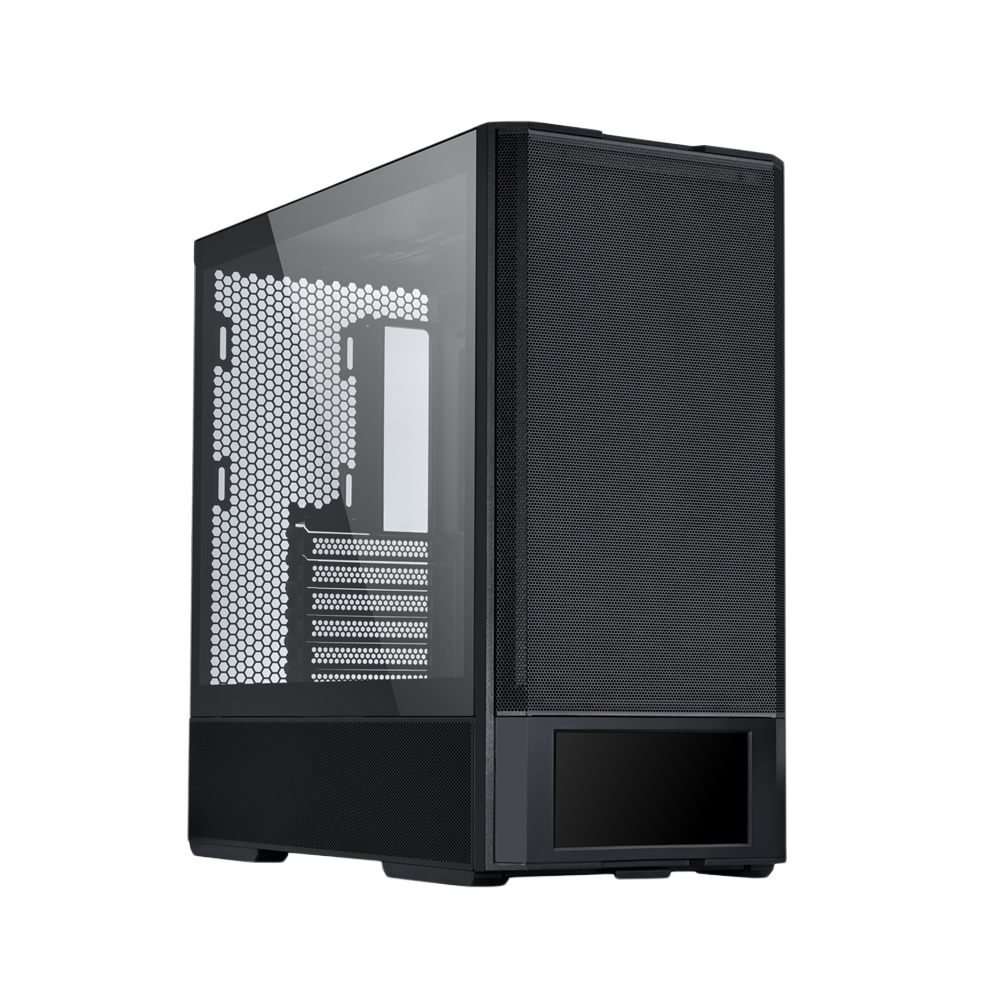

Lian Li Lancool 207 Mid Tower ATX PC Case - Black

Key Features:

• 6”LCD at the bottom of the panel: 60Hz refresh rate, 720×1600 pixels resolution, and 500 nits brightness.
• M-ATX sized case with ATX compatibility
• Included 2 x 140mm PWM fans at the front, and 2 x 120mm PWM fans at the bottom
• Supports 360 radiator on the top and GPU up to 375mm long
• Motherboard tray position redesigned slightly lower into the PSU shroud with two bottom fans placed directly under the GPU for better cooling
• Well ventilated mesh panels on the front, top, and bottom, enhancing airflow
• Unique front PSU Installation
• GPU Anti-sag Bracket Included

The LANCOOL 207 Digital adds a playful touch to the LANCOOL 207, featuring an integrated LCD screen for real-time system monitoring and customizability—all within a sleek and compact M-ATX chassis.

AVAILABLE IN BLACK
The LANCOOL 207 Digital is available in classic black, emphasizing a sense of understated style.

ATX LAYOUT RE-INVENTED
Though compact in size, the LANCOOL 207 Digital offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm long, all within its 45.5L chassis.

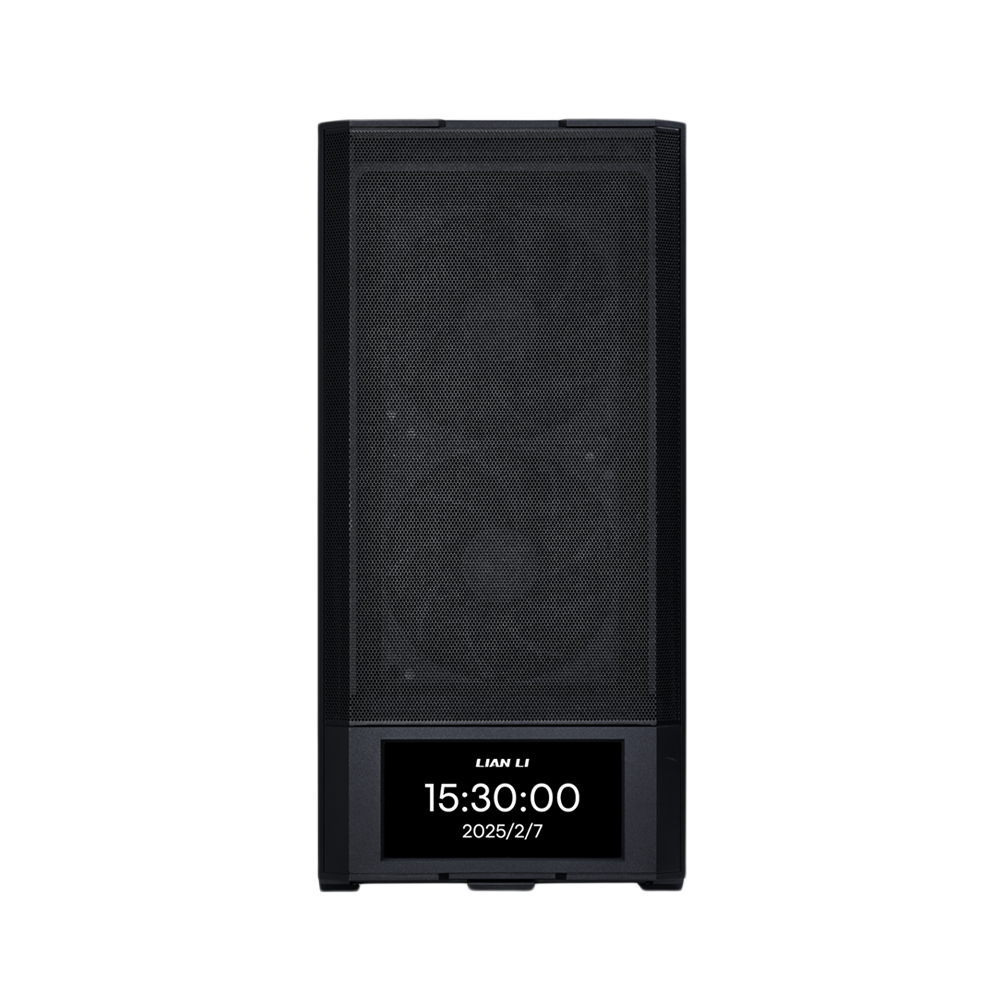

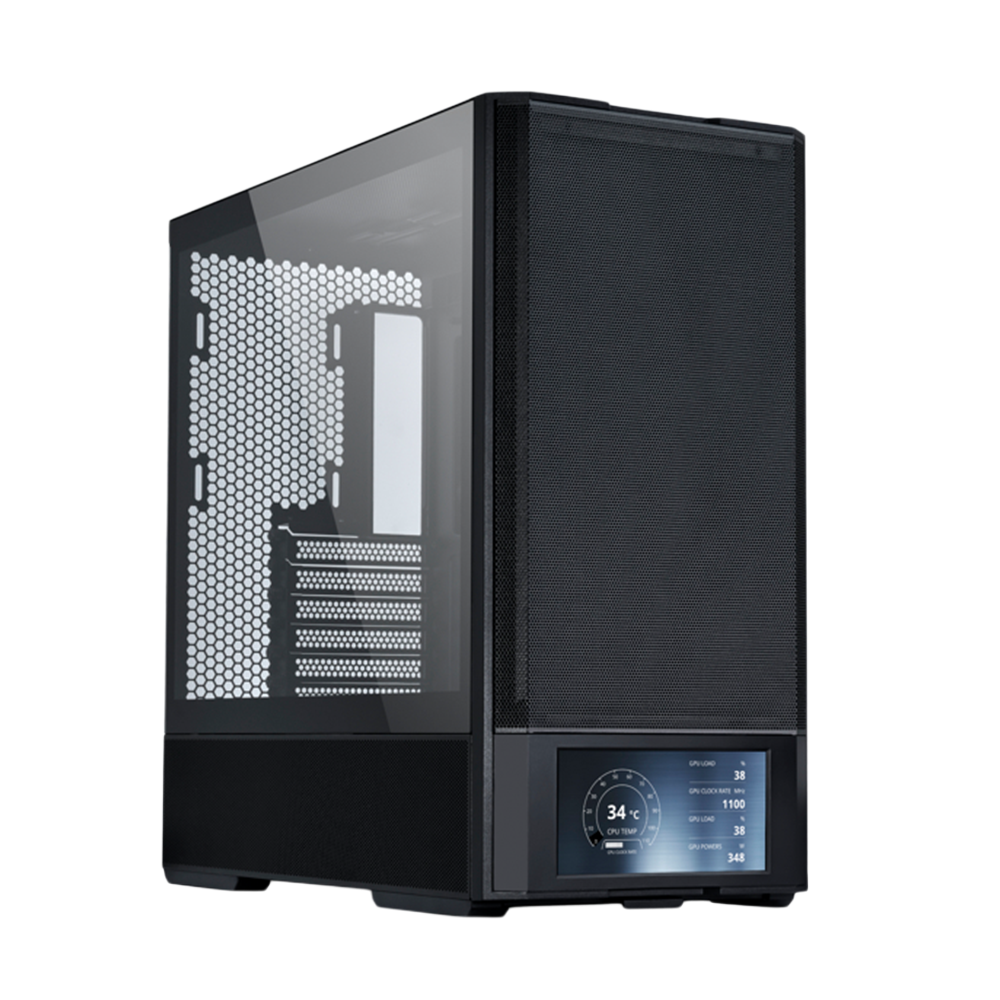

6-INCH LCD SCREEN
This 6” LCD screen features a 60Hz refresh rate, a 720×1600 resolution, and 500 nits of brightness. It offers extensive customization options and can display a wide range of hardware information in real time.

Real-Time Performance, Personalized Display
Choose from nearly 30 built-in templates for a quick and polished setup. You can also import “third-party” templates

For a fully personalized experience, L-Connect 3 features a powerful built-in canvas tool that lets you design your display your way. Freely arrange modular elements, craft a layout that fits your style, and even upload your favorite images to make your setup truly one of a kind.

The screen can also function as a 60Hz secondary display, perfect for monitoring or multitasking. Users can easily toggle the secondary screen function ON or OFF directly within the L-Connect 3 interface.

The screen is also allowed to be as a secondary screen (60hz refresh rate) by L-connect 3 control.

The screen function also includes fan speed dashboard. Fans can be custom-named for easy identification, with clearly displayed positions for quick recognition. Real-time RPM and temperature source readings enable precise monitoring and fine-tuning of cooling performance.

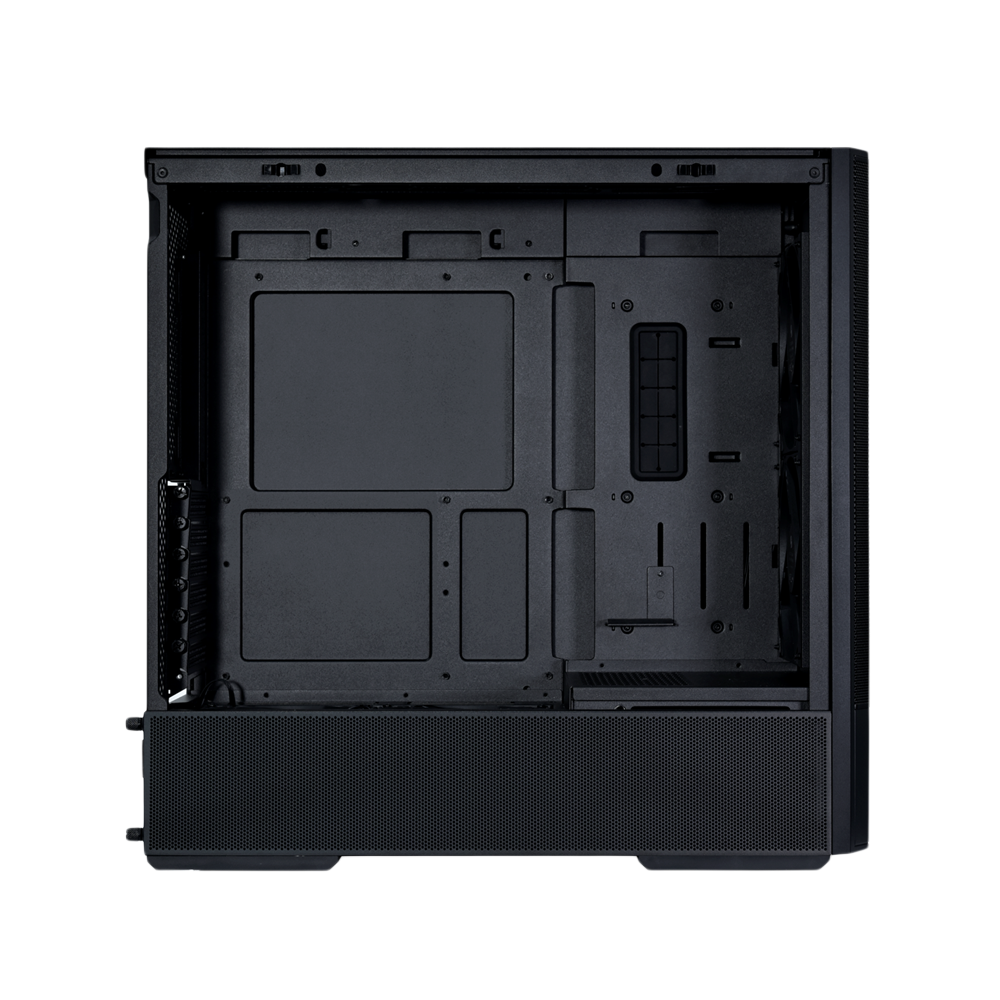

SPACE-SAVING INNOVATIVE LAYOUT
The LANCOOL 207 Digital’s unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.

Supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards

Supports graphics cards up to 375mm long and CPU coolers with heights up to 180mm.

EASY ACCESS FRONT-MOUNTED PSU
The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.

OPTIMAL AIRFLOW DESIGN
Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 digital comes pre-installed with four high-performance fans for superior out-of-box cooling.

GPU ANTI-SAG BRACKET SUPPORT
The LANCOOL 207 Digital includes an adjustable GPU anti-sag bracket, offering extensive adjustability to fit GPUs of all sizes.

To provide power and signal to the screen, users can either connect to a 9-pin port on the motherboard or use an extension cable to a Type-A port.

For easier setup, the chassis’s rear panel features a dedicated cutout, allowing for clean and convenient cable routing when connecting the screen.

SEAMLESS CONNECTIVITY
The LANCOOL 207 Digital’s top-mounted I/O panel offers easy access to essential ports.

EFFICIENT CABLE MANAGEMENT
With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.

OPTIONAL ACCESSORIES
Vertical GPU Kit – VG4-4-V2X / VG4-4-V2W

The LIAN LI universal vertical GPU bracket can be installed with no need to remove the bottom fans, ensuring enhanced airflow. The included rubber pad can be used to prevent the GPU from sagging.

Front Dust Filter – LAN207-1X

For next level dust prevention, a front panel dust filter is available as an optional accessory. It fits seamlessly behind the front fan, providing an extra layer of protection.

Specifications

• MODEL NAME : LAN207DX
• COLOR : Black
• DIMENSION : (D) 455.6mm x (W) 219mm x (H) 456mm
• MATERIAL : Steel/ 4.0mm Tempered Glass
• EXPANSION SLOTS : 7
• MOTHERBOARD SUPPORT : Standard ATX ( Width Max 244mm ) / Micro-ATX/Mini-ITX
• PSU SUPPORT : (Under 160mm)
• FAN SUPPORT : Front: 140mm x 2
• Top: 120mm x 3 or 140mm x 2
• Above PSU Shroud: 120mm x 2
• Rear: 120mm x 1
• RADIATOR SUPPORT : Top: 360/280/240mm
• DRIVE SUPPORT : 2x 3.5″ HDD or 2.5″ SSD
• GPU LENGTH CLEARANCE : 375mm (Max.)
• CPU HEIGHT CLEARANCE : 180mm (Max.)
• I/O PORTS : USB 3.0 × 2
• USB 3.2 TYPE-C × 1
• Audio × 1
• Power Button × 1
• DUST FILTER : 1 x Bottom
• SCREEN : 6 inch
• SCREEN RESOLUTION : 720×1600 pixels
• SCREEN REFRESH RATE : RATE 60Hz
• SCREEN BRIGHTNESS : 500nits
